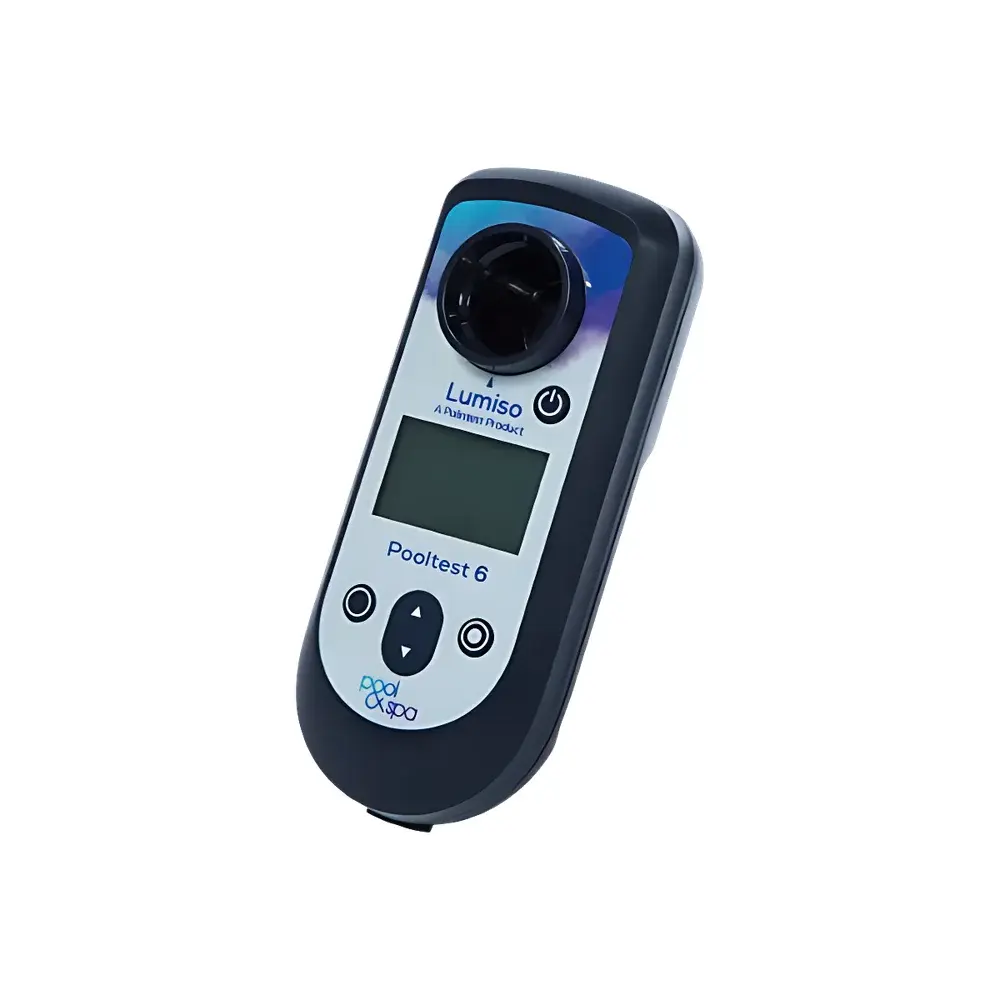

Palintest Lumiso Pooltest6 Portable Photometric Water Quality Analyzer

Overview

The Palintest Lumiso Pooltest6 is a rugged, handheld photometric analyzer engineered specifically for routine water quality monitoring in swimming pools, spas, and aquatic leisure facilities. As the successor to Palintest’s legacy Pooltest series, it leverages over four decades of expertise in colorimetric water analysis—Palintest being the original inventor of the DPD (N,N-diethyl-p-phenylenediamine) method for chlorine determination. The instrument operates on the principle of absorbance photometry, utilizing dual-wavelength optical detection to eliminate interferences from turbidity or sample color drift. Each measurement is performed using pre-calibrated, factory-sealed solid reagent vials, ensuring batch-to-batch consistency and eliminating liquid reagent handling errors. Designed for field-deployable operation under variable environmental conditions, the Lumiso Pooltest6 delivers traceable, repeatable results aligned with international regulatory frameworks—including ISO 7027 for turbidity-corrected photometry, EN ISO 8694 for disinfectant residual testing, and China’s GB/T 5750.11–2023 standard for swimming pool water hygiene assessment.

Key Features

• IP67-rated enclosure: Fully sealed against dust ingress and submersion up to 1 meter for 30 minutes—enabling reliable use on pool decks, in maintenance rooms, or during outdoor inspections.
• Dual-wavelength auto-selection: Dynamically switches between primary and reference wavelengths based on assay protocol, compensating for background absorbance and improving measurement robustness across high-turbidity or colored samples.
• Integrated data management: Stores up to 50 test records with timestamp, parameter ID, and result value; supports USB-based export to CSV or Excel-compatible formats for QA/QC documentation and audit trails.
• Intuitive icon-driven UI: 226×138-pixel monochrome LED display with contextual icons guides users through calibration, reagent insertion, and measurement steps—minimizing operator training requirements.
• Reagent flexibility & traceability: Compatible with Palintest’s PM-series solid reagent vials (e.g., PM 011 for free chlorine, PM 087 for cyanuric acid), each bearing unique lot numbers and expiration dates compliant with GLP documentation standards.
• Battery-operated portability: Powered by three standard AA cells with >10,000 measurements per set—ideal for mobile technicians performing multi-site inspections without access to mains power.

Sample Compatibility & Compliance

The Lumiso Pooltest6 is validated for use with clarified or filtered pool water samples conforming to APHA Standard Methods 4500-Cl G (DPD colorimetry), 4500-O₃ B (indigo carmine ozone assay), and 4500-CY-A (cyanuric acid turbidimetric method). It meets the performance criteria specified in ISO 8694:2022 for residual disinfectant measurement in recreational water, and supports full compliance with China’s GB/T 5750.11–2023 Annex C for simultaneous quantification of free chlorine, combined chlorine, cyanuric acid, pH, total alkalinity, calcium hardness, and urea. All reagent vials are manufactured under ISO 13485-certified production controls and include Certificate of Analysis (CoA) documentation upon request. The instrument itself undergoes factory calibration verification against NIST-traceable reference standards prior to shipment.

Software & Data Management

Data generated by the Lumiso Pooltest6 can be retrieved via USB connection using Palintest’s free PC-based software suite, which supports automated report generation in PDF or Excel format. The software enforces structured metadata capture—including operator ID, location tag, sampling date/time, and instrument serial number—facilitating alignment with FDA 21 CFR Part 11 requirements for electronic records when deployed in regulated environments. Firmware updates are delivered via secure QR-code scanning, eliminating dependency on proprietary cables or cloud accounts. Audit logs record all configuration changes, calibration events, and data exports—ensuring full traceability for internal QA reviews or third-party accreditation audits (e.g., ISO/IEC 17025).

Applications

• Routine daily verification of disinfectant residuals (free/total chlorine, ozone) in public and private swimming pools.
• Monitoring stabilizer levels (cyanuric acid) to prevent UV degradation of chlorine and avoid over-stabilization risks.
• Tracking buffering capacity (total alkalinity) and calcium saturation index (calcium hardness + pH) to mitigate corrosion or scaling in circulation systems.
• Urea quantification as an indirect indicator of bather load and organic contamination—critical for facilities operating under strict hygiene protocols.
• Field validation of online sensor outputs during commissioning, troubleshooting, or periodic verification per ASTM D5116 guidelines.
• Supporting HACCP-based water safety plans in aquatics centers, hotels, and therapeutic pool facilities.

FAQ

Is the Lumiso Pooltest6 suitable for saltwater pools?
Yes—the instrument measures free and total chlorine regardless of chloride source (sodium hypochlorite, calcium hypochlorite, or electrolytically generated chlorine), and its optical system compensates for elevated ionic strength typical of saline systems.
Can I use third-party reagents with this device?
No—only Palintest-branded PM-series solid reagent vials are validated for use. Substitution may compromise accuracy, repeatability, and regulatory compliance due to uncontrolled reaction kinetics and spectral interference profiles.
How often does the instrument require recalibration?
The Lumiso Pooltest6 employs factory-set optical calibration with no user-accessible adjustment; however, annual verification against Palintest-certified reference standards is recommended for ISO/IEC 17025-compliant laboratories.
Does it support Bluetooth or Wi-Fi connectivity?
No—data transfer is exclusively via USB interface to ensure electromagnetic compatibility in electrically noisy pool plant rooms and eliminate cybersecurity vulnerabilities associated with wireless protocols.
What is the shelf life of the solid reagent vials?
Unopened vials retain stability for 24 months when stored at 2–30 °C and protected from direct sunlight; expiration dates are laser-printed on each vial cap.
