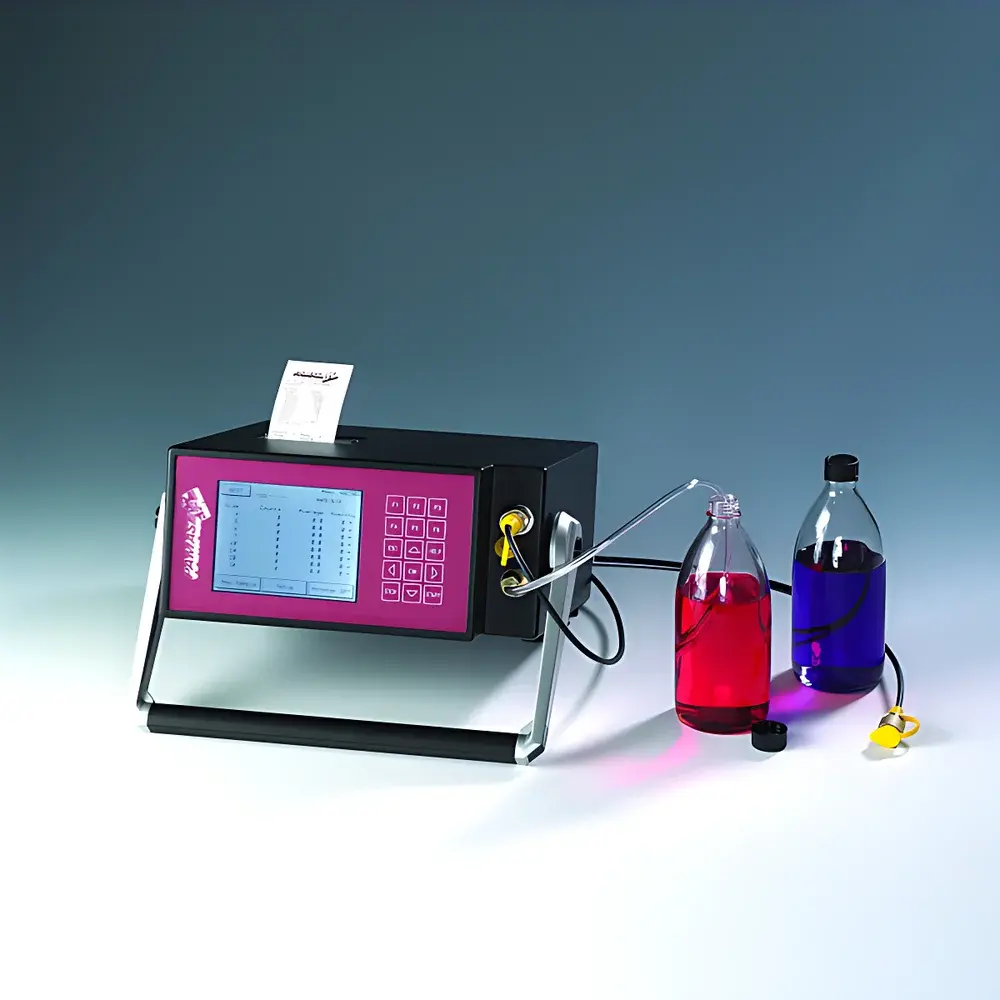

PAMAS S40 Portable Optical Particle Counter

Overview

The PAMAS S40 Portable Optical Particle Counter is an engineered solution for in-situ and field-deployable contamination monitoring of hydraulic fluids, lubricants, turbine oils, and other industrial liquids. It operates on the well-established light obscuration (LO) principle—where particles passing through a precisely aligned laser beam induce measurable reductions in transmitted light intensity. Each transient signal is converted into a pulse whose amplitude correlates with particle cross-sectional area, enabling deterministic sizing and counting within eight independently configurable size channels. Designed for operational robustness in demanding environments—from power plant switchgear rooms to offshore wind turbine nacelles—the S40 integrates a high-tolerance piston pump capable of delivering stable flow rates across both atmospheric and pressurized systems (up to 420 bar). Its compact footprint, integrated thermal printer, and touchscreen-driven interface eliminate dependency on external PCs during routine condition monitoring, supporting immediate decision-making at the point of measurement.

Key Features

• True portability with integrated rechargeable backup battery for data integrity during power interruptions
• Backlit capacitive touchscreen interface with intuitive graphical visualization of particle distribution histograms and cumulative counts
• Eight programmable particle size thresholds—fully customizable to match application-specific cleanliness specifications (e.g., ISO 4406, NAS1638, or SAE AS4059D)
• DIN 2353 standardized hydraulic quick-connect interface for rapid, leak-free coupling to test points on machinery or reservoirs
• Onboard 32-bit microcontroller ensures real-time signal processing, minimizing latency and enhancing repeatability
• Thermal printer outputs full-resolution reports: differential counts per channel, cumulative counts, and derived cleanliness codes per international standards
• Password-protected access levels (operator, supervisor, administrator) support audit-ready operation in regulated environments
• Viscosity-compensated measurement algorithm validated for fluids up to 200 cSt (non-pressurized), 350 cSt (pressurized), and 1000 cSt (lubricant-specific calibration mode)

Sample Compatibility & Compliance

The S40 is validated for use with mineral oils, synthetic lubricants, phosphate esters, water-glycol fluids, and aviation hydraulic fluids meeting MIL-PRF-5606 or MIL-PRF-83133 specifications. Its optical sensing chamber—fabricated from fused silica with anti-reflective coatings—is chemically inert to common solvents and resistant to mechanical wear under continuous flow. Calibration traceability follows ISO 21501-4 for liquid-borne particle counters, with factory verification using NIST-traceable latex sphere suspensions (ISO 11171). The instrument meets electromagnetic compatibility requirements per EN 61326-1 and safety compliance per IEC 61010-1. Data acquisition and storage architecture supports GLP/GMP-aligned workflows, including timestamped records with operator ID tagging—essential for maintenance logbooks and regulatory audits.

Software & Data Management

Raw particle count data is exported via RS-232C as ASCII-encoded frames compatible with industry-standard analysis platforms including PAMAS LabView-based PC software, MATLAB, and custom SCADA integrations. Each record contains complete metadata: date/time stamp, sample ID, operator code, pump pressure, flow rate, temperature (if external probe connected), and full 8-channel count matrix. Internal memory retains 500 measurements with automatic overwrite protection; data export preserves original resolution without interpolation or binning loss. Optional firmware updates maintain alignment with evolving ISO/SAE standard revisions—particularly critical for users transitioning between ISO 4406:1999 and newer editions requiring updated reporting logic.

Applications

• Condition-based maintenance of hydraulic systems in aerospace ground support equipment and military vehicles
• Pre-commissioning verification of turbine lube oil cleanliness prior to startup (per ISO 4406 Class 14/12/9 or stricter OEM requirements)
• Real-time monitoring of transformer insulating oil per IEC 60970 and ASTM D6786 protocols
• Quality control of new oil batches entering inventory—comparing against NAS1638 Class 2 or ISO Class 16/14/12 baselines
• Root-cause analysis of bearing wear in gearboxes via trending of >4 µm and >6 µm particle populations
• Validation of filter performance efficiency (β-ratio testing) in offline filtration circuits

FAQ

Does the S40 require periodic recalibration by an accredited lab?
Yes—annual verification against ISO 11171 reference materials is recommended for metrological continuity, particularly when used in ISO 17025-accredited laboratories.
Can the S40 measure particles in aqueous solutions?
It is not optimized for water-based coolants or demineralized water due to refractive index mismatch and potential sensor fouling; dedicated aqueous particle counters with wetted-path design are advised.
Is the RS-232 interface compatible with modern Windows 11 systems?
Yes—when paired with a certified USB-to-serial adapter and standard terminal emulation software (e.g., PuTTY or Tera Term), full bidirectional communication is maintained.
How does the S40 handle air bubbles in the sample stream?
The system incorporates acoustic bubble detection and automatic flow suspension until bubble clearance, preventing false positives and ensuring measurement integrity.
What is the minimum detectable particle size?
The optical configuration supports reliable detection down to 4 µm (c = 50% detection probability per ISO 21501-4), with typical lower limit of quantification at 6 µm under field conditions.
