| Brand | PAMAS |
|---|---|
| Origin | Germany |
| Model | SBSS S50 |
| Instrument Type | Optical Particle Counter |
| Measurement Range | 1–200 µm |
| Channel Sizes (c) | >4, >6, >10, >14, >21, >25, >38, >70 µm |
| Particle Count Range | 0–24,000 particles/mL |
| ISO 4406 Code Display | 0/0/0 to 24/23/22 |
| Operating Pressure | 0.2–20 bar (standard), 5–400 bar (optional), 0–6 bar (S50P variant) |
| Max. Fluid Viscosity | 1000 cSt (pressure-dependent) |
| Interfaces | USB, RS-485 (standard), optional RS-232 or external RS-485 |

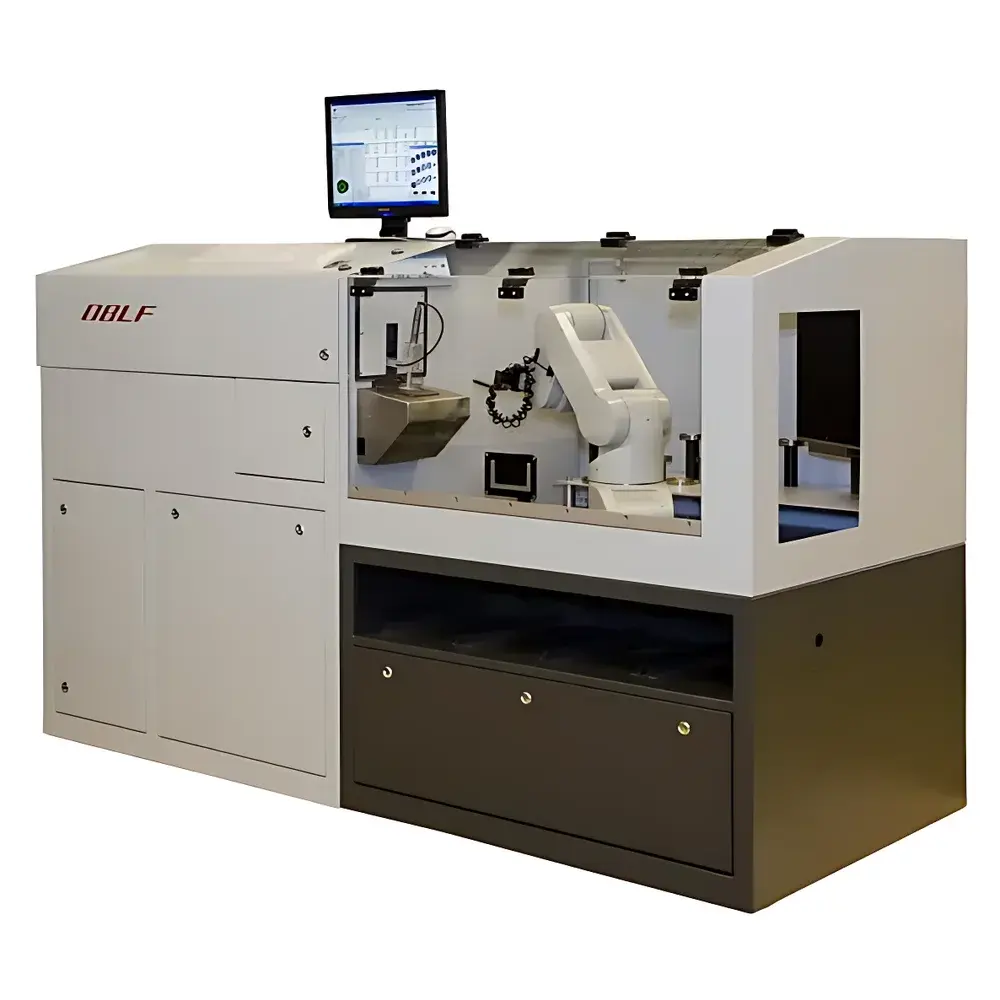

| Brand | OBLF |
|---|---|
| Origin | Germany |
| Model | QSN/G 750-II R |
| Instrument Type | Floor-Standing |
| Excitation Method | Spark Discharge |
| Detector Type | Photomultiplier Tube (PMT) |
| Focal Length | 750 mm |
| Grating Groove Density | 2400 lines/mm |
| Wavelength Range | 120–800 nm |
| Number of Simultaneous Channels | 64 |
| Brand | PAMAS |
|---|---|
| Origin | Germany |
| Model | WaterViewer |
| Instrument Type | Optical Particle Counter |
| Measuring Range | 1–100 µm (extendable to 800 µm) |
| Particle Concentration Capacity | 0–200,000 particles/mL |
| Connectivity | Multi-channel digital interface, network-enabled (Ethernet/Modbus TCP), supports up to 32 parallel water lines via multiplexer |
| Automation | Fully automated operation with scheduled sensor cleaning, remote monitoring & control capability |
| Brand | OBLF |
|---|---|
| Origin | Germany |
| Model | QSN750-II |
| Instrument Type | Floor-standing |
| Excitation Method | Spark |
| Detector Type | Photomultiplier Tube (PMT) |
| Focal Length | 750 mm |
| Grating Groove Density | 2400 lines/mm |
| Wavelength Range | 190–780 nm |
| Number of Analytical Channels | 60 |
| Optical Resolution (1st Order) | 0.55 nm/mm |
| Vacuum Pump Duty Cycle | <5% of total operating time |
| Spark Frequency | Up to 1000 Hz |
| Analysis Time (Steel Sample) | ~15 s |
| Operating Temperature | 12–35 °C |
| Dimensions (L×W×H) | 1040 × 900 × 1300 mm |
| Weight | 550 kg |
| Brand | PAMAS |
|---|---|
| Origin | Germany |
| Model | SBSS |
| Instrument Type | Optical Blockage (Light Obscuration) Particle Counter |
| Detection Principle | Light Obscuration (LO) |
| Particle Size Range | 0.5–800 µm |
| Adjustable Size Channels | Up to 32 |
| Calibration Standards | ISO 11171 & ISO 4402 Dual Calibration |
| Display | 320×240 backlit LCD |
| Printer | Built-in 32-column thermal printer |
| Data Interface | RS-232C, 8-bit ASCII |
| Power Supply | 110/115/220/230 V, 50–60 Hz |
| Sample Delivery | Precision piston-driven constant-flow volumetric dosing |
| Brand | OBLF |
|---|---|
| Origin | Germany |
| Instrument Type | Floor-Standing |
| Excitation Method | Spark |
| Detector Type | Photomultiplier Tube (PMT) |
| Focal Length | 750 mm |
| Grating Groove Density | 2400 lines/mm |
| Wavelength Range | 120–800 nm |
| Number of Channels | 64 |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | S40 |
| Instrument Type | Optical Particle Counter |
| Measurement Principle | Light Obscuration (LO) |
| Particle Size Channels | 8 user-configurable thresholds |
| Compliance Standards | ISO 4406:1987, ISO 4406:1999, SAE AS4059D, NAS1638 (12-class cleanliness grading) |
| Flow Control | Integrated piston pump, capable of sampling from ambient pressure up to 420 bar system pressure |
| Display | Backlit touchscreen interface |
| Data Output | RS-232C serial interface, 8-bit ASCII protocol |
| Printer | Built-in 32-column thermal printer |
| Storage Capacity | 500 measurement records |
| Power Supply | 90–230 V AC, 50 Hz |
| Weight | ~9 kg |
| Dimensions | 300 × 140 × 300 mm |
| Viscosity Range | ≤200 cSt (unpressurized), ≤350 cSt (pressurized), ≤1000 cSt (lubricating oil systems) |
| Security | User-level password protection |
| CPU | 32-bit high-performance controller |
| Brand | PAMAS |
|---|---|
| Origin | Germany |
| Model | SVSS |
| Instrument Type | Optical Particle Counter |
| Sample Volume Range | 50–1000 µL (analysis), 250–2000 µL (container capacity) |
| Adjustable Size Channels | 32 |
| Flow Rate Control | Constant, Volume-Selectable (1 mL / 10 mL / 25 mL modes) |
| Threshold Adjustment | Digital-to-Analog Converter (DAC)-Based Gate Setting |
| Brand | PAMAS |
|---|---|
| Origin | Germany |
| Model | S4031 GO |
| Instrument Type | Optical Particle Counter |
| Measurement Range | 1 µm to 400 µm |
| Application Media | Water and Hydraulic Oil |
| Detection Principle | Light Obscuration (LO) |
| Compliance | ISO 4406, ISO 11171, ASTM D6786, NAS 1638 |
| Brand | OBLF |
|---|---|
| Origin | Germany |
| Model | OBLF VeOS |
| Instrument Type | Floor-Standing |
| Excitation Method | Spark |
| Detector Type | Charge-Coupled Device (CCD) |
| Focal Length | 500 mm |
| Grating Groove Density | 2700 lines/mm |
| Wavelength Range | 120–800 nm |
| Number of Detection Channels | 128 |
| Brand | OBLF |
|---|---|
| Origin | Germany |
| Model | OBLF GS1000 II |
| Instrument Type | Floor-standing |
| Excitation Method | Spark |
| Detector Type | Photomultiplier Tube (PMT) |
| Focal Length | 500 mm |
| Grating Groove Density | 2700 lines/mm |
| Wavelength Range | 120–780 nm |
| Number of Channels | 32 |
