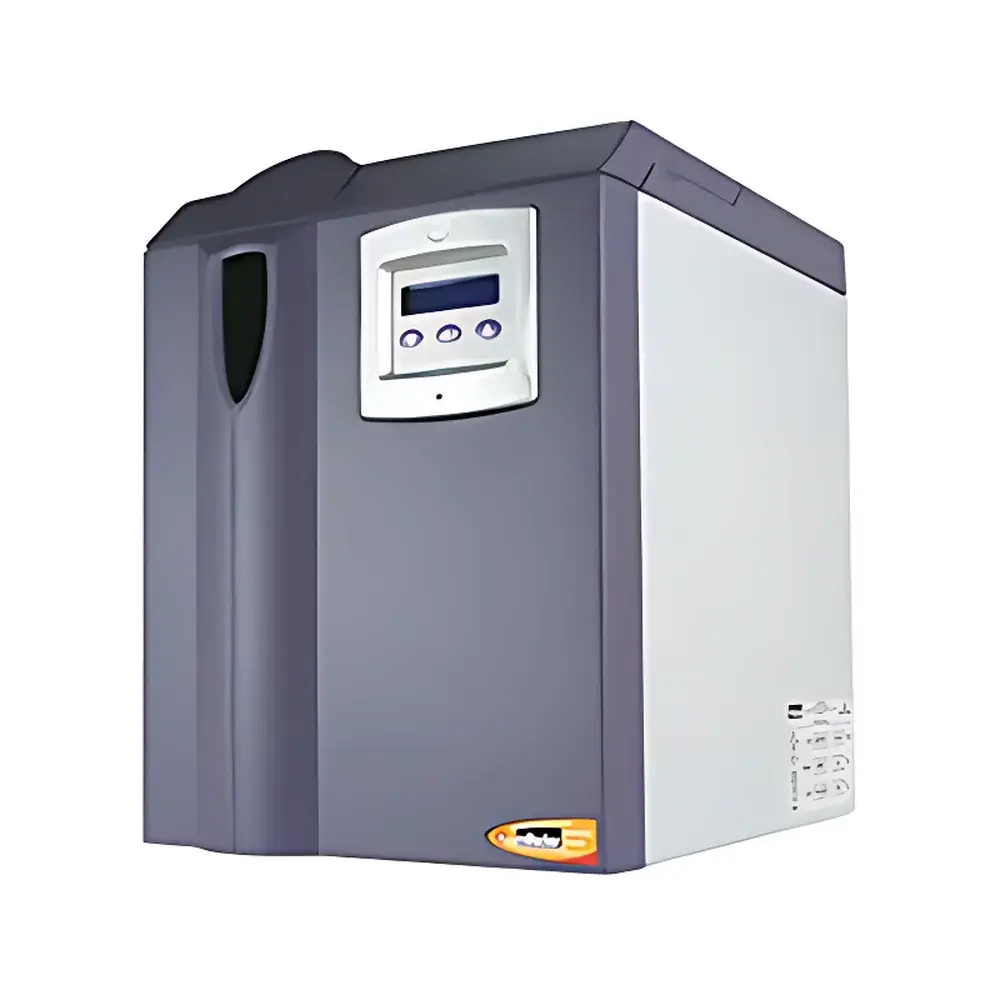

Parker Domnick Hunter H-MD Series Ultra-High-Purity Hydrogen Generator

Overview

The Parker Domnick Hunter H-MD Series Ultra-High-Purity Hydrogen Generator is an engineered solution for laboratories requiring continuous, on-demand hydrogen gas at analytical-grade purity (≥99.99995%). Designed and manufactured in the United Kingdom, this generator employs proton exchange membrane (PEM) electrolysis of deionized water — a solid-state, liquid-electrolyte-free process that eliminates the hazards and maintenance burdens associated with alkaline electrolyte systems. Unlike conventional high-pressure cylinder supply, the H-MD delivers hydrogen at low pressure (typically 2–4 bar gauge), precisely matched to instrument inlet requirements for gas chromatography (GC) and GC/MS applications. This architecture ensures stable flow, minimal pressure fluctuation, and intrinsic safety — critical for unattended operation in regulated environments. The system operates autonomously after initial setup: only deionized water (≥1 MΩ·cm resistivity) and AC power are required. A single water fill supports uninterrupted operation for up to three weeks, depending on flow rate and ambient conditions.

Key Features

• Proton exchange membrane (PEM) electrolysis technology — no caustic electrolytes, no metal corrosion, no periodic electrolyte replacement
• Regenerable dual-column Micro Dryer system achieving residual moisture <1 ppm (v/v), contributing directly to final hydrogen purity specification of 99.99995%
• Seven-layer fault protection architecture including over-pressure shutdown, temperature monitoring, water level sensing, current anomaly detection, membrane integrity verification, gas leak detection, and emergency power cutoff
• Four scalable flow models: H-MD-160 (160 mL/min), H-MD-250 (250 mL/min), H-MD-500 (500 mL/min), and H-MD-1100 (1100 mL/min), all delivering consistent purity across full flow range
• Low-power design: nominal 100 W consumption at rated output — optimized for energy efficiency without compromising stability or response time
• Front-panel LCD interface with real-time status display (flow, pressure, water level, error codes) and intuitive navigation
• Optional RS-232 or Ethernet interface for remote monitoring and control via PC-based software — compatible with LabVantage, STAR, and other LIMS platforms

Sample Compatibility & Compliance

The H-MD Series is validated for use as carrier gas in capillary GC and GC/MS systems from Agilent, Thermo Fisher Scientific, Shimadzu, and PerkinElmer. Its hydrogen output meets or exceeds ASTM D6866-22 (for isotopic purity assessment), ISO 8573-1 Class 1 compressed air/gas purity standards (adapted for H₂), and USP requirements for pharmaceutical gas purity. The absence of hydrocarbon contaminants (<0.1 ppb THC), oxygen (<100 ppb), and nitrogen (<50 ppb) ensures compatibility with flame ionization detectors (FID), thermal conductivity detectors (TCD), and electron capture detectors (ECD). All units are designed and documented per ISO 9001:2015 quality management principles; mechanical and electrical safety conform to IEC 61010-1:2010. For GLP/GMP environments, audit-ready operation logs (via optional software) support 21 CFR Part 11 compliance when configured with electronic signatures and secure data archiving.

Software & Data Management

The optional H-MD Control Suite provides secure, role-based access to generator parameters via Windows-based desktop application or web browser interface. Functions include scheduled start/stop, flow ramping profiles, historical trend logging (pressure, flow, temperature, water usage), and configurable alarm thresholds. All operational events — including fault triggers, maintenance alerts, and user actions — are timestamped and stored locally with SHA-256 hashing for data integrity. Export formats include CSV and PDF for integration into laboratory quality documentation workflows. Remote firmware updates are digitally signed and verified prior to installation, ensuring traceability and cybersecurity alignment with NIST SP 800-53 controls.

Applications

• Carrier gas for capillary gas chromatography — enabling faster analysis times and improved resolution vs. helium, particularly in fast-GC and multidimensional GC×GC configurations
• Fuel gas for FID and photoionization detectors (PID)
• Reagent gas in hydride generation atomic absorption spectroscopy (HG-AAS)
• Reductive atmosphere in thermal desorption units and purge-and-trap concentrators
• Calibration gas source for hydrogen sensors and electrochemical analyzers
• On-site hydrogen supply for fuel cell research, catalyst testing, and semiconductor annealing R&D

FAQ

What water quality is required for optimal operation?
Deionized water with resistivity ≥1 MΩ·cm (equivalent to ASTM Type I or ISO 3696 Grade 1) is mandatory. Tap water, distilled water, or low-resistivity DI water will cause premature membrane fouling and reduced lifetime.
Does the H-MD require periodic consumables beyond water?
No. The PEM stack and regenerable dryer columns are designed for >15,000 hours of continuous operation. No palladium membranes, chemical scrubbers, or disposable filters are used.
Can the H-MD be integrated into an existing GC network with centralized gas monitoring?
Yes. Optional analog (0–10 V / 4–20 mA) and digital (Modbus TCP, RS-232) outputs enable seamless integration with building management systems (BMS) and centralized gas quality dashboards.
How is hydrogen purity verified during operation?
Purity is maintained by design — not measured in real time. Final output is validated per batch using GC-TCD and residual gas analyzers (RGAs) during factory acceptance testing. In-use stability is confirmed through long-term drift studies published in Parker DH technical bulletins (TB-HMD-04 Rev. 3).
Is the unit suitable for cleanroom environments?
Yes. The H-MD emits no VOCs, oils, or particulates. Its low-noise (<45 dBA) operation and compact footprint (W300 × D450 × H500 mm) meet ISO 14644-1 Class 5 spatial requirements when installed with appropriate ventilation.
