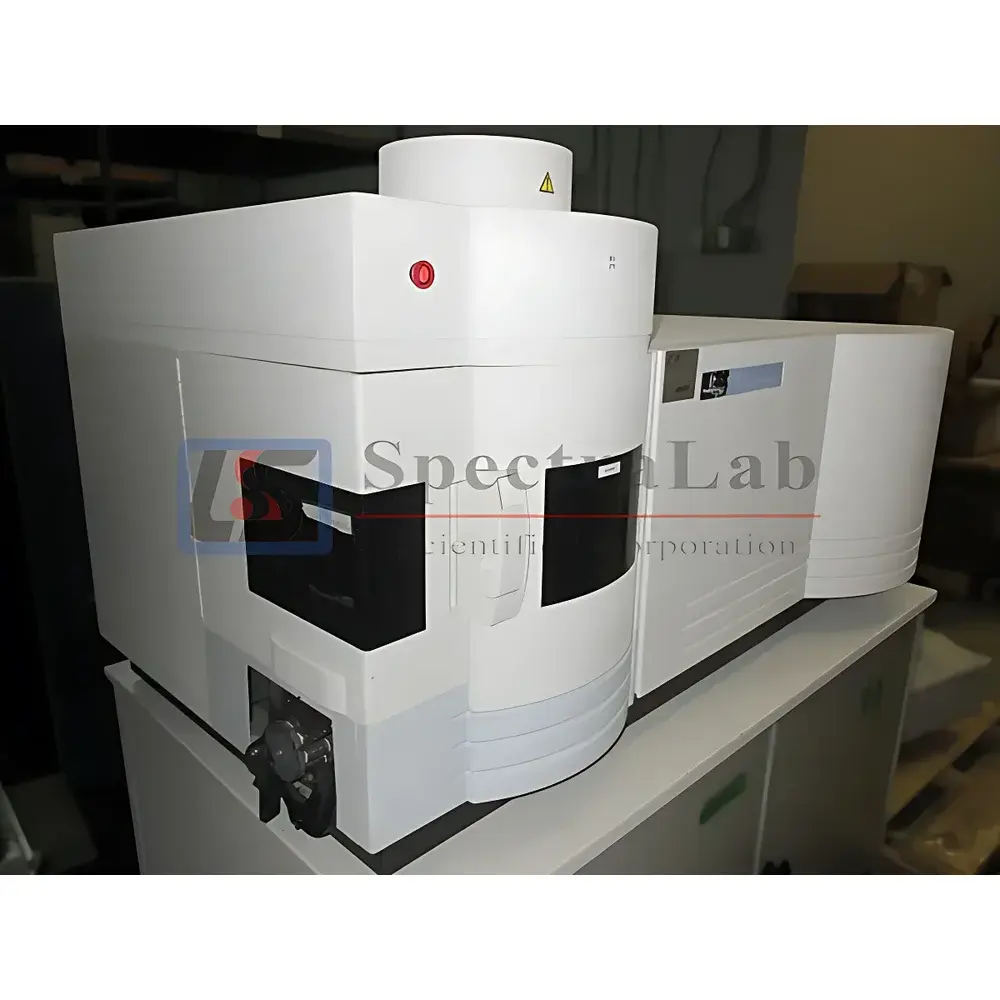

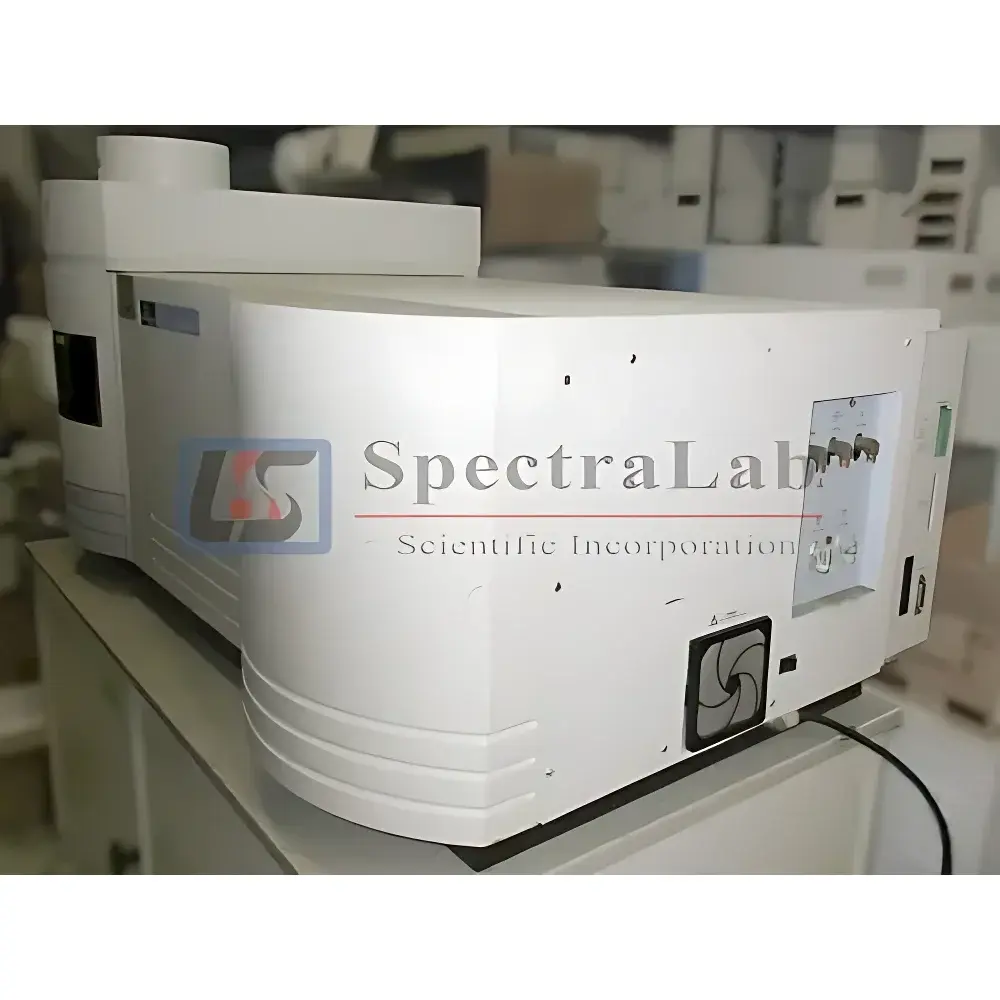

PerkinElmer Optima 4300 DV Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)

Overview

The PerkinElmer Optima 4300 DV is a dual-view inductively coupled plasma optical emission spectrometer (ICP-OES) engineered for high-throughput, multi-element trace metal analysis in environmental, clinical, pharmaceutical, and industrial laboratories. It operates on the fundamental principle of plasma atomization and excitation: liquid samples are nebulized into an argon-supported 6,000–10,000 K ICP torch, where analyte atoms and ions are thermally excited and emit element-specific photons upon relaxation. The emitted light is dispersed via a high-efficiency echelle grating spectrometer and simultaneously detected in both axial and radial viewing configurations—enabling dynamic linear range extension (up to 6 orders of magnitude), improved sensitivity for low-concentration elements (e.g., As, Cd, Pb, Se), and robustness against matrix-induced spectral interferences. This refurbished unit has undergone full functional validation per PerkinElmer OEM diagnostic protocols and meets all baseline performance specifications outlined in ASTM D1976 and ISO 11885 for aqueous environmental metal analysis.

Key Features

• Dual-view optical path architecture with independently optimized axial and radial plasma observation zones
• 40 MHz self-oscillating solid-state RF generator delivering stable, low-noise power output from 750 W to 1500 W in 1-W increments for precise plasma tuning
• High-resolution echelle spectrometer with <0.006 nm resolution at 200 nm, enabling effective separation of complex spectral overlaps (e.g., Fe 238.204 nm / Cr 238.203 nm)
• Solid-state charge-coupled device (SCD) detector with thermoelectric cooling (–15°C), delivering low dark current and high quantum efficiency across the full 160–782 nm UV-Vis range
• Verified short-term stability: RSD < 1% over 60 minutes; long-term precision: RSD ≤ 0.5% for repeated standard measurements under routine operating conditions
• Sub-ppt detection capability (0.1–1 ng/L) for >70 elements including alkali metals, transition metals, rare earths, and non-metals (e.g., P, S, Cl) using standard pneumatic nebulization

Sample Compatibility & Compliance

The Optima 4300 DV supports aqueous solutions, digested environmental solids (EPA Method 200.7/6010D), biological fluids (diluted serum/plasma), and acid-leached geological matrices. It is compatible with standard concentric glass nebulizers (e.g., Meinhard A3), cyclonic or Scott-type spray chambers, and optional accessories including autosamplers (ASX-520), ultrasonic nebulizers (for organic solvents), and hydride generation modules (for As, Se, Sb, Bi). The system complies with key regulatory frameworks: data integrity features support FDA 21 CFR Part 11 compliance when operated with PerkinElmer Syngistix software (audit trail, electronic signatures, user-level access control); analytical workflows align with EPA 200.7, ISO 11885, and ASTM D1976 requirements for wastewater and drinking water metal quantification.

Software & Data Management

Controlled by PerkinElmer’s Syngistix for ICP software (v5.x or later), the instrument enables method development, real-time spectral visualization, interference correction (e.g., background subtraction, line selection, inter-element correction), and automated calibration curve generation (linear, quadratic, or weighted least-squares). All raw spectra, integration parameters, and QC logs are stored in a secure, timestamped database supporting GLP/GMP audit readiness. Export formats include CSV, XML, and PDF reports compliant with LIMS integration standards (ASTM E1482, ANSI/NIST SP 500-291). No proprietary cloud services or mandatory subscription licenses are required for core operation.

Applications

• Environmental monitoring: quantification of regulated metals (Cd, Cr, Cu, Ni, Pb, Zn, Hg) in surface water, groundwater, and wastewater per EPA and EU WFD directives
• Pharmaceutical quality control: elemental impurity testing (ICH Q3D) for catalyst residues (Pd, Pt, Rh) and leachables (Al, Fe, Cr) in APIs and excipients
• Geochemical analysis: rapid multi-element profiling of soil, sediment, and rock digests for exploration and regulatory compliance
• Clinical research: trace element assessment (e.g., Zn, Cu, Mg, Se) in serum, urine, and tissue homogenates
• Materials science: alloy composition verification, coating thickness validation via dissolution-based analysis, and semiconductor rinse water purity screening

FAQ

Is this unit factory-refurbished or third-party refurbished?
This Optima 4300 DV was refurbished and performance-validated by SpectraLab Scientific, an authorized PerkinElmer service partner, using OEM-specified procedures and original spare parts where applicable.
What documentation accompanies the instrument?
Shipment includes a full test report (including wavelength calibration verification, detector noise assessment, and RSD validation data), refurbishment log, safety certification, and electronic copies of the user manual and maintenance guide.
Can the system be upgraded to support newer software versions?
Yes—hardware compatibility with Syngistix v6.x and future releases is confirmed; software updates require valid PerkinElmer software maintenance agreement.
Is installation and on-site qualification included?
Basic installation support is provided remotely; IQ/OQ protocol execution and on-site PQ validation are available as optional services upon request.
Are consumables and spare parts available post-purchase?
All critical consumables—including torches, nebulizers, injector tubes, and SCD detector modules—are stocked and supplied with full OEM traceability and shelf-life documentation.
