PFA Fluorinated Hydrogen Reaction Distillation Flask with Condensation Assembly for Organic Synthesis and High-Purity Reagent Handling

Overview

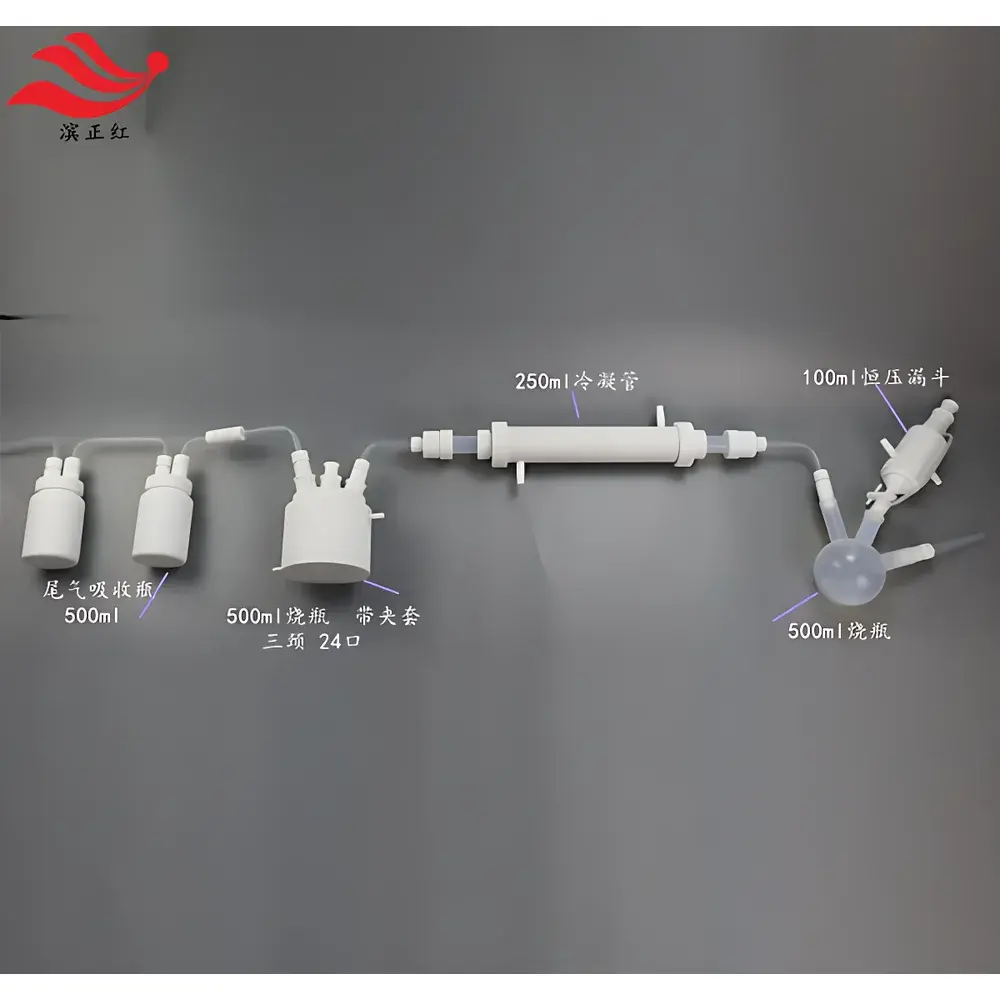

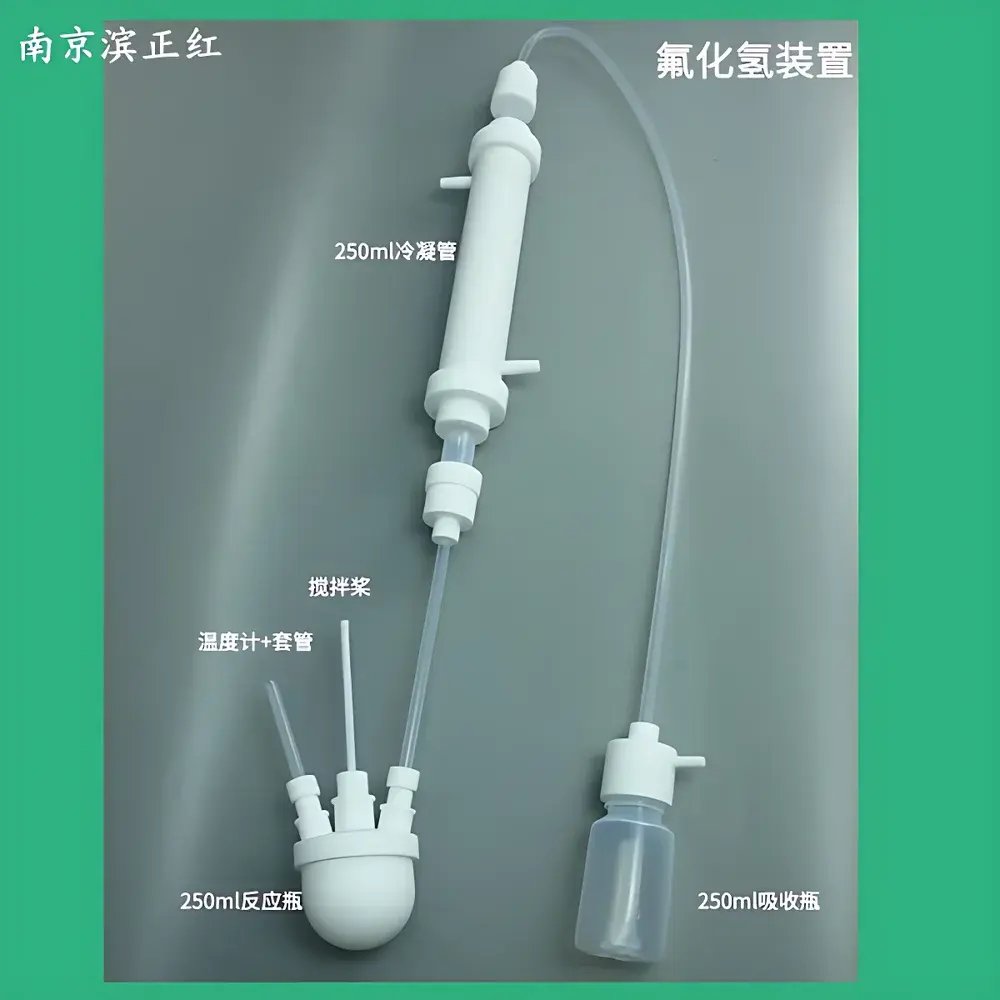

The Binzhenghong HF Series PFA Reaction Distillation Flask Assembly is an engineered solution for handling highly aggressive reagents—particularly anhydrous hydrogen fluoride (HF), fluorinating agents, and ultra-high-purity organic intermediates—in demanding laboratory-scale synthesis, petrochemical process development, and specialty chemical purification. Constructed entirely from high-molecular-weight perfluoroalkoxy alkane (PFA), this system leverages the exceptional chemical inertness, thermal stability (–200 °C to +260 °C continuous), and low extractables profile of PFA to eliminate metal ion leaching, adsorption artifacts, or catalytic surface interference. Unlike standard borosilicate glass or even quartz systems, PFA resists etching, stress cracking, and permeation by HF vapor—enabling safe, reproducible distillation, reflux, and gas absorption under controlled temperature and pressure conditions. The assembly integrates a 1 L reaction flask, a PFA-coated stainless-steel temperature probe sleeve (for accurate internal monitoring without contamination), a straight PFA condenser with dual jacket ports (for precise coolant flow control), and a 500 mL PFA absorption vessel—all sealed via chemically resistant PFA compression fittings and Kalrez® O-rings.

Key Features

• Fully PFA-wetted construction—including flask body, condenser tubing, absorption bottle, and all fluid-path seals—ensuring zero metal contact and compliance with semiconductor-grade purity requirements (SEMI F57)
• Integrated temperature measurement port with PFA-lined thermowell compatible with Pt100 or thermocouple probes; eliminates glass breakage risk and enables real-time kinetic profiling during exothermic fluorination
• Condenser design optimized for low-pressure drop and high-efficiency vapor/liquid separation in HF-rich streams; jacket inlet/outlet ports support glycol–water or dry nitrogen cooling media
• Modular configuration: flasks and absorption vessels feature standardized ISO-KF 25 or NW25 flange interfaces for vacuum compatibility up to 10⁻³ mbar
• Autoclavable (121 °C, saturated steam) and compatible with cleanroom Class 100 handling protocols; certified non-pyrogenic and extractables-tested per USP and ASTM D4327

Sample Compatibility & Compliance

This system is validated for use with hydrogen fluoride (anhydrous and aqueous), chlorine trifluoride (ClF₃), bromine pentafluoride (BrF₅), sulfur tetrafluoride (SF₄), and other strong Lewis acids commonly employed in alkylation, isomerization, and fluorination steps within refinery catalyst testing and pharmaceutical API synthesis. It meets material safety requirements under OSHA 29 CFR 1910.1200 (HazCom) and supports GLP-compliant documentation through traceable lot numbering on each PFA component. While not certified for ASME BPVC Section VIII Div. 1 pressure service, it is rated for full vacuum and static pressures up to 3 bar(g) at 200 °C—sufficient for most batch distillation and reactive absorption applications.

Software & Data Management

The HF assembly operates as a hardware platform intended for integration with third-party process controllers (e.g., Eurotherm, Watlow) or lab information management systems (LIMS). Temperature data from the integrated thermowell may be logged via 4–20 mA or Modbus RTU outputs when paired with compatible transmitters. No proprietary software is bundled; however, all PFA components carry unique serialized identifiers enabling audit-trail linkage to calibration records, cleaning logs, and usage history—supporting FDA 21 CFR Part 11 compliance when deployed within validated QC/QA workflows.

Applications

• Safe benchtop distillation of HF-sensitive organofluorine compounds (e.g., fluorinated ethers, perfluoroalkyl iodides)
• In situ generation and trapping of volatile fluorinating agents during catalytic C–F bond formation
• Refinery catalyst evaluation under simulated hydrofluoric acid alkylation conditions
• Purification of high-purity solvents (e.g., anhydrous acetonitrile, THF) via HF-assisted dehydration
• Reaction calorimetry studies involving highly exothermic fluorination where glass failure poses unacceptable risk

FAQ

Can this system be used for continuous-flow HF reactions?
No—this is a batch-mode apparatus designed for reflux, distillation, and absorption under static or slow-stirred conditions. Continuous operation requires dedicated PFA microreactor platforms with integrated back-pressure regulation.
Is the PFA condenser compatible with dry ice–acetone cooling?
Yes, provided thermal shock is minimized by gradual cooldown; PFA exhibits excellent low-temperature toughness but should not be subjected to rapid ΔT >100 °C.
What cleaning protocol is recommended between runs with HF?
Rinse thoroughly with anhydrous ethanol followed by high-purity water (≥18.2 MΩ·cm), then bake at 120 °C for 2 hours under dry nitrogen purge to remove residual moisture and HF adducts.
Does the temperature sleeve accommodate standard 6-mm diameter probes?
Yes—the internal bore is 6.5 mm with a 100-mm immersion depth; compatible with industry-standard Pt100, Type K, or Type T sensors.
Are replacement O-rings supplied with initial purchase?
Each assembly includes two spare Kalrez® 4079 O-rings (AS568A #012) and a PFA compression nut toolkit for field maintenance.
