PFA Gas Scrubbing Bottle System for Specialty Gases – Compliant with GB/T 34972–2017

Overview

The Binzhenghong PFA Gas Scrubbing Bottle System is a high-purity, chemically inert gas purification and reaction apparatus engineered for the safe handling, conditioning, and analytical sampling of specialty gases—including ultra-high-purity (UHP) nitrogen, hydrogen, helium, oxygen, silane, ammonia, phosphine, arsine, and other corrosive or reactive process gases. Designed in strict accordance with the Chinese national standard GB/T 34972–2017 (“Specification for Gas Purification Equipment Used in Semiconductor Manufacturing”), this system employs perfluoroalkoxy alkane (PFA) as the primary structural material for all wetted components. PFA offers exceptional resistance to strong acids (e.g., HF, HNO₃), bases, halogens, and organic solvents across a wide temperature range (–200 °C to +260 °C), ensuring minimal extractables, zero metal leaching, and long-term dimensional stability under repeated thermal cycling and pressure differentials.

Key Features

• Material Integrity: Entire fluid path—including bottle body, cap, inlet/outlet ports, and internal fritted diffusers—is fabricated from virgin, ASTM D4895–compliant PFA resin, certified to meet semiconductor-grade purity requirements (metal impurities <10 ppt).

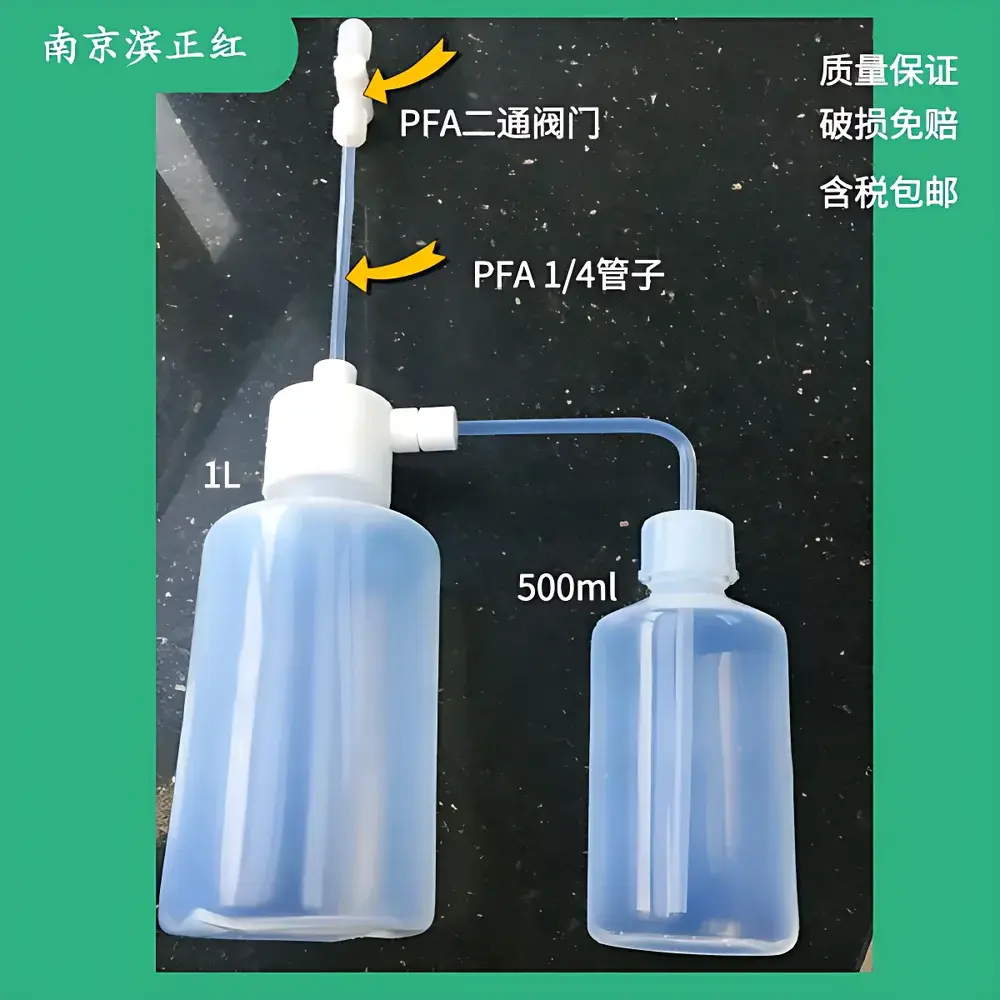

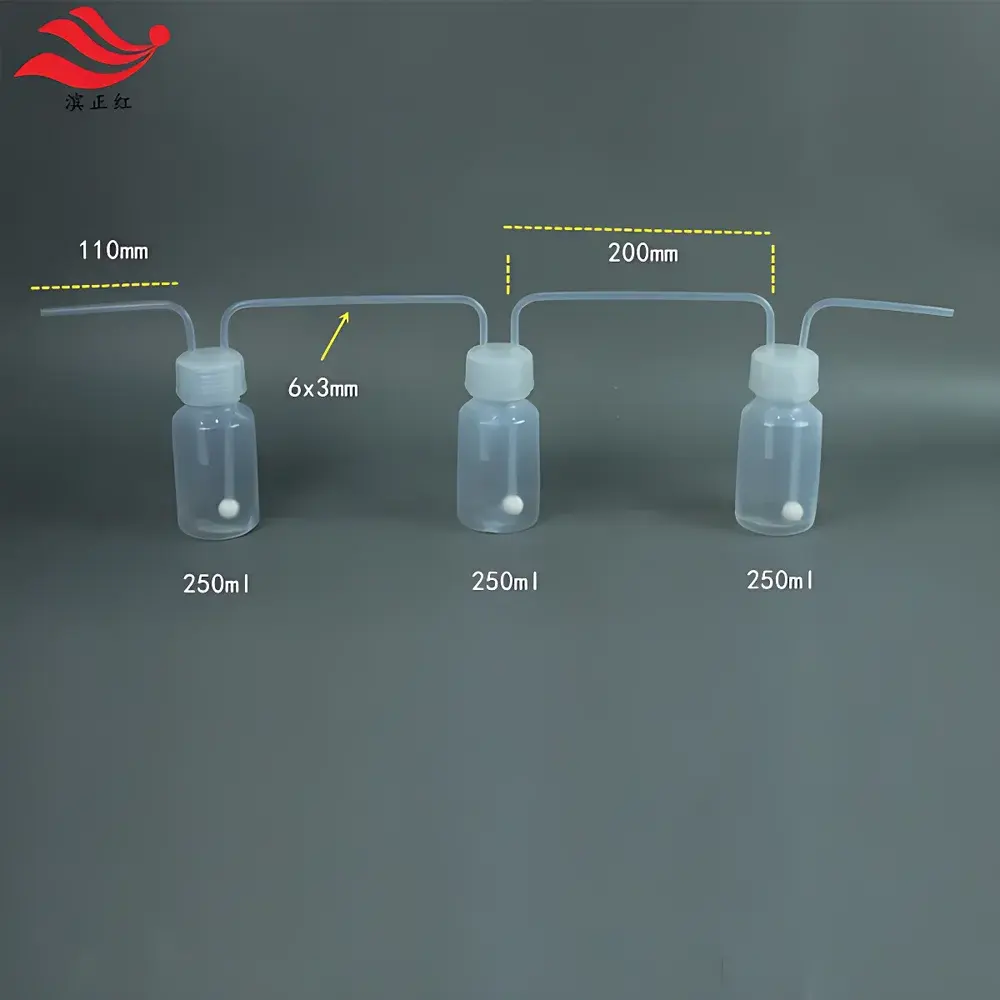

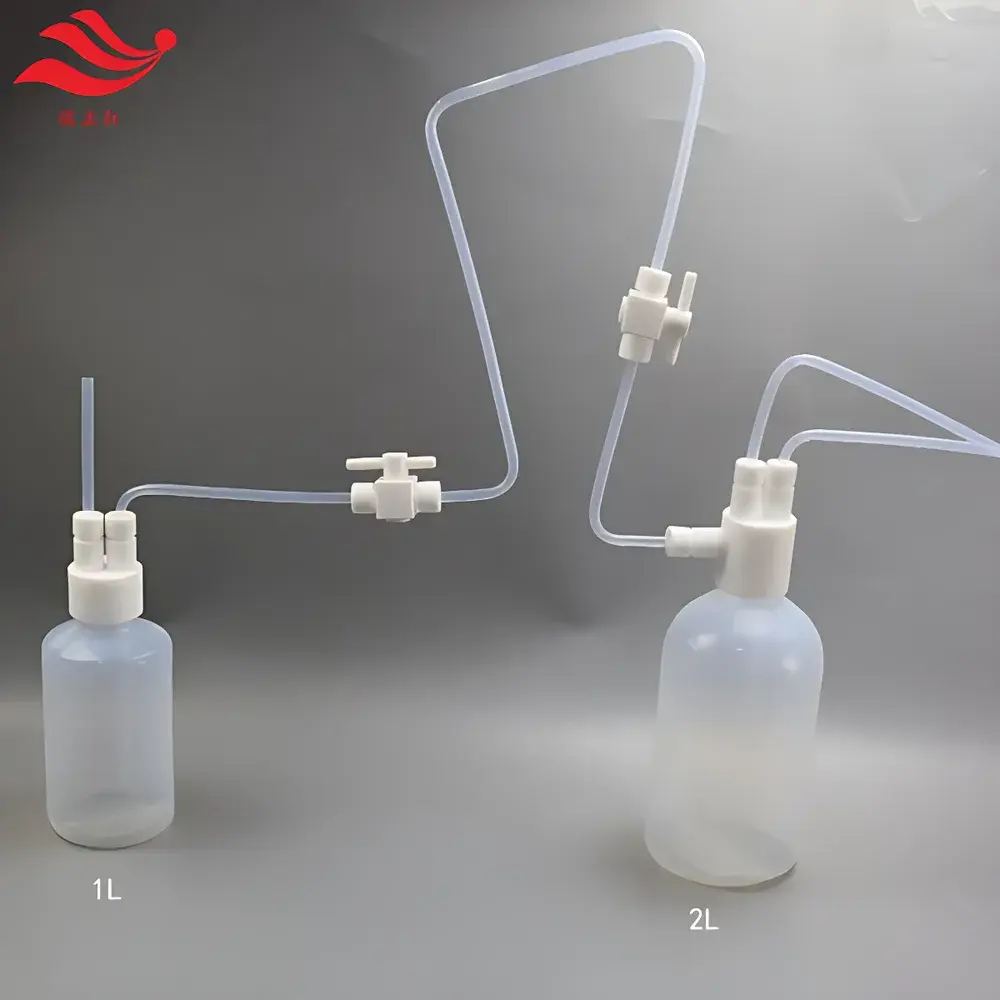

• Modular Design: Interchangeable configurations support serial scrubbing (multi-stage absorption), parallel sampling, or inline reaction monitoring; bottles feature standardized Swagelok®-compatible 1/4″ VCR or NPT threads for leak-tight integration into gas distribution panels.

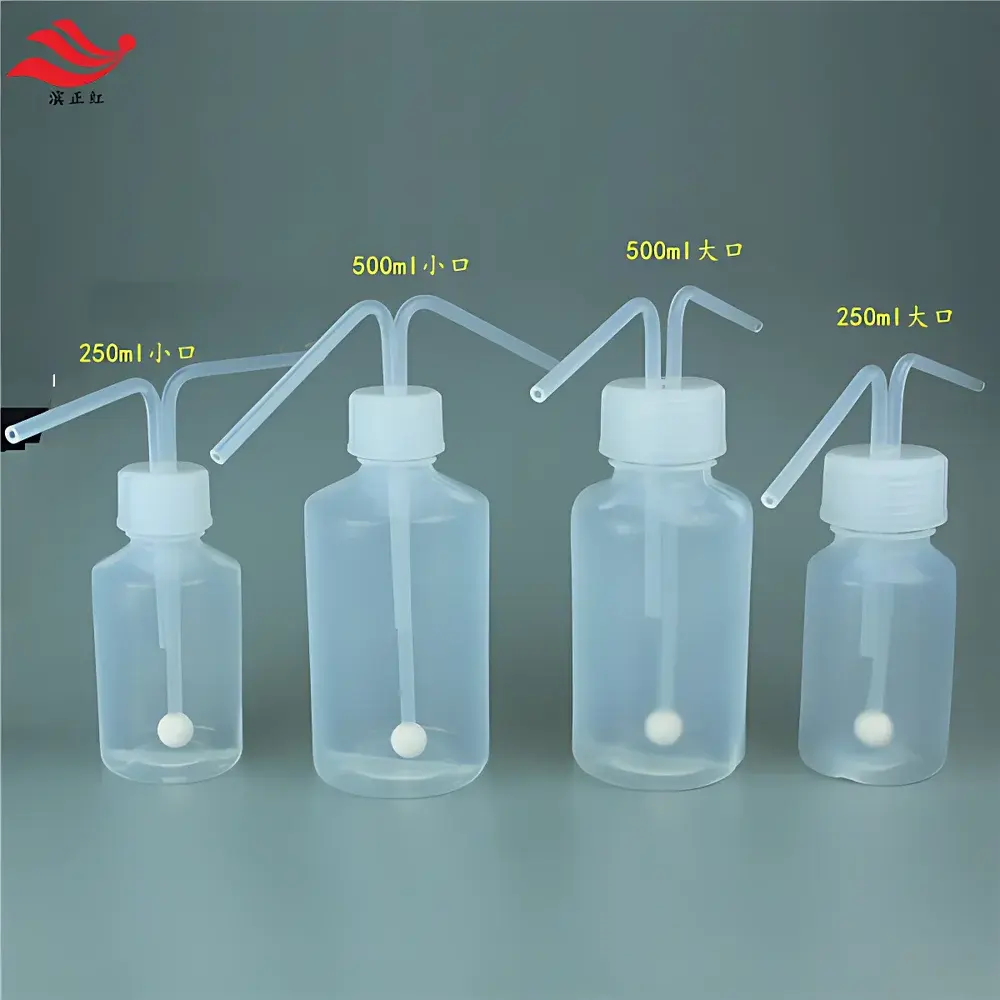

• Capacity Flexibility: Available in calibrated volumetric sizes from 60 mL (for micro-scale calibration gas generation) to 2000 mL (for bulk gas conditioning), each unit marked with Class A volumetric tolerance per ISO 4787.
• Thermal & Pressure Robustness: Rated for continuous operation at ≤1.0 MPa (145 psi) and thermal shock resistance up to ±50 °C/min—enabling compatibility with cryogenic gas lines and heated delivery manifolds.
• Traceability & Documentation: Each unit carries a unique serial number, material certification (including fluoropolymer lot traceability), and a GB/T 34972–2017 conformance statement issued by an accredited third-party testing laboratory.

Sample Compatibility & Compliance

This scrubbing system accommodates both liquid-phase absorbents (e.g., KOH solution for CO₂ removal, copper sulfate for H₂S scavenging) and solid-phase sorbents (e.g., molecular sieves, activated carbon, custom metal-organic frameworks). It supports static batch absorption, dynamic flow-through conditioning (at flow rates 1–500 sccm), and in-situ gas-phase reaction studies. All configurations comply with GB/T 34972–2017 requirements for particle shedding (<1 particle/m³ @ ≥0.1 µm), outgassing rate (<1×10⁻⁹ Pa·m³/s·cm²), and surface roughness (Ra ≤ 0.4 µm). While primarily aligned with Chinese national standards, its material specifications and dimensional controls are cross-referenced to SEMI F57 (Gas Delivery Systems), ASTM E2059 (High-Purity Gas Sampling), and ISO 8573–1:2010 (Compressed Air Purity Classes).

Software & Data Management

As a passive, non-electronic component, the PFA scrubbing bottle does not incorporate embedded firmware or digital interfaces. However, it is fully compatible with industry-standard gas monitoring ecosystems: pressure transducers (e.g., Validyne DP15), mass flow controllers (MFCs), residual gas analyzers (RGAs), and data acquisition systems compliant with IEC 61508 (functional safety) and FDA 21 CFR Part 11 (electronic records/e-signatures) when deployed within validated cleanroom or fab tooling environments. Calibration certificates and material test reports are provided in PDF format with embedded digital signatures and SHA-256 hash verification.

Applications

• Pre-analysis conditioning of carrier and dopant gases in semiconductor photolithography, CVD, and ALD tools
• Removal of moisture, oxygen, hydrocarbons, and metallic contaminants from UHP process gases prior to chamber introduction
• Calibration gas generation via controlled dilution or chemical reaction (e.g., NOₓ synthesis from nitric acid + copper)
• Environmental monitoring of stack emissions using impinger-based EPA Method 26A or ISO 10848 protocols
• Research-scale gas-phase catalysis and kinetic studies requiring inert, non-catalytic reactor walls

FAQ

Is this product suitable for use in ISO Class 1 cleanrooms?
Yes—each unit undergoes Class 100 (ISO 5) cleanroom assembly, solvent-rinsed with electronic-grade IPA and DI water, and double-bagged in static-dissipative packaging.
Can the PFA bottle withstand exposure to anhydrous hydrogen fluoride (HF)?
Yes—PFA exhibits the highest known resistance among thermoplastics to anhydrous HF at ambient temperatures; prolonged exposure above 100 °C requires case-specific validation.
Do you provide custom port configurations or OEM labeling?
Yes—custom thread types (e.g., BSPP, metric), port orientation, and laser-etched OEM branding are available under NDA with minimum order quantities.
What documentation accompanies shipment?
Certificate of Conformance (GB/T 34972–2017), Material Test Report (ASTM D4895), Cleanliness Verification Report (per SEMI F21), and packing list with lot traceability.
Is third-party validation support available for IQ/OQ protocols?
Yes—Binzhenghong provides template IQ/OQ test scripts and on-site witness support for qualification under GMP/GLP or ISO 9001 quality systems.
