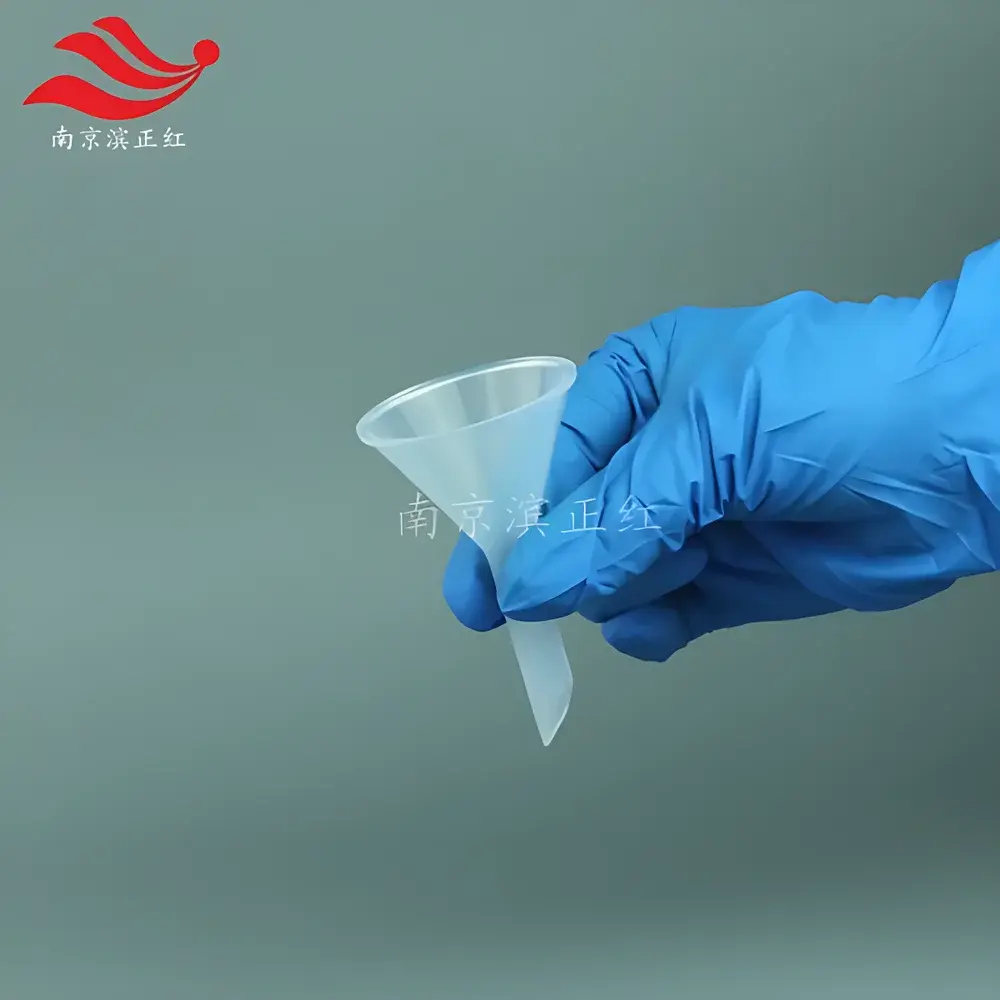

PFA Triangular Funnel, φ40 mm & 160 mm, Brookfield-Style Geometry, Binzhenghong NJ-PFA-LD

Overview

The Binzhenghong NJ-PFA-LD PFA Triangular Funnel is a high-purity, chemically inert sample transfer device engineered for quantitative liquid handling in trace-level analytical workflows. Designed with Brookfield-style triangular geometry—featuring a precisely angled conical body, flat base, and tapered spout—the funnel enables gravity-driven, laminar flow with minimal wall adhesion and zero dead volume. Its seamless, one-piece PFA construction eliminates weld lines, crevices, or threaded joints that could harbor particulate carryover or induce surface adsorption—critical for ultra-trace metal analysis (e.g., ICP-MS), semiconductor wafer rinse validation, and pharmaceutical extractables/leachables studies. Operating continuously from cryogenic conditions (–200 °C) to sustained 260 °C exposure, the funnel maintains dimensional stability and non-reactivity across aggressive reagent matrices including hydrofluoric acid, hot concentrated sulfuric acid, and peroxide-based cleaning solutions.

Key Features

• Monolithic PFA architecture: Fully fused, injection-molded geometry ensures absence of seams, gaskets, or bonding interfaces—eliminating potential sites for sample retention or cross-contamination.
• Dual-dimension configuration: φ40 mm top inlet diameter optimized for standard volumetric flasks and autosampler vials; 160 mm total height provides sufficient headspace for controlled decanting without splashing or aerosol generation.
• Ultra-low surface energy: PFA’s inherent non-stick characteristics (contact angle >110° with water) reduce residual film thickness to sub-nanoliter levels after drainage—validated via gravimetric recovery testing per ISO 8573-7.
• Regulatory-aligned material certification: Supplied with full CoA confirming USP Class VI biological reactivity compliance and ISO 10993-5 cytotoxicity testing; batch-specific extractables data available upon request.
• Thermal shock resilience: Withstands rapid transitions between liquid nitrogen immersion and boiling nitric acid baths without crazing, delamination, or dimensional drift—verified per ASTM D573 thermal aging protocol.

Sample Compatibility & Compliance

The NJ-PFA-LD funnel is compatible with aqueous, acidic, basic, and organic media—including but not limited to HF/HNO₃ mixtures, piranha solution, TMAH developers, and chlorinated solvents. It meets ASTM D3295 requirements for fluoropolymer chemical resistance classification and conforms to ICH Q5C stability-indicating system design principles when deployed in method validation protocols. For GLP/GMP environments, the funnel supports audit-ready documentation: each unit bears a laser-etched serial number traceable to raw material lot, molding cycle log, and post-forming fluorination verification report. No lubricants, mold releases, or secondary coatings are used during manufacturing—ensuring intrinsic purity without post-cleaning conditioning.

Software & Data Management

As a passive laboratory consumable, the NJ-PFA-LD requires no embedded firmware, calibration software, or digital connectivity. However, its design integrates seamlessly into digitally governed workflows: the consistent geometry enables repeatable positioning in automated liquid handlers (e.g., Hamilton STAR, Tecan Fluent), and its traceability supports LIMS integration via serialized barcode labeling (optional add-on). Batch-level certificates of conformance—including elemental impurity screening (ICP-OES per USP ) and volatile organic residue profiling (GC-MS per USP )—are provided in PDF/A-1b format compliant with FDA 21 CFR Part 11 electronic record requirements.

Applications

• Trace-metal cleanroom processing: Quantitative transfer of ultrapure acids into quartz or PFA digestion vessels without introducing Al, Cr, Ni, or Fe contamination.
• Pharmaceutical filtration validation: Use as a receiver funnel in membrane integrity testing (bubble point, diffusion) where extractables must not interfere with sterility assay sensitivity.
• Environmental EPA Method 200.8 preparation: Handling of preserved groundwater samples prior to chelation and ICP-MS analysis—preventing adsorptive loss of Cd, Pb, or U species.
• Reference material certification: Gravimetric dilution of NIST SRM stock solutions where ≤0.1% volumetric error is mandated.
• Microelectronics wet bench operations: Dispensing of BOE etchants onto silicon wafers with sub-50 nm particle control (ISO Class 1 cleanroom compatible).

FAQ

Is this funnel suitable for use with hydrofluoric acid (HF)?

Yes. PFA exhibits exceptional resistance to anhydrous and aqueous HF across concentrations up to 49% and temperatures up to 120 °C—validated by ASTM D543 immersion testing over 30 days.
Can it be autoclaved?

No. Autoclaving exceeds PFA’s continuous service temperature limit. Sterilization is recommended via dry heat (180 °C, 2 h) or gamma irradiation (25 kGy), both validated for material integrity.
Does it require pre-cleaning before first use?

Not for general applications. Each unit undergoes factory triple-rinse with 18.2 MΩ·cm DI water and nitrogen purge. For sub-ppt metal work, optional certified pre-cleaning (per ASTM E1994) is available.
What is the maximum operating pressure?

This is a gravity-fed device only. It is not rated for pressurized or vacuum-assisted operation. Positive pressure above ambient may cause deformation or seal failure.
Are custom dimensions or port configurations available?

Yes. Binzhenghong offers OEM molding services for non-standard apertures, spout angles, or integrated filter support platforms—subject to minimum order quantities and tooling lead time.
