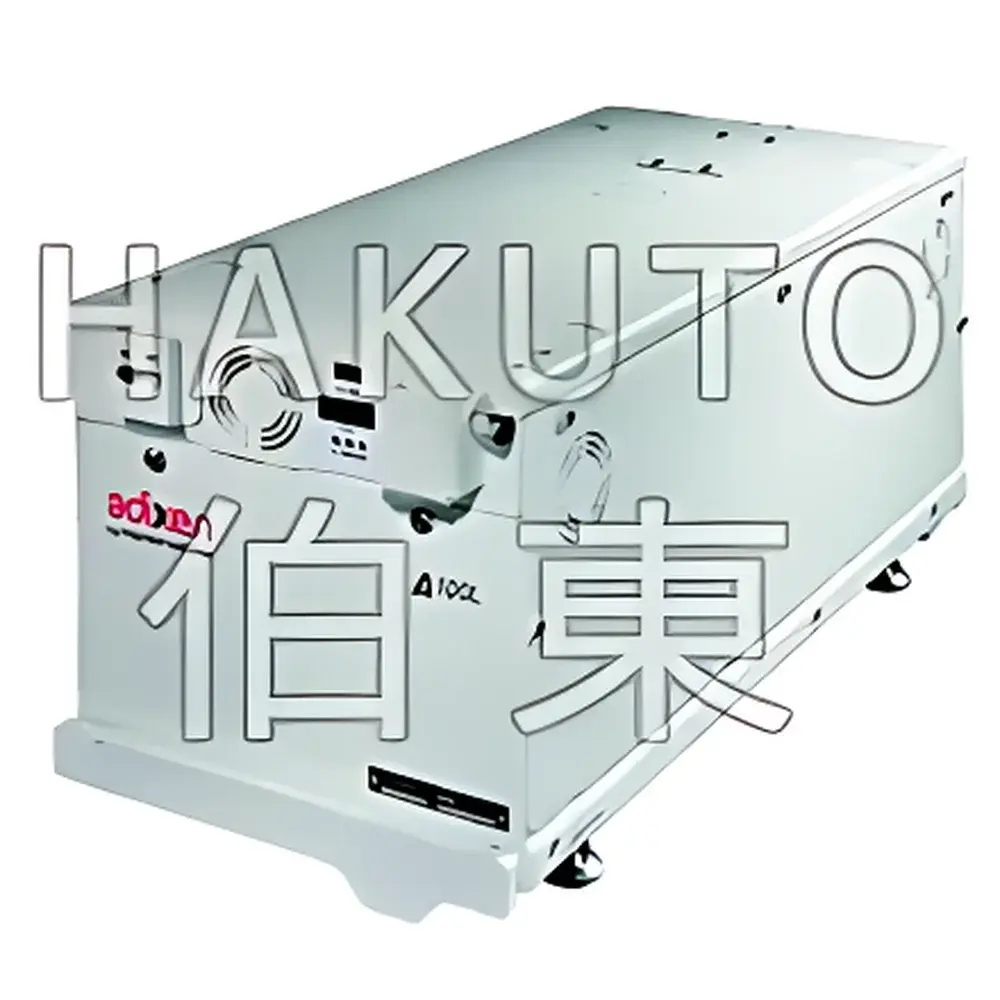

Pfeiffer A 100 L and A 200 L Multi-Stage Roots Dry Vacuum Pumps

Overview

The Pfeiffer A 100 L and A 200 L multi-stage Roots dry vacuum pumps represent a class of high-integrity, oil-free vacuum solutions engineered for integration into semiconductor front-end equipment, photovoltaic production tools, and analytical instrumentation requiring ultra-clean, particle-free vacuum environments. Based on the proven multi-stage Roots principle—where synchronized, non-contacting rotors rotate in precise counter-rotation within a rigid cast-iron housing—the A-series achieves high volumetric throughput without internal lubrication or hydrocarbon contamination. Unlike traditional oil-sealed rotary vane or screw pumps, these dry pumps eliminate oil backstreaming, particulate shedding, and solvent incompatibility risks, making them suitable for Class 1–100 cleanroom installations per ISO 14644-1. Their monoblock design integrates motor, drive train, cooling interface, and control electronics into a single compact unit—reducing footprint, simplifying mechanical mounting, and minimizing conductance losses associated with external piping. The A 100 L delivers 100 m³/h nominal pumping speed at inlet pressure ≥ 10 hPa, while the A 200 L extends this capability to 200 m³/h, enabling rapid pump-down of large-volume load-lock chambers and transfer modules in 300 mm wafer fabs.

Key Features

• Oil-free, particle-free operation compliant with semiconductor-grade cleanliness requirements (ISO Class 1–100 compatible)
• Monoblock architecture eliminates external vacuum tubing, reducing system conductance loss and integration complexity
• Water-cooled thermal management ensures stable performance under continuous duty cycles typical in 24/7 fab operation
• Integrated runtime meter and tri-color LED status indicator provide real-time operational feedback (green = ready, yellow = warning, red = fault)
• A 100 L ES variant incorporates an energy-saving module that reduces power consumption by up to 50% versus standard configuration without compromising pumping speed or ultimate pressure
• Dual-voltage compatibility (low-voltage 24 V DC and high-voltage 230/400 V AC options) supports global OEM equipment integration
• Standard I/O interfaces include 16-pin and 19-pin industrial connectors; optional RS232/RS485 serial communication enables remote monitoring and PLC-level process synchronization
• MTBF exceeding 195,000 hours—validated through accelerated life testing per ISO 13374 and aligned with SEMI E10 reliability standards for factory automation components

Sample Compatibility & Compliance

These pumps are designed for non-corrosive, non-condensable gas loads typical in inert gas purging, nitrogen backfilling, and vacuum transfer applications. They are not rated for halogenated, acidic, or solvent-laden process streams without upstream condensation or chemical scrubbing. The A-series meets electromagnetic compatibility (EMC) requirements per EN 61000-6-2/-4 and safety standards per EN 60204-1. All units are manufactured in Pfeiffer’s ISO 9001-certified facilities in Germany and conform to CE marking directives. For regulated environments—including FDA-regulated analytical instrumentation or GMP-compliant thin-film deposition systems—the integrated digital I/O supports audit-trail-capable operation when paired with validated SCADA or MES platforms compliant with 21 CFR Part 11.

Software & Data Management

While the A 100 L and A 200 L operate as standalone hardware devices, their optional RS232/RS485 interface enables bidirectional communication with host controllers using ASCII-based command protocols defined in Pfeiffer’s DeviceNet-compatible specification. This allows OEMs to log operational parameters—including runtime, temperature warnings, motor current draw, and status codes—into centralized maintenance databases. When deployed in cluster configurations (e.g., dual-pump redundancy in load-lock systems), coordinated start/stop sequencing and fault propagation can be implemented via programmable logic controllers without requiring proprietary software layers. No embedded firmware updates or cloud connectivity are required; all configuration is performed via physical DIP switches or terminal commands, ensuring deterministic behavior in mission-critical vacuum subsystems.

Applications

• Load-lock and transfer chamber evacuation in 200 mm and 300 mm semiconductor lithography, etch, and PVD/CVD tools
• Vacuum handling and lamination processes in photovoltaic cell manufacturing lines
• Backing pumps for high-vacuum turbomolecular pumps in electron microscopy, XPS, and AES surface analysis chambers
• Cryogenic system roughing in low-temperature physics experiments and superconducting magnet infrastructure
• Gaseous laser source evacuation (CO₂, excimer) where hydrocarbon-free vacuum integrity is mandatory
• Industrial gas separation and purification skids requiring dry, repeatable base pressure recovery

FAQ

What vacuum level can the A 100 L achieve under standard operating conditions?
The A 100 L reaches an ultimate pressure of ≤ 6.6 × 10⁻³ hPa (6.6 × 10⁻¹ Pa) when operated with water cooling at 15–25 °C inlet temperature and ambient pressure ≤ 1013 hPa.
Is the A 200 L compatible with existing A 100 L mounting interfaces and control wiring?
Yes—the A 200 L shares identical mechanical footprint, flange dimensions (DN 50), weight distribution, and I/O pinout configurations, enabling drop-in replacement or capacity scaling within legacy tool designs.
Does Pfeiffer provide validation documentation for GxP-regulated installations?
Pfeiffer supplies Factory Acceptance Test (FAT) reports, calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt), and material declarations (RoHS/REACH) upon request; IQ/OQ protocol templates are available for integration into customer validation workflows.
Can these pumps operate continuously at full speed without derating?
Yes—rated for continuous 24/7 operation at maximum pumping speed when supplied with stable cooling water flow (≥ 1.2 L/min at ΔT ≤ 5 K) and ambient temperatures between 15–35 °C.
What maintenance intervals are recommended for long-term reliability?
No scheduled rotor or bearing maintenance is required within the first 195,000 operational hours; only periodic inspection of cooling connections, electrical terminations, and external filter elements (if installed upstream) is advised per Pfeiffer’s Maintenance Manual Rev. 4.2.
