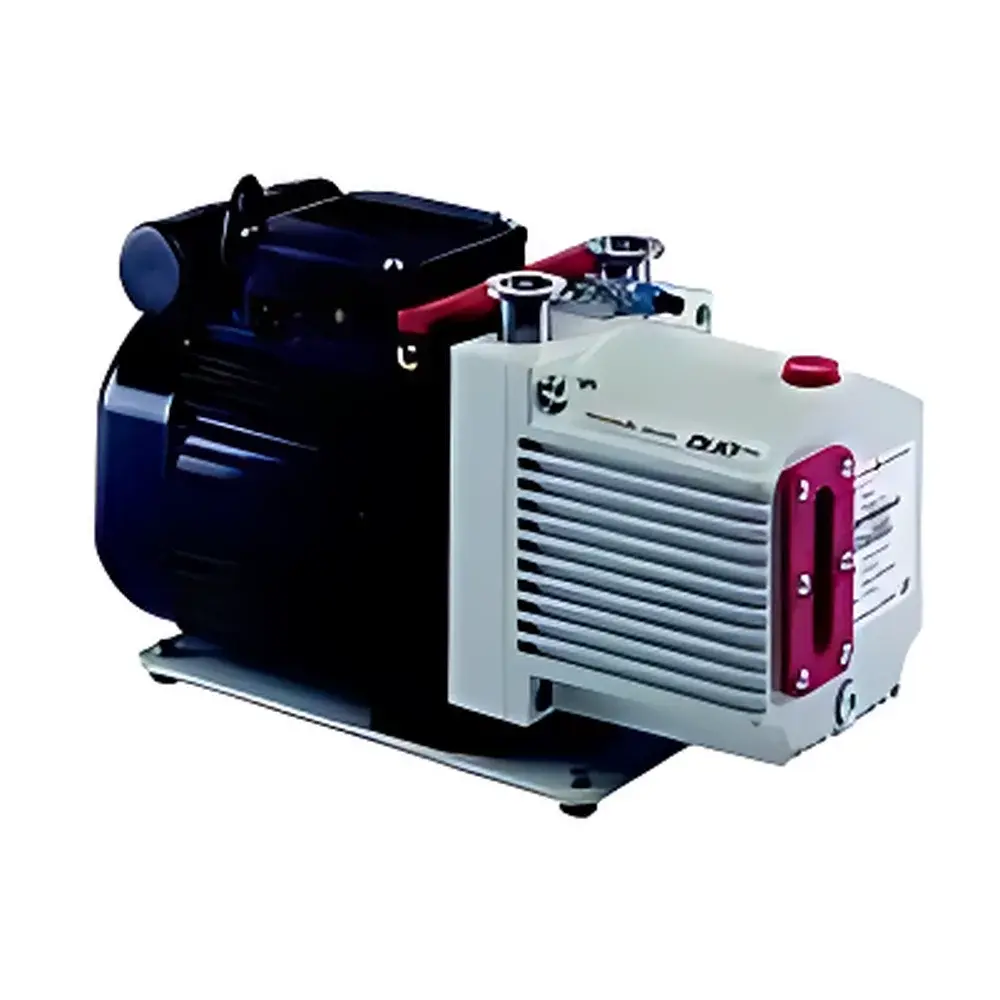

Pfeiffer Vacuum DUO 3 Dual-Stage Rotary Vane Pump

Overview

The Pfeiffer Vacuum DUO 3 is a dual-stage oil-lubricated rotary vane pump engineered for reliable, continuous operation in demanding laboratory and industrial vacuum applications. Based on the proven DUO platform and succeeding the discontinued DUO 2.5, the DUO 3 incorporates refined mechanical design and enhanced thermal management to deliver improved pumping performance, lower surface temperatures, and extended service intervals. Its operation relies on the classic rotary vane principle: two eccentrically mounted vanes rotate within a cylindrical stator chamber, creating variable-volume compartments that compress and expel gas from the inlet to the exhaust. This architecture ensures stable base pressure generation down to 3 × 10⁻³ mbar, making the DUO 3 suitable as a standalone roughing pump or as a forepump for high-vacuum systems—including turbomolecular pumps and Roots booster configurations.

Key Features

• Dual-stage rotary vane design optimized for high volumetric efficiency and low ultimate pressure
• Configurable operation at both 50 Hz (2.5 m³/h, 3000 rpm) and 60 Hz (2.9 m³/h, 3600 rpm), enabling global compatibility with regional power standards
• Integrated gas ballast valve for handling condensable vapors and maintaining oil integrity during wet process cycles
• Built-in high-vacuum safety valve prevents backstreaming and overpressure in upstream systems during shutdown or failure events
• Oil mist filter with integrated return line minimizes oil consumption and environmental emissions while supporting long-term oil life
• Compact footprint (A 309 mm × B 309 mm × C 123 mm × D 176 mm × E 85.5 mm) and lightweight construction (11.3 kg) facilitate integration into space-constrained instrument platforms
• Standard IEC C14 power connector and 24 VDC control interface simplify installation and system-level power management
• Magnetic coupling variant available for applications requiring hermetic sealing and zero leakage risk

Sample Compatibility & Compliance

The DUO 3 is compatible with a wide range of vacuum-dependent instrumentation, including mass spectrometers (e.g., Agilent GC-MS, Thermo Fisher Scientific analytical systems), surface analysis tools (e.g., Bruker TOF-SIMS), thin-film deposition equipment (e.g., Oerlikon optical coating systems, Hauzer PVD platforms), and vacuum brazing furnaces. As an oil-lubricated pump, it is not recommended for ultra-high-purity processes where hydrocarbon contamination must be strictly avoided—applications requiring hydrocarbon-free environments should consider dry scroll or diaphragm alternatives. The pump complies with EU CE marking requirements and meets electromagnetic compatibility (EMC) standards per EN 61326-1. While not intrinsically rated for explosive atmospheres, its robust housing and thermal stability support safe deployment in general laboratory and manufacturing environments under ISO/IEC 17025 and GLP-aligned workflows.

Software & Data Management

The DUO 3 operates as a stand-alone mechanical device without embedded firmware or digital communication protocols. However, its 24 VDC control input enables straightforward integration into automated vacuum systems via external PLCs or instrument controllers. Status monitoring—including run-time accumulation and fault detection via auxiliary contacts—is supported through standard dry-contact outputs. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 requirements, operational logs and maintenance records must be maintained externally using validated electronic lab notebooks (ELNs) or CMMS platforms. Routine oil analysis, filter replacement tracking, and vibration signature trending are recommended best practices to ensure consistent performance and audit readiness.

Applications

• Roughing pump for turbomolecular and cryogenic high-vacuum systems
• Primary vacuum source for electron microscopy sample chambers and ion beam sources (e.g., KRI ion guns)
• Process pump for physical vapor deposition (PVD), sputtering, and plasma-enhanced chemical vapor deposition (PECVD)
• Vacuum backing for helium leak detectors and residual gas analyzers
• Gas evacuation in vacuum furnaces, freeze dryers, and vacuum impregnation units
• Support vacuum generation in analytical instrumentation requiring stable 10⁻²–10⁻³ mbar operating ranges

FAQ

Is the DUO 3 compatible with existing DUO 2.5 mounting fixtures and flanges?
Yes—the DUO 3 retains identical DN 16 ISO-KF inlet and outlet dimensions and shares the same mechanical footprint, enabling direct replacement without adapter modifications.
What oil type is specified for the DUO 3?
Pfeiffer Vacuum recommends using only original FPM-compatible mineral oil (e.g., Pfeiffer Vacuum Oil PV 100) to maintain seal integrity, vapor pressure specifications, and warranty coverage.
Can the DUO 3 be operated continuously at full load?
Yes—the pump is rated for continuous duty under nominal conditions; however, ambient temperature must remain below 40 °C, and adequate ventilation around the motor and oil reservoir is required to sustain thermal limits.
Does the DUO 3 meet ISO 8573-1 Class 0 air purity requirements?
No—being an oil-lubricated rotary vane pump, it does not achieve oil-free air classification; users requiring Class 0 compliance should select dry-running alternatives such as scroll or diaphragm pumps.
Is remote start/stop functionality supported?
Yes—via the 24 VDC control interface, which accepts TTL-level signals for external activation and interlock integration.
