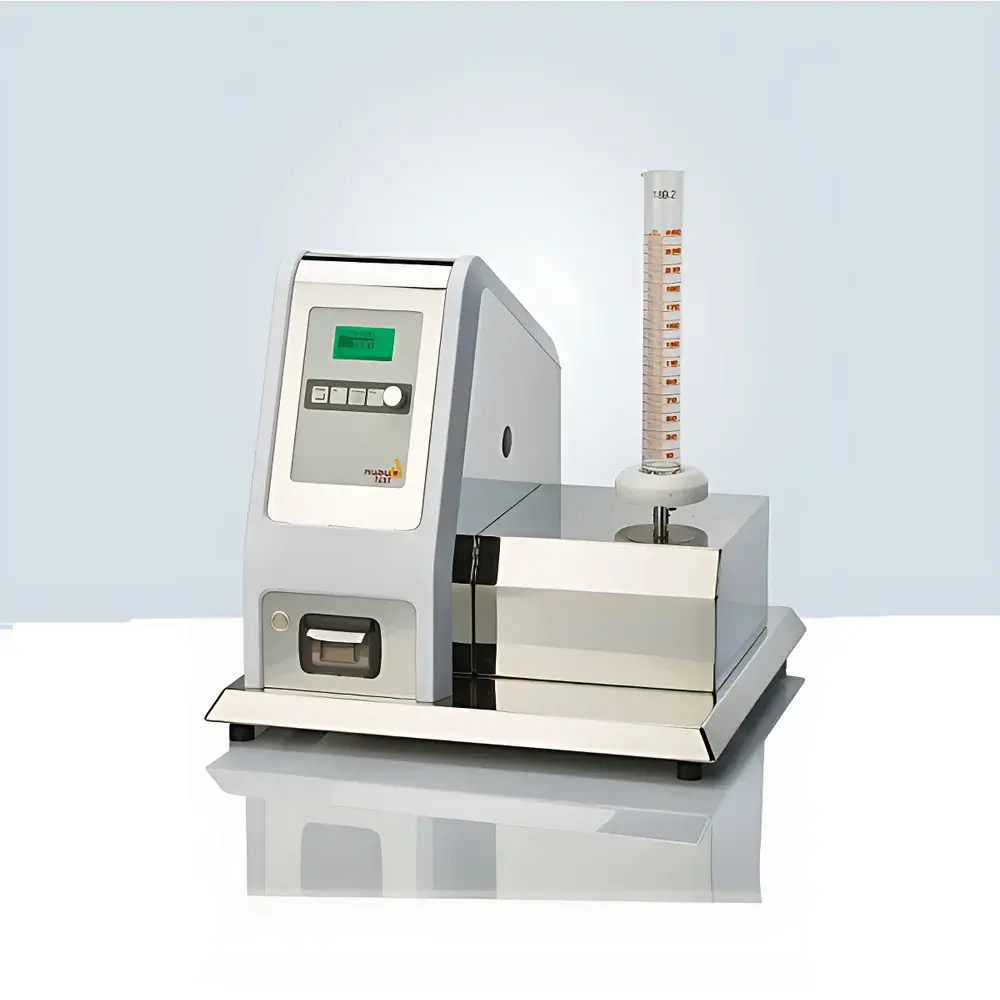

Pharma Test PT-TD300 Tap Density Tester

Overview

The Pharma Test PT-TD300 Tap Density Tester is an automated, precision-engineered instrument designed to determine the tapped (or bulk) density and apparent density of free-flowing powders, granules, pigments, and other particulate solids in accordance with internationally recognized pharmacopoeial and industrial standards. Based on the principle of controlled mechanical tapping—where a standardized sample volume undergoes a defined number of uniform vertical drops under gravity—the PT-TD300 delivers repeatable, traceable results essential for pharmaceutical formulation development, quality control, and regulatory submissions. Its operation adheres strictly to USP Method 1 (fixed-volume, variable-mass) and Method 2 (fixed-mass, variable-volume), as well as European Pharmacopoeia monograph , DIN EN ISO 787-11 (pigments and extenders), and ASTM B527 (metal powders). The device integrates gravimetric input from external analytical balances via RS-232 or USB interface, enabling real-time mass acquisition and eliminating manual transcription errors.

Key Features

• Automated tap cycle execution with programmable tap count (0–9999), drop height (3.0 mm ± 0.2 mm), and tap frequency (250 ± 15 taps/min), fully compliant with USP and EP specifications.
• Dual-density calculation engine: computes apparent density (g/mL), tapped density (g/mL), Hausner ratio (tapped density / apparent density), and Carr compressibility index (%), all derived directly from measured mass and calibrated cylinder volume.
• Integrated thermal printer provides immediate hard-copy documentation of test parameters, raw data, calculated indices, operator ID, date/time stamp, and instrument serial number—supporting audit-ready recordkeeping.
• USB flash drive interface enables secure export of method configurations, calibration logs, and full test reports in CSV format; supports version-controlled method archiving and cross-laboratory protocol transfer.
• GLP-compliant embedded firmware with user-level access control (three-tier permission structure: Operator, Supervisor, Administrator), session logging, and tamper-evident electronic records aligned with ALCOA+ principles.
• Dedicated calibration routine includes volumetric cylinder verification using certified glass spheres and mass verification using NIST-traceable weights, ensuring metrological integrity across operational life.

Sample Compatibility & Compliance

The PT-TD300 accommodates standard USP/EP-compliant glass or stainless-steel graduated cylinders (10 mL, 25 mL, and 100 mL volumes), with optional cylinder holders for simultaneous multi-vessel testing. It accepts dry, non-cohesive, and moderately cohesive powders with particle sizes ranging from submicron to 2 mm, provided they exhibit sufficient flowability to settle uniformly during tapping. The instrument is validated for use in regulated environments governed by ICH Q5C, FDA Guidance for Industry: Powder Flow and Compaction Characterization, and EMA CHMP Reflection Paper on Excipient Qualification. All firmware and printed outputs conform to Annex 11 (EU GMP) and support inspection readiness for FDA pre-approval inspections (PAIs) and MHRA audits.

Software & Data Management

The PT-TD300 operates on a deterministic real-time embedded OS with no external PC dependency. Its internal database stores up to 1,000 test records with full metadata: operator ID, timestamp, cylinder ID, initial/final mass, tap count, calculated densities, and pass/fail status against configurable specification limits. Data export via USB maintains file integrity through SHA-256 checksums. When connected to enterprise LIMS or ELN systems, the device supports structured data exchange via CSV with column headers aligned to ISA-88/89 nomenclature. Optional firmware upgrade enables 21 CFR Part 11 compliance features—including electronic signatures, biometric or token-based authentication, and immutable audit trails—with full validation documentation available upon request.

Applications

• Pharmaceutical solid dosage form development: excipient selection, blend uniformity assessment, and tablet compression feasibility analysis.
• Quality control release testing of active pharmaceutical ingredients (APIs) and excipients per USP monographs and manufacturer specifications.
• Regulatory dossier preparation for ANDA, NDA, and MAA submissions requiring documented powder flow behavior per ICH Q5A(R2) and Q5C.
• Material comparison studies in R&D labs evaluating the impact of particle size distribution, surface treatment, or moisture content on packing behavior.
• Contract manufacturing organizations (CMOs) and CROs performing method transfer and validation per ICH Q2(R2) guidelines.

FAQ

Does the PT-TD300 require external software installation to operate?
No—the instrument functions autonomously with its onboard firmware; no PC or third-party software is required for routine operation, data acquisition, or report generation.
Can the PT-TD300 be integrated into a networked laboratory environment?
Yes—via USB host mode for direct connection to network-attached storage or LIMS servers; Ethernet or Wi-Fi connectivity is not natively supported but can be implemented through external USB-to-Ethernet adapters compatible with CDC ACM class drivers.
How is traceability maintained for calibration and maintenance activities?
All calibration events are logged internally with date/time, technician ID, reference standards used (including certificate numbers), and before/after verification results; logs are exportable and include digital signatures when Part 11 mode is enabled.
Is the thermal printer compatible with standard replacement rolls?
Yes—it uses industry-standard 58 mm thermal paper rolls with auto-cutter; no proprietary consumables are required.
What safety certifications does the PT-TD300 hold?
It complies with IEC 61010-1:2010 for electrical safety and IEC 61326-1:2013 for electromagnetic compatibility (EMC), bearing CE marking and RoHS 2011/65/EU declaration of conformity.
