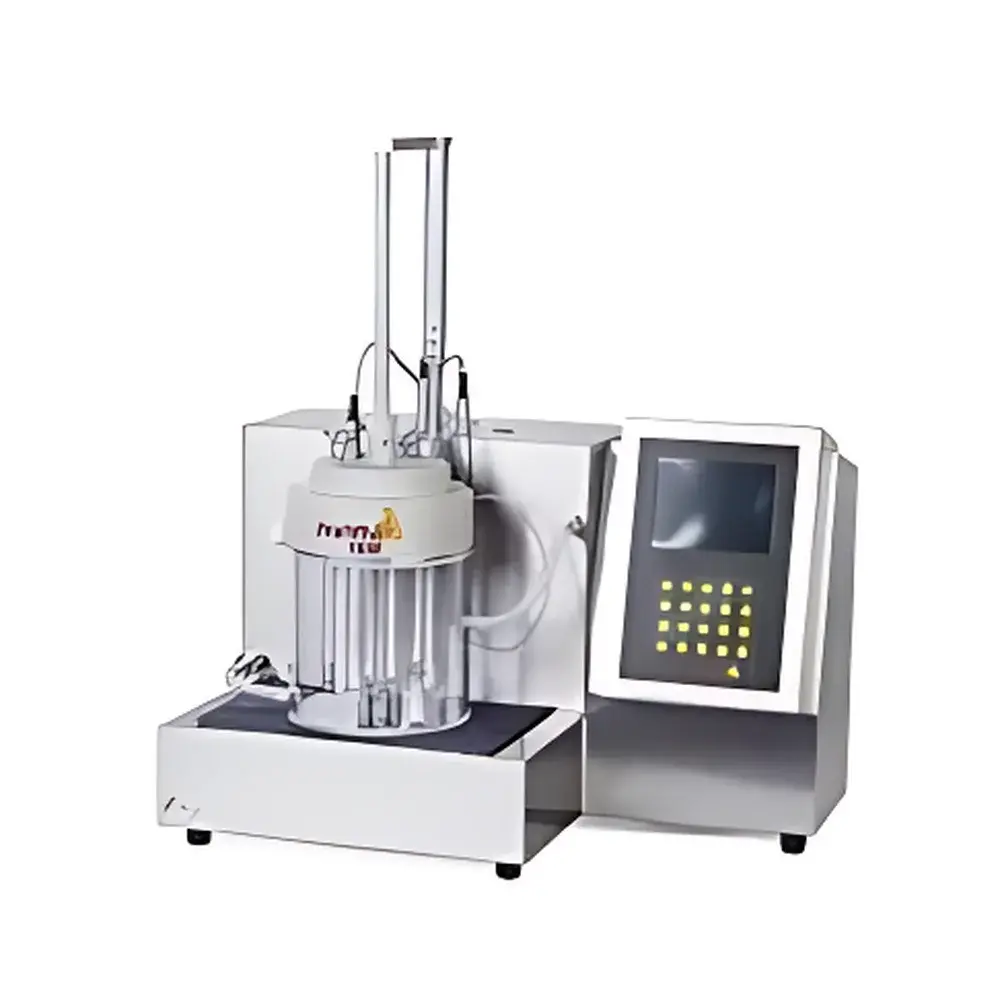

Pharma Test SPT-6 Suppository Penetration Tester

Overview

The Pharma Test SPT-6 Suppository Penetration Tester is a precision-engineered accessory designed for standardized assessment of suppository softening behavior under physiologically relevant thermal conditions. It operates on the principle of controlled thermal immersion coupled with mechanical penetration resistance monitoring—aligning with pharmacopoeial methodologies such as USP <741> “Suppositories and Pessaries” and Ph. Eur. 2.9.38 “Suppository Softening Time”. Unlike generic dissolution or melting point apparatuses, the SPT-6 measures the time required for a defined probe (typically a stainless-steel plunger of specified geometry and mass) to penetrate a suppository matrix by a fixed distance (e.g., 10 mm) upon immersion in a thermostatically regulated aqueous medium at 37 °C ± 0.5 °C. This endpoint reflects the transition from solid rigidity to thermally induced plastic deformation—a critical quality attribute directly linked to in vivo drug release performance and patient acceptability.

Key Features

• Six parallel sample stations enabling high-throughput softening time determination with inter-sample comparability
• Modular design compatible with multiple Pharma Test PTZ-series disintegration testers: PTZ AUTO (models 1–4), PTZ AUTO EZ (1EZ–4EZ), and PTZ-S—ensuring seamless integration into existing QC laboratory workflows
• Optional standalone operation using the dedicated Plexiglas water bath unit, permitting independent temperature control and visual observation without requiring a host disintegration tester
• Probe actuation mechanism engineered for consistent contact force and vertical alignment, minimizing operator-induced variability
• Thermal stability maintained via PID-controlled water circulation, meeting ISO 17025-relevant requirements for environmental uniformity during testing
• Mechanically robust construction using corrosion-resistant materials compliant with GMP facility cleaning protocols (e.g., 70% IPA, sodium hydroxide solutions)

Sample Compatibility & Compliance

The SPT-6 accommodates standard suppository forms including cocoa butter-, PEG-, and Witepsol®-based matrices across common shapes (ovoid, globular, torpedo). Each station accepts suppositories up to 3.5 cm in length and 1.2 cm in maximum diameter. The system supports method validation per ICH Q2(R2) guidelines, with documented traceability to NIST-traceable temperature sensors and calibrated timing circuits. Data output conforms to regulatory expectations for audit trails under FDA 21 CFR Part 11 when operated in conjunction with validated PTZ AUTO EZ firmware versions supporting electronic signatures and user access controls. Testing procedures align with compendial requirements in USP Chapter <741>, European Pharmacopoeia 2.9.38, and JP 18 General Test 4.05.

Software & Data Management

When interfaced with PTZ AUTO EZ instruments, the SPT-6 leverages embedded firmware capable of real-time detection of probe breakthrough events, automatic timestamp logging, and CSV-formatted export of individual sample softening times—including start time, end time, duration, and pass/fail status against user-defined specification limits. All raw timing data are stored with immutable metadata (operator ID, instrument serial number, calibration certificate ID, ambient lab temperature/humidity). Optional LIMS integration is supported via RS-232 or Ethernet interfaces, enabling direct ingestion into enterprise quality management systems (QMS) for trend analysis, OOS investigation, and periodic review per ICH Q5E and Q5C.

Applications

• Batch release testing of suppository dosage forms in pharmaceutical manufacturing facilities
• Formulation development studies evaluating excipient effects on thermal softening kinetics
• Stability program assessments tracking softening time drift across accelerated and long-term storage conditions
• Comparative bioequivalence support studies correlating in vitro softening profiles with in vivo absorption metrics
• Supplier qualification of suppository bases and active pharmaceutical ingredient (API) blends
• Training and SOP verification in GLP-compliant preclinical laboratories

FAQ

Can the SPT-6 be used without a PTZ-series disintegration tester?
Yes—the SPT-6 includes mounting provisions for its dedicated Plexiglas water bath, allowing manual operation with external timer and visual endpoint confirmation.
Is probe calibration required before each test run?
No routine recalibration is needed; however, annual verification of probe geometry, mass, and descent velocity against Pharma Test Certificate of Conformance is recommended per ISO/IEC 17025 clause 6.4.
Does the system support 21 CFR Part 11 compliance?
Full electronic record integrity—including audit trail, role-based access, and digital signature—is available only when operating with validated PTZ AUTO EZ firmware and associated security configuration.
What temperature accuracy is maintained during testing?
The integrated or external water bath must maintain 37.0 °C ± 0.5 °C throughout the 60-minute test duration, verified using a calibrated Class A thermometer or RTD traceable to national standards.
Are replacement probes and bath components available as spare parts?
Yes—Pharma Test supplies certified replacement plungers (P/N SPT-6-PROBE), bath inserts (P/N SPT-6-BATH-KIT), and gasket sets (P/N SPT-6-SEAL-KIT) with full material certifications (EN 10204 3.1).
