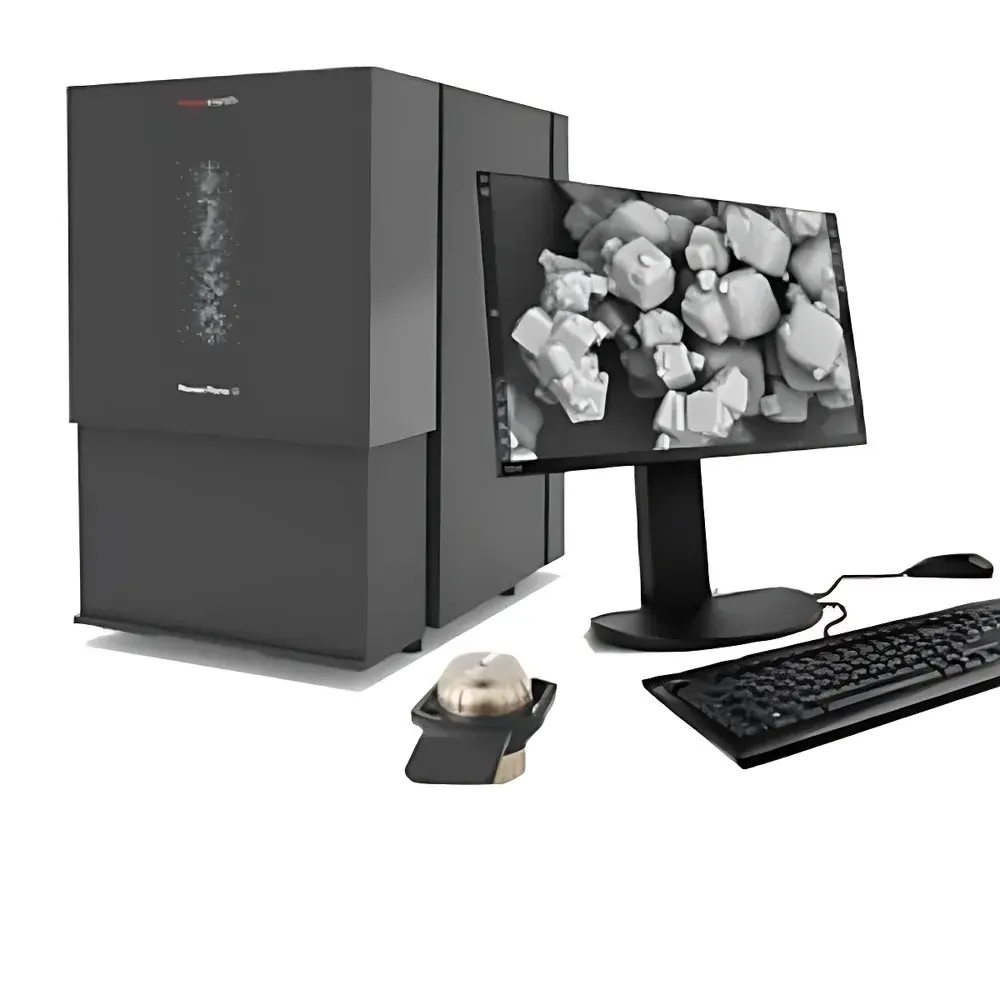

Phenom Pharos G2 Desktop Field-Emission Scanning Electron Microscope

Overview

The Phenom Pharos G2 is a second-generation desktop field-emission scanning electron microscope (FE-SEM) engineered by Phenom-World B.V. in the Netherlands. Built around a high-brightness Schottky thermal field-emission electron source, the Pharos G2 delivers stable beam current and exceptional signal-to-noise ratio across its full accelerating voltage range (1–20 kV). Unlike conventional tungsten or cold field-emission systems, the Schottky emitter provides superior brightness, long-term emission stability (>12 months typical lifetime), and low energy spread—critical for high-resolution imaging at low landing voltages. Its core measurement principle relies on raster-scanning a focused electron beam across the sample surface and detecting emitted secondary electrons (SE) and backscattered electrons (BSE) to generate topographic and compositional contrast, respectively. The integrated energy-dispersive X-ray spectroscopy (EDS) module enables simultaneous morphological characterization and elemental analysis without requiring instrument reconfiguration. Designed for routine laboratory use—not just specialized microscopy facilities—the Pharos G2 bridges the performance gap between benchtop and floor-standing FE-SEMs while maintaining operational simplicity and minimal infrastructure requirements.

Key Features

• Sub-1.5 nm resolution imaging at 1 kV—enabling high-fidelity visualization of surface topology without charging artifacts on insulating or beam-sensitive materials.
• Automated motorized stage with 5-axis control (X/Y/Z/tilt/rotation), programmable navigation, and repeatable positioning accuracy within ±0.5 µm.
• Integrated optical microscope with real-time color overview imaging (up to 40× magnification), enabling precise region-of-interest selection prior to SEM acquisition.
• Internal vacuum lock system achieving base pressure <5×10⁻⁴ Pa in under 15 seconds—eliminating downtime between samples and supporting rapid throughput.
• Passive vibration isolation architecture incorporating 27 independent damping units, permitting stable operation on standard lab benches without external anti-vibration tables.
• Beam-current stability >98% over 8-hour continuous operation; no periodic alignment or electron-optical tuning required during daily use.
• Full EDS integration with silicon drift detector (SDD), optimized for quantitative elemental mapping and point analysis with detection limits <0.1 wt% for major elements.

Sample Compatibility & Compliance

The Pharos G2 accommodates diverse specimen types—including polymers, biological tissues, ceramics, composites, and nanomaterials—without mandatory conductive coating. Its low-kV imaging capability (down to 1 kV) minimizes electron penetration depth and surface charging, preserving native morphology of non-conductive or hydrated samples. The chamber accepts standard 35 mm pin stubs and custom holders up to Ø100 mm × 40 mm height. All hardware and software comply with CE marking requirements per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). Data acquisition workflows support audit-trail generation and user-access logging in accordance with GLP and ISO/IEC 17025 laboratory accreditation frameworks. Optional EDS configurations meet ASTM E1508 and ISO 22309 standards for qualitative and semi-quantitative microanalysis.

Software & Data Management

Acquisition and analysis are managed via Phenom Desktop Software v5.x—a Windows-based platform featuring intuitive wizard-driven workflows, batch mode automation, and embedded reporting templates. Image metadata (kV, working distance, dwell time, detector type, stage coordinates) is embedded in TIFF and PNG exports compliant with FAIR data principles. Raw image stacks and EDS spectra are stored in vendor-neutral formats (e.g., .emf, .eds) compatible with third-party analysis tools such as DTSA-II and HyperMap. Remote diagnostics and firmware updates are supported through secure TLS-encrypted cloud connectivity, enabling proactive maintenance alerts and version-controlled software deployment. All user actions—including parameter changes, image saves, and EDS acquisitions—are timestamped and logged for traceability in regulated environments.

Applications

• Materials science: Grain boundary analysis, fracture surface characterization, and phase distribution mapping in alloys and thin films.
• Life sciences: Uncoated cell membrane imaging, pollen morphology, and freeze-dried tissue sections at sub-micron resolution.
• Electronics: Failure analysis of solder joints, contamination identification on PCB surfaces, and cross-sectional inspection of encapsulated devices.
• Geosciences: Mineral phase discrimination via BSE contrast and Z-contrast mapping; clay particle morphology assessment.
• Quality control labs: Rapid verification of coating uniformity, fiber diameter distribution, and additive manufacturing powder morphology per ISO/ASTM 52900.

FAQ

Does the Pharos G2 require liquid nitrogen or external water cooling?

No—its Schottky emitter operates at ~1800 K and requires no cryogenic cooling; heat dissipation is managed via passive convection and internal thermal pathways.
Can EDS analysis be performed simultaneously with SE and BSE imaging?

Yes—the system acquires EDS spectra concurrently with live SE/BSE imaging, enabling real-time correlation of structure and composition.
Is remote technical support available outside business hours?

Yes—Phenom offers 24/7 remote diagnostic access with customer consent; all sessions are encrypted and fully auditable.
What vacuum level is maintained during EDS acquisition?

The chamber sustains <1×10⁻³ Pa during spectral collection to ensure optimal X-ray transmission and detector efficiency.
How frequently must the electron source be replaced?

Typical emitter lifetime exceeds 12 months under standard operating conditions (≤4 h/day, 1–10 kV); replacement is performed by certified service engineers and takes <30 minutes.
