Phenom Pro_3 Desktop Scanning Electron Microscope for Polymer Membrane Characterization

Overview

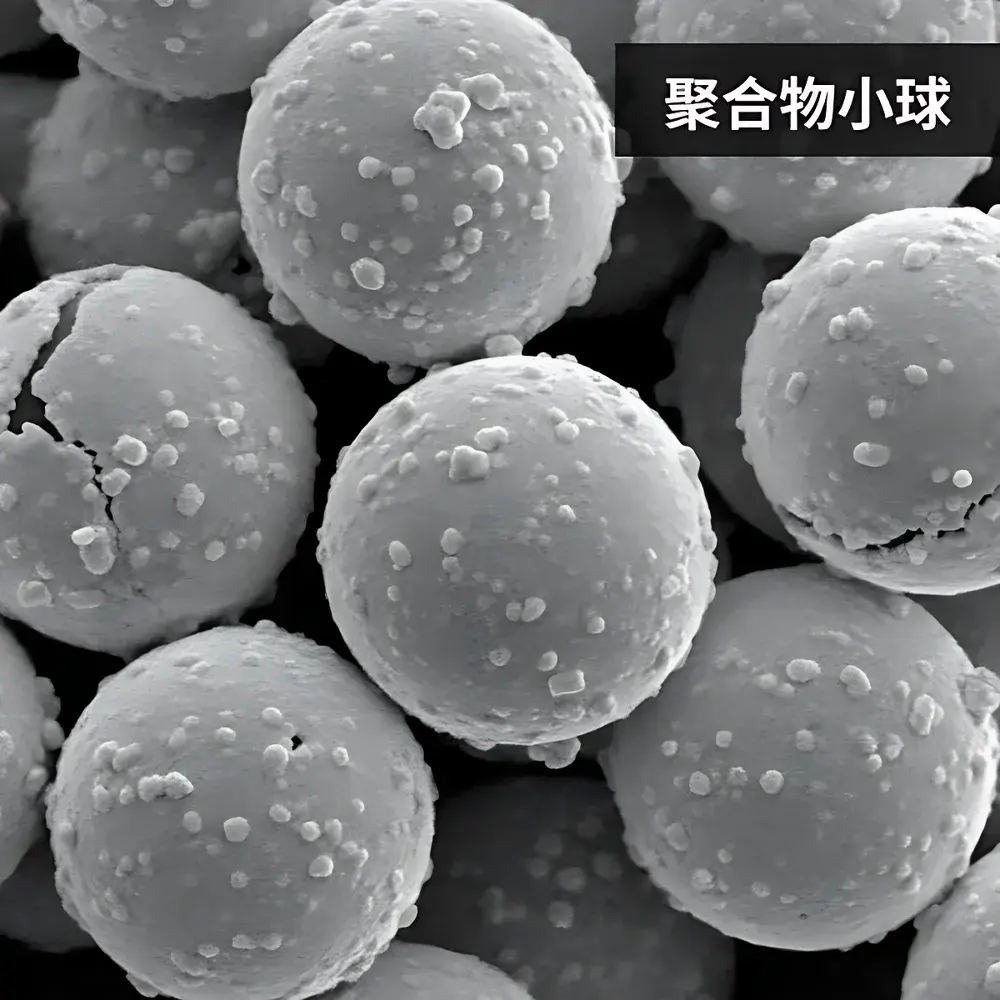

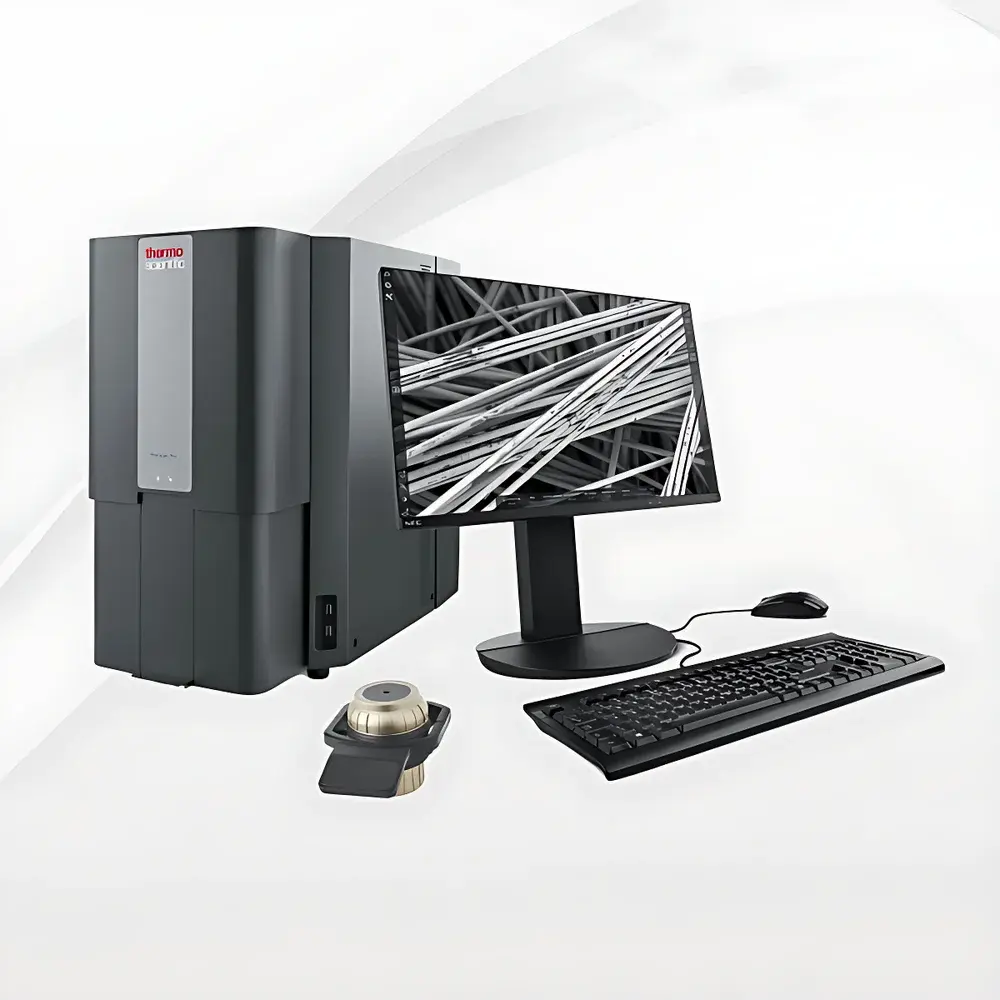

The Phenom Pro_3 is a high-performance desktop scanning electron microscope (SEM) engineered specifically for rapid, high-fidelity morphological and compositional analysis of polymer membranes and soft functional materials. Operating on the principle of electron-sample interaction—where a focused beam of high-energy electrons scans across the specimen surface to generate secondary electron (SE) and backscattered electron (BSE) signals—the instrument delivers nanoscale topographic contrast and atomic-number-dependent compositional contrast without requiring ultra-high vacuum or complex sample preparation. Its compact, fully integrated architecture eliminates the need for dedicated shielded rooms or liquid nitrogen cooling, enabling routine SEM access in shared labs, quality control facilities, and polymer R&D centers. Designed with polymer science workflows in mind, the Pro_3 supports low-voltage imaging (down to 4.8 kV) to minimize beam damage on beam-sensitive specimens—including hydrogels, biodegradable films, and ion-exchange membranes—while maintaining sub-6 nm resolution under standard operating conditions.

Key Features

• Sub-6 nm resolution in both secondary electron (SE) and backscattered electron (BSE) imaging modes, validated per ISO 16700:2016 standards for SEM resolution measurement.
• CeB₆ thermionic electron source offering superior brightness, stability, and >1,500-hour operational lifetime—eliminating frequent filament replacement and reducing long-term cost of ownership.
• Integrated dual-detector system enabling real-time simultaneous acquisition and on-the-fly mixing of SE and BSE signals, enhancing contrast differentiation between phase-separated domains in block copolymer membranes or filler-matrix interfaces in nanocomposites.
• Ultra-fast vacuum cycle (<15 seconds) via integrated turbomolecular pumping, allowing rapid sample exchange and high-throughput screening of multiple membrane batches.
• Intuitive, icon-driven software interface compliant with IEC 62304 Class B medical device software requirements—designed for minimal training and immediate deployment by non-SEM specialists, including materials scientists, process engineers, and QA technicians.
• Modular upgrade path to Phenom ProX configuration, enabling seamless integration of energy-dispersive X-ray spectroscopy (EDS) for elemental mapping and semi-quantitative composition analysis per ASTM E1508 and ISO 22309 protocols.

Sample Compatibility & Compliance

The Phenom Pro_3 accommodates a broad range of polymer membrane formats—including freestanding thin films (≥100 nm), solvent-cast coatings on conductive substrates, electrospun nanofiber mats, and hydrated hydrogel specimens—without mandatory sputter coating in many cases due to its low-kV imaging capability and charge-compensation algorithm. It complies with CE marking requirements (2014/30/EU EMC Directive, 2014/35/EU LVD Directive) and meets essential safety provisions outlined in IEC 61010-1 for laboratory electrical equipment. For regulated environments, the system supports audit-ready operation: all image metadata (kV, WD, dwell time, detector gain, date/time stamp) are embedded in TIFF headers and exportable in FAIR-compliant formats; optional GLP/GMP logging modules provide full traceability aligned with FDA 21 CFR Part 11 electronic record requirements.

Software & Data Management

Acquisition and analysis are managed through Phenom Desktop Software v6.x—a Windows-based platform featuring automated focus/stigmation routines, multi-point navigation, batch image capture, and built-in measurement tools (line profiles, particle analysis, roughness quantification per ISO 25178). All images are saved in lossless TIFF format with embedded EXIF-style metadata, ensuring reproducibility and regulatory traceability. Raw data files support direct import into third-party platforms such as ImageJ/Fiji, MATLAB, and Thermo Scientific Avizo for advanced segmentation, 3D reconstruction, or statistical morphology modeling. Optional cloud synchronization enables secure team-based annotation, version-controlled project archiving, and remote instrument monitoring—facilitating cross-site collaboration in multinational polymer development programs.

Applications

• Morphological characterization of phase-separated structures in asymmetric ultrafiltration membranes (e.g., polyethersulfone, polyvinylidene fluoride).
• Surface defect inspection of lithium-ion battery separators (e.g., ceramic-coated PE/PP trilayer films) for pore uniformity, thickness variation, and thermal shrinkage assessment.

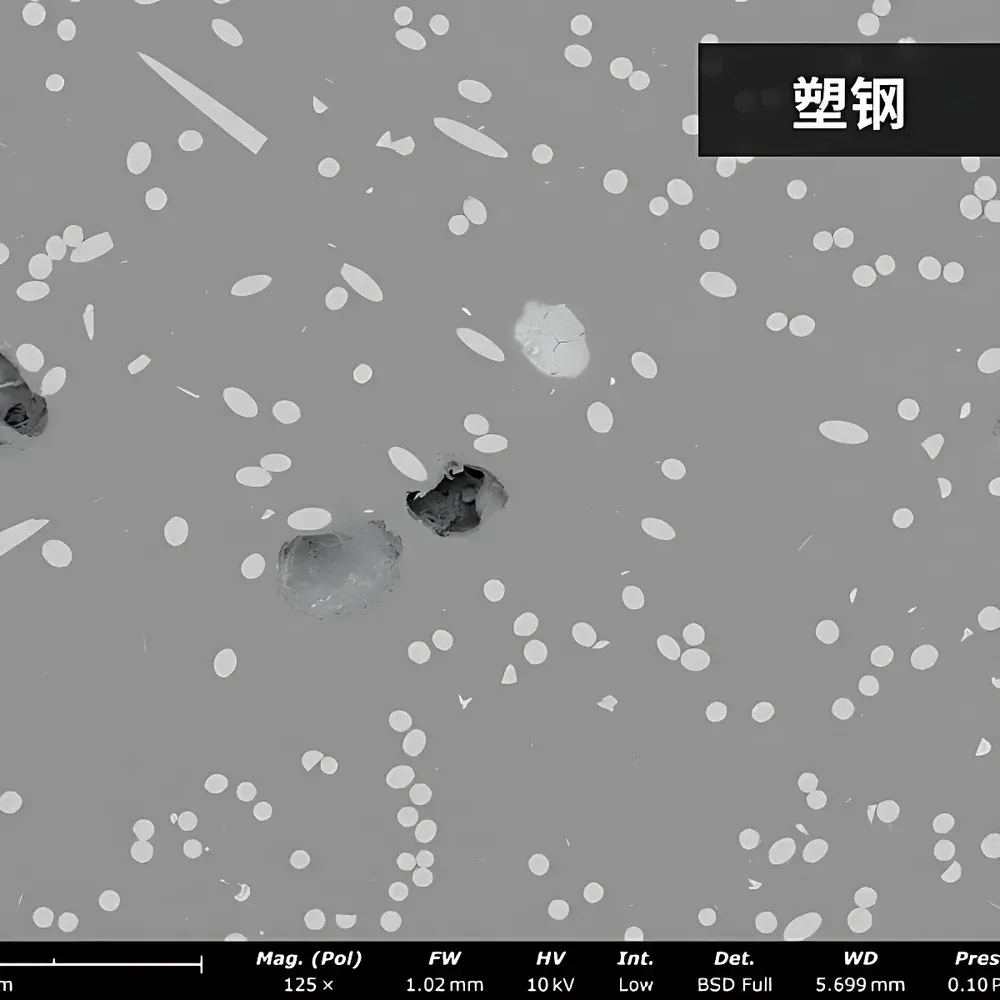

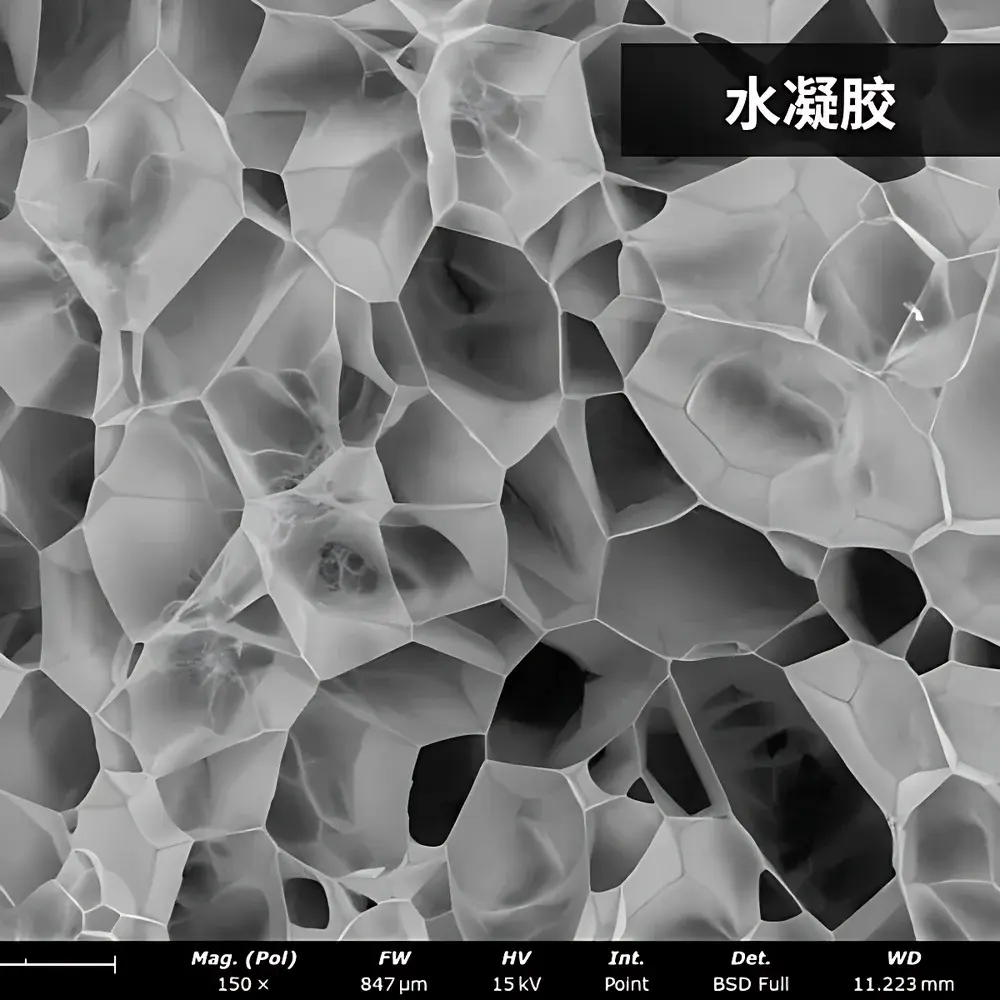

• In-situ observation of hydrogel swelling kinetics and degradation front propagation under controlled humidity or buffer exposure.
• Interface analysis of multilayer barrier films used in flexible electronics packaging, identifying delamination, pinhole formation, or interdiffusion zones.
• Quality assurance of electrospun nanofiber scaffolds for tissue engineering—evaluating fiber diameter distribution, mat porosity, and bead-on-string defects per ISO 18115-2.

FAQ

Can the Phenom Pro_3 image uncoated polymer membranes without charging artifacts?

Yes—its low-accelerating-voltage capability (4.8–10 kV), combined with intelligent charge compensation algorithms and optimized detector geometry, enables stable imaging of insulating polymer surfaces up to 5 µm thick without metallization in most cases.
Is EDS elemental analysis possible on the Pro_3?

The Pro_3 is EDS-ready: it features standardized mounting interfaces and signal synchronization ports. Upgrading to the Phenom ProX configuration adds an integrated silicon drift detector (SDD) and quantification software compliant with ISO 14705 and ASTM E1351.
What is the typical maintenance schedule for the CeB₆ source?

The CeB₆ emitter requires no scheduled maintenance during its rated lifetime (>1,500 h); vacuum integrity and detector calibration are verified quarterly using certified reference standards (e.g., NIST SRM 2053).
Does the system support automated batch imaging for membrane quality control?

Yes—using the “Grid Scan” module, users define coordinate arrays across sample holders (e.g., 384-well plates or multi-position stubs) to execute unattended acquisition of hundreds of fields-of-view with consistent parameter sets and auto-save naming conventions.
How does the Pro_3 compare to floor-standing SEMs for polymer membrane analysis?

While high-end floor models offer higher ultimate resolution and analytical flexibility, the Pro_3 delivers 90% of critical morphological insight at <25% of the footprint, cost, and operational overhead—making it ideal for iterative process development, failure root-cause analysis, and decentralized lab deployment where throughput and accessibility outweigh extreme magnification needs.
