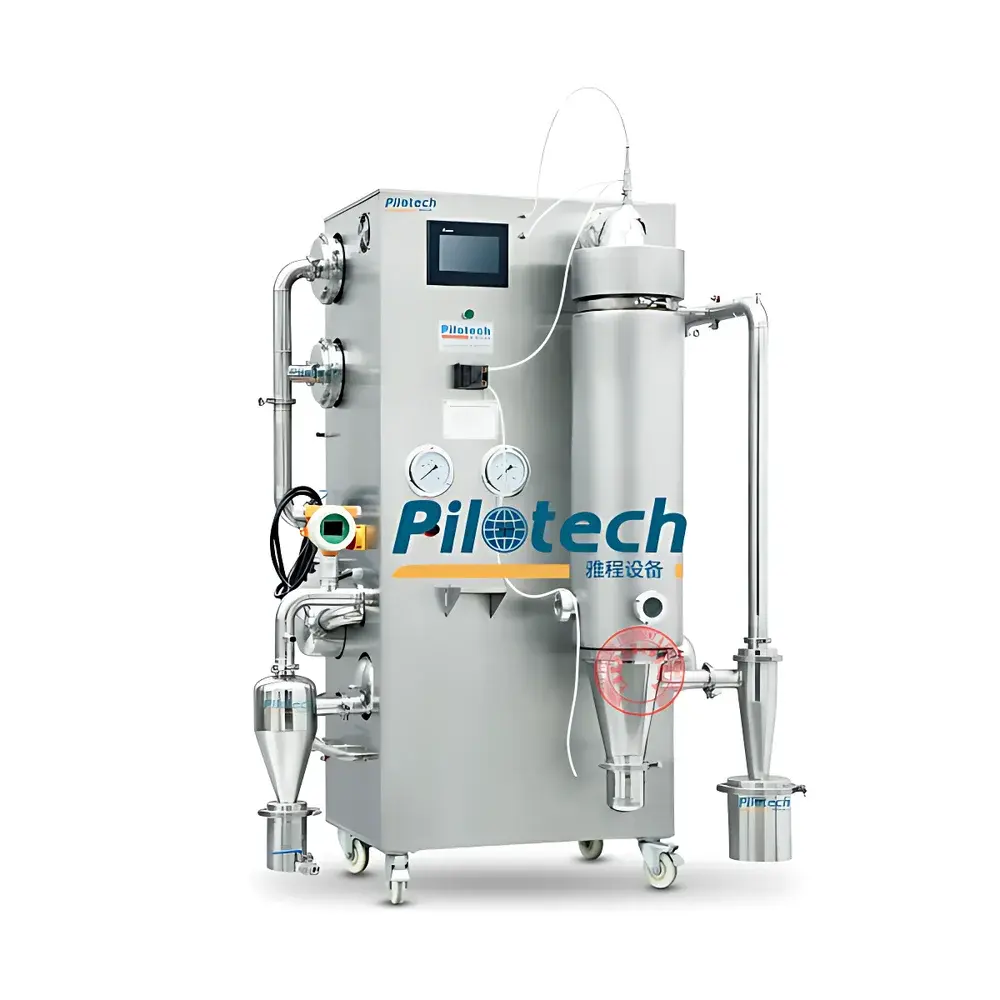

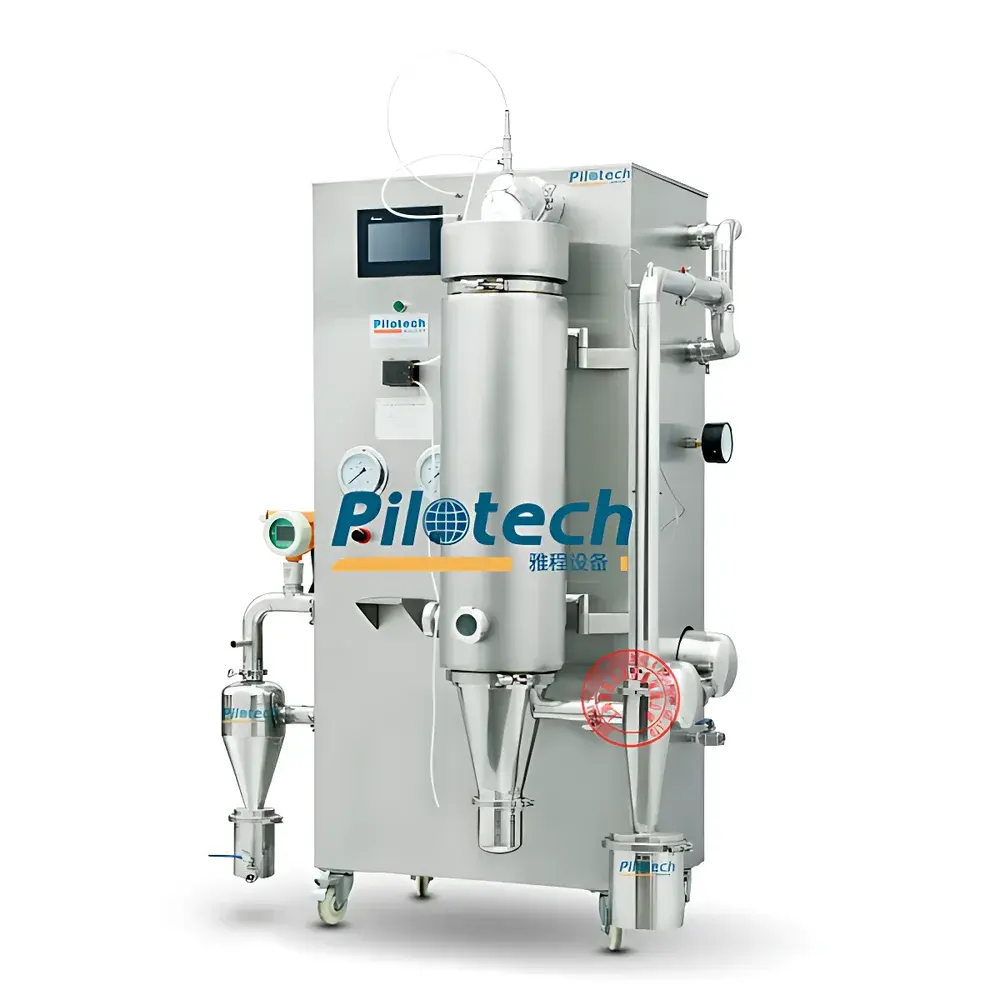

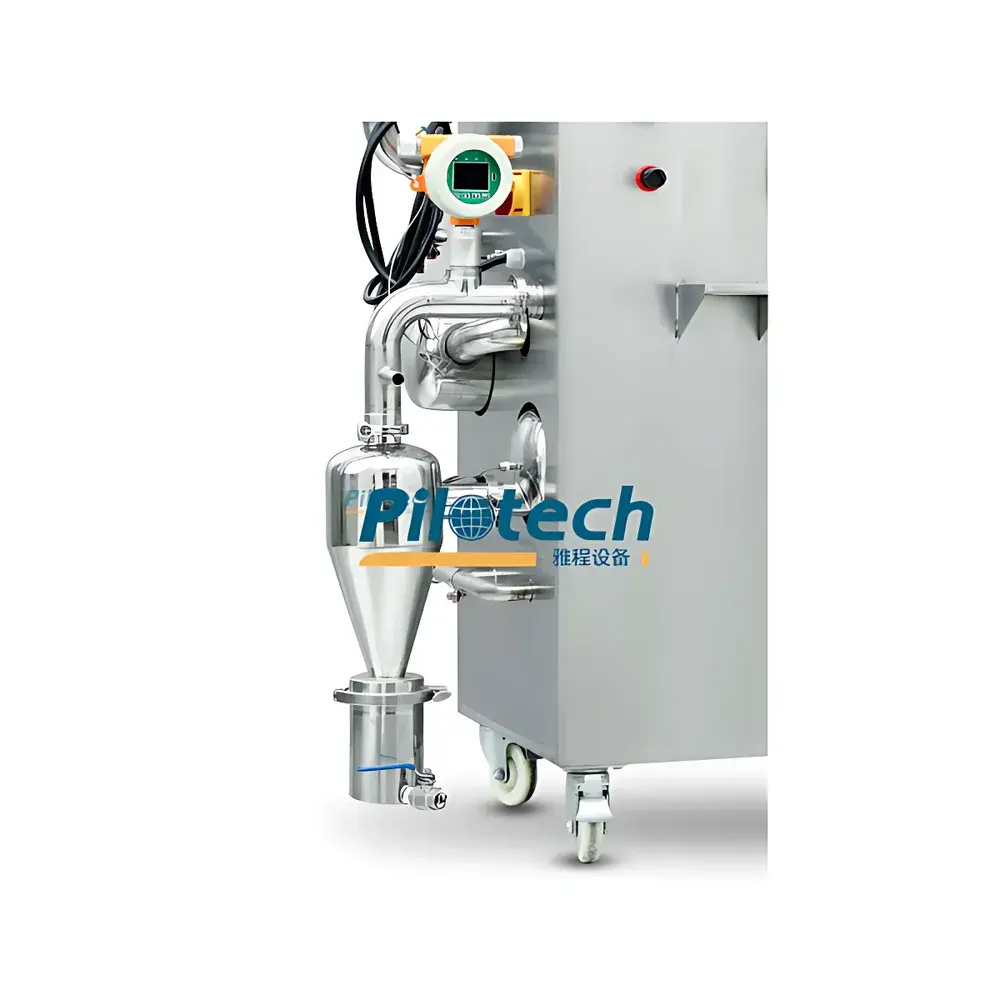

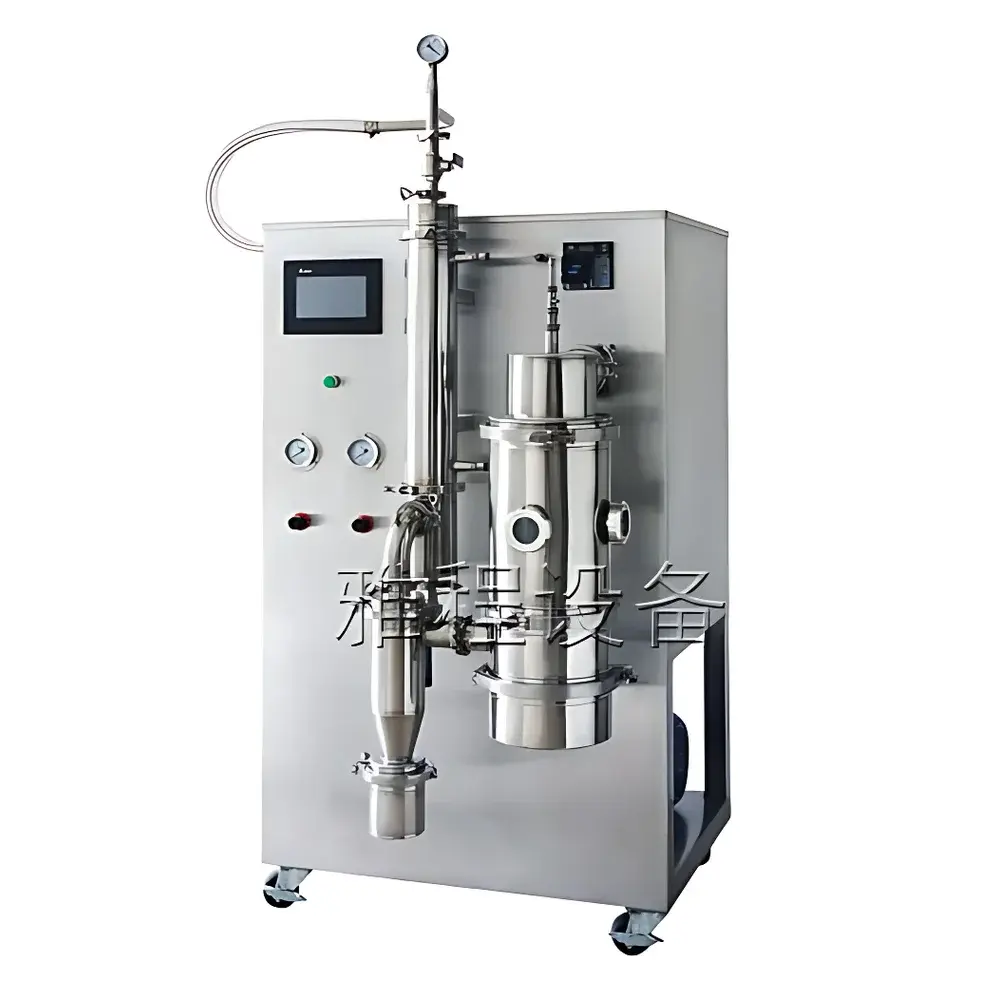

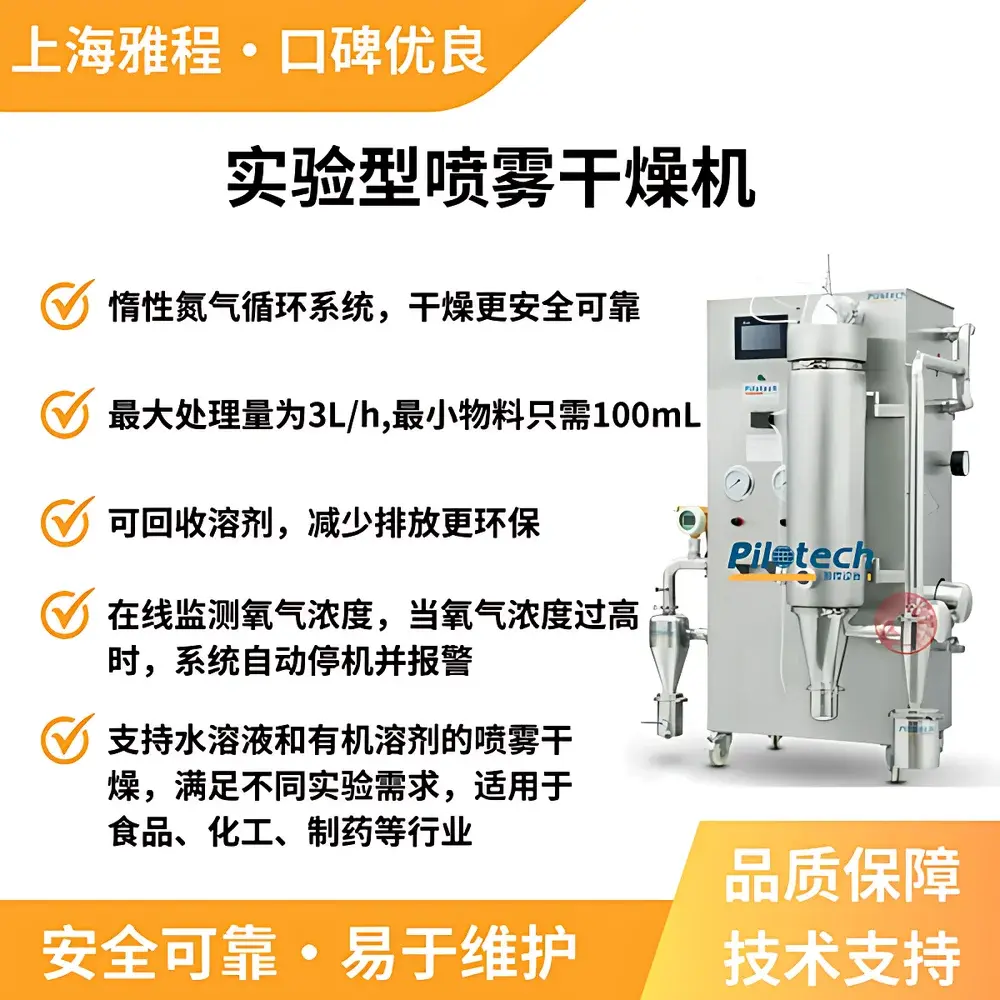

PILOTECH YC-018A Pilot-Scale Closed-Loop Organic Solvent Spray Dryer

Overview

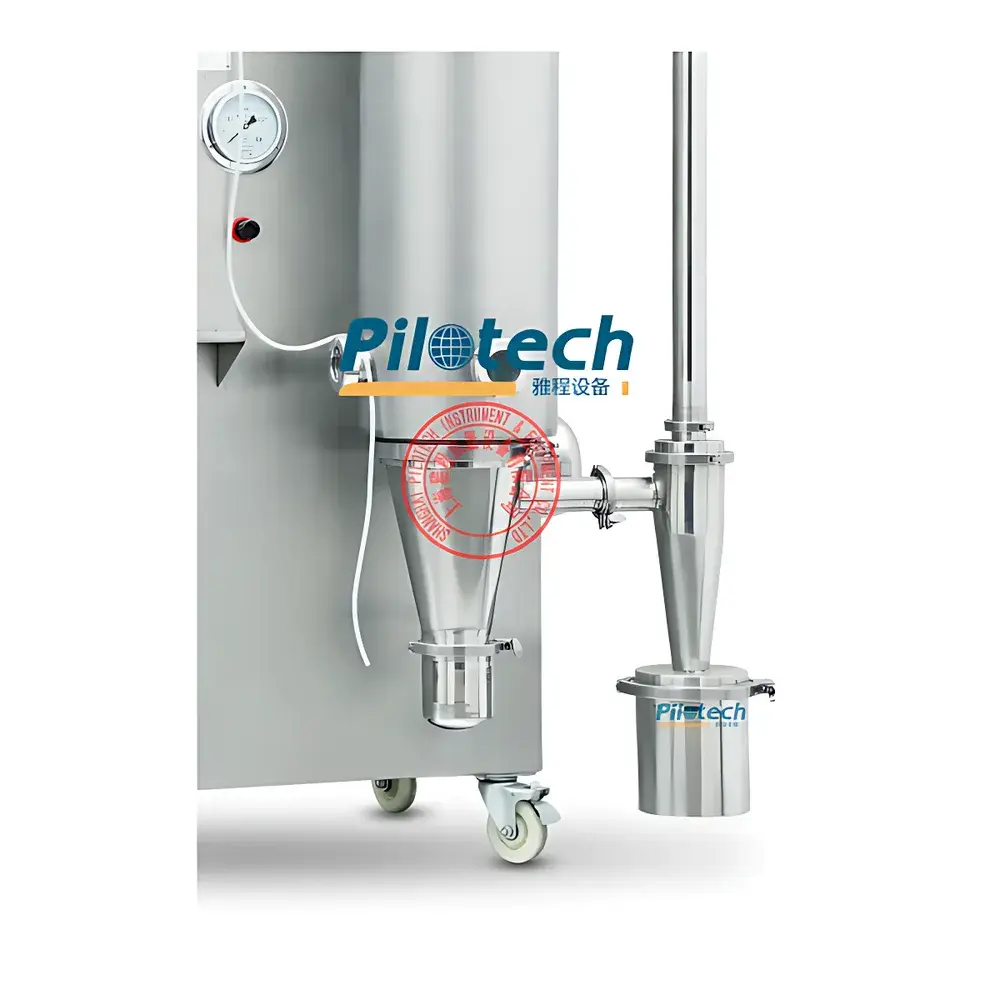

The PILOTECH YC-018A is a pilot-scale, nitrogen-closed-loop spray dryer engineered for the safe, reproducible, and solvent-efficient drying of heat-sensitive, oxidation-prone, or hazardous organic solutions. Unlike conventional open-loop spray dryers, the YC-018A operates under an inert nitrogen atmosphere with real-time oxygen concentration monitoring—ensuring compliance with Class I Division 1 explosion protection requirements for flammable solvents (e.g., acetone, ethanol, ethyl acetate, THF). Its core process leverages dual-fluid atomization: liquid feed is pneumatically dispersed via concentric nozzles using pressurized nitrogen, while heated nitrogen serves as both drying medium and carrier gas. The resulting aerosol undergoes rapid convective drying in the drying chamber, followed by cyclonic separation of dried powder. Exhaust gas—carrying solvent vapor—is cooled in a heat exchanger, condensed in a refrigerated trap, and returned as purified nitrogen to the inlet stream. This closed-loop architecture enables >95% solvent recovery, eliminates atmospheric emissions, and prevents oxidative degradation during processing—critical for pharmaceutical actives, enzyme formulations, agrochemical intermediates, and nanocarrier suspensions.

Key Features

• Explosion-safe closed-loop nitrogen circulation system with continuous O₂ monitoring (auto-shutdown at ≥2.5% v/v) and intrinsically safe instrumentation per IEC 60079-0.
• Concentric dual-fluid spray nozzle assembly with vertical adjustability—eliminates off-center spraying, ensures uniform droplet distribution, and maximizes wall-free drying efficiency and product recovery.
• PLC-based control system with 7-inch color touchscreen interface (fully English-localized firmware), supporting real-time adjustment of inlet temperature, feed rate (via precision peristaltic pump), atomization gas flow, and needle cleaning frequency.
• Integrated solvent recovery train comprising shell-and-tube heat exchanger and cryogenic condenser (−20 °C standard; optional −40 °C chiller for low-boiling solvents such as diethyl ether or pentane).
• Robust thermal management: post-run cooling protocol maintains fan operation until chamber temperature drops below 50 °C—preventing thermal stress on seals and residual solvent ignition risk.
• Corrosion-resistant construction: all wetted parts (nozzle, cyclone, collection vessel, piping) fabricated from 316L stainless steel; fan impeller and housing rated for continuous exposure to saturated organic vapor.
• Scalable feed capacity: minimum sample volume of 100 mL supports feasibility screening; maximum throughput of 3000 mL/h enables material generation for preclinical batches or formulation stability studies.

Sample Compatibility & Compliance

The YC-018A accommodates aqueous, alcoholic, chlorinated, and aromatic solvent systems—including but not limited to methanol, ethanol, isopropanol, acetone, acetonitrile, dichloromethane, and toluene. It is routinely deployed for drying thermolabile biologics (e.g., monoclonal antibody fragments, plasmid DNA complexes), oxidizable metal-organic frameworks (MOFs), and volatile active ingredients used in inhalable dry powder formulations. The system meets fundamental engineering prerequisites for GLP-compliant environments: full audit trail logging (timestamped parameter changes, alarms, shutdown events), password-protected user access levels, and electronic record retention compatible with FDA 21 CFR Part 11 validation protocols. All electrical components conform to CE, UL 61010-1, and ATEX Zone 22 certification standards. Oxygen sensor calibration is traceable to NIST-certified gas standards.

Software & Data Management

The embedded controller logs all operational parameters—including inlet/outlet temperature, nitrogen flow rate, O₂ concentration, pump RPM, and nozzle purge cycles—at 1-second intervals to internal non-volatile memory (≥30 days of continuous data). Export is supported via USB 2.0 to CSV format for integration into LIMS or statistical process control platforms (e.g., JMP, Minitab). Optional Ethernet/IP connectivity enables remote monitoring and alarm notification via SMTP or Modbus TCP. Data integrity safeguards include write-protection modes, cyclic redundancy checks (CRC-32) on stored files, and automatic backup upon power interruption. Firmware updates are performed via signed binary packages to prevent unauthorized modification.

Applications

• Pharmaceutical development: production of amorphous solid dispersions, liposomal powders, and inhalable corticosteroid microparticles under GMP-aligned conditions.
• Agrochemical R&D: stabilization of photo-labile pesticides (e.g., pyrethroids) and controlled-release microcapsules without thermal decomposition.
• Materials science: synthesis of solvent-stable quantum dot inks, conductive polymer nanoparticles, and battery cathode precursors requiring oxygen-free calcination precursors.
• Food & nutraceuticals: encapsulation of omega-3 oils, anthocyanins, and probiotic cultures using GRAS-compliant solvents (e.g., ethanol/water mixtures).
• Academic research: kinetic studies of solvent evaporation dynamics, particle morphology evolution under varying dew point conditions, and co-solvent phase behavior mapping.

FAQ

What solvents are compatible with the YC-018A?

The system supports all common organic solvents with flash points above −20 °C when operated under nitrogen. Low-boiling solvents (e.g., diethyl ether, pentane) require optional −40 °C chiller integration and enhanced O₂ purge protocols.
Can the YC-018A be validated for regulatory submissions?

Yes—the hardware architecture, sensor traceability, and data logging framework support IQ/OQ/PQ execution per ASTM E2500 and ICH Q5C guidelines. Full validation documentation packages are available upon request.
Is operator training included with purchase?

Comprehensive on-site or virtual commissioning and SOP development support is provided, including hands-on operation, preventive maintenance routines, and emergency shutdown drills.
How is solvent recovery efficiency quantified?

Recovery rate is calculated gravimetrically using pre- and post-run condensate collection; typical performance exceeds 95% for solvents with boiling points >50 °C and >88% for those below 40 °C (with chiller upgrade).
Does the system meet ISO 14644-1 Class 5 cleanroom compatibility requirements?

While not a cleanroom-certified unit, the YC-018A’s sealed construction, HEPA-filtered nitrogen supply option, and zero ambient air ingress enable installation within ISO Class 5–7 environments when coupled with appropriate facility HVAC integration.
