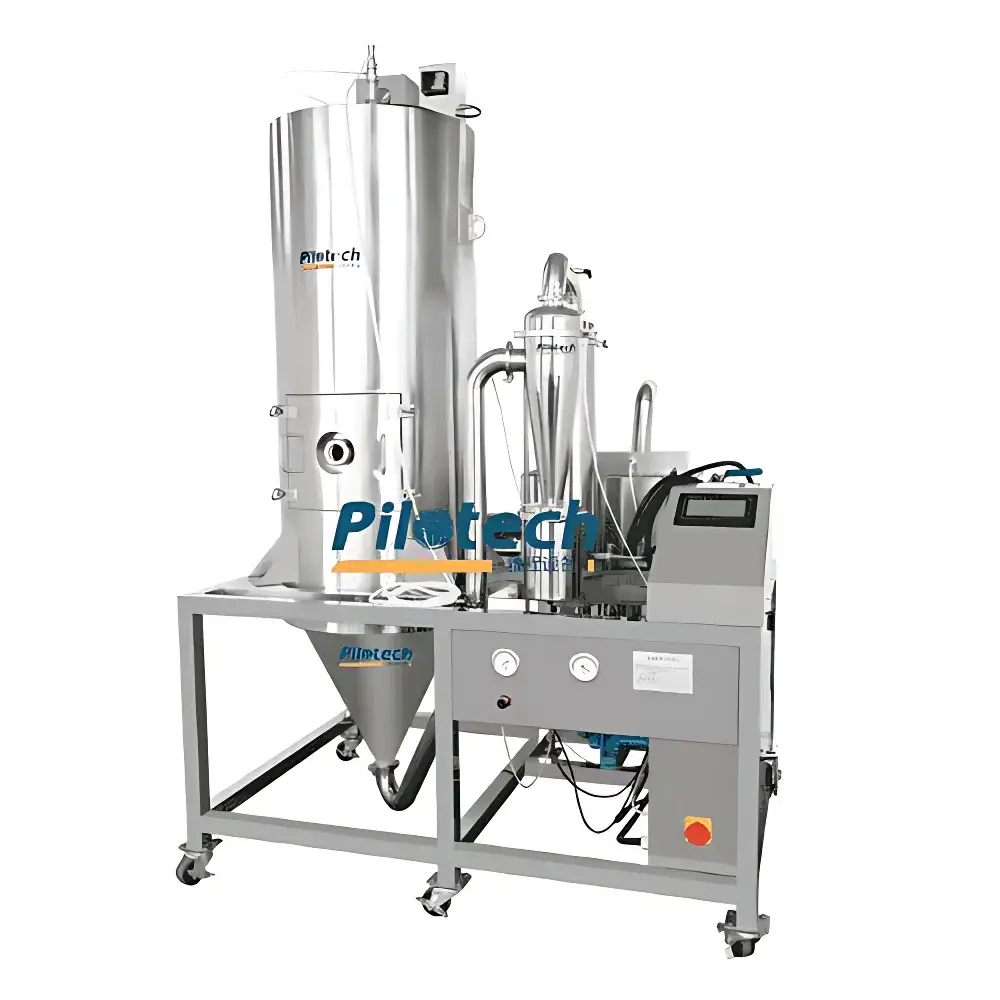

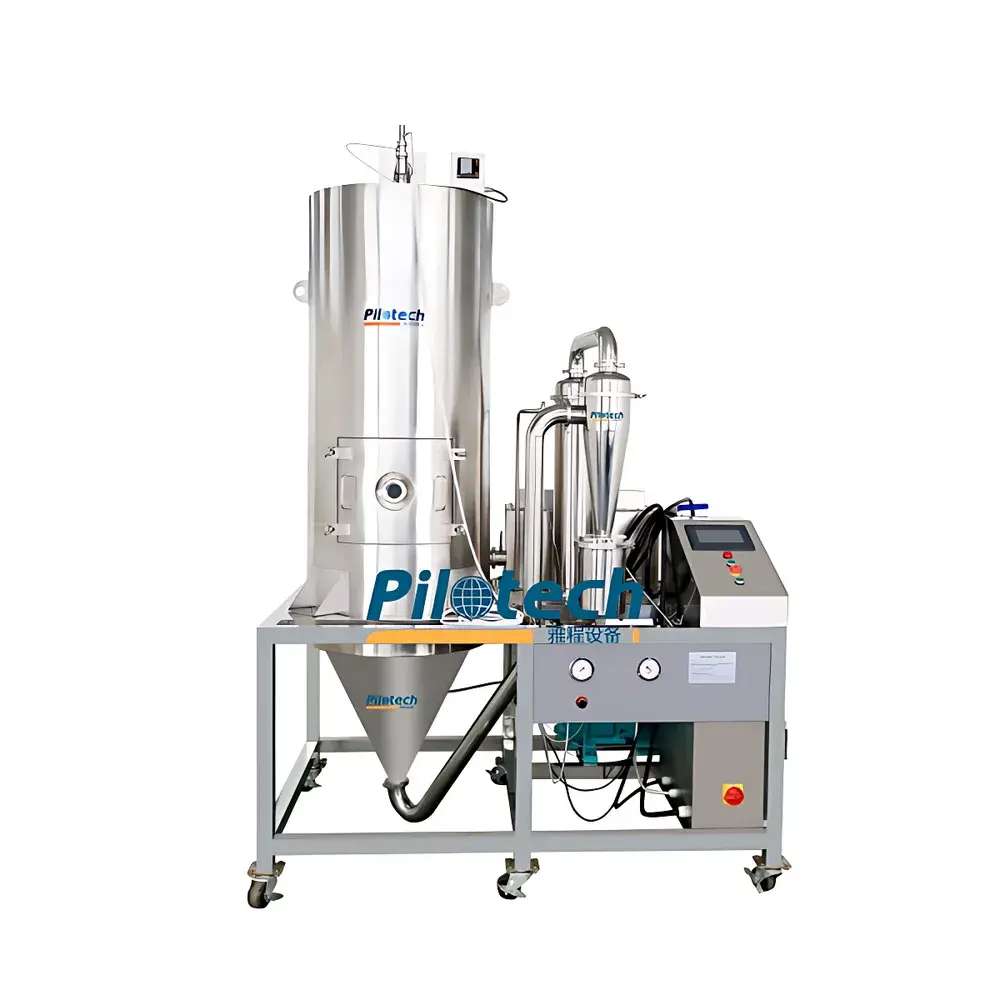

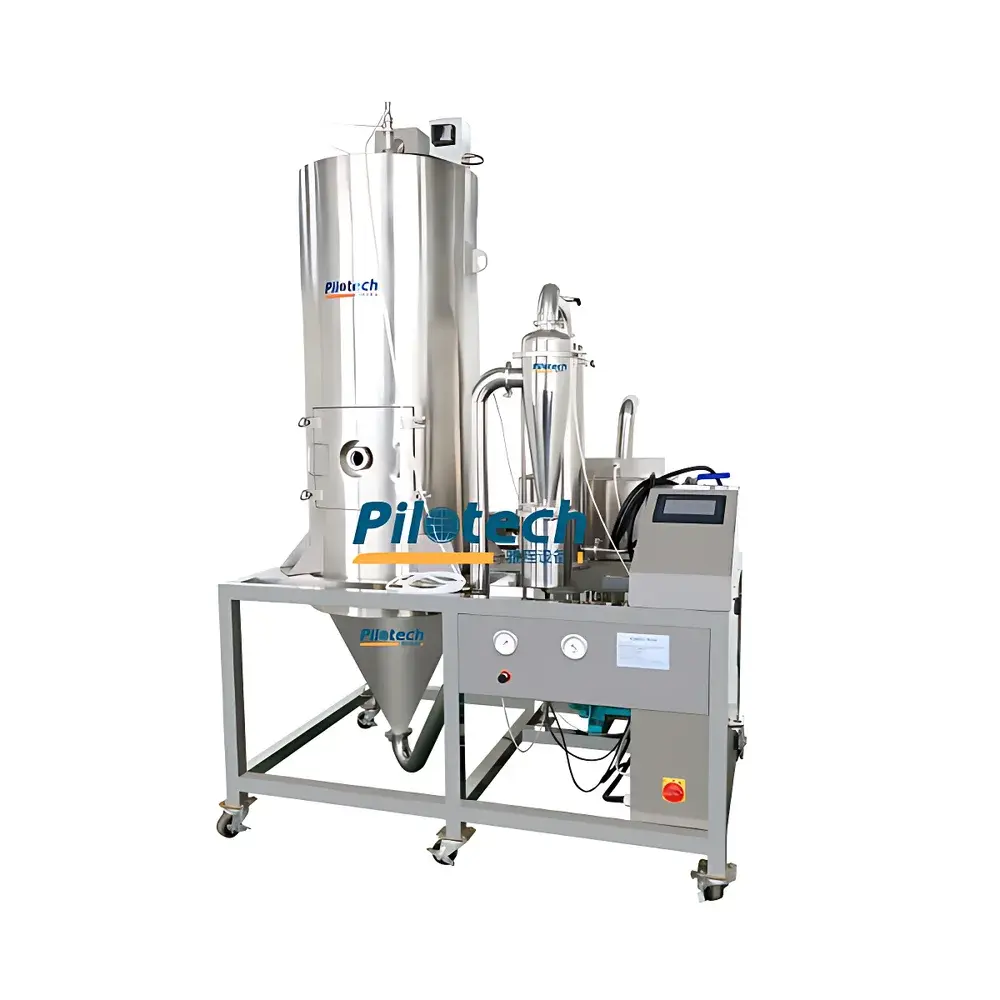

PiloTech YC-3100 Pilot-Scale Vacuum Low-Temperature Spray Dryer

Overview

The PiloTech YC-3100 Pilot-Scale Vacuum Low-Temperature Spray Dryer is an engineered solution for bridging laboratory-scale formulation development and commercial process validation. Unlike conventional atmospheric spray dryers, the YC-3100 operates under controlled vacuum conditions—typically 5–50 kPa absolute—to depress the boiling point of aqueous solvents, enabling drying at inlet temperatures as low as 40–80 °C while maintaining high evaporation efficiency. This principle leverages thermodynamic phase behavior to preserve thermolabile compounds without compromising powder yield or morphology control. Designed as a direct scale-up from the YC-2000 lab model, the YC-3100 maintains identical nozzle geometry, airflow dynamics, and thermal management architecture—ensuring data continuity across development stages. Its modular construction supports GMP-aligned installation in cleanroom environments (ISO Class 7–8), and its footprint (< 1.2 m²) and height (< 2.6 m) allow integration into standard laboratory utility bays.

Key Features

• Vacuum-assisted drying chamber with adjustable setpoint (5–50 kPa abs), enabling precise control over solvent evaporation kinetics and final moisture content (typically < 3% w/w)
• Thermal stability: ±2 °C temperature control accuracy across inlet air, chamber wall, and exhaust streams—critical for reproducible particle formation and crystallinity retention
• Scalable feed system accommodating volumes from 200 mL (minimum batch) to 10 L/h continuous operation—validated via mass balance and residual solvent analysis (GC/MS compatible)
• Quick-release, sanitary-grade contact parts (316L stainless steel chamber, borosilicate glass collection vessel, PTFE-coated peristaltic pump tubing) compliant with FDA 21 CFR Part 11 traceability requirements when paired with optional touchscreen controller
• Integrated real-time monitoring of feed rate, chamber pressure, inlet/outlet temperatures, and exhaust humidity—data exportable via USB (standard) or Ethernet (optional)
• Compact vertical layout with integrated cyclone separator and HEPA-filtered exhaust—minimizing aerosol escape and meeting OSHA PEL guidelines for fine particulate exposure

Sample Compatibility & Compliance

The YC-3100 is validated for aqueous-based formulations only—including protein solutions, peptide suspensions, emulsions, colloidal dispersions, and polymer latexes—with viscosity limits up to 500 cP at 25 °C. It is not suitable for organic solvents, flammable liquids, or highly corrosive media. All wetted surfaces meet ASME BPE-2021 surface finish standards (Ra ≤ 0.8 µm). The system supports IQ/OQ documentation packages and is compatible with GLP-compliant audit trails when configured with the optional touch-screen HMI (IEC 62443-3-3 certified firmware). Regulatory alignment includes ASTM E2500-13 (user requirement specification), ISO 22000:2018 (food safety), and USP (microbial control in pharmaceutical processing).

Software & Data Management

The optional 10.1″ capacitive touchscreen controller runs embedded Linux with deterministic real-time kernel (PREEMPT_RT). It records all critical process parameters at 1 Hz resolution, stores ≥12 months of compressed time-series data locally, and generates CSV/Excel-compatible reports with timestamped metadata (operator ID, batch number, calibration status). Audit trail functionality complies with FDA 21 CFR Part 11: electronic signatures, role-based access control (admin/operator/viewer), and immutable log archiving. Data export supports USB flash drives (FAT32 formatted) or secure SFTP transfer to LIMS or MES systems. Optional Python API enables integration with MATLAB or LabVIEW for advanced statistical process control (SPC) modeling.

Applications

• Pharmaceutical R&D: Production of inhalable dry powders, lyophilized intermediates, and amorphous solid dispersions—preserving monoclonal antibody integrity and enzymatic activity during drying
• Nutritional science: Encapsulation of probiotics, omega-3 fatty acids, and heat-sensitive phytonutrients into stable microcapsules with controlled release profiles
• Functional food ingredients: Conversion of fruit pulp concentrates, dairy permeates, and plant protein hydrolysates into free-flowing, low-hygroscopicity powders
• Advanced materials: Synthesis of catalyst precursors (e.g., Pt/C, NiO), battery cathode precursors (NMC, LFP), and ceramic nanoparticles with narrow PSD (Dv50 ±5% RSD)
• Chemical specialty products: Stabilization of enzyme-loaded silica carriers, pH-responsive polymers, and photoactive dye-doped microparticles

FAQ

Can the YC-3100 handle organic solvents such as ethanol or acetone?
No. The YC-3100 is strictly rated for aqueous solutions only. Organic solvent handling requires explosion-proof design, inert gas purging, and intrinsically safe instrumentation—features not included in this configuration.
What is the minimum sample volume required for method development?
The system achieves stable atomization and consistent drying performance starting from 200 mL total feed volume, provided the solution density and viscosity remain within specified limits.
Is the particle size distribution affected by vacuum level adjustments?
Yes. Lower absolute pressure increases droplet evaporation rate, reducing residence time and generally yielding finer particles; however, optimal PSD is achieved through coupled optimization of feed rate, inlet temperature, and vacuum setpoint—not vacuum alone.
Does the system support automated cleaning-in-place (CIP)?
No CIP is built-in, but the quick-disconnect design of all fluid-path components enables manual cleaning validated per ASTM E3109-17 for residue detection limits < 1 ppm.
Can I integrate the YC-3100 with my existing SCADA or MES platform?
Yes—via Modbus TCP (standard) or OPC UA (optional add-on)—enabling live parameter streaming, alarm forwarding, and batch record synchronization.
