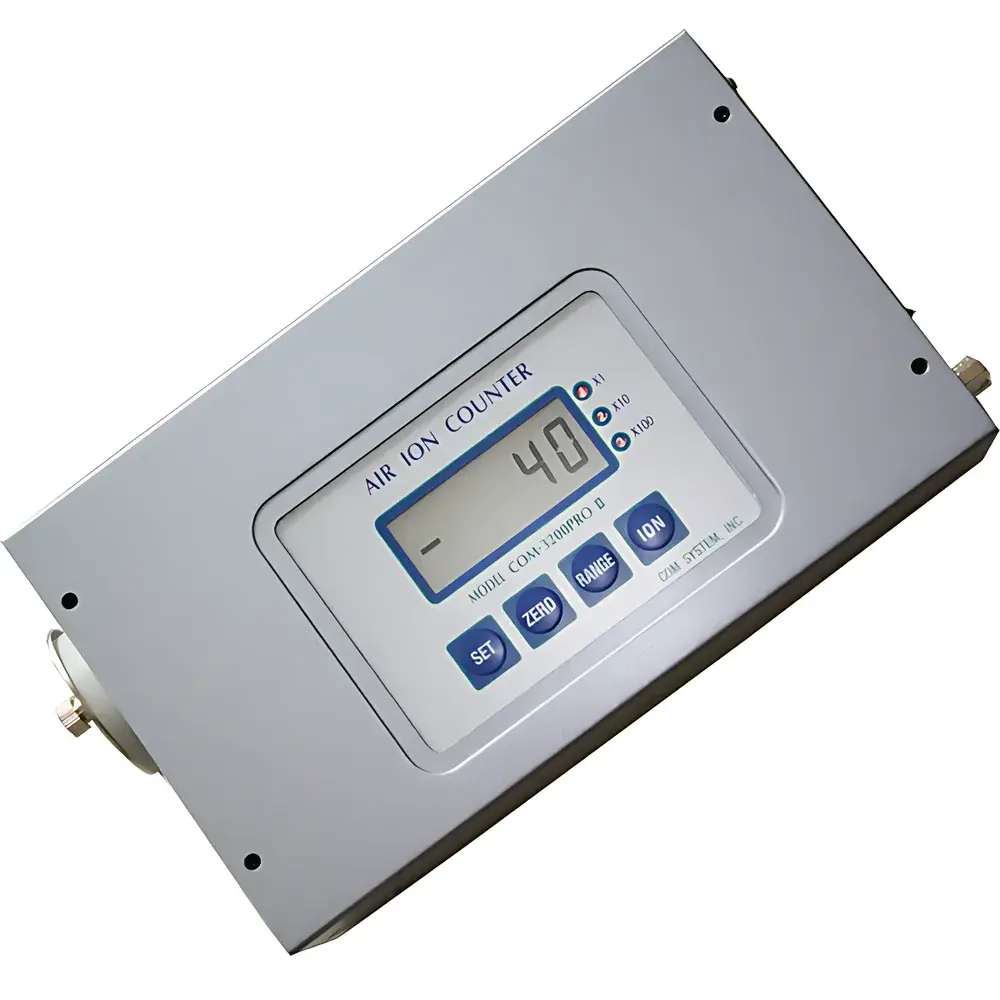

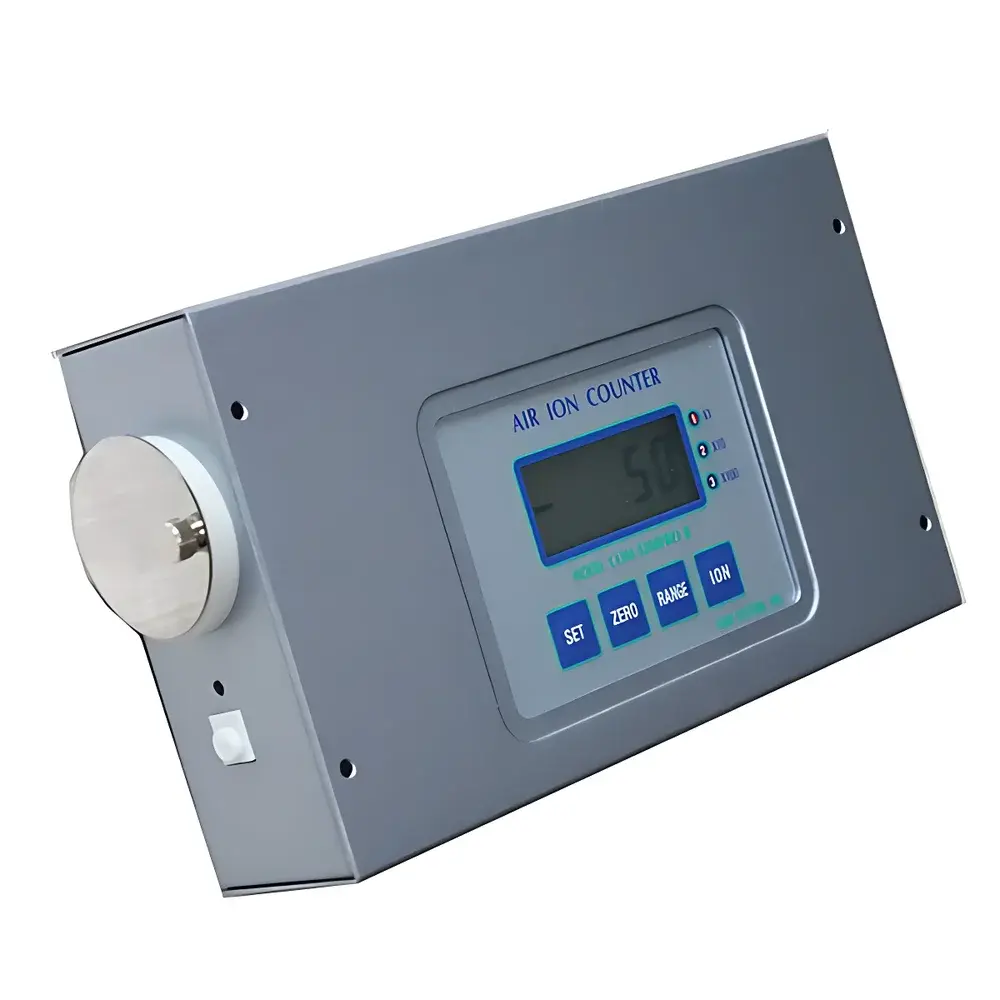

PKSAIR COM-3200PRO II Air Negative Ion Detector

Overview

The PKSAIR COM-3200PRO II Air Negative Ion Detector is a precision-engineered environmental monitoring instrument designed for reliable, field-deployable measurement of air ion concentrations—specifically negative ions—in natural and built environments. It operates on the coaxial double-cylinder capacitor principle, a methodology specified in the Japanese Industrial Standard (JIS) Draft Guideline for Air Ion Density Measurement. This design fundamentally differs from planar electrode configurations used in lower-fidelity consumer-grade instruments; the coaxial geometry ensures uniform electric field distribution, minimizes edge effects, and delivers superior sensitivity and reproducibility across the full dynamic range. The detector is calibrated to quantify unipolar negative ions (typically O₂⁻, CO₃⁻, NO₃⁻) in ambient air without requiring radioactive sources or high-voltage corona discharge—making it safe, stable, and suitable for long-term monitoring in sensitive ecological zones.

Key Features

• Coaxial double-cylinder sensor architecture compliant with JIS draft methodology, enabling high-accuracy discrimination of negative ion density independent of airflow turbulence or particulate interference.
• Three selectable measurement ranges (0–2×10⁴, 0–2×10⁵, and 0–2×10⁶ ions/cm³), each optimized for distinct environmental contexts—from indoor living spaces to high-ion-emission sites such as waterfalls and forest canopies.
• Integrated temperature and relative humidity sensors (5–35 °C, 0–85 %RH), allowing real-time environmental parameter correlation during ion acquisition—critical for interpreting ion lifetime, mobility, and atmospheric recombination kinetics.
• Dual power architecture: universal AC input (100–240 V) and rechargeable internal battery supporting ≥7 hours of continuous field operation, eliminating dependency on external power infrastructure during remote surveys.
• Tactile touch-button fan control with enhanced auto-regulation logic, maintaining optimal laminar airflow across the sensor inlet while minimizing mechanical noise and power draw.
• 4½-digit, 7-segment LCD display with automatic range scaling and unit annotation (ions/cm³), engineered for legibility under variable ambient lighting conditions—including shaded forest understories and outdoor daylight exposure.

Sample Compatibility & Compliance

The COM-3200PRO II is validated for direct sampling of ambient air without pre-conditioning or filtration—enabling representative measurements in forests, national parks, mountain resorts, urban green spaces, and indoor wellness environments. Its coaxial sensor design inherently rejects charged aerosols >0.3 µm diameter, ensuring selectivity for gaseous small ions (mobility >1.0 cm²/V·s). The instrument conforms to the physical measurement framework outlined in the JIS Draft Guideline for Air Ion Density Measurement, and its output is traceable to ion current integration principles defined in ISO 16000-29 (Indoor air — Part 29: Determination of air ion concentrations). While not certified for regulatory compliance reporting under EPA or EU EN standards, its metrological consistency supports GLP-aligned environmental assessment workflows and longitudinal trend analysis in ecological research.

Software & Data Management

The included English-language PC software provides comprehensive data handling capabilities: time-synchronized logging at user-defined intervals (1 s to 60 min), timestamped CSV/Excel export, baseline drift correction tools, and customizable report templates with embedded metadata (location, operator ID, sensor calibration date). Data files retain full audit trail integrity—including measurement mode, range selection, temperature/humidity stamps, and battery voltage status—supporting 21 CFR Part 11–aligned documentation practices where required. Raw ion current values and processed density outputs are stored separately, facilitating post-acquisition reanalysis using alternative mobility or recombination models.

Applications

• Ecological impact assessment: Quantifying negative ion gradients across altitudinal transects, proximity to water features, or vegetation density gradients in protected natural areas.
• Urban environmental quality studies: Benchmarking ion levels near green infrastructure (e.g., vertical gardens, park corridors) versus traffic corridors or HVAC-dominated indoor zones.
• Wellness facility validation: Verifying ion concentration stability in salt therapy rooms, forest bathing trails, and spa environments against evidence-based thresholds (e.g., ≥1,000 ions/cm³ for perceived air freshness).
• Product evaluation: Testing ion emission efficacy of commercial air purifiers, mineral-based wall coatings, and tourmaline-infused textiles under controlled chamber conditions.
• Educational fieldwork: Supporting undergraduate and graduate atmospheric physics curricula with portable, standards-referenced instrumentation for hands-on ion mobility and atmospheric electricity labs.

FAQ

What measurement principle does the COM-3200PRO II use, and why is it more accurate than planar sensors?

It employs the coaxial double-cylinder capacitor method per JIS draft guidelines—ensuring uniform field geometry, reduced electrostatic shielding, and higher signal-to-noise ratio compared to flat-plate electrodes.
Does the instrument require annual recalibration, and what is the recommended calibration interval?

Annual verification against a reference ion generator is advised for research-grade applications; field users should perform zero-point checks before each deployment using clean filtered air.
Can the device measure positive ions, or is it strictly negative-ion-specific?

The COM-3200PRO II is configured exclusively for negative ion detection. Positive ion measurement requires polarity reversal hardware not present in this model.
Is the RS-232 interface compatible with modern Windows/macOS systems without legacy serial ports?

Yes—the included RS-232-to-USB adapter enables plug-and-play connectivity on all current operating systems with standard CDC ACM drivers.
How does temperature and humidity compensation affect ion density readings?

The integrated sensors do not apply automatic correction to ion values; instead, they provide concurrent environmental metadata essential for post-hoc normalization using established ion mobility–humidity–temperature correlation models.
