PRESI FLEXICUT Precision PCB Cutting System

Overview

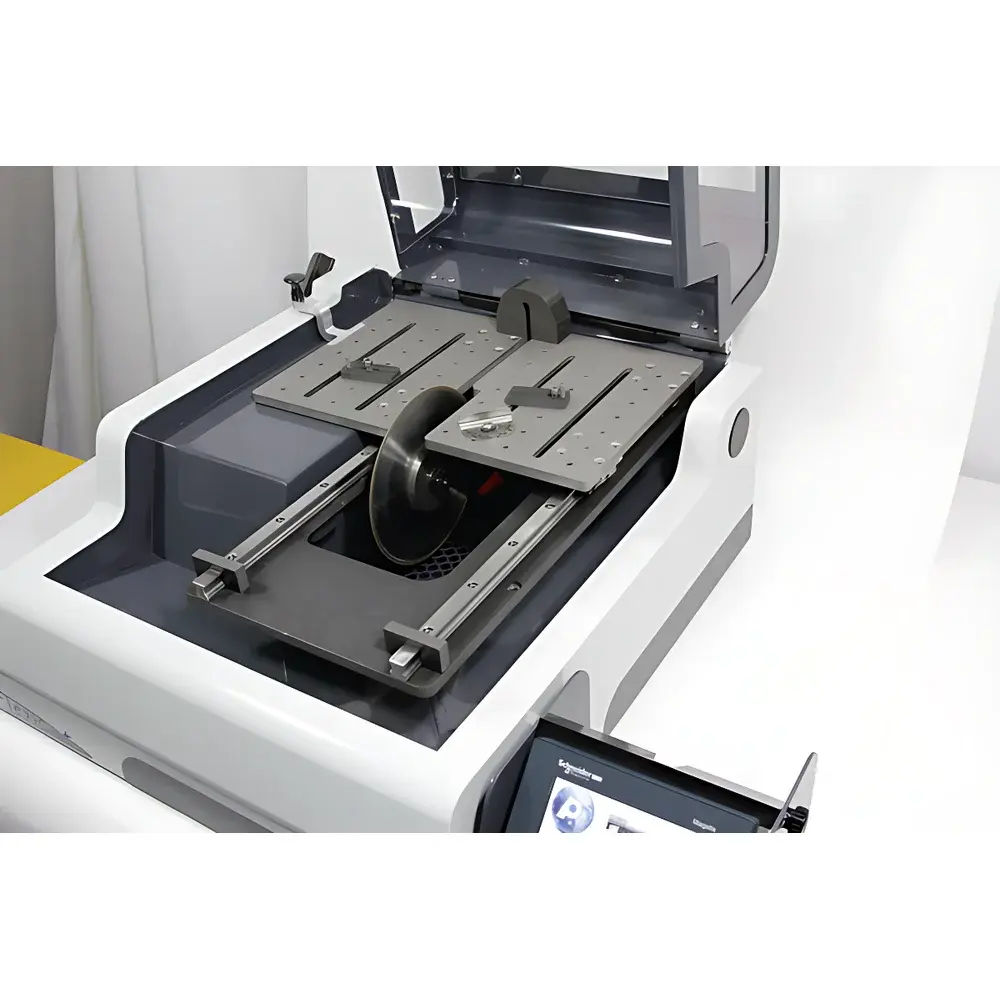

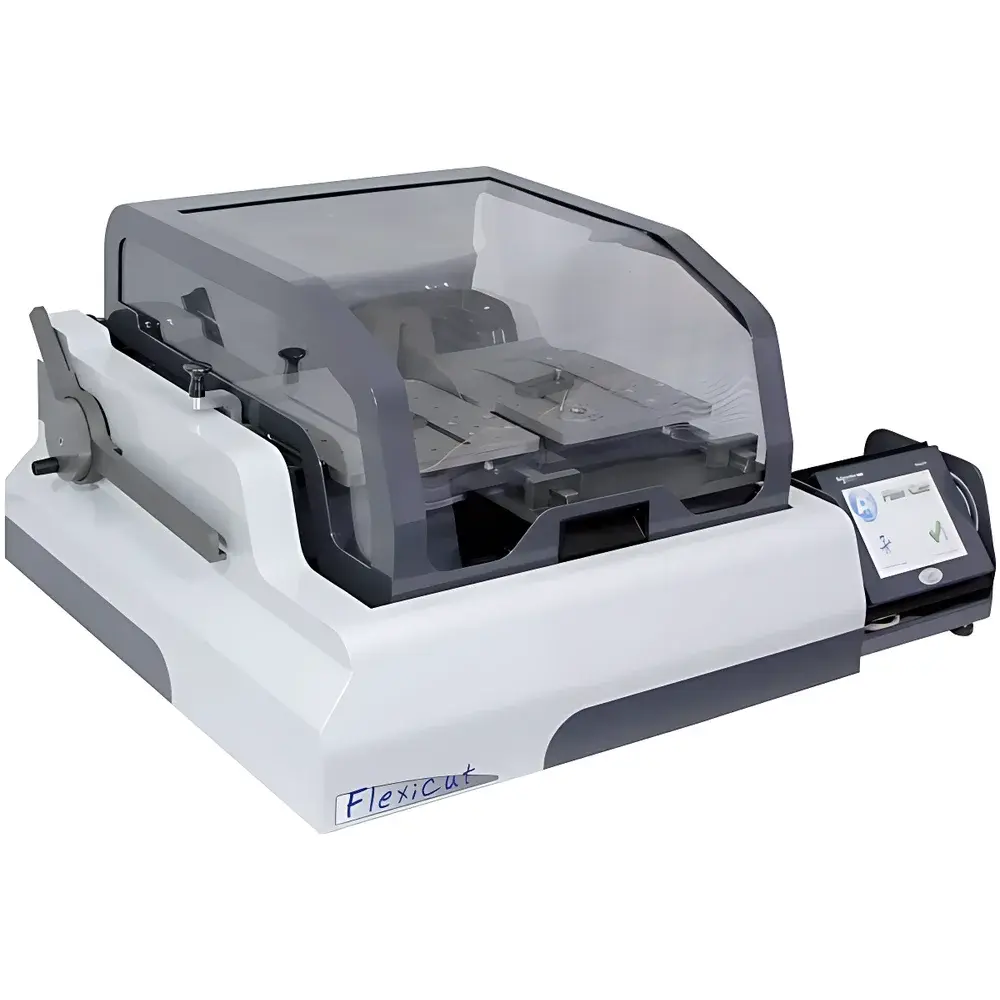

The PRESI FLEXICUT Precision PCB Cutting System is an engineered solution for controlled, low-damage sectioning of printed circuit boards (PCBs), microelectronic substrates, and other brittle or layered planar specimens in research, quality control, and failure analysis laboratories. Designed around the principle of precision abrasive sawing under continuous liquid cooling, the FLEXICUT employs a high-torque, variable-frequency motor drive to maintain consistent rotational velocity and torque response across varying mechanical loads—critical when transitioning between hard ceramic substrates, copper-clad laminates, or composite dielectrics. Its rigid cast-iron base, linear-motion X-axis feed mechanism, and calibrated zero-reference function enable repeatable thickness control down to ±5 µm per cut, minimizing kerf loss and subsurface damage layer formation. Unlike general-purpose cutoff saws, the FLEXICUT is purpose-built for microstructural integrity preservation—making it suitable for subsequent SEM cross-section imaging, metallographic analysis, or solder joint reliability assessment.

Key Features

• Industrial-grade 7-inch full-color LCD touchscreen interface with intuitive icon-based navigation—eliminates wear-prone mechanical buttons and supports real-time parameter monitoring, including spindle RPM, feed rate, and coolant flow status.
• 575 W brushless AC motor coupled with an integrated frequency converter for dynamic load compensation: automatically adjusts torque and rotational speed during feed engagement to prevent wheel stalling, chatter, or thermal cracking.
• Wide-speed range (1,000–6,000 rpm) optimized for compatibility with diamond, cubic boron nitride (CBN), aluminum oxide, and silicon carbide bonded wheels—enabling material-specific optimization without hardware modification.
• Onboard recirculating cooling system featuring a 2.5 L reservoir, submersible pump, and fully adjustable coaxial nozzle—ensures targeted delivery of coolant directly at the cut interface to suppress localized heating, reduce microcracking, and extend wheel life.
• Three programmable cutting profiles stored in non-volatile memory: each includes independent settings for RPM, feed speed, cut depth, dwell time, and coolant activation sequence—facilitating SOP-driven reproducibility across operators and shifts.
• X-axis positional zeroing function with digital encoder feedback—allows precise definition of starting position prior to cut initiation, essential for sequential multi-layer sectioning or thickness-controlled trenching.
• Dual-level security architecture: power-on authentication and encrypted database access—supporting GLP-compliant lab environments requiring role-based user permissions and audit-ready operation logs.

Sample Compatibility & Compliance

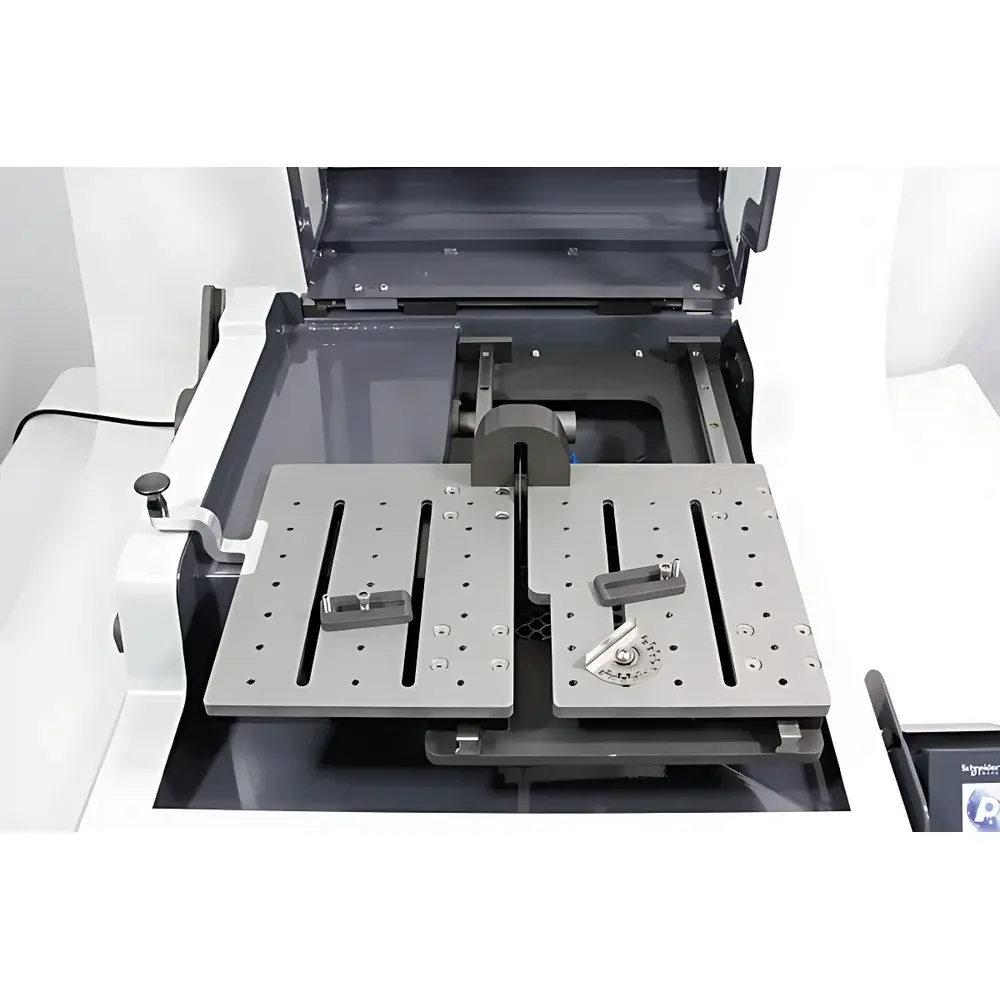

The FLEXICUT accommodates standard PCB formats up to 200 mm × 200 mm and thicknesses up to 4 mm, including FR-4, polyimide flex circuits, ceramic substrates (Al₂O₃, AlN), and embedded passive modules. Its CE-marked safety enclosure integrates a mechanically interlocked access door and polycarbonate blast shield rated to EN ISO 13857, ensuring operator protection during high-speed abrasive cutting. The system meets electromagnetic compatibility requirements per EN 61326-1 and conforms to EN 60204-1 for electrical safety. While not certified to ISO/IEC 17025 as a measurement instrument, its mechanical repeatability and process traceability support compliance with IPC-A-600, IPC-J-STD-001, and JEDEC JESD22-A108 for destructive physical analysis (DPA) workflows.

Software & Data Management

No external PC or proprietary software is required for basic operation—the FLEXICUT operates autonomously via its embedded controller firmware. However, all parameter sets, execution timestamps, and user login events are logged internally with UTC synchronization and exportable via USB flash drive in CSV format. Audit trail records include operator ID, program name, start/stop times, actual vs. setpoint RPM and feed rate deviations (>±3%), and coolant pressure alerts—fully compatible with FDA 21 CFR Part 11–aligned electronic record retention when paired with validated laboratory information management systems (LIMS). Firmware updates are performed offline using signed binary packages to ensure integrity and version traceability.

Applications

• Cross-sectional preparation of PCBs for solder mask adhesion evaluation, via inspection, and copper grain structure analysis.
• Sectioning of multilayer ceramic capacitors (MLCCs) and SiC power modules for delamination detection and interfacial defect mapping.
• Controlled trenching of wafer-level packaging substrates prior to focused ion beam (FIB) lift-out.
• Preparation of representative samples from conformally coated assemblies for RoHS-compliant lead-free solder joint assessment.
• High-reproducibility slicing of thermally sensitive polymer composites where conventional sawing induces melt deformation or fiber pull-out.

FAQ

What types of cutting wheels are compatible with the FLEXICUT?
Diamond, cubic boron nitride (CBN), aluminum oxide, and silicon carbide bonded wheels with standard 125 mm diameter and 12.7 mm arbor hole are supported. Wheel thickness must be ≤2.0 mm for optimal rigidity and thermal dissipation.
Is the coolant system closed-loop or open-loop?
It is a fully recirculating closed-loop system with integrated filtration mesh and level sensor—no continuous tap water supply is required.
Can the FLEXICUT be integrated into automated sample prep workflows?
Yes—RS-232 and optional Ethernet interfaces support external trigger signals and status polling, enabling synchronization with robotic sample loaders or downstream polishing stations.
Does the system support GLP/GMP documentation requirements?
All operational parameters, user actions, and error events are timestamped and stored with cryptographic integrity; exported logs meet minimum ALCOA+ principles for attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available data.
What maintenance intervals are recommended?
Coolant reservoir cleaning every 200 operating hours; pump filter inspection every 500 hours; spindle bearing lubrication per manufacturer’s service manual (typically at 2,000-hour intervals).
