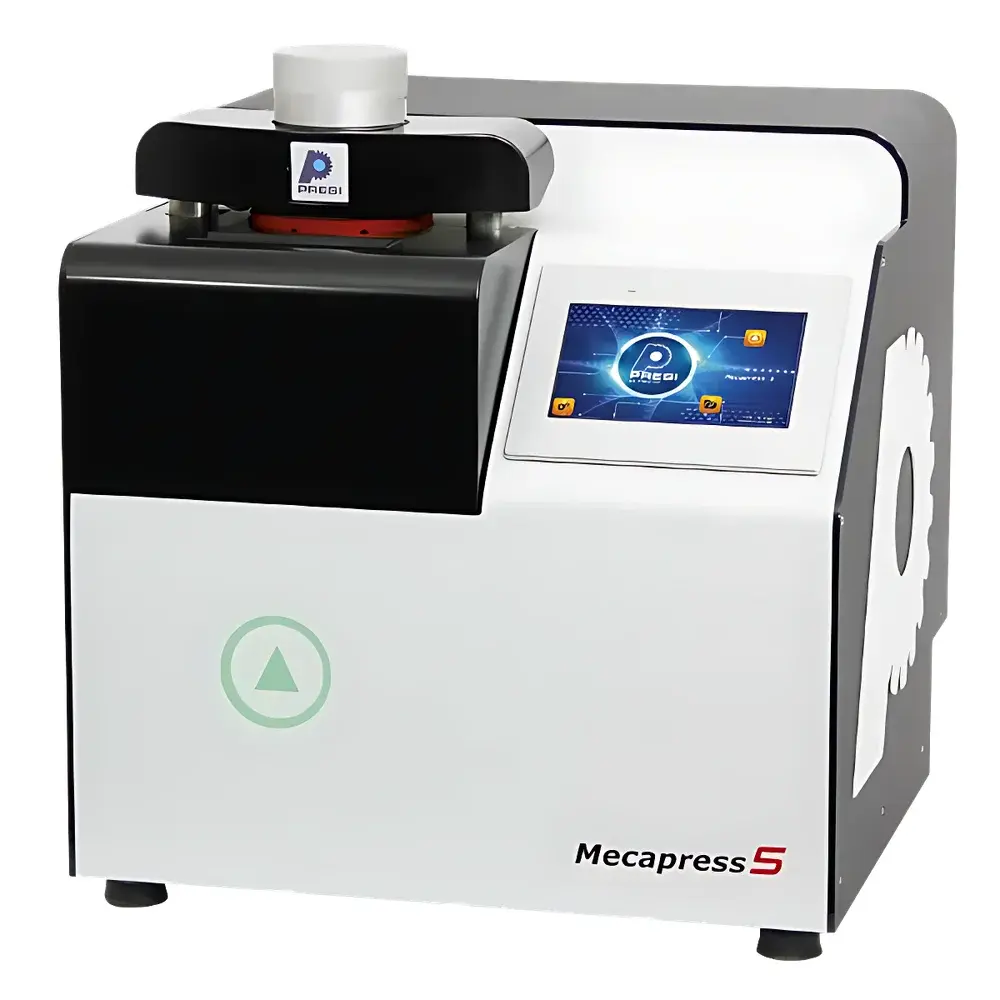

PRESI MECAPRESS 5 Fully Automatic Hot Mounting Press
| Brand | PRESI |
|---|---|
| Origin | France |
| Model | MECAPRESS 5 |
| Type | Hydraulic Hot Mounting Press |
| Mounting Capacity | Dual-sample per cycle (with optional center spacer) |
| Control Interface | LCD Touchscreen |
| Heating Power | 2500 W (base unit), 4500 W (base + 1 module), 6500 W (base + 2 modules) |
| Automation Level | Fully Automated Cyclic Operation |

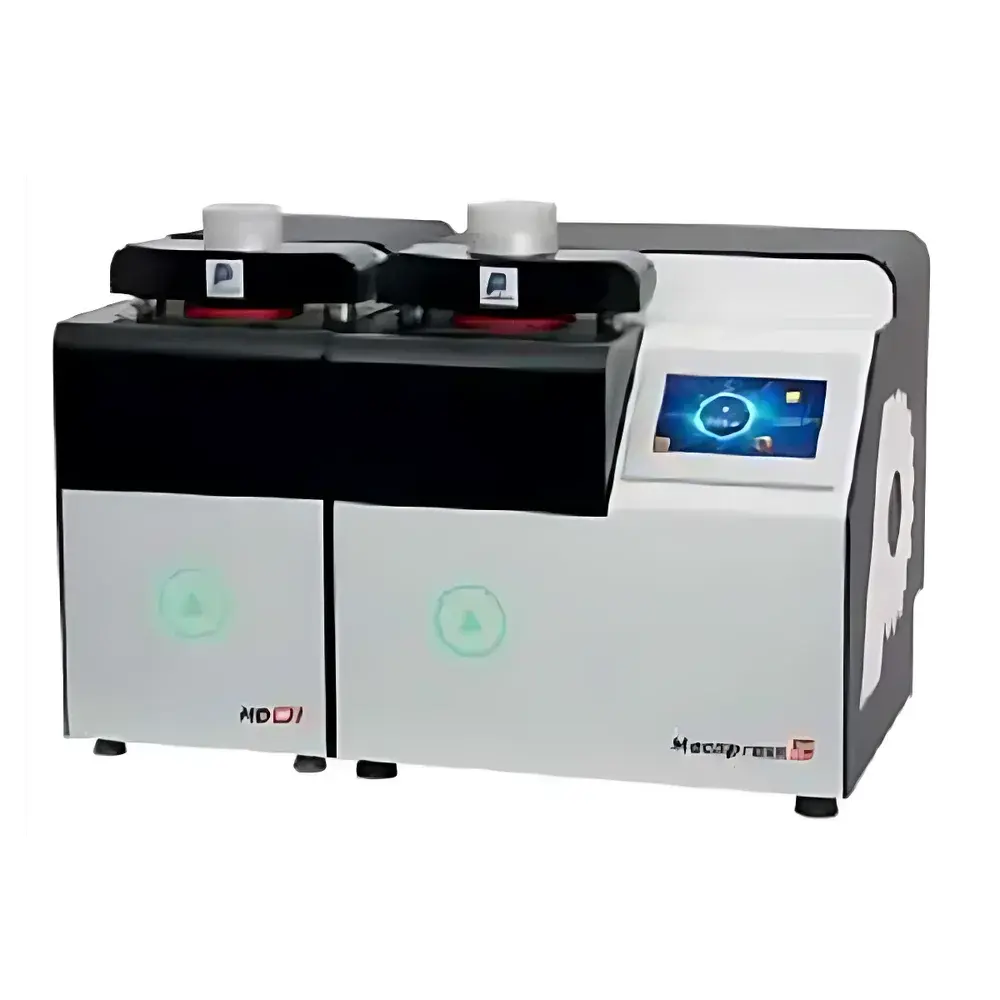

| Modular Configuration | Supports up to two additional mounting modules |
| Compliance | Designed for ISO 16819, ASTM E3, and EN ISO 20422-compliant metallographic sample preparation |
Overview
The PRESI MECAPRESS 5 is a modular, hydraulically actuated hot mounting press engineered for high-reproducibility thermosetting resin embedding of metallurgical, ceramic, and composite specimens. It operates on the principle of simultaneous application of controlled heat (up to 200 °C) and axial pressure (up to 15 MPa) within a closed mold cavity, enabling rapid cross-linking of phenolic, epoxy, or acrylic resins around the specimen. Unlike semi-automatic or manual presses, the MECAPRESS 5 executes fully programmable, unattended cycles—from mold insertion and preheating to compression, curing, and cooling—minimizing operator variability and ensuring inter-laboratory consistency in sample geometry, edge retention, and void-free encapsulation. Its architecture integrates real-time thermal feedback control and hydraulic pressure regulation to maintain setpoint stability within ±2 °C and ±0.3 MPa across extended batch runs.
Key Features

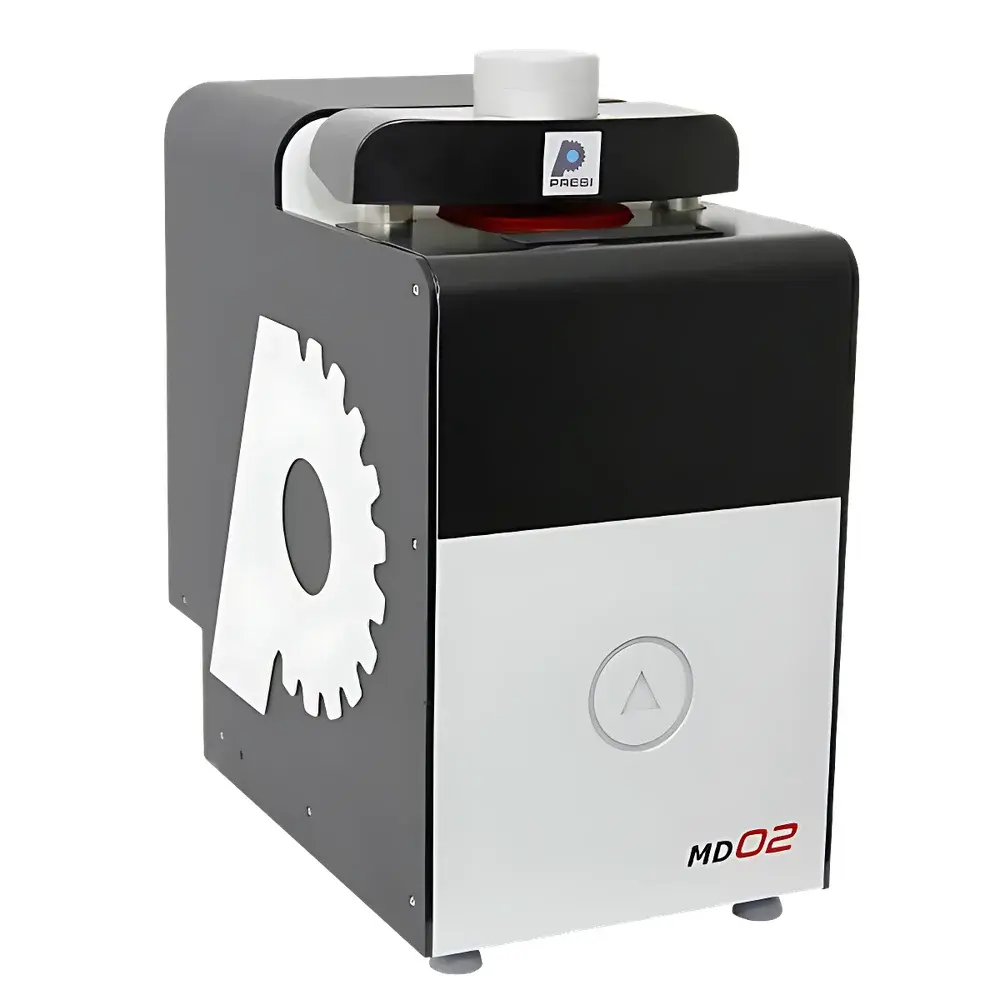

- Modular scalability: Base unit supports up to two independently controllable mounting modules, enabling parallel processing of heterogeneous sample types (e.g., soft polymers and hard alloys) with distinct temperature/pressure/time profiles.

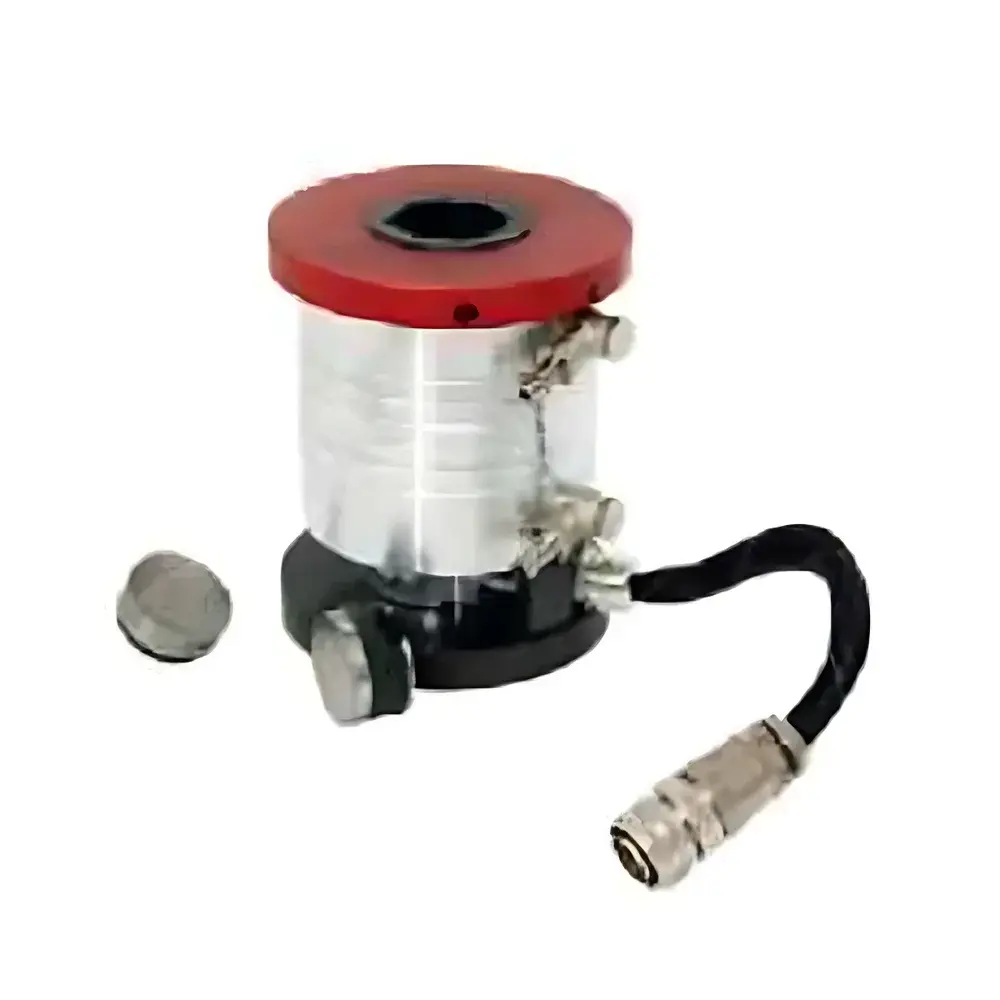

- Automatic mold recognition: Integrated RFID readers identify mold type (e.g., 25 mm, 30 mm, 40 mm diameter; standard or recessed cavity) and auto-load corresponding validated protocols compliant with ISO 16819 Annex A.
- Intelligent thermal management: Dual-zone heating (main chamber + mold base plate) ensures uniform thermal gradient distribution, reducing warpage and resin flash while accelerating cycle times by up to 35% versus legacy single-zone systems.
- Programmable logic control (PLC)-based interface: 7-inch industrial-grade LCD touchscreen with multilingual OS (EN/FR/DE/ES), password-protected parameter editing, and audit-trail-enabled operation logging per FDA 21 CFR Part 11 requirements.
- Fail-safe mechanical design: Overpressure relief valve, redundant temperature cutoff sensors, and emergency stop circuitry conform to EN 60204-1 and CE Machinery Directive 2006/42/EC.
Sample Compatibility & Compliance
The MECAPRESS 5 accommodates specimens ranging from 1 mm to 35 mm in height and up to 40 mm in diameter, including irregularly shaped components, porous sintered metals, brittle ceramics, and multi-material assemblies. Its dual-sample capability—enabled via precision-machined center spacers—supports comparative analysis workflows (e.g., as-received vs. heat-treated conditions) without cross-contamination risk. All process parameters are traceable to internationally recognized standards: ISO 16819 (metallographic mounting), ASTM E3 (preparation of metallographic specimens), and EN ISO 20422 (quality assurance in materials testing laboratories). The system’s calibration certificate includes NIST-traceable verification of temperature and pressure transducers.
Software & Data Management
Embedded firmware supports export of full-cycle metadata—including time-stamped temperature/pressure curves, mold ID, operator ID, and cycle duration—to CSV or XML formats via USB or Ethernet. Optional PRESI LabLink software enables centralized fleet monitoring, remote protocol deployment, and integration with LIMS platforms through HL7 or RESTful API interfaces. All electronic records include digital signatures, immutable timestamps, and revision-controlled protocol libraries—fully aligned with GLP and GMP documentation requirements for regulated environments (e.g., aerospace QA, medical device R&D).
Applications
- High-throughput metallography labs requiring >50 samples/day with zero manual intervention between cycles.
- Failure analysis centers embedding fracture surfaces, weld zones, or corrosion coupons under inert atmosphere-compatible molds.
- Quality control departments validating coating adhesion, porosity distribution, or interfacial integrity in layered composites.
- Academic research facilities performing comparative microstructural studies across alloy families, heat treatments, or additive manufacturing parameters.
- Accredited testing laboratories maintaining ISO/IEC 17025 compliance for certified reference material production.
FAQ
What resin types are compatible with the MECAPRESS 5?
Phenolic, epoxy, acrylic, and fast-cure polyurethane resins—both standard and low-expansion formulations—are supported. Resin-specific pressure ramping profiles are preloaded and editable.
Can the system be integrated into an automated sample prep line?
Yes. Optional I/O terminals support PLC-level handshake signals (24 V DC) for synchronization with robotic arms, conveyor systems, or downstream grinding/polishing stations.
Is validation documentation available for regulated industries?
PRESI provides IQ/OQ documentation packages, including test protocols, acceptance criteria, and completed reports—customizable for FDA, ISO 13485, or AS9100 audits.
How is cooling managed during the cycle?
Integrated forced-air cooling with variable-speed fans reduces post-cure dwell time by up to 40%, while maintaining thermal symmetry across the mold stack to prevent specimen distortion.
What maintenance intervals are recommended?
Hydraulic oil replacement every 12 months or 2000 operating hours; pressure sensor recalibration annually; touchscreen calibration quarterly—per the manufacturer’s PM schedule included in the technical manual.
