PRI-eco PRI-8500 Multi-Point Multiplexer System for Vertical Profile Analysis

Overview

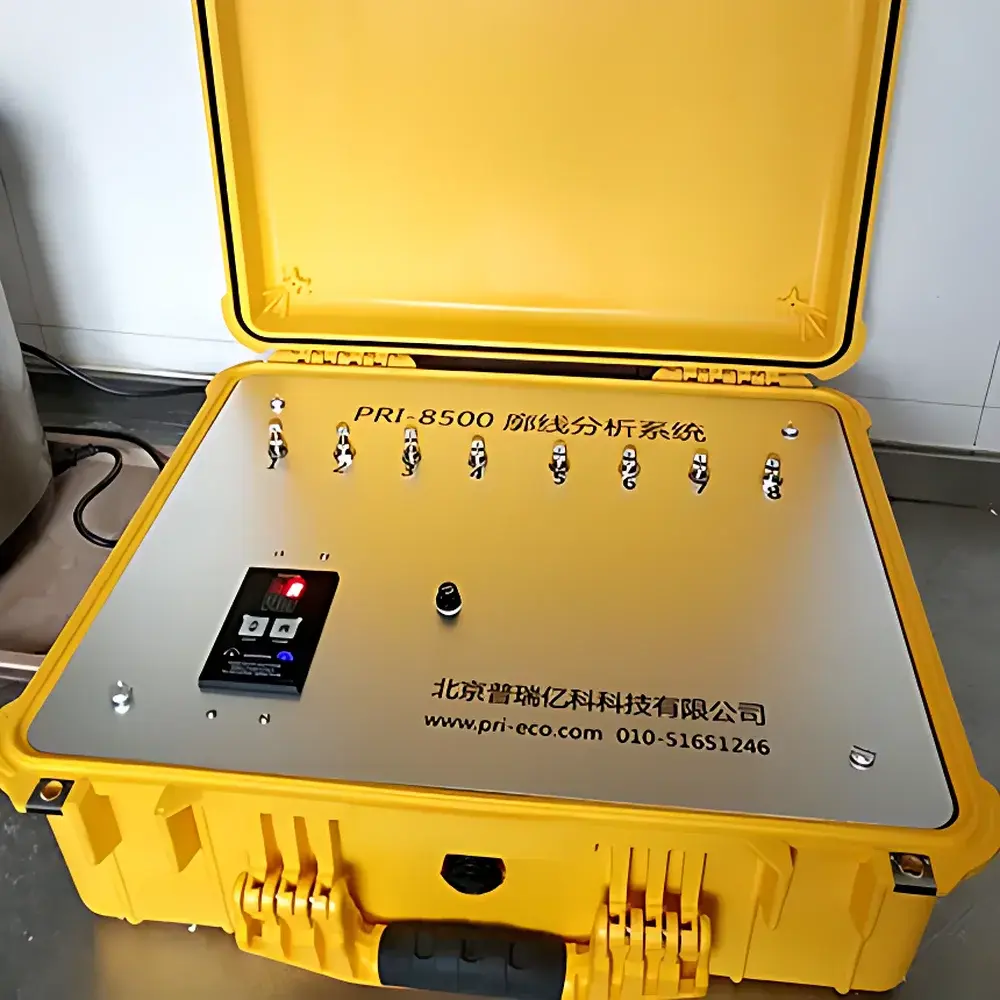

The PRI-eco PRI-8500 Multi-Point Multiplexer System is an engineered solution for high-resolution vertical atmospheric profile analysis, canopy gas exchange studies, and distributed environmental sampling. Designed around a precision-controlled sequential sampling architecture, the system operates on a timed, valve-driven manifold principle—leveraging a high-cycle-life, chemically inert VICI multiport selector valve to route sample streams from up to eight discrete inlet locations (expandable via modular valve cascading) to a single analytical instrument. This architecture eliminates the need for parallel analyzers while preserving temporal synchronicity across spatially separated measurement points. The system is purpose-built for integration with infrared gas analyzers (IRGAs), cavity ring-down spectrometers (CRDS), photoacoustic gas sensors, and other trace-gas detection platforms requiring stable, low-dead-volume sample delivery. Its compact, field-hardened enclosure enables deployment on flux towers, mobile laboratories, greenhouse arrays, and forest eddy-covariance sites where mechanical durability, electrical safety, and operational autonomy are critical.

Key Features

• Modular 8-port multiplexing architecture with plug-and-play expandability to 16+ channels using daisy-chained VICI valves
• Manually adjustable mass flow control per inlet line—enabling balanced draw across heterogeneous sampling distances and pressure drops
• Pelican™-certified polymer enclosure rated IP65 for dust ingress protection and water resistance; drop-tested to MIL-STD-810G standards
• Detachable external vacuum pump (USA-sourced) supporting sustained 4-channel operation at ≤50 m total tubing length (with ≤15 m per branch)
• RS232 serial interface compliant with Modbus RTU protocol for seamless integration into SCADA, CR1000X, or custom data acquisition frameworks
• No consumables required; zero routine maintenance beyond periodic valve seal inspection and pump oil replacement per manufacturer schedule
• Universal AC input (100–240 V) with integrated thermal cutoff and overcurrent protection—certified to IEC 61000-4-5 surge immunity level 3

Sample Compatibility & Compliance

The PRI-8500 is compatible with gaseous analytes including CO₂, CH₄, H₂O vapor, N₂O, CO, and volatile organic compounds (VOCs) within concentration ranges typical of ambient air, soil efflux, and plant canopy measurements. All wetted materials—including valve rotor stator surfaces, PTFE-sealed fittings, and fluoropolymer tubing interfaces—are certified non-reactive per ASTM D4541 (adhesion testing) and USP Class VI biocompatibility standards. The system meets electromagnetic compatibility (EMC) requirements under EN 61326-1:2013 for laboratory and industrial environments. While not intrinsically safe, it may be deployed in non-hazardous Zone 2 areas when paired with appropriate explosion-proof enclosures per ATEX Directive 2014/34/EU guidelines.

Software & Data Management

The PRI-8500 operates autonomously via pre-programmed sampling sequences stored in non-volatile memory. Configuration is performed through ASCII command set over RS232—fully scriptable using Python, LabVIEW, or MATLAB. Time-stamped valve position logs and flow status telemetry are output in CSV-compatible format for alignment with analyzer data streams. When integrated with PRI-eco’s optional PRI-DataLink middleware, the system supports audit-trail generation compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, user access controls, and immutable event logging. Raw configuration files are version-controlled and exportable for GLP/GMP documentation workflows.

Applications

• Vertical CO₂ and CH₄ gradient profiling on micrometeorological towers (e.g., 10–100 m height intervals)
• Spatially resolved photosynthetic gas exchange monitoring across multi-chamber leaf cuvette systems
• Distributed soil respiration network sampling with synchronized diurnal cycles
• Urban air quality monitoring across rooftop sensor grids with centralized analyzer architecture
• Calibration verification across multiple reference gas sources using time-multiplexed delivery
• Long-term ecosystem flux studies requiring minimal site visits and field service intervention

FAQ

Can the PRI-8500 support simultaneous sampling from all 8 ports?

No—it performs sequential sampling only. Each port is accessed in user-defined order with configurable dwell time (minimum 1 s), ensuring consistent residence time and minimizing cross-contamination risk.
Is firmware update capability available in-field?

Yes—firmware updates are delivered via ASCII-based bootloader commands over RS232; no hardware reprogramming tools are required.
What is the maximum recommended tubing length per inlet channel?

For optimal response time (<95% step change in ≤15 s), individual inlet lines should not exceed 15 m of 1/4" OD PFA tubing at ambient temperature and pressure.
Does the system include flow calibration certificates?

Flow calibration is performed at factory using NIST-traceable mass flow meters; a certificate of conformance (CoC) is supplied with each unit, though full ISO/IEC 17025 calibration is available as an optional service.
Can the PRI-8500 be powered by DC sources such as solar-battery systems?

Not natively—the internal power supply accepts only AC input. However, users commonly integrate it with 24 VDC-to-AC inverters rated ≥100 W continuous output, provided harmonic distortion remains below 5%.
