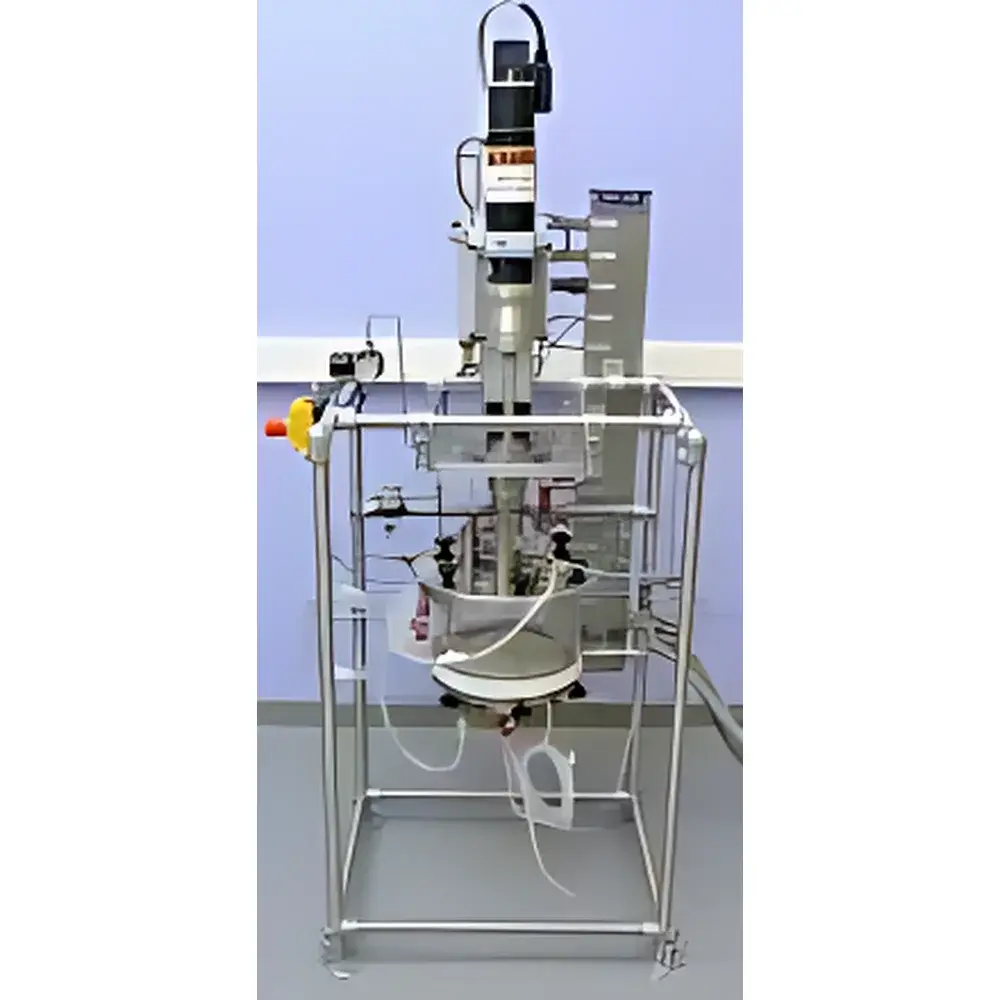

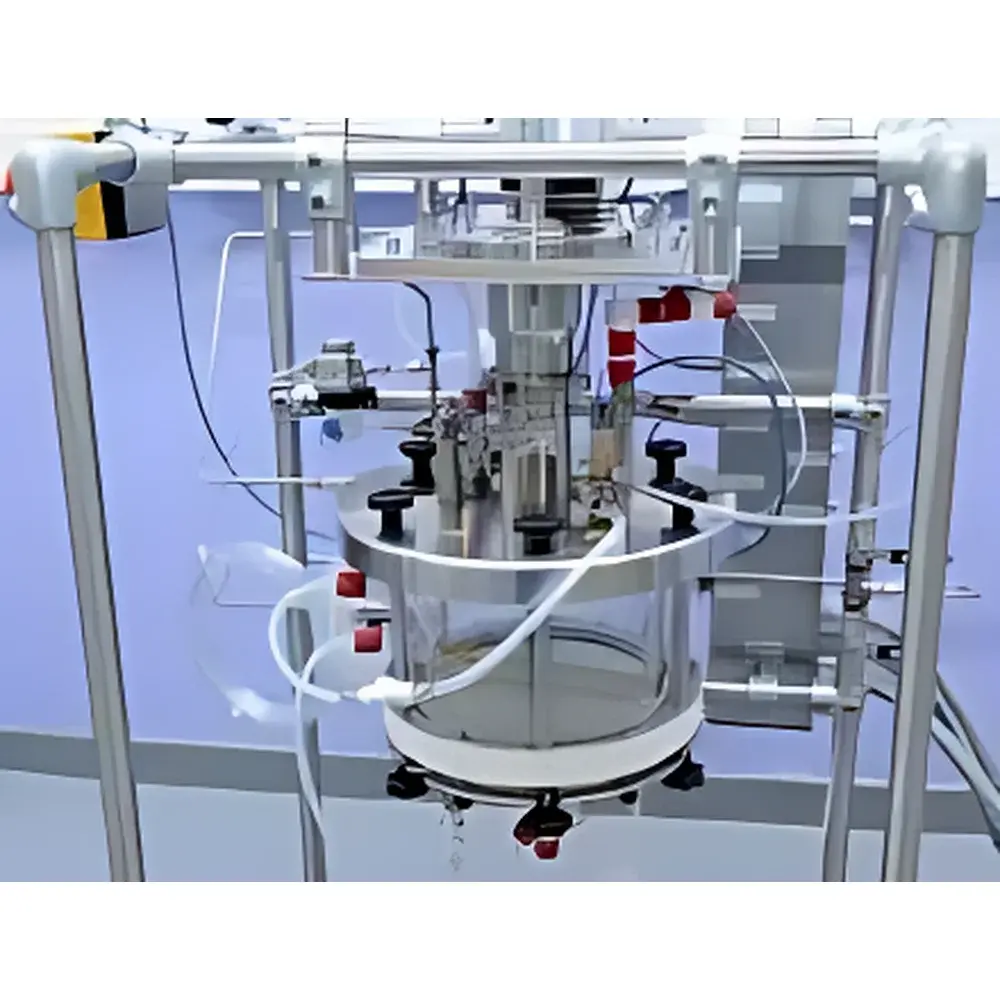

ProCepT LFD Laboratory Nutsche Filter-Dryer

Overview

The ProCepT LFD Laboratory Nutsche Filter-Dryer is an integrated, bench-scale solid-liquid separation and drying platform engineered for early-phase process development of Active Pharmaceutical Ingredients (APIs) and New Chemical Entities (NCEs). Based on the classical Nutsche filtration principle—where slurry is retained on a fixed horizontal filter medium under controlled pressure or vacuum—the LFD enables simultaneous filtration, washing, compression dewatering, and vacuum/heat-assisted drying within a single, sealed vessel. Its modular architecture supports kinetic studies of filtration rate, cake compressibility, residual solvent removal, and drying profiles under reproducible, instrumented conditions. Unlike conventional batch filtration apparatuses, the LFD incorporates real-time torque sensing, programmable agitation sequencing, and multi-zone temperature control—critical for capturing mechanistic process understanding required for Quality by Design (QbD) and regulatory filing (e.g., ICH Q5, Q8, Q9).

Key Features

• Triple-function operation: filtration, in-situ cake washing, and vacuum thermal drying—all within one vessel, minimizing cross-contamination and material handling.
• Variable-speed agitator with vertical lift mechanism and reversible rotation, enabling gentle cake resuspension, uniform washing, controlled compression (up to programmable torque limits), and efficient drying layer turnover.

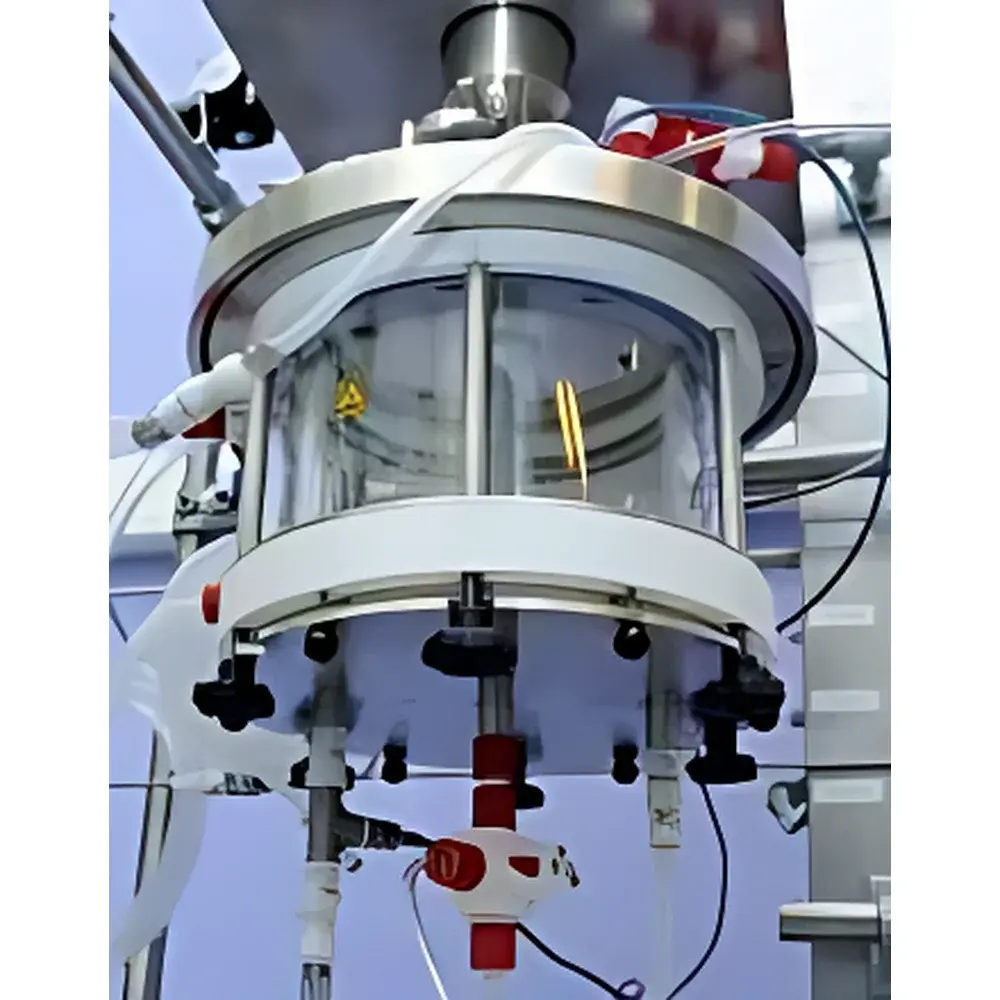

• Modular glass vessel system with borosilicate 3.3 construction (rated to 2 bar gauge), optionally configurable with pressure-rated stainless-steel vessels (6–10 bar) for high-pressure crystallization or reactive workups.
• Precise thermal management via three independently controlled fluid-jacket zones: main vessel, filter plate support, and condenser—ensuring isothermal or gradient-controlled drying profiles from −10 °C to +95 °C.
• Integrated inertization capability with mass-flow-controlled nitrogen sparging and headspace blanketing, supporting oxygen-sensitive APIs and meeting ICH Q5A degradation pathway mitigation requirements.
• Full vacuum train including HEPA-grade particulate filter, cooled glass condenser (−20 °C to +40 °C), pressure-regulated bypass loop, and oil-free diaphragm vacuum pump (ultimate vacuum <1 mbar).

Sample Compatibility & Compliance

The LFD accommodates slurries across a wide range of solid concentrations (5–60 wt%), particle sizes (0.1 µm–2 mm), and rheologies—from low-viscosity crystalline suspensions to high-yield-stress amorphous precipitates. Its open-vessel design allows direct visual monitoring and sampling at defined process stages (e.g., post-filtration cake integrity check, mid-drying moisture content verification). All wetted parts comply with USP Class VI biocompatibility and meet FDA 21 CFR Part 11 requirements for electronic records when paired with validated ProCepT Control Suite software. The system is engineered to support GMP-aligned workflows: traceable calibration logs, audit-trail-enabled parameter changes, and full DQ/IQ/OQ/PQ documentation packages are available per client specification.

Software & Data Management

The ProCepT Control Suite (v4.2+) provides deterministic, event-driven process automation with synchronized acquisition of 16+ real-time signals—including agitator torque (±0.05 N·m), differential pressure across filter (±0.5 kPa), filtrate mass (±0.1 g), and six independent temperature channels. Data is stored in secure, time-stamped .csv and SQL-compatible formats with embedded metadata (operator ID, batch tag, version-controlled method file). The software supports ASTM E2500-13–aligned validation protocols and includes built-in tools for generating trend charts, overlaying multiple runs, calculating specific cake resistance (α), and exporting reports compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Early-stage filtration/drying kinetics modeling for tech transfer to pilot-scale Nutsche filters (e.g., vertical/horizontal pressure filters, agitated dryers).
• Screening of filter aids, antifoams, and wash solvents under representative shear and pressure conditions.
• Residual solvent profiling (ICH Q3C) via controlled drying ramp studies with inline moisture detection integration options.
• Process robustness assessment: evaluating sensitivity of cake moisture to agitation profile, pressure ramp rate, and jacket temperature setpoints.
• Supporting regulatory submissions: providing engineering data for Process Validation Protocols (PVP), Process Characterization Studies, and Control Strategy definitions.

FAQ

Can the LFD be used for hazardous or highly potent compounds?

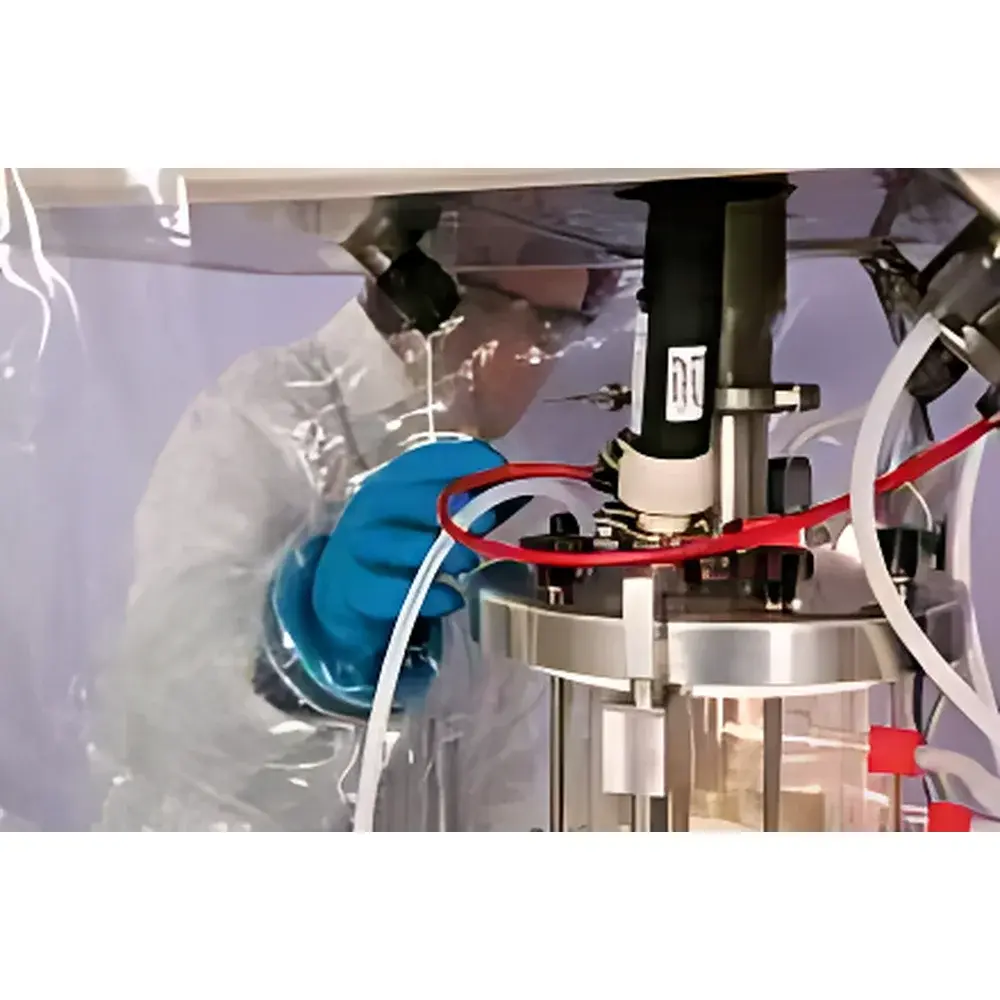

Yes—when configured with a fully enclosed glovebox interface, HEPA-filtered exhaust, and closed sampling ports, the LFD meets OEB-4 containment requirements per ISPE Guide: Containment Selection for Highly Potent Compounds.
Is remote monitoring and control supported?
The system supports OPC UA and Modbus TCP connectivity for integration into existing MES/SCADA infrastructures; remote access requires client-approved network segmentation and TLS 1.2+ encryption.
What validation support is provided beyond DQ/IQ/OQ/PQ?
ProCepT supplies risk-based URS templates, FAT/SAT protocols, and IQ/OQ test scripts pre-validated against ISO 9001:2015 and Annex 11 requirements.
Can the agitator be programmed for intermittent motion during drying?
Yes—custom agitation sequences (e.g., 5 s on / 60 s off) are scriptable to prevent cake cracking while maintaining surface renewal without excessive energy input.
Are spare parts and service available outside the EU?
Global technical support is offered via authorized partners in North America, APAC, and EMEA, with critical spares held regionally and 72-hr dispatch guarantee for agitator seals, filter plates, and jacket manifolds.
