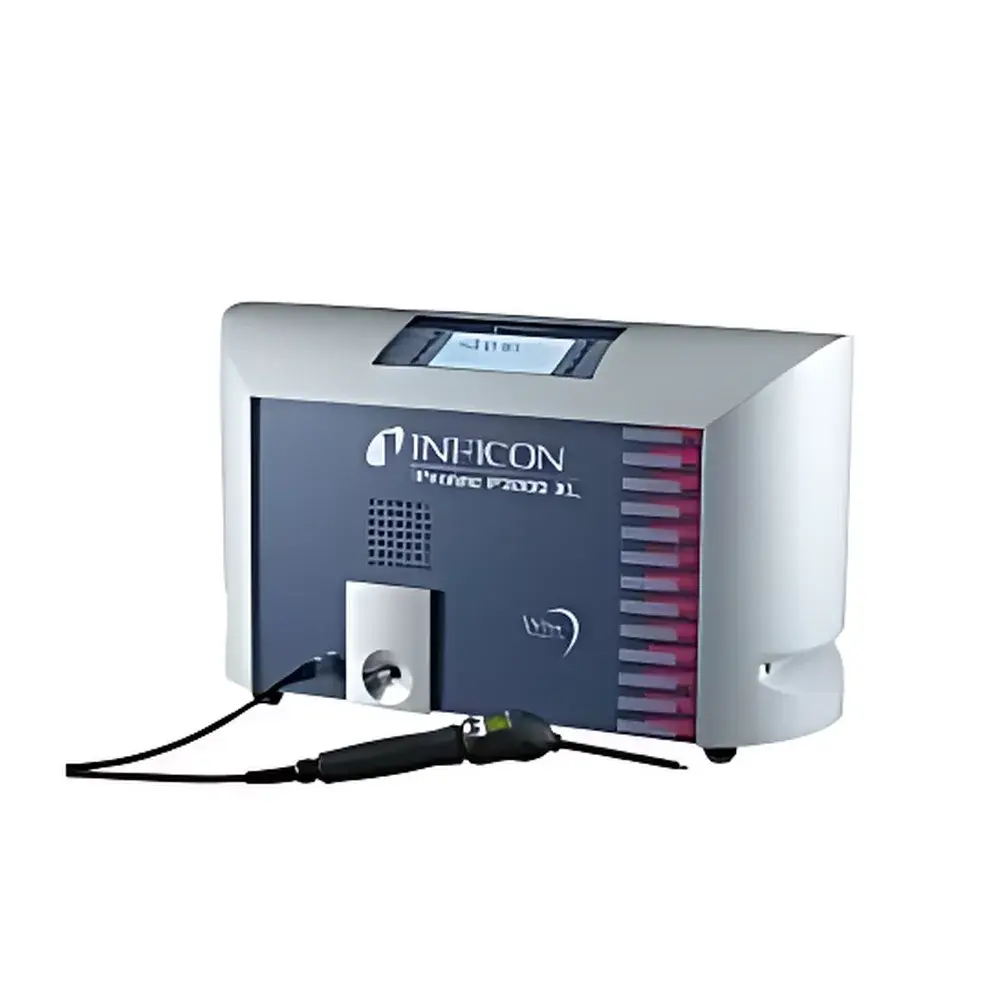

Protec® P3000XL Helium Sniffer Leak Detector
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Protec® P3000XL |
| Pricing | Available Upon Request |
Overview
The Protec® P3000XL Helium Sniffer Leak Detector is an industrial-grade, handheld helium mass spectrometer–based leak detection system engineered for high-reliability sniffer-mode operation in demanding manufacturing environments. Utilizing a quadrupole mass spectrometer (QMS) tuned to the 4 amu helium ion peak, the P3000XL detects helium tracer gas with sub-1×10⁻⁹ mbar·L/s sensitivity in real time. Designed as the latest evolution of the proven Protec P3000 platform, it is optimized for continuous, operator-dependent leak scanning across refrigeration, automotive HVAC, and white goods production lines—where consistent detection performance, ergonomic operability, and process traceability are critical. Its architecture integrates vacuum-integrated sampling, differential pumping stages, and helium-specific ion optics to maintain signal stability under variable ambient conditions and extended duty cycles.
Key Features
- Extended detection range: Optimized suction nozzle geometry and enhanced helium ion transmission enable reliable leak localization at distances up to 25 mm from the test surface—reducing operator fatigue and improving scan coverage per unit time.
- Error-compensated operation: Integrated motion sensors and real-time flow monitoring dynamically adjust response thresholds to mitigate false negatives caused by inconsistent probe movement or transient airflow disturbances.
- Multi-level alarm system: Visual (high-brightness OLED), audible (three-tone configurable), and haptic feedback ensure immediate alert recognition—even in noisy factory settings; all alarms are timestamped and logged.
- On-line calibration capability: Built-in PRO-CHECK reference leak (certified 1×10⁻⁷ mbar·L/s He) enables rapid, in-situ verification without removing the instrument from the production line—supporting ISO 9001 and IATF 16949 process validation requirements.
- Intelligent guidance (I°Guide): Context-aware software overlays step-by-step visual cues on the display, guiding operators through standardized scan paths, dwell times, and probe orientation—minimizing technique-related variability and supporting operator qualification protocols.
- Refrigerant-equivalent leak rate display: Converts raw helium leak rates into equivalent R134a, R410A, or R32 mass flow values using built-in thermodynamic models—facilitating direct compliance assessment against HVAC industry standards (e.g., ISO 5171, SAE J2722).
Sample Compatibility & Compliance
The P3000XL is validated for use with sealed components containing internal volumes from 0.1 L to >500 L, including evaporators, condensers, compressor housings, refrigerant lines, and hermetic motor assemblies. It complies with EN 13191-1 (leak testing of refrigeration systems), meets electromagnetic compatibility requirements per EN 61326-1, and operates within safety limits defined by EN 61010-1 for industrial electrical equipment. Its design supports GLP/GMP-aligned workflows: audit trails, user access control (three-tier authentication), and electronic signature-capable calibration records are retained internally and exportable via USB or Ethernet.
Software & Data Management
The embedded Protec Control Suite v4.2 provides multilingual UI (English, German, Spanish, French, Chinese, Japanese), real-time spectral visualization, and automated report generation (PDF/CSV). All measurement data—including leak rate, timestamp, operator ID, probe position metadata, and calibration status—are stored with SHA-256 integrity hashing. The system supports FDA 21 CFR Part 11 compliance when deployed with optional network authentication and electronic signature modules. Data export adheres to ASTM E2500-13 guidelines for analytical instrument data integrity.
Applications
- Final functional testing of domestic and commercial refrigerators, freezers, and beverage coolers
- In-line leak screening of automotive A/C evaporators, receivers/driers, and hose assemblies
- Quality gate verification for heat exchangers and welded aluminum tubing in HVAC OEM supply chains
- Root cause analysis during process troubleshooting—correlating leak location with welding parameters or brazing cycle logs
- Periodic equipment health monitoring: trending sensor baseline drift and filter pressure drop over time to schedule predictive maintenance
FAQ
What helium purity is required for optimal performance?
Helium concentration ≥99.998% (Grade 5.0) is recommended; impurities above 2 ppm air or moisture may reduce sensitivity and accelerate sensor contamination.
Can the P3000XL be integrated into a PLC-controlled test station?
Yes—via Modbus TCP or discrete I/O signals (24 VDC), enabling start/stop triggering, pass/fail output, and remote status polling.
Is routine calibration required between PRO-CHECK verifications?
No scheduled recalibration is needed if PRO-CHECK checks remain within ±5% tolerance over 30 days; full calibration is only required after sensor replacement or exposure to gross overpressure.
How does automatic maintenance mode extend sensor life?
It initiates periodic reverse-flow purges and heater-cycled desorption cycles during idle periods—removing adsorbed hydrocarbons and water vapor before they reach the QMS filament.
Does the device support offline data review without proprietary software?
Yes—measurement logs export as standard CSV files with ISO 8601 timestamps and SI-unit annotations, compatible with Excel, Python pandas, or LabVIEW.
