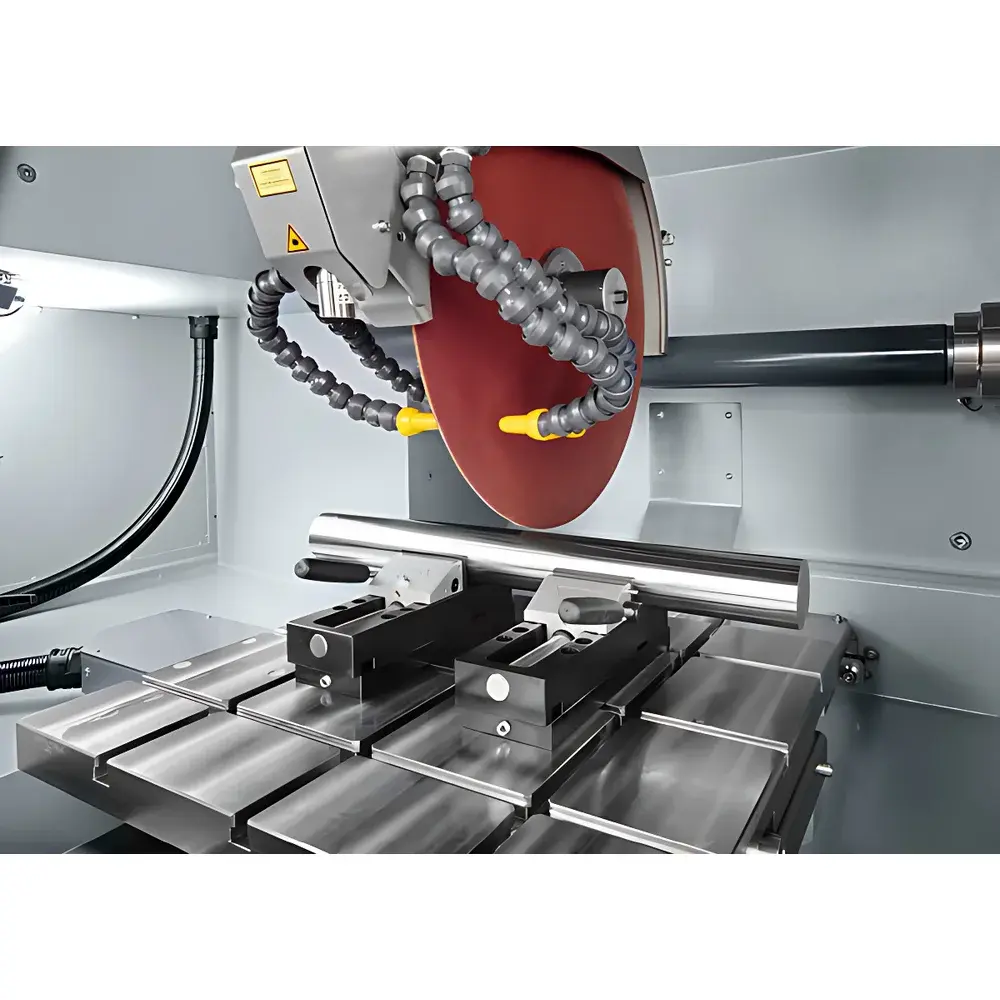

QATM Qcut 500 A Vertical Abrasive Cut-Off Machine (Formerly ATM BRILLANT 275)

Overview

The QATM Qcut 500 A is a high-precision vertical abrasive cut-off machine engineered for reproducible, operator-safe metallographic sample preparation in industrial quality control laboratories and R&D facilities. Designed as the successor to the ATM BRILLANT 275 platform, it employs a robust cast-aluminum monocoque frame with powder-coated finish and integrates water-cooled 15 kW spindle drive directly into the swiveling arm — eliminating belt-driven transmission losses and enhancing torque stability across the full speed range (1000–2800 rpm). Its core cutting principle relies on controlled abrasive wheel engagement under programmable force modulation, utilizing wet-cutting methodology compliant with ISO 1127 and ASTM E3 for metallurgical specimen sectioning. The machine supports both manual and fully automated operation modes, with all motion axes (X, Y, and optional Z) driven by high-torque servo motors and precision ground ball screws, ensuring sub-millimeter repeatability in multi-step cutting sequences.

Key Features

• Vertical architecture with integrated 508 mm (20″) abrasive wheel capacity and dual-flange compatibility (Ø32/40 mm) for rapid wheel changeover using quick-release nut design
• Three-axis programmable motion system: automatic X-axis (420 mm travel), Y-axis (280 mm travel), and optional Z-axis (200 mm travel, ±0.1 mm positioning accuracy)
• Dynamic feed control with adjustable pulse feeding, programmable feed rate, and real-time cutting force regulation to minimize thermal damage and edge deformation
• Swiveling arm-mounted, water-cooled 15 kW motor delivering consistent rotational energy without thermal drift during extended duty cycles (S1-rated)
• Large access chamber with interlocked sliding and side doors featuring scratch-resistant tempered glass viewport and safety-lock engagement during spindle rotation
• Dedicated LED lighting system with adjustable swivel mount for optimal illumination of the cutting zone and specimen surface
• Integrated closed-loop coolant circulation and pneumatic central lubrication system (6 bar supply required) for extended component service life

Sample Compatibility & Compliance

The Qcut 500 A accommodates a broad spectrum of metallic and composite materials — including hardened steels, titanium alloys, cast irons, sintered metals, and ceramic-matrix composites — with specimen dimensions up to 700 × 500 mm on the extended stainless-steel table (T-slot width: 12 mm). Its wet-cutting configuration ensures compliance with occupational health and safety standards for airborne particulate suppression (EN 1093-4, ISO 16000-13), while the centrifugal mist extraction option (available as retrofit) further reduces aerosol generation per OSHA PEL and EU Directive 2004/37/EC. The system conforms to CE machinery directive 2006/42/EC, functional safety standard EN ISO 13849-1 (PL e), and electrical safety requirements EN 60204-1. All safety functions — including door interlocks, emergency stop circuitry, and spindle brake logic — are validated per EN 692 and documented for GLP/GMP audit readiness.

Software & Data Management

Operation is managed via a 10.1-inch capacitive touchscreen interface running QATM’s proprietary firmware with optical navigation menus optimized for glove-compatible interaction. Users define cutting programs through intuitive graphical input of coordinates, feed profiles, spindle speeds, and pause points — supporting infinite program storage with password protection and USB-based backup/restoration. Each program includes metadata logging (date/time stamp, operator ID, wheel serial number, coolant temperature) traceable to individual specimens. Remote diagnostics and firmware updates are enabled via secure Ethernet connection; ISDN fallback is supported where legacy infrastructure remains in place. Audit trails comply with FDA 21 CFR Part 11 requirements when paired with network-authenticated user accounts and electronic signature protocols.

Applications

This system serves critical roles in failure analysis laboratories, foundry QA departments, aerospace component certification labs, and academic metallurgy research groups. Typical use cases include: cross-sectional preparation of weld joints per ISO 17636-2; serial sectioning of additive-manufactured parts for porosity mapping; precision trimming of tensile test coupons from rolled stock; and orientation-specific slicing of anisotropic superalloys for EBSD analysis. Its ability to execute multi-position parallel cuts with synchronized feed profiles makes it particularly suitable for batch processing of standardized reference samples used in inter-laboratory round-robin studies under ISO/IEC 17043.

FAQ

What safety certifications does the Qcut 500 A hold?

It carries CE marking per Machinery Directive 2006/42/EC, meets EN 692 for mechanical safety of power-operated saws, and complies with EN 60204-1 for electrical equipment of machines.
Is the Z-axis movement standard or optional?

Z-axis vertical adjustment (200 mm travel, 0.1 mm resolution) is available as a factory-installed option — not included in base configuration.
Can the machine be integrated into a laboratory LIMS or MES environment?

Yes — via Ethernet-enabled data export (CSV/JSON) of cutting logs and remote API access for job queue management and status polling.
What coolant types are compatible with the integrated circulation system?

The system supports water-soluble coolants meeting ISO 6743-7 class CKB specifications, including synthetic and semi-synthetic formulations with corrosion inhibitors suitable for aluminum and stainless-steel components.
Does QATM provide validation documentation for GxP-regulated environments?

Upon request, IQ/OQ documentation packages aligned with ISO/IEC 17025 and ASTM E2500 are available, including sensor calibration certificates, performance verification reports, and risk assessment summaries.
