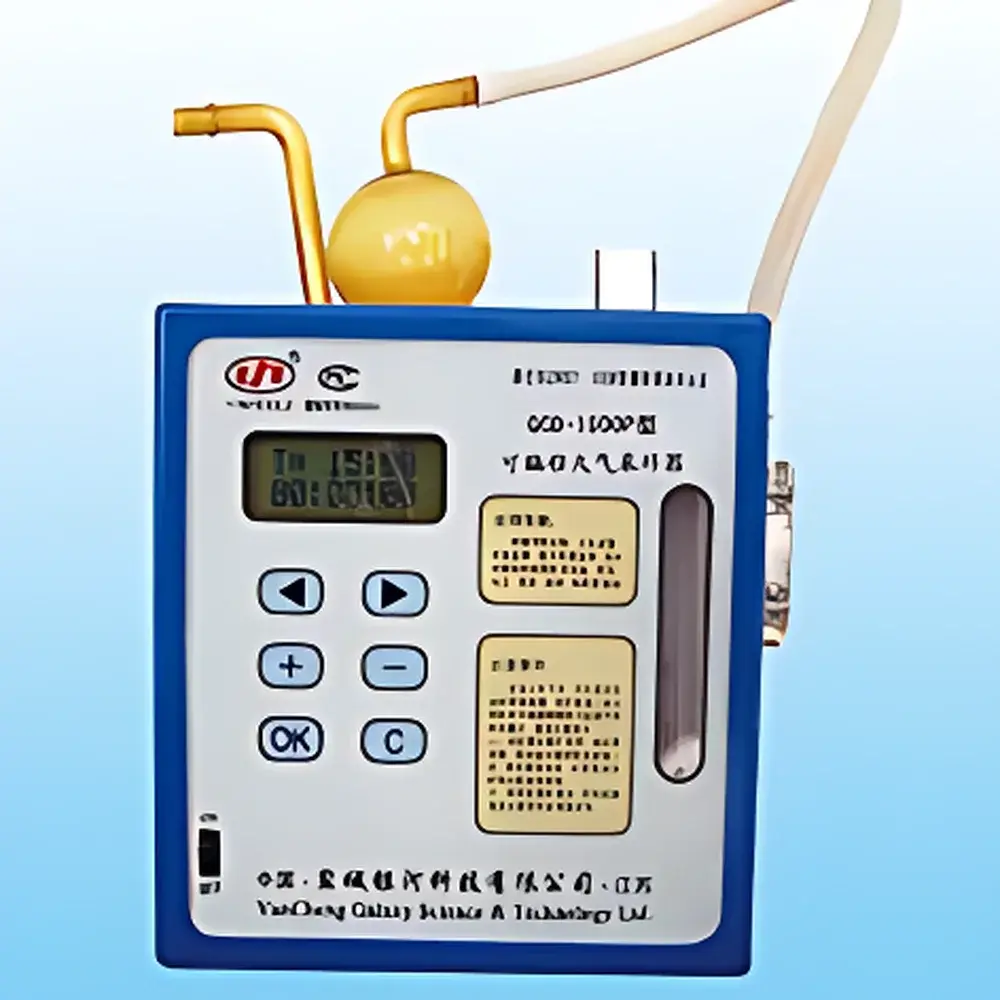

QCD Series Programmable Ambient Air Sampler

Overview

The QCD Series Programmable Ambient Air Sampler is a microprocessor-controlled, portable air sampling instrument engineered for precise, time-weighted and interval-based collection of airborne contaminants—including volatile organic compounds (VOCs), inorganic gases, aerosols, and particulate-bound toxins—in occupational, environmental, and research settings. It operates on the principle of active volumetric sampling: a calibrated, brushless diaphragm pump draws ambient air through a sorbent tube, filter cassette, or impinger at a user-defined flow rate and temporal profile. Its design complies with core methodologies referenced in ISO 16000-2, NIOSH Manual of Analytical Methods (NMAM) Chapters 1, 2, and 5, and OSHA Method 0500—ensuring compatibility with standard analytical workflows for GC-MS, HPLC, and gravimetric analysis. The device supports both personal (belt-mounted) and stationary (tripod or wall-mounted) deployment configurations, making it suitable for 8-hour time-weighted average (TWA) exposure assessments, short-term exposure limit (STEL) monitoring, and longitudinal environmental baseline studies.

Key Features

• Programmable multi-interval timing: User-selectable sampling durations from 1 minute to 99 hours 59 minutes, with up to 8 programmable on/off cycles per session—enabling compliant TWA, STEL, and shift-based exposure profiling.
• Dual-power architecture: Operates seamlessly on rechargeable 8.4 VDC Ni-MH battery (≥12 h continuous runtime at 1.0 L/min) or 220 VAC/50 Hz mains supply—ideal for field deployments where grid access is intermittent.
• Flow-stable pumping system: Imported high-efficiency diaphragm pump with maximum static vacuum ≥26 kPa; flow accuracy maintained within ±5% across full range via integrated pressure compensation.
• Robust mechanical housing: Molded ABS engineering plastic casing with IP54-rated ingress protection—treated for moisture resistance, dust suppression, and electrostatic dissipation; available in four UV-stable color options (brown, gray, green, blue).
• Integrated anti-backflow protection: Check-valve and liquid-trap assembly prevents condensate or sampling solution backflow into the pump chamber—extending service life and maintaining calibration integrity.
• Low acoustic signature: Acoustic noise output ≤55 dB(A) at 1 m distance—minimizing operator disturbance during extended indoor or laboratory use.

Sample Compatibility & Compliance

The QCD Series accommodates standard 37-mm and 47-mm filter cassettes (e.g., PVC, PTFE, mixed cellulose ester), charcoal or silica gel sorbent tubes (e.g., SKC 226-01, Anasorb® CSC), and impingers (e.g., midget impinger, IOM inhalable sampler). All flow paths are chemically inert and compatible with common desorption solvents (CS₂, CS₂/acetone, methanol). Device performance meets requirements for GLP-compliant data acquisition under ISO/IEC 17025-accredited laboratories. While not intrinsically rated for Class I Div 1 hazardous locations, optional ATEX-certified variants (QCD-Ex series) are available upon request for mining and petrochemical applications.

Software & Data Management

The sampler includes embedded non-volatile memory that logs start/stop timestamps, cumulative runtime, and actual flow rate (via internal pressure sensor feedback) for each sampling event. Data export is supported via USB-C interface using vendor-provided Windows-compatible configuration utility (QCD-Config v3.2), which enables batch programming, audit trail generation, and CSV-formatted reporting. The firmware supports FDA 21 CFR Part 11–compliant user authentication (password-protected admin mode), electronic signatures, and immutable event logging—facilitating regulatory submissions for occupational health records and EPA Tier II reporting.

Applications

• Occupational hygiene monitoring per OSHA 29 CFR 1910.1200 and EU Directive 2004/37/EC (CARCINOGENS AND MUTAGENS)
• Indoor air quality (IAQ) assessment in schools, offices, and healthcare facilities per ASHRAE Standard 62.1
• Field validation of dispersion modeling outputs in urban and industrial zones
• Research-grade exposure assessment in toxicology and epidemiological cohort studies
• Baseline ambient VOC monitoring for compliance with national ambient air quality standards (e.g., China GB 3095-2012, US EPA NAAQS)

FAQ

What flow rate ranges are supported across QCD models?
The QCD-1500P supports 0.1–1.5 L/min; the QCD-3000P extends to 0.1–3.0 L/min—both with ≤±5% volumetric accuracy over temperature range −25°C to +45°C.
Is the device suitable for humid or dusty field environments?
Yes—the IP54-rated enclosure, conformal-coated PCB, and hydrophobic inlet filter provide reliable operation at ≤85% RH and in particulate-laden atmospheres typical of construction, agriculture, and manufacturing sites.
Can sampling data be integrated into LIMS or EHS platforms?
Raw timestamped logs and flow history are exportable as CSV; API integration support (RESTful JSON endpoint) is available via optional QCD-Link Gateway module for enterprise-level EHS software interoperability.
Does the instrument require annual recalibration?
Per ISO 8573-1 and manufacturer recommendations, flow calibration verification is advised every 12 months or after 200 operational hours—using traceable primary standards (e.g., dry calibrator or bubble meter).
