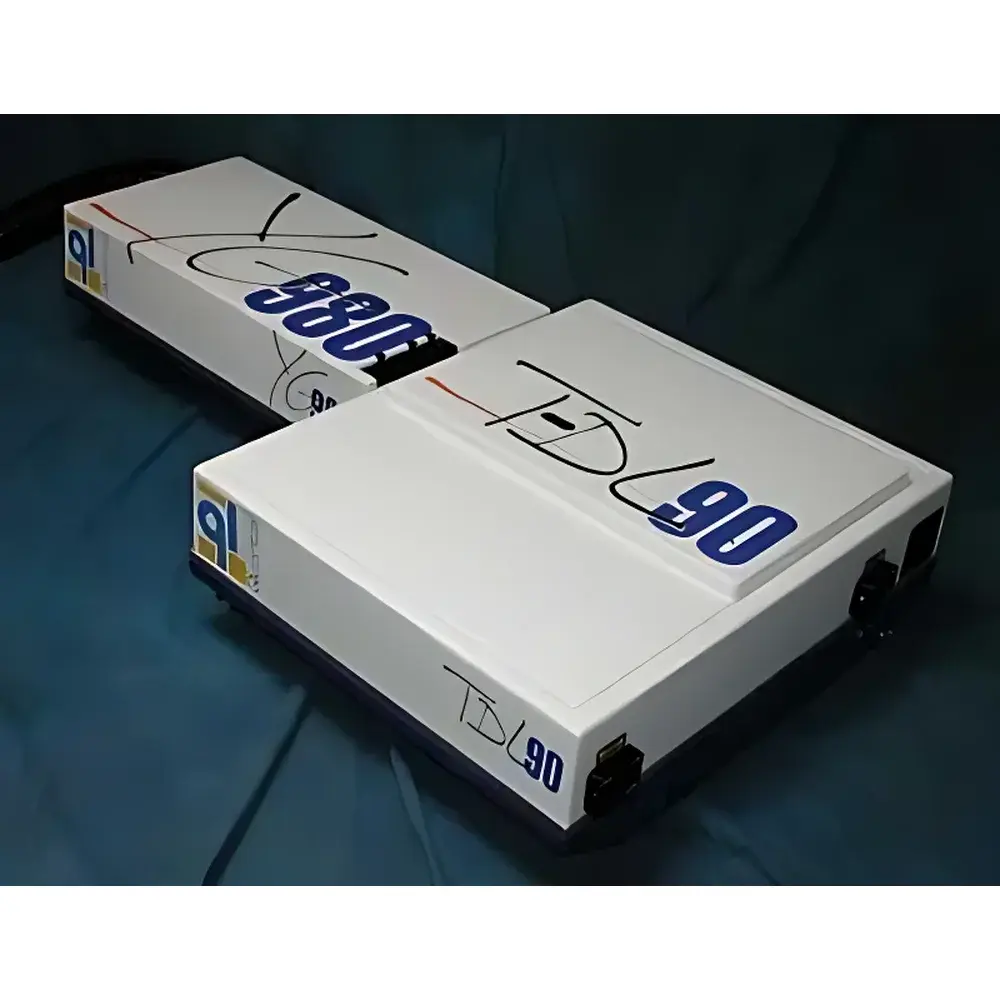

Quantel TDL90 Integrated Tunable Dye Laser

Overview

The Quantel TDL90 Integrated Tunable Dye Laser is a high-performance, turnkey optical source engineered for precision spectroscopy, ultrafast science, photochemistry, and metrology applications requiring broad spectral coverage with exceptional stability and reproducibility. Unlike conventional dye laser systems that rely on third-party pump lasers, the TDL90 employs Quantel’s proprietary frequency-doubled (532 nm) or frequency-tripled (355 nm) Nd:YAG lasers—specifically the YG980 or Brilliant series—as its integrated pump source. This vertically aligned design ensures optimal spatiotemporal overlap between pump and dye gain medium, minimizing alignment drift and maximizing conversion efficiency. The system operates on the principle of stimulated emission in organic dye solutions, where tunability across the ultraviolet to mid-infrared (200–4500 nm) is achieved via intracavity dispersive elements—typically Littrow-configured gratings or birefringent filters—combined with precise cavity length control. Its monolithic mechanical architecture, constructed from low-thermal-expansion Invar and actively stabilized optics mounts, delivers long-term pointing stability (<5 µrad/h) and pulse-to-pulse energy stability better than ±1.5% RMS over 8 hours under laboratory conditions.

Key Features

• Fully integrated pump-and-dye architecture: Eliminates external alignment dependencies and inter-manufacturer compatibility issues.
• Wide continuous tuning range: Covers 200–4500 nm through interchangeable dye cells and harmonic generation modules (e.g., BBO, LBO, KDP crystals).
• Dual linewidth configuration: Selectable narrow-linewidth mode (10 cm⁻¹) for time-resolved fluorescence or pump-probe studies.
• Ultra-low amplified spontaneous emission (ASE): <0.2% ASE-to-signal ratio achieved via optimized cavity dumping geometry and spectral filtering—critical for high-dynamic-range absorption measurements.
• Modular platform: Supports field-upgradable components including dye circulation units, wavelength meters (e.g., HighFinesse WS6), and computer-controlled motorized grating drives.
• Comprehensive thermal management: Closed-loop chiller interface (±0.1 °C setpoint stability) and vibration-isolated optical baseplate compliant with ISO 10360-7 environmental specifications.

Sample Compatibility & Compliance

The TDL90 is compatible with standard organic dye solutions—including Coumarin, Rhodamine, and IR-140 families—delivered via peristaltic or diaphragm pumps with flow-rate monitoring (10–30 mL/min). All wetted materials comply with USP Class VI biocompatibility standards, enabling use in regulated photobiological assays. The system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and conforms to IEC 60825-1:2014 Class IV laser safety standards with integrated interlock circuitry, key-switched operation, and beam shutter control. Documentation packages support GLP/GMP audit readiness, including full traceability of optical coatings (measured reflectivity >99.8% at 532 nm), cavity mirror substrate certifications (fused silica, λ/10 surface flatness), and factory calibration reports traceable to NIST SRM 2034.

Software & Data Management

Control is managed via Quantel’s QSoft v4.2 platform—a Windows-based application supporting LabVIEW, MATLAB, and Python APIs (PyQuantel SDK). The software provides real-time wavelength calibration using an internal reference iodine cell (for UV–VIS) or methane absorption lines (for IR), with automated recalibration every 30 minutes. All acquisition parameters—including pulse energy, repetition rate (1–100 Hz), delay timing (1 ns resolution), and spectral centroid—are logged in HDF5 format with embedded metadata compliant with FAIR data principles. Audit trails record user login, parameter changes, and maintenance events in accordance with FDA 21 CFR Part 11 requirements, including electronic signatures and role-based access control.

Applications

• High-resolution laser-induced fluorescence (LIF) spectroscopy for atmospheric trace gas detection (e.g., OH, NO₂, formaldehyde).
• Pump-probe transient absorption experiments in femtochemistry and carrier dynamics studies in 2D materials.
• Calibration of astronomical spectrographs (e.g., ESO’s ESPRESSO) using precisely defined atomic and molecular line references.
• Photoacoustic imaging excitation sources operating in the NIR therapeutic window (700–1300 nm).
• Development and validation of quantum cascade laser (QCL) and interband cascade laser (ICL) wavelength standards.

FAQ

Is the TDL90 compatible with third-party pump lasers?
No—the TDL90 is designed exclusively for use with Quantel’s YG980 or Brilliant-series Nd:YAG pump lasers. Interchangeability with non-Quantel pumps is not supported due to stringent synchronization, beam quality, and temporal pulse profile requirements.
What dyes are pre-qualified for use with the TDL90?
Quantel provides a validated dye matrix covering 200–4500 nm, including Coumarin 102 (390–470 nm), Rhodamine 6G (550–650 nm), and DCM (620–750 nm); extended IR coverage requires IR-140 or HITCI dyes with methanol or ethylene glycol solvents.
Does the system include wavelength calibration certification?
Yes—each unit ships with a NIST-traceable calibration certificate covering primary output bands (266 nm, 532 nm, 355 nm pump lines; 450–750 nm dye region), verified using a HighFinesse WS7 wavemeter calibrated against iodine hyperfine transitions.
Can the TDL90 be operated in single-shot mode?
Yes—via external TTL trigger input with jitter <100 ps; internal repetition rate is adjustable from 1 Hz to 100 Hz, with burst-mode capability (up to 10 pulses at 1 kHz intra-burst spacing).
What maintenance intervals are recommended?
Dye solution replacement every 10⁸ shots (or 200 hours of operation), cavity mirror inspection every 6 months, and full optical alignment verification annually—per Quantel Service Bulletin Q-TDL90-REV4.
