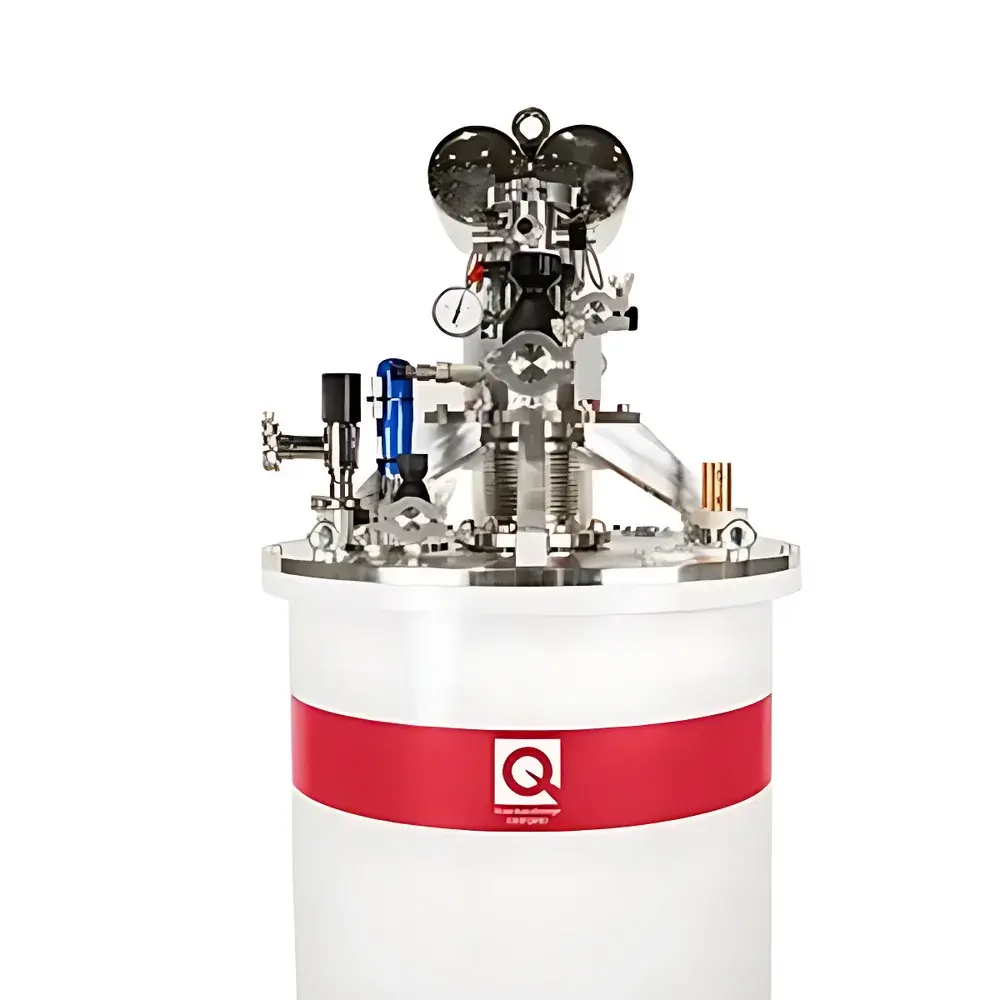

Quantum Design TeslatronPT Cryogen-Free Superconducting Magnet System

Overview

The Quantum Design TeslatronPT is a cryogen-free, high-field superconducting magnet system engineered for precision physical property measurements under extreme conditions—specifically, ultra-low temperatures (down to <25 mK) and high magnetic fields (up to 14 T). Unlike traditional liquid helium–dependent systems, the TeslatronPT employs a closed-cycle pulse-tube cryocooler architecture coupled with advanced refrigeration insert options (e.g., HelioxVT and KelvinoxJT), eliminating the operational complexity, supply chain dependency, and safety hazards associated with bulk cryogens. Its measurement principle relies on persistent-mode superconducting magnet operation stabilized by active field regulation, enabling long-term field stability (<0.1 ppm/h) essential for quantum transport, spin dynamics, and thermodynamic characterization. Designed for integration into advanced low-temperature laboratories, the system supports both DC and AC electrical transport, Hall effect, quantum Hall regime studies, and magneto-optical spectroscopy—all within a compact, vibration-isolated platform compliant with ISO 14644 Class 5 cleanroom-compatible infrastructure.

Key Features

• Cryogen-free operation using a single-stage pulse-tube refrigerator — eliminates liquid helium handling, refills, and boil-off losses
• Standard 14 T superconducting magnet with optional vector rotation capability (±90° in-plane, ±30° out-of-plane)
• Integrated variable-temperature insert (VTI) providing continuous temperature control from <1.5 K to 300 K
• Low-vibration mechanical design: RMS displacement <50 nm below 10 Hz; optimized for SQUID-based, capacitance, and nanovolt-level transport measurements
• Modular sample environment: hermetically sealed, exchange-gas–isolated sample chamber enables rapid sample exchange without warming the magnet or disrupting the cold mass
• Static exchange gas cooling — no forced gas flow across the sample region, preventing mechanical perturbation of fragile nanostructures or microfabricated devices
• Top-loading sample access: full sample replacement possible while maintaining base temperature, bypassing load-lock mechanisms or thermal cycling delays
• Internal cryogenic trap integrated into the 4 K stage — removes hydrocarbon and moisture contaminants without requiring liquid nitrogen–cooled traps or external purification lines

Sample Compatibility & Compliance

The TeslatronPT accommodates standard and custom sample geometries via interchangeable sample rods, including fixed-position and mechanically rotated variants compatible with Swedish-style rotary heads. All sample stages feature ESD-protected mounting using aluminum nitride (AlN) PCBs and LCC carriers—materials selected for high thermal conductivity (>170 W/m·K at 4 K) and non-magnetic purity (Ni-free plating ensures residual field <10 nT at sample position). Available carrier configurations include 20-pin LCC, 16-pin DIP, 44-pin LCC (non-ESD), and spring-pin PCB interfaces (44 non-magnetic phosphor-bronze pogo pins). Electrical cabling comprises 13 twisted-pair 26 AWG tinned-copper leads and 3 twisted-pair 22 AWG tinned-copper leads, each individually foil-shielded with independent drain wires and jacketed insulation—meeting IEC 61000-4-2 ESD immunity requirements. The system complies with GLP/GMP documentation standards for audit-ready data traceability and supports FDA 21 CFR Part 11–compliant electronic signatures when paired with Quantum Design’s MultiVu software suite.

Software & Data Management

Control and synchronization are managed through Quantum Design’s MultiVu platform—a Windows-based application supporting simultaneous real-time monitoring of field, temperature, pressure, and electrical transport parameters. MultiVu implements automated ramping protocols with programmable rate limits (field: 0–14 T @ ≤0.5 T/min; temperature: 1.5–300 K @ ≤5 K/min), interlock logic for magnet quench prevention, and hardware-triggered data acquisition synchronized to external lock-in amplifiers or RF sources. Raw data files are saved in HDF5 format with embedded metadata (timestamp, instrument configuration, calibration coefficients), ensuring FAIR (Findable, Accessible, Interoperable, Reusable) compliance. Optional Python and MATLAB APIs enable integration into custom analysis pipelines, while audit logs record all user actions—including parameter changes, calibration events, and emergency stops—for regulatory review.

Applications

• Quantum transport in 2D electron gases, graphene heterostructures, and topological insulators under high B-field and sub-Kelvin conditions
• Hall effect and quantum Hall effect metrology—supporting primary resistance standard development aligned with CIPM MRA guidelines
• Spin injection, Hanle precession, and spin lifetime measurements in spintronic devices
• Specific heat, magnetocaloric effect, and thermal conductivity mapping in correlated electron systems
• High-resolution magneto-photoluminescence of quantum dots and nanowires using fiber-coupled cryogenic optics
• Low-frequency dielectric spectroscopy and ferroelectric hysteresis under magnetic field bias

FAQ

Does the TeslatronPT require liquid helium for initial cooldown or operation?
No. The system operates entirely without liquid cryogens. Initial cooldown is achieved via the integrated pulse-tube refrigerator; optional inserts (HelioxVT, KelvinoxJT) are also dry-cooled and require no liquid helium or liquid nitrogen precooling.
Can the system maintain field stability during long-duration quantum oscillation experiments?
Yes. The magnet operates in persistent mode with active field regulation, achieving field drift <0.1 ppm/h over 72-hour periods—verified per ASTM E2918 Annex A3 for magnetic field stability testing.
Is vacuum integrity maintained during top-loading sample exchange?
Yes. The sample chamber uses a double-O-ring static seal design; sample insertion occurs through a gated port that isolates the main VTI volume, preserving base pressure (<1×10⁻⁶ mbar) without venting.
What is the lowest achievable base temperature with the KelvinoxJT insert?
6 hours at 350 mK with ≥50 µW cooling power, as certified per ISO/IEC 17025-accredited calibration reports.
Are third-party measurement electronics (e.g., Keysight B1500A, Zurich Instruments HF2LI) compatible?
Yes. The system provides standardized 32-pin D-sub and SMA breakout panels with shielded, grounded signal routing—fully compatible with industry-standard source-measure units, lock-in amplifiers, and arbitrary waveform generators.
