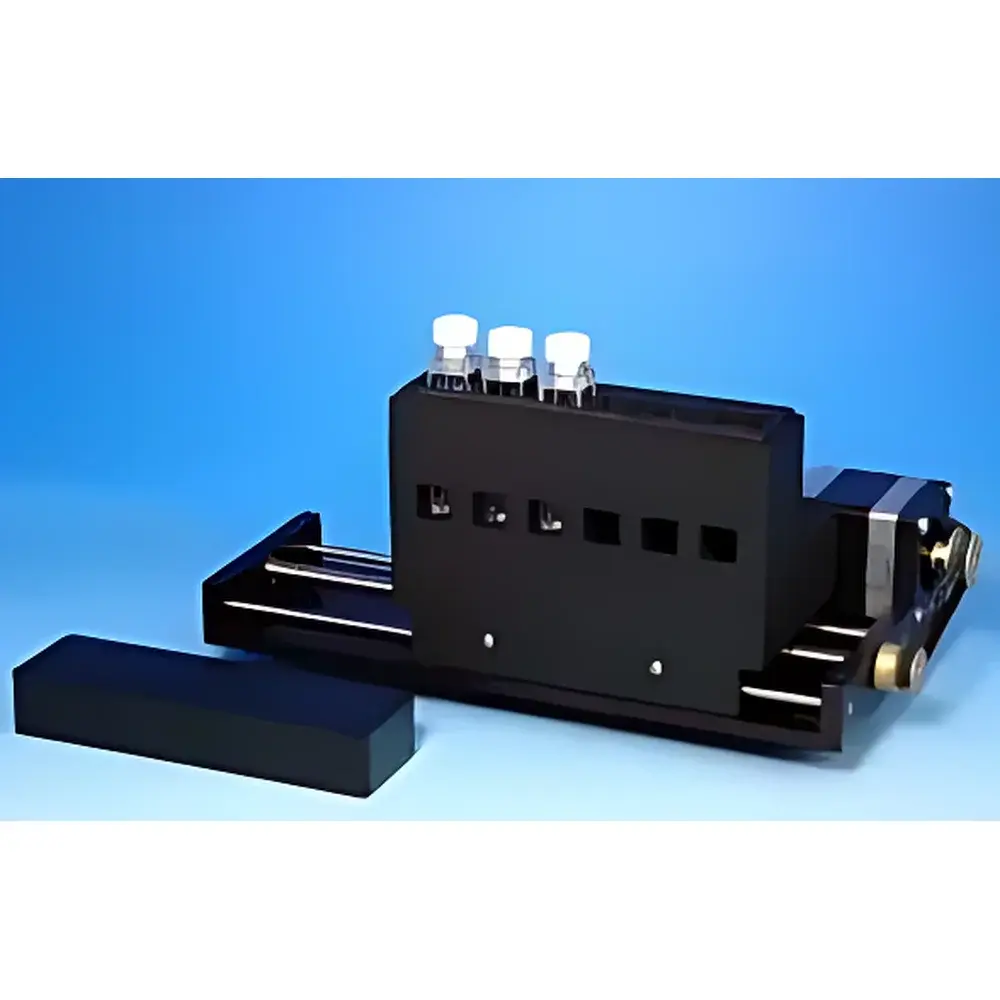

Quantum Northwest LC600 Linear Cuvette Holder with Precision Temperature Control

Overview

The Quantum Northwest LC600 Linear Cuvette Holder is an engineered optical sample stage designed for high-fidelity spectroscopic measurements requiring precise, stable, and programmable thermal control of liquid or solution-phase samples. Built upon a robust Peltier-based thermoelectric architecture, the LC600 delivers rapid thermal response and exceptional stability—±0.02 °C over its standard operating range of −10.00 °C to +105.00 °C—with factory-validated calibration traceable to NIST-traceable standards. Its six-position linear configuration enables sequential, automated measurement across multiple cuvettes without manual intervention, making it especially suited for kinetic studies, concentration series, reference-standard validation, and multi-condition screening in UV-Vis absorption, fluorescence quantum yield, circular dichroism (CD), and transient absorption spectroscopy. The system integrates seamlessly into both benchtop spectrophotometers and custom optical setups via standardized mounting interfaces (e.g., 1/4″-20 tapped holes, kinematic base plate options), and supports full bidirectional communication with host acquisition software via USB or RS-232.

Key Features

• Motorized linear translation stage with repeatable ±1 µm positioning accuracy across all six cuvette slots
• Independent, variable-speed magnetic stirring per cuvette position—ensuring homogeneous temperature distribution and eliminating thermal stratification in viscous or low-conductivity media
• High-resolution temperature feedback using calibrated platinum RTD or thermistor sensors embedded directly adjacent to each cuvette path
• Programmable ramp-and-hold profiles with user-defined heating/cooling rates (0.01–5.0 °C/min), enabling controlled thermal transitions for protein denaturation, phase-transition analysis, or solvent-dependent spectral shifts
• Optical access optimized for collimated beam paths: each cuvette station includes precision-machined slit inserts (standard 1.0 mm vertical aperture, customizable) to minimize stray light and define effective pathlength
• Modular thermal enclosure design with low-thermal-mass aluminum housing and vacuum-gap insulation—reducing ambient drift and improving thermal settling time (<90 s to ±0.05 °C from setpoint)

Sample Compatibility & Compliance

The LC600 accommodates standard 10 mm square-path cuvettes (including quartz, fused silica, and IR-transmissive CaF₂ variants), as well as custom-length cells up to 50 mm pathlength with optional adapter plates. It supports sealed, gas-purged, and anaerobic configurations via O-ring-sealed cuvette caps and integrated purge ports. All thermal and positional operations comply with ISO/IEC 17025 laboratory accreditation requirements for instrument calibration and verification. When paired with Quantum Northwest’s QW-Log software or third-party platforms supporting SCPI command sets, the LC600 generates timestamped, tamper-evident temperature logs—including setpoint, actual reading, PID parameters, and error flags—meeting FDA 21 CFR Part 11 data integrity criteria for regulated environments. Full documentation packages—including IQ/OQ protocols, calibration certificates, and material declarations—are available upon request.

Software & Data Management

Control is implemented through Quantum Northwest’s QW-Log v4.x application (Windows/macOS), offering scriptable temperature sequencing (Python/Lua API support), real-time overlay of absorbance/fluorescence vs. temperature traces, and export to CSV, HDF5, or vendor-native formats (e.g., .jdx, .spc). The LC600 also supports direct integration with Ocean Insight, Avantes, and Horiba acquisition engines via TTL-triggered position synchronization and analog voltage output for external DAQ systems. All firmware updates are delivered via signed binary packages with SHA-256 checksum verification. Audit trails record operator ID, session start/end timestamps, parameter modifications, and calibration events—retained locally on device flash memory for ≥12 months.

Applications

• Thermal unfolding studies of proteins and nucleic acids via UV-Vis or CD spectroscopy
• Temperature-dependent quantum yield mapping in luminescent nanomaterials
• Reaction kinetics monitoring under controlled thermal gradients (e.g., enzyme catalysis, photochemical intermediates)
• Reference-standard qualification across environmental temperature bands per ASTM E275 and ISO 6326
• In situ characterization of polymer sol-gel transitions, liquid crystal phase behavior, and colloidal aggregation thresholds
• Multi-cuvette spectral library acquisition for machine-learning–driven chemometric modeling

FAQ

Can the LC600 be used with non-standard cuvette geometries (e.g., microvolume or capillary cells)?
Yes—custom cuvette adapters, including V-shaped holders for 50–200 µL capillaries and low-volume flow cells, are available as optional accessories.
Is remote operation supported over Ethernet or Wi-Fi?
The standard interface is USB 2.0 and RS-232; Ethernet connectivity requires the optional QW-NetBridge module (sold separately), which provides TCP/IP socket access and Modbus TCP compatibility.
Does the system include validation documentation for GxP environments?
Yes—Factory IQ/OQ documentation, 3Q protocol templates, and a Certificate of Conformance with metrological traceability are included with every unit shipped to regulated laboratories.
What maintenance is required to sustain temperature accuracy over time?
Annual recalibration of the internal temperature sensor array is recommended; no consumables or routine mechanical servicing is required due to solid-state Peltier construction and brushless motor actuation.
Can multiple LC600 units be synchronized for parallel temperature-controlled experiments?
Yes—master-slave daisy-chaining is supported via dedicated sync I/O ports, enabling coordinated ramping, position alignment, and trigger-based data capture across up to four independent units.
