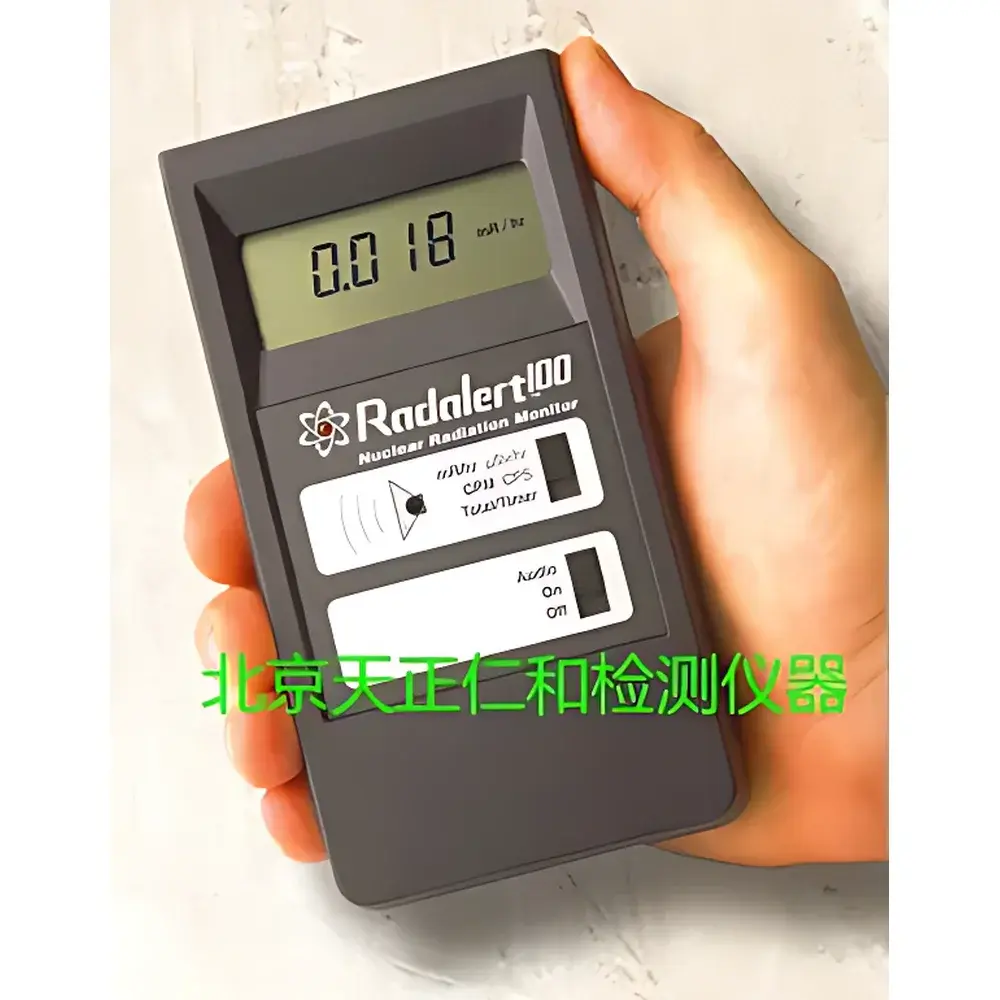

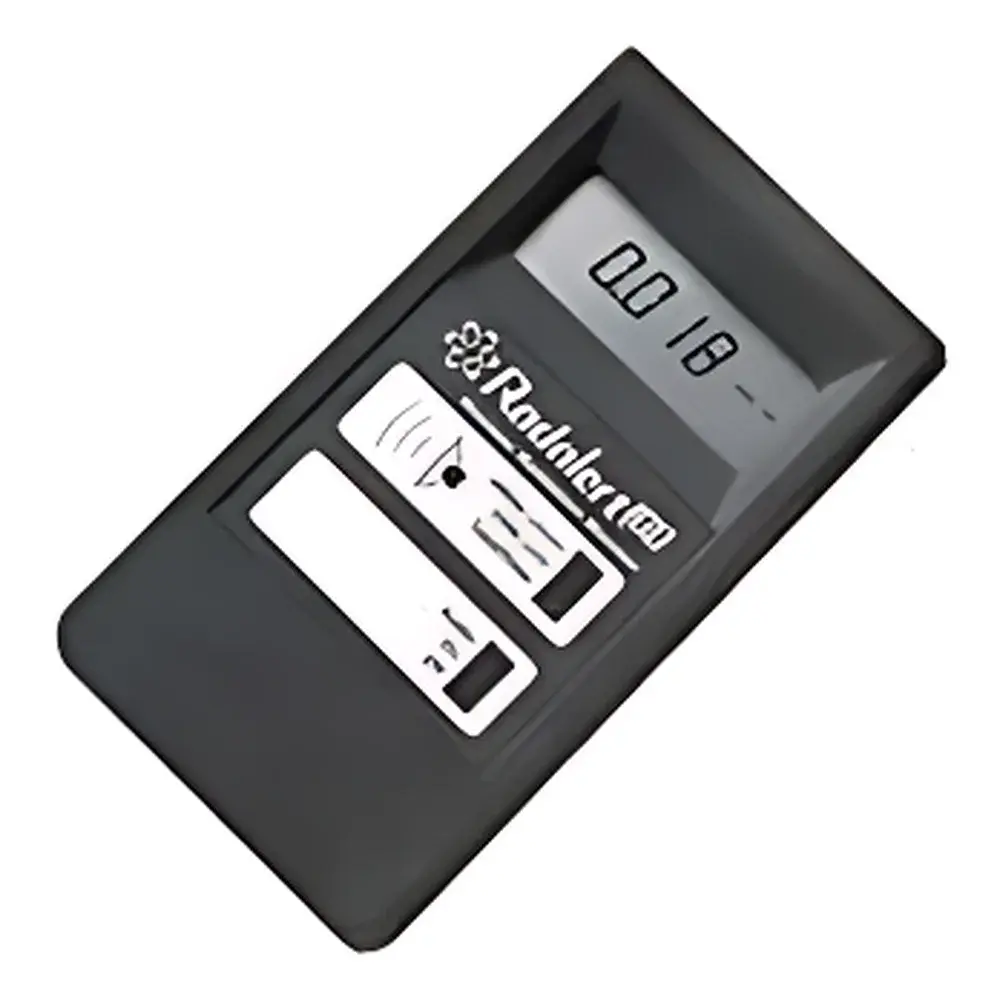

RADALERT100 Multi-Function Radiation Survey Meter

Overview

The RADALERT100 Multi-Function Radiation Survey Meter is a portable, field-deployable Geiger-Müller (GM) detector engineered for reliable detection and quantitative assessment of ionizing radiation across alpha, beta, gamma, and X-ray energy spectra. Designed and manufactured under strict quality control protocols by SE International, Inc. (USA), the instrument operates on the principle of gas-filled tube ionization: incident radiation triggers electron avalanches within the GM tube, generating discrete electrical pulses proportional to radiation intensity. Each pulse is digitally processed and translated into real-time dose rate (mR/hr or µSv/hr), count rate (CPM/CPS), and cumulative counts — enabling rapid situational awareness in both routine monitoring and emergency response scenarios. Its compact form factor, low-power architecture, and dual-mode alarm system make it suitable for continuous unattended operation or handheld survey work in diverse environments ranging from nuclear medicine departments and radiopharmaceutical labs to environmental remediation sites and border security checkpoints.

Key Features

• Integrated halogen-quenched GM tube with thin mica end-window (1.5–2.0 mg/cm² density) optimized for alpha and low-energy beta detection, while maintaining robust gamma/X-ray response.
• Simultaneous dual-scale digital display showing either dose rate (0.001–110.0 mR/hr or 0.01–1100 µSv/hr) or count rate (0–350,000 CPM), with automatic range switching and unit selection.
• User-configurable audible and visual alarm thresholds — adjustable independently for dose rate (up to 50 mR/hr) and count rate (up to 160,000 CPM) — supporting ALARA-based operational protocols.
• TTL-compatible pulse output via 3.5 mm mini-jack enables direct integration with data loggers, PC-based acquisition systems (e.g., LabVIEW, MATLAB), educational interfaces (Vernier, PASCO), or external audio amplification.
• Low-power design ensures >2160 hours of operation at typical background levels (~0.01 mR/hr); battery life remains >625 hours even at sustained 1 mR/hr exposure when audio feedback is disabled.
• CE-marked and verified per IEC 60846-1:2014 Annex B for portable radiation protection instruments, confirming compliance with performance criteria for energy dependence, angular response, and environmental robustness.

Sample Compatibility & Compliance

The RADALERT100 is calibrated using a traceable ¹³⁷Cs gamma source and validated for use across mixed-field radiation environments. It meets ANSI N42.33-2022 requirements for portable radiation detection instrumentation used in homeland security applications and satisfies functional criteria outlined in ISO 4037-3 for reference radiation fields. While not intended for primary dosimetry in clinical radiotherapy, its response characteristics align with ICRP Publication 116 fluence-to-dose conversion coefficients for photons (15 keV–10 MeV) and electrons (100 keV–10 MeV), permitting conservative estimation of ambient dose equivalent H*(10). The device is routinely deployed in accordance with EPA Method M-100 and ASTM D3648 for environmental radiation screening and supports GLP-aligned documentation when paired with time-stamped data logging.

Software & Data Management

No proprietary software is required for basic operation; however, the TTL pulse output allows seamless connection to third-party data acquisition platforms supporting CMOS-level digital input. Users may configure serial or USB-based adapters (e.g., Arduino-based TTL-to-USB converters) to record timestamped CPM/CPS sequences at user-defined intervals. Output pulses are compatible with standard logic analyzers and oscilloscopes for waveform validation. For regulatory reporting, exported CSV or TXT files can be imported into Excel or statistical analysis tools to generate trend plots, dose accumulation charts, or audit-ready logs — fully traceable when combined with operator ID, location metadata, and calibration certificate references.

Applications

• Personnel exposure monitoring during decommissioning, waste handling, or maintenance in nuclear facilities.
• Routine perimeter surveillance at research reactors, cyclotron centers, or radiopharmaceutical production suites.
• Environmental baseline surveys and post-incident contamination mapping following transportation accidents or industrial releases.
• Educational demonstrations of radioactive decay statistics, shielding effectiveness, and inverse-square law verification.
• Geological prospecting for naturally occurring radioactive materials (NORM), including uranium/thorium-bearing mineral deposits.
• Verification of shielding integrity in veterinary X-ray rooms and dental imaging suites per state radiation safety regulations.

FAQ

What radiation types does the RADALERT100 detect?
It detects alpha particles (via thin end-window), beta particles (medium-to-high energy), gamma rays, and X-rays. Low-energy beta and alpha require close proximity (<2 cm) due to air attenuation.
Is the device suitable for measuring radon gas concentrations?
No — it is not calibrated for radon progeny discrimination or integrated alpha spectroscopy; dedicated radon monitors (e.g., electret ion chambers or alpha scintillation cells) are required for accurate radon assessment.
Can the RADALERT100 be used for food or water contamination screening?
It provides qualitative screening only; quantitative analysis of specific radionuclides (e.g., ¹³¹I, ¹³⁷Cs) requires gamma spectrometry with HPGe or NaI(Tl) detectors and certified reference standards.
How often should calibration be performed?
Annual recalibration against a traceable ¹³⁷Cs source is recommended per ISO/IEC 17025 and NIST SP 250-83 guidelines; field checks with check sources prior to each shift are advised for critical applications.
Does the device support FDA 21 CFR Part 11 compliance?
As a standalone analog/digital meter without electronic records or signature capability, it does not fall under Part 11 scope; however, when integrated with validated data acquisition software meeting ALCOA+ principles, full audit trail functionality becomes achievable.
