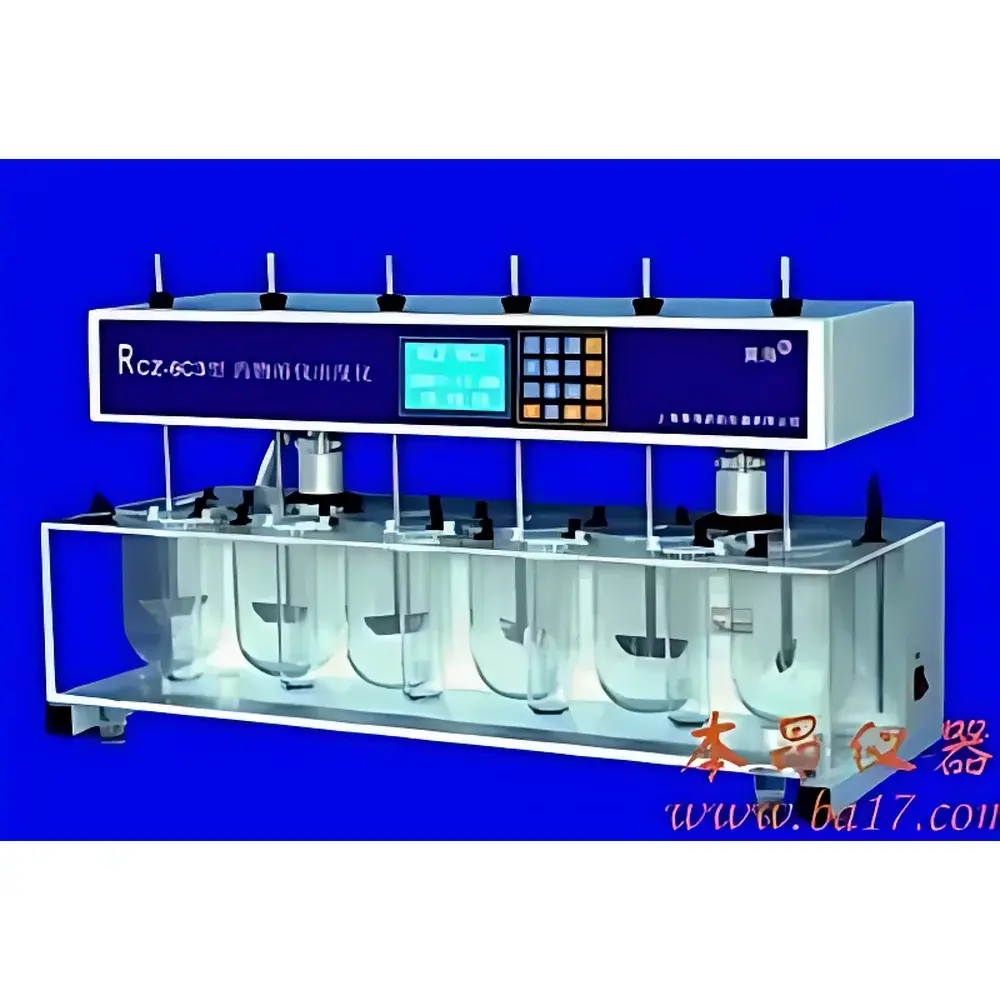

RCZ-6C3 Smart Six-Vessel Pharmaceutical Dissolution Tester

Overview

The RCZ-6C3 Smart Six-Vessel Pharmaceutical Dissolution Tester is a fully compliant, benchtop dissolution apparatus engineered for precision and regulatory adherence in pharmaceutical quality control laboratories. It operates on the principles of USP , EP 2.9.3, and ChP (Chinese Pharmacopoeia) General Chapter 0931—utilizing either paddle (USP Apparatus 2) or basket (USP Apparatus 1) configurations across six independent vessels. Each vessel features synchronized rotational motion driven by high-resolution stepper motors with microstepping power supply control, ensuring mechanical stability and minimal wobble (<0.5 mm for paddles; ≤1.0 mm for baskets). The system integrates a digitally controlled water bath with PT1000-grade temperature sensing and PID-based thermal regulation, delivering uniform thermal distribution and exceptional setpoint fidelity (±0.05°C). Designed for routine QC testing of immediate-release, extended-release, and modified-release solid oral dosage forms, the RCZ-6C3 supports method development, stability studies, and batch release testing under GLP-compliant workflows.

Key Features

• Six parallel dissolution vessels with independent mechanical mounting for USP Apparatus 1 (basket) or Apparatus 2 (paddle), accommodating standard 1000 mL vessels and 5 auxiliary media replenishment cups.
• Intuitive Chinese-language LCD human-machine interface (HMI) with soft-key navigation, enabling rapid parameter entry, real-time status monitoring, and contextual error messaging.
• Precision speed control via microstepping driver circuitry: 25–250 rpm range, 1 rpm resolution, and ≤±1% steady-state deviation—validated per USP mechanical calibration protocols.
• High-fidelity temperature management: built-in PT1000 sensor array, adaptive PID algorithm, and software-accessible offset correction—achieving ≤±0.05°C accuracy across all six vessels at 37.0°C.
• Comprehensive timing architecture: dual-mode chronometry (cumulative elapsed time + countdown per sampling interval), supporting up to 10 discrete, user-defined sampling events with individual duration settings (0–5999 min).
• Embedded self-diagnostic routines and hardware-level fault protection—including motor stall detection, temperature runaway lockout, and power anomaly response—with clear on-screen alert codes.
• Onboard data persistence: experimental parameters and timestamped event logs stored directly to USB flash memory (FAT32 formatted), eliminating dependency on external PCs during routine operation.
• Firmware-upgradable architecture: field updates delivered via USB stick without requiring service engineer intervention or instrument disassembly.

Sample Compatibility & Compliance

The RCZ-6C3 accommodates standard USP-compliant dissolution vessels (1000 mL cylindrical glass), sinkers, disks, and filter assemblies used for tablets, capsules, granules, and orally disintegrating films. Its mechanical design conforms to USP dimensional tolerances, including shaft verticality, vessel centering, and immersion depth specifications. Temperature uniformity is verified per USP Annex requirements using calibrated thermistor probes at multiple radial and axial positions. The instrument satisfies ChP 2020 Edition General Chapter 0931 and aligns with ISO/IEC 17025:2017 competency criteria for test equipment used in accredited laboratories. While not inherently 21 CFR Part 11 compliant, audit-ready operation is supported through manual logbook linkage, USB-stored raw data traceability, and operator ID annotation (via optional keyboard accessory).

Software & Data Management

No proprietary PC software is bundled; however, the RCZ-6C3 provides ASCII-formatted CSV export via USB storage, containing vessel ID, timestamp, RPM, bath temperature, and sampling event markers. Data files are structured for direct import into LIMS platforms (e.g., LabWare, Thermo SampleManager) or statistical analysis tools (JMP, Minitab). Optional RS-232 serial output enables integration with legacy lab printers or custom middleware for automated report generation. All firmware revisions retain backward compatibility with prior USB log formats. Calibration records—including speed verification certificates and temperature mapping reports—are maintained externally per laboratory SOPs.

Applications

• Batch-to-batch consistency testing of generic and innovator drug products against approved dissolution specifications.
• Comparative dissolution profiling for bioequivalence assessment (e.g., f2 similarity factor calculation).
• Excipient interaction screening during formulation development—evaluating pH-dependent release or surfactant effects.
• Stability-indicating method validation per ICH Q5C, including forced degradation studies under varying hydrodynamic conditions.
• Support of ANDA submissions where ChP or ASEAN pharmacopoeial compliance is required.
• Training and method transfer in contract research organizations (CROs) and university pharmacokinetics labs.

FAQ

Does the RCZ-6C3 support automatic sampling?
No. It is a non-integrated dissolution apparatus; sample collection must be performed manually or paired with a third-party autosampler via external trigger signal (TTL-compatible, optional add-on).
Is temperature mapping documentation included with shipment?
No. As per ISO/IEC 17025 practice, temperature uniformity validation is the responsibility of the end-user laboratory and must be conducted post-installation using NIST-traceable probes.
Can the instrument operate continuously for 24 hours?
Yes—designed for unattended overnight runs within specified environmental limits (5–40°C ambient, ≤80% RH); thermal load management and overtemperature cutoff ensure safe extended operation.
What is the warranty coverage and service support model?
Standard 18-month parts-and-labor warranty; technical support provided remotely by authorized distributor engineers; on-site service available under separate annual maintenance agreement.
Are spare parts such as paddles, baskets, and vessels supplied with the system?
One set of six USP-standard stainless-steel paddles and six glass dissolution vessels (1000 mL) is included; baskets, sinkers, and calibration tools are optional accessories ordered separately.
