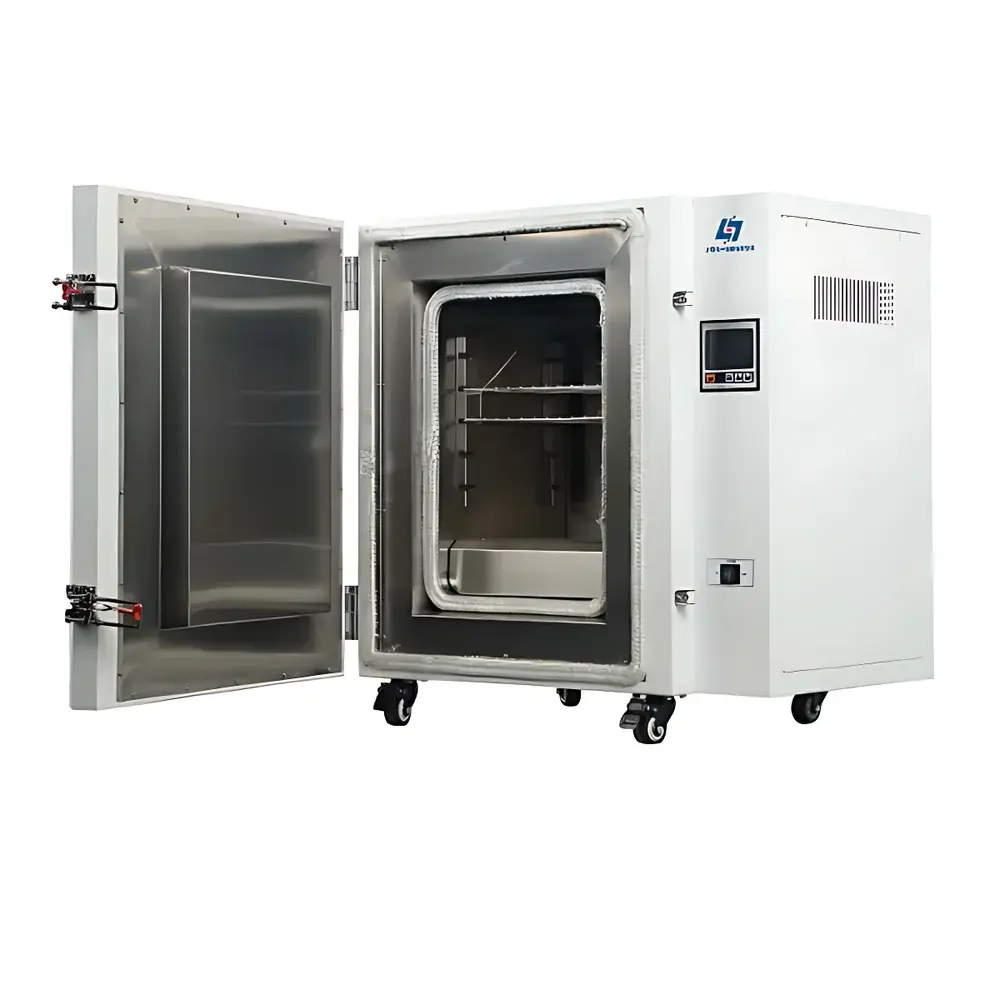

Shanghai Youyi DHG-9079A High-Temperature Drying Oven (500 °C)

Overview

The Shanghai Youyi DHG-9079A is a precision-engineered high-temperature forced-air drying oven designed for rigorous thermal processing in industrial quality control laboratories, materials research facilities, and production R&D environments. Operating across a calibrated temperature range from ambient +20 °C up to 500 °C, the unit employs convection-based heat transfer principles—leveraging a preheated air mixing chamber and rear-mounted multi-blade centrifugal fan—to achieve rapid thermal equilibration and stable, repeatable chamber conditions. Its structural architecture prioritizes thermal integrity and operational safety: the inner chamber is constructed from mirror-finish SUS304 stainless steel for corrosion resistance and ease of cleaning; insulation consists of high-density glass fiber matting between double-walled steel panels; and the door seal utilizes dual-layer ceramic rope gasketing rated for continuous operation at ≥550 °C. This configuration ensures minimal thermal bridging, low standby heat loss (<1.8 kW·h/24h at 300 °C), and compliance with baseline thermal safety expectations for Class B laboratory ovens per IEC 61010-1.

Key Features

• Microprocessor-based PID temperature controller with 4.3-inch backlit LCD interface—supporting setpoint programming, real-time chamber temperature display, elapsed time tracking, and programmable hold functions;
• Preheating cavity design: incoming ambient air is pre-mixed and heated upstream of the working chamber, minimizing cold air intrusion during door opening and improving thermal recovery rate (typical <12 min to re-stabilize at 400 °C after 30-s door exposure);
• Independent over-temperature protection circuit (optional): hardwired limit switch cuts power if chamber temperature exceeds user-defined threshold—fully compliant with EN 60519-2 requirements for industrial heating equipment;
• Cold-rolled steel exterior with electrostatic epoxy-polyester powder coating (film thickness ≥60 µm) for mechanical durability and chemical resistance;
• Two-tier adjustable stainless steel shelving system with friction-fit support brackets—load capacity: 15 kg per shelf (evenly distributed);
• Integrated power failure recovery logic: retains last valid setpoint, timer status, and PID tuning parameters following grid interruption or unexpected shutdown;
• Front-access service panel for heater element and fan motor maintenance—reducing downtime during routine calibration or preventive servicing.

Sample Compatibility & Compliance

The DHG-9079A accommodates a broad spectrum of non-volatile, thermally stable samples—including metal alloys, ceramic green bodies, polymer composites, catalyst supports, and inert particulates—within its 70 L stainless steel chamber. Its uniformity profile (±2.5% deviation at 100 °C, per ASTM E2207-18 test methodology) supports applications requiring spatial thermal consistency, such as moisture content validation (ASTM D4457), binder burnout (ISO 3452-3), and residual solvent analysis (USP <661>). While not certified to UL 61010-1 or CE for standalone medical device manufacturing, the oven meets general-purpose laboratory equipment requirements under GB/T 23776–2018 (Chinese national standard for electric heating ovens) and incorporates design elements aligned with GLP documentation needs—e.g., unambiguous parameter logging, non-volatile memory retention, and audit-ready operational history when paired with RS485 data export.

Software & Data Management

As a standalone instrument, the DHG-9079A operates without proprietary software dependency. Optional RS485 serial interface (Modbus RTU protocol) enables integration into existing SCADA or LIMS platforms for remote monitoring, alarm forwarding, and periodic temperature snapshot acquisition. When configured with the embedded thermal printer accessory (25 mm paper roll), it generates time-stamped hardcopy records of setpoint, actual temperature, and elapsed time—satisfying basic 21 CFR Part 11 traceability prerequisites for non-critical stability studies. All firmware operations are stored in EEPROM with write-cycle endurance >100,000 cycles, ensuring long-term parameter integrity without battery backup.

Applications

• Thermal aging of elastomers and thermosetting resins per ISO 188 and ASTM D573;
• Drying of high-purity metal oxide precursors prior to calcination;
• Post-sintering stress relief of additive-manufactured Ti-6Al-4V components;
• Moisture removal from refractory brick samples prior to density testing (ASTM C20);
• Binder decomposition profiling in powder metallurgy feedstocks;
• Pre-conditioning of reference standards for thermogravimetric calibration (ASTM E1131).

FAQ

What is the maximum continuous operating temperature?
Continuous operation is validated up to 500 °C. Sustained use above 450 °C requires quarterly verification of door seal integrity and fan bearing lubrication status.

Is the oven suitable for oxygen-sensitive processes?
No. The DHG-9079A is a forced-air convection oven with ambient air exchange—it does not support inert gas purging or vacuum operation. For reducing or inert-atmosphere applications, consider a dedicated tube furnace or nitrogen-purged muffle oven.

Can the unit be customized for non-standard chamber dimensions or voltage configurations?
Yes. Shanghai Youyi offers OEM engineering services for modified internal geometry, alternate power inputs (e.g., 208 V/60 Hz), enhanced insulation layers, and custom porting (e.g., 50 mm diameter test ports with silicone O-rings). Lead time averages 6–8 weeks post-PO confirmation.

Does the temperature controller support ramp-soak profiles?
The base controller supports single-stage ramp-to-setpoint and hold functionality. Multi-segment programmable profiles require the optional intelligent program controller (part #IPC-DHG), which adds 30-step sequencing, rate limiting, and event-triggered output switching.

What maintenance intervals are recommended?
Visual inspection of door gasket compression and fan inlet mesh every 200 operational hours; full calibration of PT100 sensor and controller output against NIST-traceable reference at least annually or per internal QA schedule.
