REA Check ER Barcode Verification Instrument

Overview

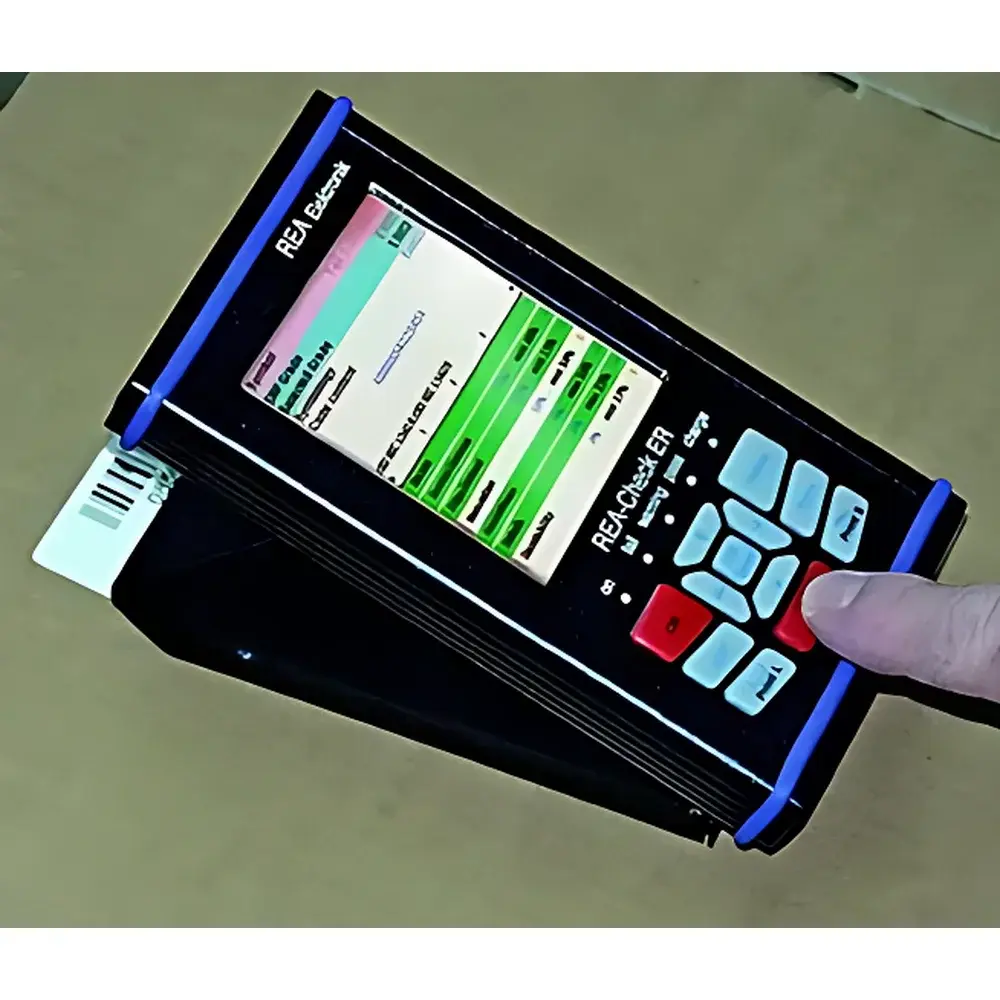

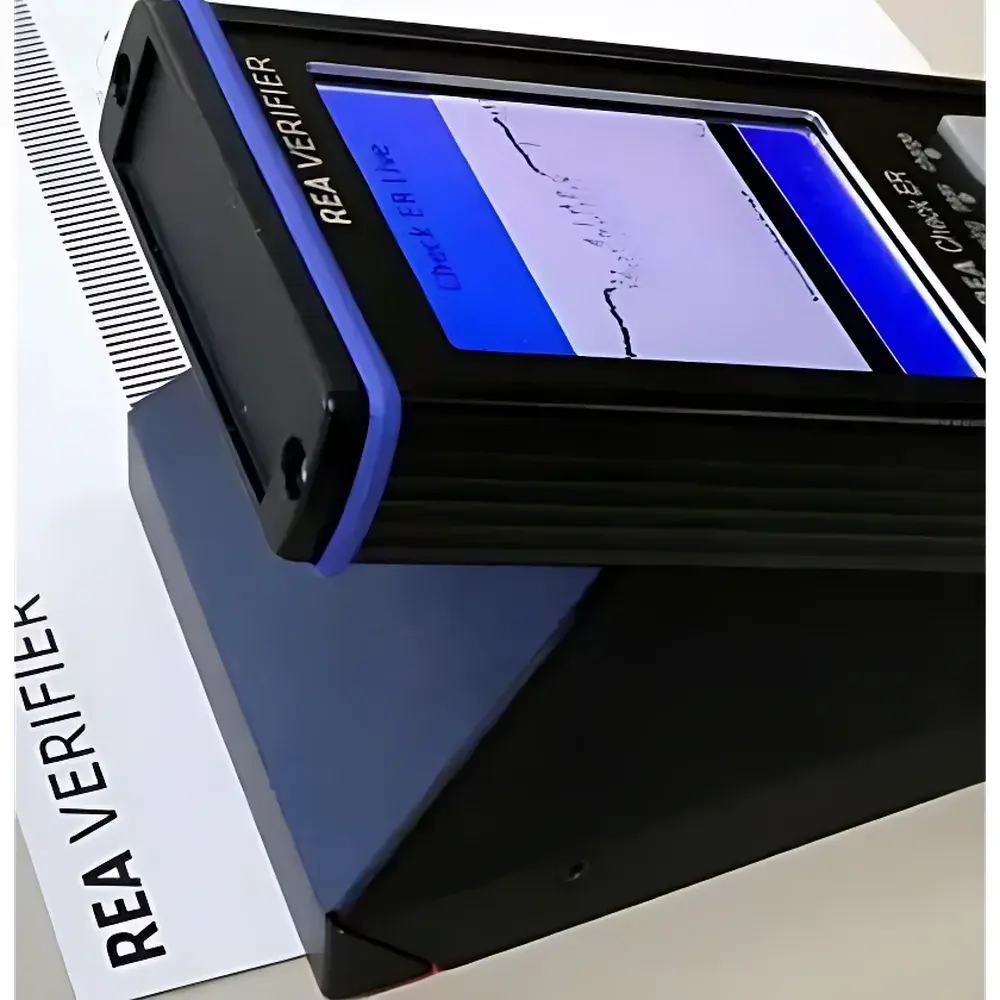

The REA Check ER Barcode Verification Instrument is a compact, battery-powered handheld verifier engineered for high-reliability barcode quality assessment in industrial, logistics, pharmaceutical, and retail environments. Designed and manufactured in Germany to strict ISO/IEC 15426-1 compliance, it implements standardized reflectance-based measurement principles using a calibrated 660 nm red LED source at 45° illumination geometry. This optical configuration ensures repeatable signal acquisition across diverse print substrates—including thermal labels, corrugated cartons, flexographic packaging, and direct thermal or laser-marked surfaces—while minimizing specular interference. The device operates on a deterministic embedded architecture (ARM9 32-bit CPU with fixed flash memory), eliminating operating system dependencies that could compromise audit trail integrity or real-time performance. Its fully self-contained design—integrated display, keypad, internal storage, and dual-power capability (Li-ion battery + IEEE 802.3af Power over Ethernet)—enables immediate deployment without external peripherals, making it suitable for both line-side verification and field audits.

Key Features

• ISO/IEC 15426-1 certified verification engine ensuring traceable, internationally recognized conformance reporting
• Three user-selectable aperture sizes (6, 8, 10 mil / 0.15–0.25 mm) to match symbology requirements and print resolution standards
• Full-color graphical LCD with intuitive 12-key interface for on-device navigation, parameter selection, and real-time result visualization

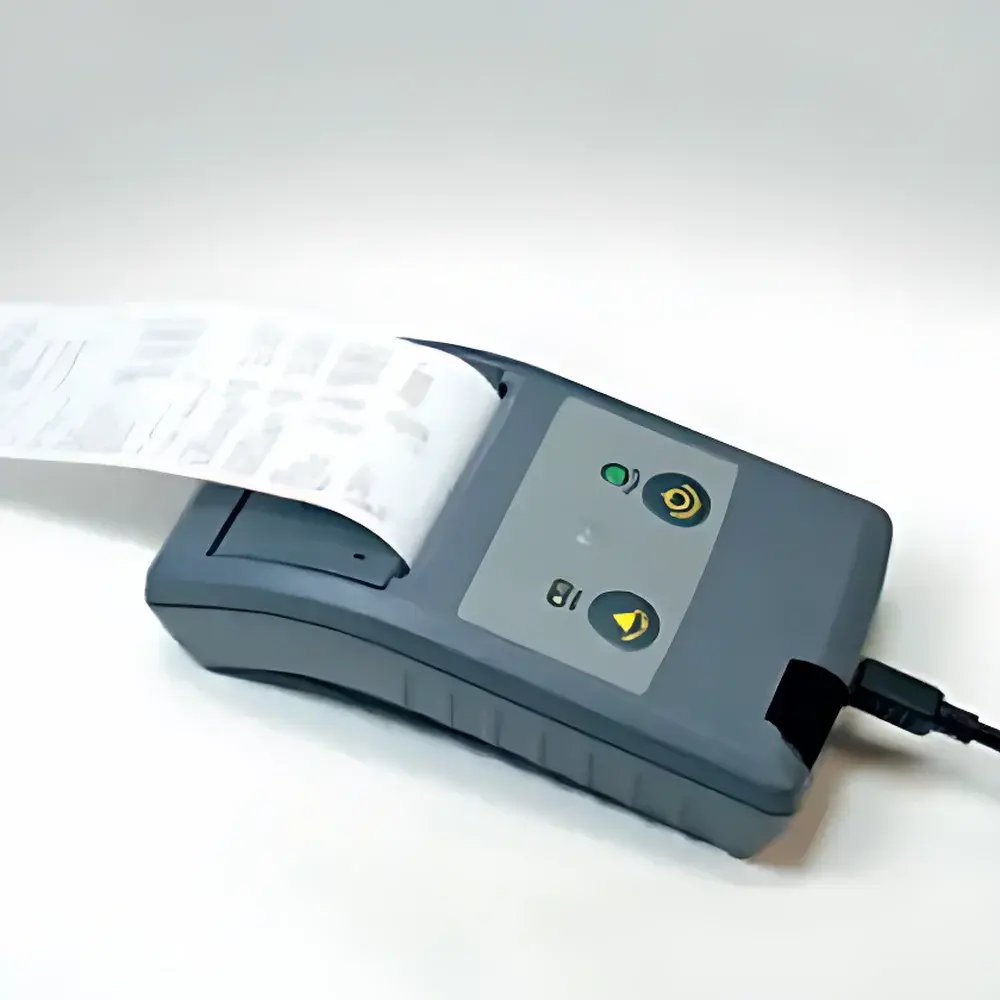

• Dual connectivity: RJ45 port supporting PoE (up to 100 m cable length) for networked lab integration; USB port for direct printer output or portable storage export
• Onboard non-volatile memory storing up to 1000 full verification reports—including decoded data, grade scores, and parametric plots (symbol contrast, modulation, decodability, etc.)
• Ruggedized mechanical housing (222 × 85 × 92 mm, 660 g) optimized for ergonomic one-handed operation and resistance to industrial handling stress
• Calibration traceability maintained via factory-certified reference standards; no user calibration required under normal operating conditions

Sample Compatibility & Compliance

The Check ER supports verification of linear and stacked linear barcodes across global supply chain and regulatory domains. It natively validates all major GS1-compliant symbologies—including EAN/UPC families, ITF-14, Code 128 (GS1-128 with content verification), and GS1 DataBar—and extends support to healthcare-specific codes (PZN, Code 32, LAETUS Pharmacode). Optional firmware modules enable verification of transport and logistics variants (DHL Express, IATA, Baggage), HIBC-encoded medical devices, and UPU postal identifiers. All measurements adhere strictly to ISO/IEC 15416 (linear) and ISO/IEC 15415 (2D) grading logic where applicable. The instrument’s hardware and firmware architecture are compatible with GLP/GMP documentation workflows: reports include timestamp, operator ID (if configured via external system), device serial number, aperture setting, and full parameter breakdown—supporting FDA 21 CFR Part 11 readiness when integrated into validated enterprise systems.

Software & Data Management

Verification results are stored internally with full metadata and may be exported via USB to standard CSV or PDF formats for archival or statistical process control (SPC) analysis. Optional REA TransWin 32 software provides centralized report aggregation, trend charting, batch-level pass/fail analytics, and customizable certificate generation compliant with internal QA protocols or customer-facing documentation requirements. The device does not require proprietary drivers; USB mass storage mode enables drag-and-drop access to raw data files. Network integration via PoE allows remote firmware updates and scheduled report synchronization through existing IT infrastructure—eliminating manual transfer bottlenecks in multi-site manufacturing or distribution operations.

Applications

• Production line verification of primary and secondary packaging prior to shipment
• Supplier quality assurance audits for contract manufacturers and co-packers
• Pharmaceutical labeling validation per EU Annex 11 and USP guidelines
• Retail shelf-ready packaging certification (e.g., Walmart, Amazon, GS1 US requirements)
• Logistics hub scanning performance validation for automated sortation systems
• Regulatory submission support: generating auditable verification evidence for FDA, EMA, or MHRA inspections

FAQ

Does the Check ER require annual recalibration?
No. The instrument is factory-calibrated against NIST-traceable reference standards and designed for long-term stability. Recalibration is only recommended after physical damage or exposure to extreme environmental conditions outside specified operating ranges.
Can verification reports be exported in machine-readable format for SPC systems?
Yes. All reports are exportable as CSV files containing numeric grade values, pass/fail status, decoded data, and measurement timestamps—enabling direct import into Minitab, JMP, or custom MES/QMS platforms.
Is the device compatible with enterprise identity management systems?
While the standalone unit does not support LDAP or Active Directory natively, REA TransWin 32 can integrate with Windows domain authentication and supports configurable operator ID fields in exported reports to meet role-based accountability requirements.
What is the expected battery life under continuous use?
The rechargeable Li-ion battery supports approximately 8 hours of active scanning at typical ambient temperature (23°C); battery status is continuously displayed on the main screen.
Does the Check ER support GS1 DataBar Expanded Stacked?
Yes. All GS1 DataBar family variants—including Omnidirectional, Truncated, and Expanded Stacked—are fully supported with automatic symbology recognition and GS1 Application Identifier parsing.
