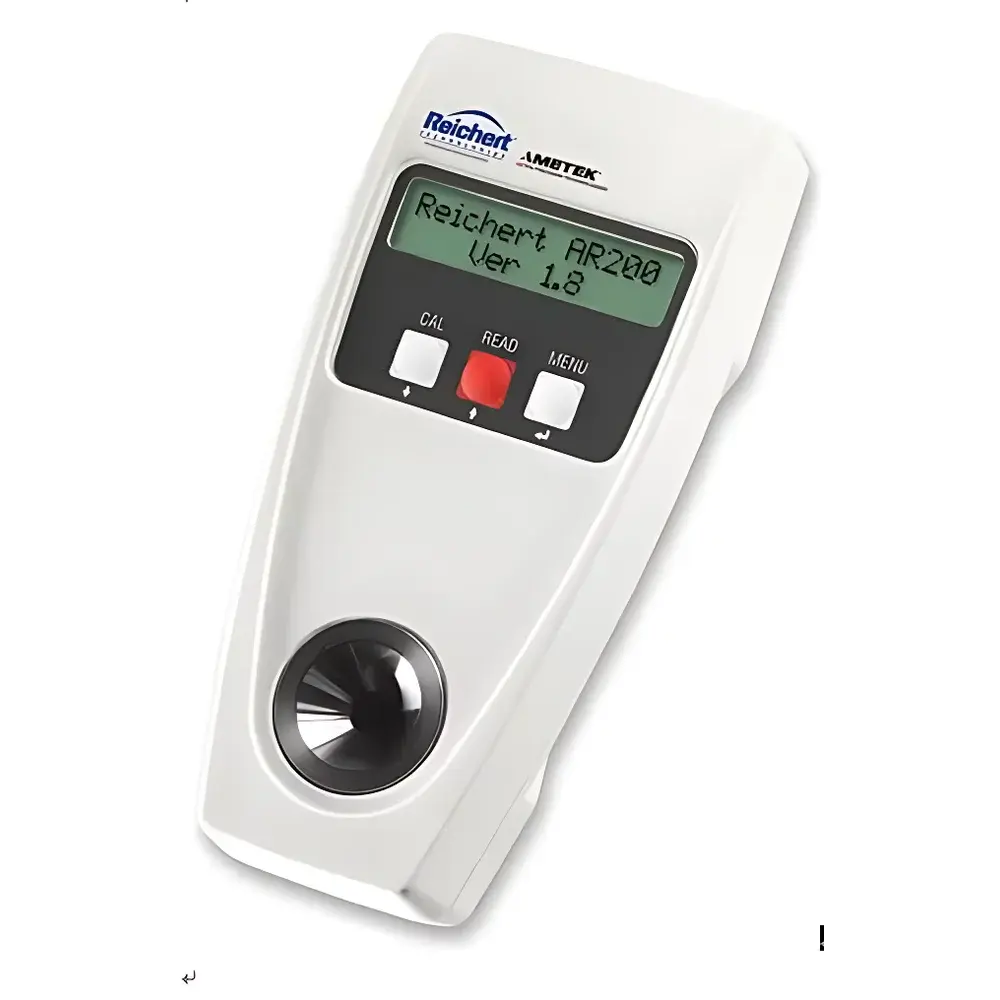

Reichert AR200 Handheld Digital Refractometer

Overview

The Reichert AR200 Handheld Digital Refractometer is a precision optical instrument engineered for rapid, field-deployable refractive index (RI) and Brix measurements across diverse industrial and laboratory environments. Based on the fundamental principle of total internal reflection at the prism–sample interface, the AR200 employs a high-stability 589 nm LED light source—matching the sodium D-line wavelength standard—to ensure metrological traceability and consistency with international reference methods (e.g., ASTM D1218, ISO 21745, USP ). Its compact, ergonomic design integrates a sapphire prism and stainless-steel sample chamber, delivering mechanical robustness and chemical resistance essential for routine QC in demanding production settings. Unlike analog or basic digital units, the AR200 features automatic temperature compensation (ATC) referenced to 20 °C, eliminating manual correction and minimizing operator-induced variability. The device operates without external power—battery-powered for true portability—and meets IP65-rated ingress protection for dust and water resistance during mobile use.

Key Features

• High-precision measurement capability: RI range 1.3300–1.5600 nD with ±0.0001 nD accuracy; Brix range 0.0–95.0% with ±0.1% accuracy
• Triple-user-defined measurement modes beyond factory-configured Brix and RI—enabling custom calibration for proprietary formulations (e.g., glycol concentration, brake fluid water content, polymer solution density)
• Integrated ATC system using built-in thermistor; no external bath or manual input required
• Backlit LCD touchscreen display with intuitive menu navigation—designed for glove-compatible operation in manufacturing or clinical environments
• Onboard memory stores calibration data and up to 100 recent measurement records, including timestamp and temperature metadata
• RS232 serial interface and infrared (IR) wireless communication for secure, cable-free data export to LIMS or Excel-based QA databases
• Sapphire prism surface and stainless-steel sample well—resistant to abrasion, organic solvents, and acidic/basic media encountered in pharmaceutical, food, and petrochemical workflows

Sample Compatibility & Compliance

The AR200 accommodates transparent, translucent, and semi-opaque liquid and semi-solid samples—including viscous syrups, emulsions, gels, and suspensions—without requiring dilution or filtration. Its optical path geometry minimizes scattering artifacts, enabling reliable readings even in turbid matrices such as tomato paste, whey protein concentrates, or antifreeze solutions. The instrument complies with GLP/GMP documentation requirements through audit-trail-capable data logging and user-accessible calibration history. While not FDA 21 CFR Part 11–validated out-of-the-box, its data export architecture supports integration into validated systems via CSV or ASCII protocols. It aligns with ISO/IEC 17025–recommended practices for instrument verification, and its 2-year manufacturer warranty covers both optical alignment and electronic stability under normal operational conditions.

Software & Data Management

Data capture and transfer are handled via native RS232 protocol or optional IR dongle, supporting direct import into laboratory information management systems (LIMS), statistical process control (SPC) platforms, or Microsoft Excel. Calibration parameters—including reference point, offset, and user-defined curve coefficients—are stored in non-volatile memory and can be exported for traceability audits. Firmware updates are performed via PC utility software (provided with unit), ensuring long-term compatibility with evolving quality standards. All measurement records include embedded timestamps, ambient temperature, and operator ID fields—facilitating root-cause analysis in deviation investigations per ICH Q7 and ISO 9001 clause 8.5.2.

Applications

The AR200 serves as a primary QC tool across regulated and non-regulated sectors: In food & beverage, it verifies sugar content in fruit juices (Brix), ethanol–water ratios in distillates, and freezing-point depression in dairy products. In pharmaceutical manufacturing, it monitors IV solution tonicity, excipient concentration in suspensions, and residual solvent levels in lyophilized intermediates. Automotive applications include ethylene glycol concentration in coolant (for freeze/boil protection), water contamination in brake fluid (affecting boiling point), and battery electrolyte specific gravity. In cosmetics and personal care, it controls surfactant load in shampoos and active ingredient dispersion in serums. Additional use cases span polymerization monitoring in adhesives, salinity quantification in aquaculture brines, fire retardant concentration in firefighting foams, and de-icing fluid potency in aviation ground support.

FAQ

Does the AR200 require periodic recalibration?
Yes—users should perform two-point calibration using certified NIST-traceable standards (e.g., distilled water and sucrose solution) before each shift or after environmental changes exceeding ±5 °C.
Can the AR200 measure opaque or particulate-laden samples?
It reliably measures semi-opaque and low-turbidity samples (e.g., ketchup, cream, crude oil emulsions); however, highly scattering or fibrous suspensions may require centrifugation or filtration prior to analysis.
Is temperature compensation adjustable or fixed?
ATC is fully automatic and based on a built-in thermistor; users cannot disable or override it—but they may select alternate reference temperatures (15 °C, 20 °C, 25 °C) during setup.
What battery life can be expected under typical usage?
With alkaline AA batteries, the unit delivers >10,000 measurements per set under ambient lighting; rechargeable NiMH batteries are supported but not supplied.
Is firmware upgrade support available beyond the warranty period?
Yes—Reichert provides free firmware updates and technical bulletins for registered instruments via their global service portal for the full product lifecycle.
