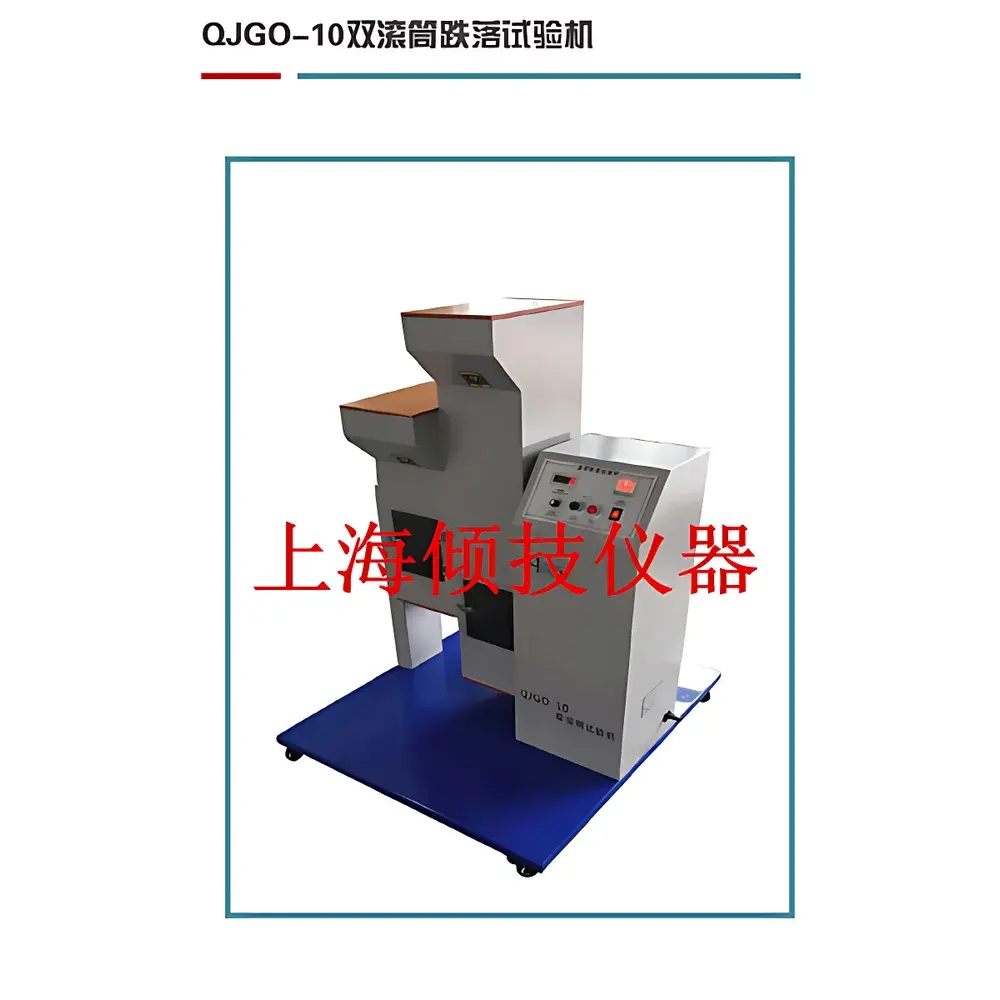

Remote-Controlled Dual-Drum Drop Tester

Overview

The Remote-Controlled Dual-Drum Drop Tester is an electromechanical test system engineered for standardized repetitive free-fall impact evaluation of small electronic consumer products and electrical accessories. It operates on the principle of controlled rotational tumbling—where specimens are placed inside two independently driven cylindrical drums, each configured to simulate repeated, randomized free-fall events from defined vertical heights (500 mm and 1000 mm). As the drum rotates at a regulated angular velocity (5 rpm nominal), specimens undergo successive drops onto a hardened steel or rubberized impact base with consistent kinetic energy input per event. This methodology replicates real-world mechanical abuse scenarios—including accidental drops during handling, transportation, or end-user operation—enabling quantitative assessment of structural integrity, housing durability, internal component retention, and interconnect robustness. The tester complies with internationally recognized environmental stress testing protocols for mechanical shock endurance, making it suitable for pre-compliance screening in R&D labs and final verification in QC/QA environments under ISO/IEC 17025-accredited workflows.

Key Features

• Dual-drum architecture enables parallel testing of two identical or dissimilar specimens—increasing throughput without compromising test repeatability or cross-contamination risk.
• Precision-engineered drum geometry ensures statistically randomized orientation upon each impact, eliminating directional bias and minimizing non-impact surface abrasion common in linear drop testers.
• Adjustable drop height selection (500 mm / 1000 mm) with mechanical locking mechanisms guarantees traceable, operator-independent setup per test standard requirements.
• Integrated 6-digit programmable counter with auto-hold and reset functionality supports precise cycle definition (e.g., 100, 500, or 1000 drops), synchronized with drum rotation and motor control logic.
• Industrial-grade geared motor drive (1500 W total system power, 220 V AC, 50 Hz) delivers stable torque output across extended duty cycles; optional variable-frequency drive (VFD) available for fine-tuned rotational speed modulation (5–15 rpm range).
• Full-coverage transparent polycarbonate safety lid with dual-interlock circuitry halts drum motion immediately upon lid opening—meeting EN 60204-1 functional safety requirements.

Sample Compatibility & Compliance

The system accommodates specimens up to 200 mm × 120 mm × 60 mm (L×W×H) and ≤ 1.5 kg per drum—covering smartphones, Bluetooth earbuds, remote controls, USB-C chargers, portable power banks, calculators, electronic dictionaries, CD players, and non-grounded plug/socket assemblies. Test execution adheres strictly to the mechanical shock clauses of:

• GB/T 2423.8–2022 Environmental testing — Part 2: Tests — Test Ed: Free fall
• GB 2099.1–2008 Plugs and socket-outlets for household and similar purposes — Part 1: General requirements
• IEC 60068-2-32:2022 Environmental testing — Part 2-32: Tests — Test Ed: Free fall
• IEC 60884-1:2022 Plugs and socket-outlets for household and similar purposes — Part 1: General requirements
• EN 50075:1990 Specification for general purpose non-rewirable two-pole plugs

All test reports generated may be structured to support GLP/GMP documentation practices, including operator ID, specimen batch number, ambient temperature/humidity logging, and pass/fail criteria per clause 8.3 of IEC 60884-1.

Software & Data Management

While the base configuration operates via front-panel push-button interface with LED indicators and mechanical counter display, optional PC-based control software (Windows 10/11 compatible) provides enhanced traceability: real-time cycle logging with timestamping, CSV export of test history, digital signature capture for operator authentication, and audit trail generation compliant with FDA 21 CFR Part 11 Annex 11 principles. Calibration certificates for height gauges and rotational speed sensors are provided with initial delivery and recommended annually per ISO/IEC 17025 Clause 6.5.

Applications

This tester serves critical functions across product development lifecycles: early-stage design validation of enclosure stiffness and latch retention; comparative analysis of material substitutions (e.g., PC vs. PC/ABS blends); supplier qualification for connector mating durability; and regulatory submission support for CCC, CE, and PSE-marked consumer electronics. It is routinely deployed in third-party testing laboratories accredited to CNAS (China) and UKAS (UK), as well as internal reliability engineering groups maintaining MIL-STD-810G or IPC-9592B-aligned test plans.

FAQ

What is the maximum allowable specimen weight per drum?

1.5 kg per drum—exceeding this limit may compromise rotational balance and impact energy consistency.

Can the drum rotation speed be adjusted beyond the standard 5 rpm?

Yes—optional VFD integration enables continuous speed regulation between 5 and 15 rpm, subject to mechanical resonance analysis per ASTM D4728 Annex A1.

Is calibration documentation included with shipment?

Yes—a factory calibration report covering drop height accuracy (±1 mm tolerance) and rotational speed verification (±0.2 rpm) is supplied with each unit.

Does the system meet CE marking requirements for machinery safety?

The base model conforms to EN 60204-1 (electrical safety) and EN ISO 13857 (safe distances), though full CE declaration requires site-specific risk assessment by the end user’s safety officer.

What maintenance intervals are recommended?

Lubrication of gearmotor bearings every 500 operational hours; inspection of drum weld integrity and impact base wear every 2,000 cycles; replacement of polycarbonate lid every 3 years or after visible microcracking.
