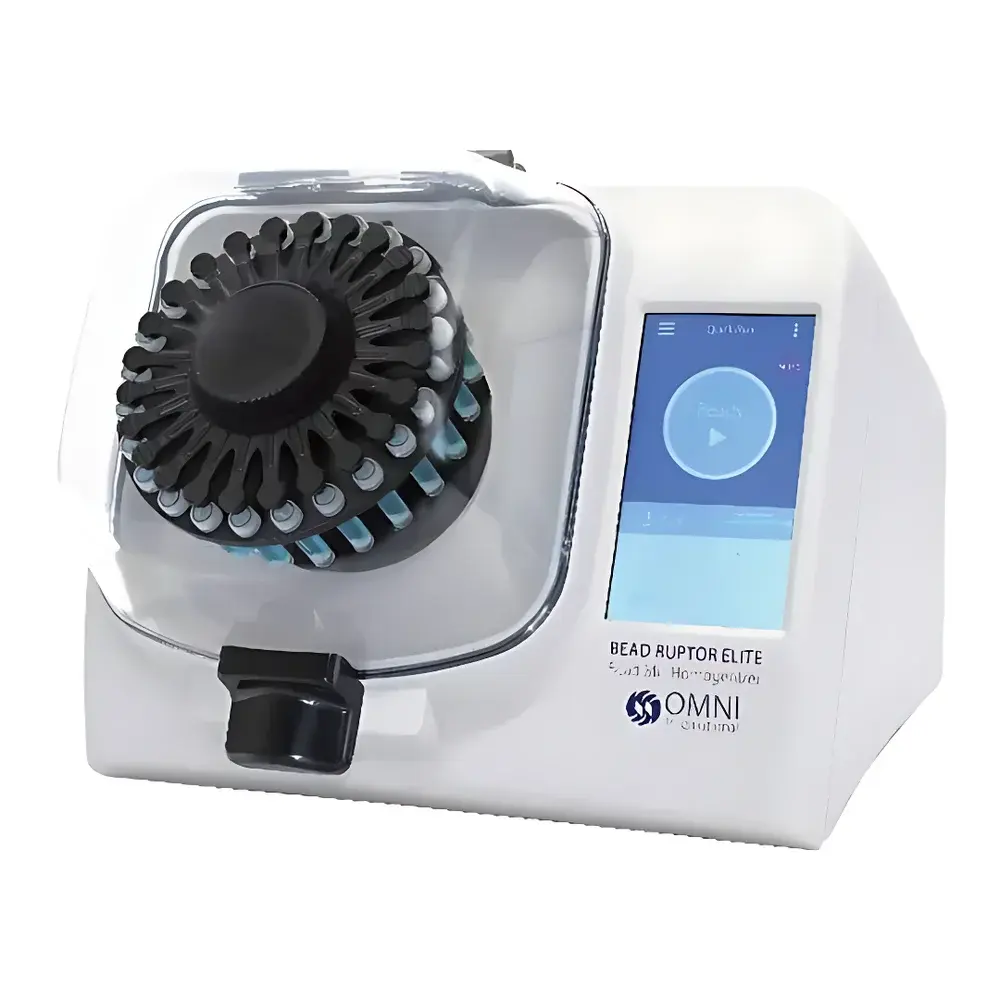

Revvity OMNI Bead Ruptor Elite High-Performance Biological Homogenizer
| Brand | Revvity |
|---|---|
| Origin | USA |
| Manufacturer | Revvity, Inc. |
| Product Type | Imported Instrument |
| Model | OMNI Bead Ruptor Elite |
| Pricing | Available Upon Request |
Overview
The Revvity OMNI Bead Ruptor Elite is a high-throughput, high-energy benchtop homogenizer engineered for rapid and reproducible mechanical lysis of diverse biological matrices. It operates on the principle of three-dimensional orbital shaking combined with high-frequency vertical impact—generating intense kinetic energy transfer from inert beads (e.g., stainless steel, ceramic, or zirconia) to sample material contained in sealed tubes. This bead-beating mechanism enables efficient disruption of cellular and subcellular structures—including tough Gram-positive bacteria, fungal cell walls, plant tissues, animal organs, bone, hair, fecal pellets, and environmental soil samples—without significant thermal degradation or nucleic acid shearing when operated within validated time/temperature protocols. Designed for compatibility with standard microcentrifuge tubes (0.5–50 mL), the system delivers consistent lysis efficiency across heterogeneous sample types while minimizing cross-contamination risk through fully enclosed tube holders and programmable run parameters.
Key Features
- Three-axis high-frequency oscillation (up to 4,000 rpm) with adjustable amplitude and duration (1 sec–99 min, 1 sec increments)
- Simultaneous processing of up to 24 samples in standardized tube formats—including 0.5 mL, 1.5 mL, 2.0 mL, 7 mL, 15 mL, and 50 mL tubes—via interchangeable adapters
- Programmable multi-step protocols with real-time monitoring of speed, time, and cycle count; memory for ≥10 user-defined methods
- Integrated cooling plate option (−10°C to +40°C) to maintain sample integrity during extended lysis cycles
- Robust aluminum alloy chassis with vibration-dampening feet and UL/CE-compliant safety interlock system
- Touchscreen interface with password-protected method editing and audit trail logging capability
Sample Compatibility & Compliance
The OMNI Bead Ruptor Elite accommodates a broad spectrum of challenging biological specimens: mammalian tissues (liver, muscle, brain), plant leaves and seeds, microbial cultures (bacteria, yeast, spores), forensic samples (hair shafts, bone fragments), and complex environmental matrices (soil, compost, sludge). Its mechanical lysis performance has been validated against ISO 13843:2020 (nucleic acid extraction from environmental samples) and ASTM D7690-21 (standard guide for mechanical disruption of microbial cells). When used with RNase-free consumables and appropriate lysis buffers, it supports RNA integrity numbers (RIN) >8.0 for downstream qRT-PCR and RNA-seq workflows. The instrument complies with IEC 61010-1:2012 for laboratory equipment safety and meets GLP/GMP documentation requirements when paired with Revvity’s optional 21 CFR Part 11-compliant software module.
Software & Data Management
The homogenizer supports optional integration with Revvity’s OMNI Connect™ software suite—a Windows-based platform enabling remote method deployment, real-time instrument status tracking, electronic batch record generation, and automated PDF report export. All run logs—including timestamp, operator ID, tube position map, speed profile, and temperature history—are stored locally and exportable as CSV or XML files for LIMS integration. Audit trails are immutable and timestamped per FDA 21 CFR Part 11 guidelines, supporting regulatory submissions in clinical diagnostics, biopharmaceutical QC, and contract research organizations.
Applications
- High-yield genomic DNA and total RNA isolation from fibrous or lipid-rich tissues
- Proteome extraction for mass spectrometry analysis, including membrane protein solubilization
- Metabolite recovery from soil microbiomes and gut microbiota studies
- Preparation of lysates for ELISA, Western blotting, and enzymatic activity assays
- Cell disruption in vaccine development and recombinant protein expression workflows
- Routine QC testing of raw materials in nutraceutical and agricultural biotech labs
FAQ
What tube sizes are supported without adapter modification?
Standard configurations support 0.5 mL, 1.5 mL, and 2.0 mL microcentrifuge tubes out-of-the-box; all other formats (7 mL, 15 mL, 50 mL) require dedicated adapters sold separately.
Can the Bead Ruptor Elite be used for cryogenic grinding?
Yes—when equipped with the optional cryo-cooling plate and pre-chilled tubes/beads, it enables effective low-temperature lysis to preserve labile metabolites and reduce protease activity.
Is validation support available for regulated environments?
Revvity provides IQ/OQ documentation templates and application notes aligned with USP , ISO/IEC 17025, and EU Annex 11 requirements upon request.
How does bead selection affect lysis efficiency?
Bead diameter, density, and material determine shear force distribution: smaller beads (0.1 mm) enhance subcellular organelle disruption, while larger beads (2.0–4.0 mm) improve bulk tissue homogenization—selection must be empirically optimized per sample type.
Does the system require routine calibration?
No mechanical recalibration is needed; however, periodic verification of rotational speed accuracy using an external tachometer and temperature uniformity across the cooling plate is recommended per internal SOPs.
