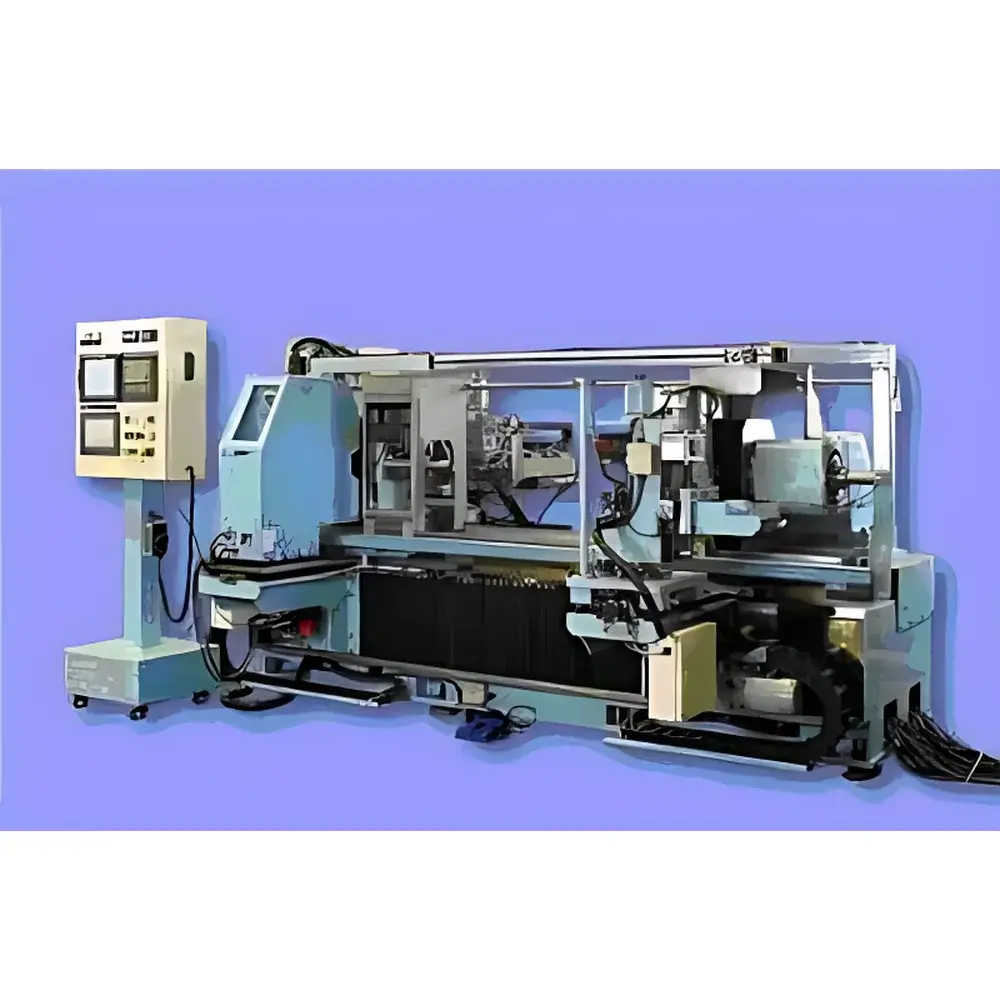

Rigaku GOX Series Fully Automated Sapphire X-ray Single-Crystal Orienting System
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GOX Series |
| Pricing | Upon Request |
Overview
The Rigaku GOX Series Fully Automated Sapphire X-ray Single-Crystal Orienting System is an industrial-grade, high-precision X-ray orienting platform engineered specifically for the sapphire crystal manufacturing and processing industry. It operates on the fundamental principle of Bragg diffraction from single-crystal lattices, utilizing monochromatic Cu-Kα (or Mo-Kα) X-ray radiation to determine crystallographic orientation with sub-arcminute angular resolution. Unlike conventional benchtop diffractometers, the GOX system integrates real-time angular feedback control, motorized goniometry, and automated sample alignment logic to deliver rapid, repeatable identification of the optical flat (OF) reference plane—critical for subsequent wafer slicing, polishing, and epitaxial growth preparation. Designed for in-line deployment adjacent to grinding and rolling equipment, it eliminates manual transfer and subjective visual alignment, reducing human error and improving yield consistency across high-volume sapphire substrate production lines.
Key Features
- Fully automated crystal orientation workflow—from raw sapphire boule loading to OF plane determination—executed without operator intervention
- Integrated robotic arm interface compatible with standard sapphire rod handling systems (diameter range: 50–200 mm; length up to 400 mm)
- Direct mounting capability onto grinding/rolling machines via vibration-damped mechanical coupling, enabling zero-transfer alignment between machining and orientation steps
- Motorized θ–2θ goniometer with high-resolution encoders (≤ 0.001° step resolution) and closed-loop positional feedback
- Dedicated sapphire crystallography library embedded in firmware, pre-calibrated for c-plane, a-plane, r-plane, and m-plane identification per ASTM F3278–21
- Real-time diffraction peak tracking using pulse-height discrimination and digital pulse processing to suppress background noise and enhance signal-to-noise ratio
- Compliance-ready architecture supporting audit trails, user access levels, and electronic signature protocols aligned with FDA 21 CFR Part 11 requirements
Sample Compatibility & Compliance
The GOX Series accommodates uncut sapphire rods and pre-ground blanks with diameters from 50 mm to 200 mm and lengths up to 400 mm. Samples may be mounted in air or inert atmosphere (N₂ purge optional) to minimize surface oxidation during measurement. The system supports both as-grown and annealed sapphire crystals and is validated for use with Czochralski- and Kyropoulos-grown material. All hardware and software modules comply with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards. Mechanical design conforms to ISO 14120:2015 for safeguarding of automated machinery. Data integrity features—including immutable measurement logs, timestamped operator actions, and configurable retention policies—support GLP/GMP environments and third-party regulatory audits.
Software & Data Management
Rigaku’s GOX Control Suite is a Windows-based application built on .NET Framework 4.8, featuring a deterministic real-time acquisition engine and modular configuration tools. It provides intuitive graphical representation of diffraction patterns, lattice vector overlays, and angular deviation heatmaps relative to ideal orientation targets. Measurement reports are exportable in PDF/A-1b, CSV, and XML formats, with metadata including instrument ID, calibration certificate traceability (NIST-traceable X-ray source and detector calibration), environmental sensor readings (temperature, humidity), and full audit trail records. The software supports integration with MES/SCADA systems via OPC UA (IEC 62541) and offers RESTful API endpoints for automated job dispatching and result ingestion into centralized LIMS platforms.
Applications
- Pre-slicing orientation verification of sapphire boules prior to wafering in LED and power electronics substrate fabrication
- In-process OF plane confirmation after cylindrical grinding to ensure ±0.1° tolerance compliance per JEDEC JESD22-A108
- Batch qualification of sapphire substrates used in GaN-on-sapphire epitaxy, where misorientation directly impacts dislocation density and device reliability
- Root-cause analysis of wafer bow and warp by correlating orientation deviation maps with thermal stress profiles
- Supporting ISO/IEC 17025 accredited laboratories performing crystallographic certification services for sapphire material suppliers
FAQ
Does the GOX system require external cooling or high-power infrastructure?
No. The GOX Series utilizes an air-cooled microfocus X-ray tube (≤ 2.2 kW input) and low-power servo drives, operating on standard 200–240 V AC, 50/60 Hz, single-phase supply with dedicated 30 A circuit.
Can the system orient non-sapphire single crystals?
While optimized for α-Al₂O₃ (sapphire), the GOX platform supports user-defined lattice parameters and can be configured for other hexagonal or rhombohedral crystals (e.g., SiC, ZnO) via custom calibration routines—subject to additional validation per ISO 12789-2.
Is remote diagnostics and firmware update supported?
Yes. Rigaku Remote Assist (RRA) enables secure TLS 1.3–encrypted remote session initiation with customer consent, allowing authorized engineers to perform health checks, log analysis, and over-the-air updates compliant with IEC 62443-3-3 SL2 cybersecurity requirements.
