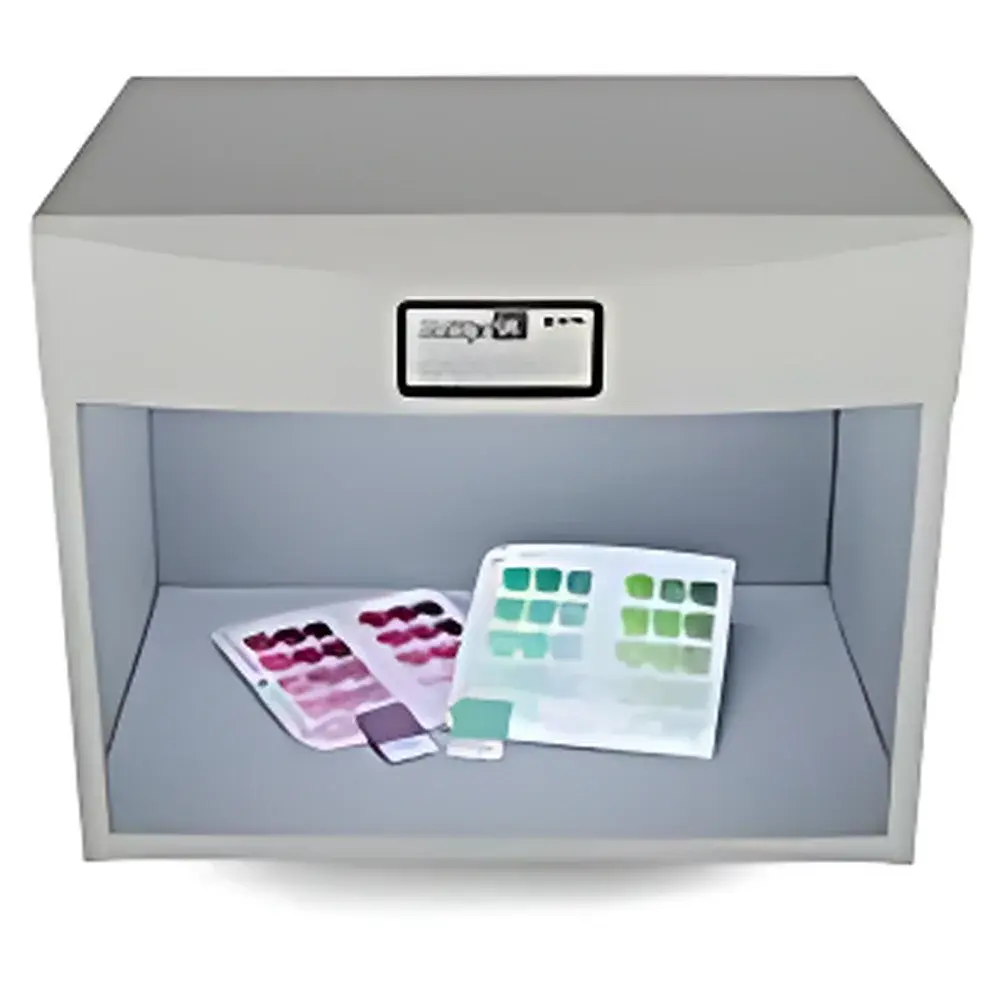

X-Rite Judge QC Standard Light Booth

Overview

The X-Rite Judge QC Standard Light Booth is an entry-level, precision-engineered color evaluation system designed for consistent visual assessment under controlled, standardized illumination conditions. It operates on the fundamental principle of metamerism control—enabling observers to detect color mismatches that arise due to spectral differences between samples when viewed under varying illuminants. Engineered for reliability and repeatability in industrial environments, the Judge QC supports critical decision-making in color-critical workflows by replicating globally recognized standard illuminants defined in ISO 3664:2009 and ASTM D1729. Its robust aluminum housing, matte-black interior finish (reflectance <2%), and precisely aligned lamp geometry minimize stray light and ensure uniform illumination across the viewing area—essential for reducing observer variability and supporting inter-laboratory comparability.

Key Features

• Five pre-calibrated light sources: D65 (daylight simulator, 6500 K), TL84 (cool white fluorescent, used in retail lighting), CWF (cool white fluorescent, common in North American offices), F/A (incandescent tungsten, simulating domestic lighting), and UV (365 nm peak) for detecting optical brightening agents (OBAs).
• Simultaneous dual-illuminant comparison mode for immediate metamerism detection—samples can be viewed side-by-side under two selected light sources with synchronized switching.
• Integrated timer and automatic lamp aging compensation algorithm to maintain photometric stability over time; lamp usage hours tracked per channel for predictive maintenance.
• Ergonomic design with front-access lamp replacement, tilt-adjustable viewing panel (0°–30°), and optional gray surround mask to eliminate peripheral color influence.
• No external software required for basic operation; all controls are tactile and intuitive via front-panel push buttons with LED status indicators.

Sample Compatibility & Compliance

The Judge QC accommodates flat or low-relief samples up to 508 mm × 356 mm in dimension and ≤100 mm in thickness. Its viewing chamber meets the geometric and spectral requirements specified in ISO 3664:2009 for graphic technology and photography, as well as ASTM D1729 for industrial color evaluation. The booth supports compliance with quality management systems including ISO 9001 and testing laboratory accreditation standards (ISO/IEC 17025), particularly where visual color assessment forms part of documented inspection criteria. For regulated industries such as automotive OEM supply chains or pharmaceutical packaging, the Judge QC serves as a foundational tool for verifying conformance to internal color tolerances prior to instrumental measurement or release.

Software & Data Management

While the Judge QC operates independently as a standalone visual assessment station, it integrates seamlessly into broader color quality ecosystems via X-Rite’s Color iMatch and ColorCert platforms. When paired with compatible spectrophotometers (e.g., Ci7800 series), assessment records—including illuminant selection, sample ID, observer notes, and timestamped pass/fail decisions—can be logged and exported in CSV or XML format. Audit trails support GLP/GMP-aligned documentation requirements, and user access levels may be configured to meet FDA 21 CFR Part 11 electronic record controls when deployed within validated workflows. Firmware updates are delivered via USB interface and include calibration verification reports traceable to NIST-traceable reference standards.

Applications

The Judge QC is routinely deployed across textile dye houses for shade matching under retail lighting (TL84), in automotive paint shops to validate body panel color consistency under daylight (D65) and showroom fluorescents (CWF), and in packaging print facilities to verify substrate-white neutrality using UV illumination. In plastics manufacturing, it enables rapid OBA assessment across injection-molded components to prevent batch-to-batch whiteness drift. Coatings laboratories use it for gloss-independent hue evaluation, while R&D teams in consumer electronics rely on its F/A illuminant to simulate end-user home lighting conditions during UI element validation. Its portability and low power consumption also make it suitable for on-site supplier audits and cross-facility color alignment initiatives.

FAQ

What is the recommended recalibration interval for the Judge QC?
X-Rite recommends annual photometric verification using a calibrated spectroradiometer; lamp replacement is advised at 2000 hours for D65/TL84/CWF and 1500 hours for UV to maintain spectral fidelity.
Can the Judge QC be used for color difference quantification?
No—it is a qualitative visual assessment tool only. Quantitative ΔE calculation requires a spectrophotometer; however, the Judge QC provides the essential precondition: standardized viewing geometry and illumination for reliable human judgment.
Does the Judge QC support custom illuminants beyond the five factory-installed options?
Not natively. Custom spectral power distributions require higher-tier models such as the SpectraLight QC or VeriVide CAC 600, which offer programmable LED arrays and spectral tuning capabilities.
How does the Judge QC address observer metamerism?
By enforcing standardized adaptation conditions (2-minute dark adaptation, Munsell N8 neutral surround), fixed viewing distance (50 cm), and controlled ambient light (<20 lux), it minimizes physiological variables that contribute to observer-induced metamerism.
Is UV irradiance output compliant with IEC 62471 for photobiological safety?
Yes—the UV lamp operates at Class 1 (exempt) risk level per IEC 62471:2006; exposure duration is limited by the integrated 30-second auto-shutoff function when UV mode is activated.
