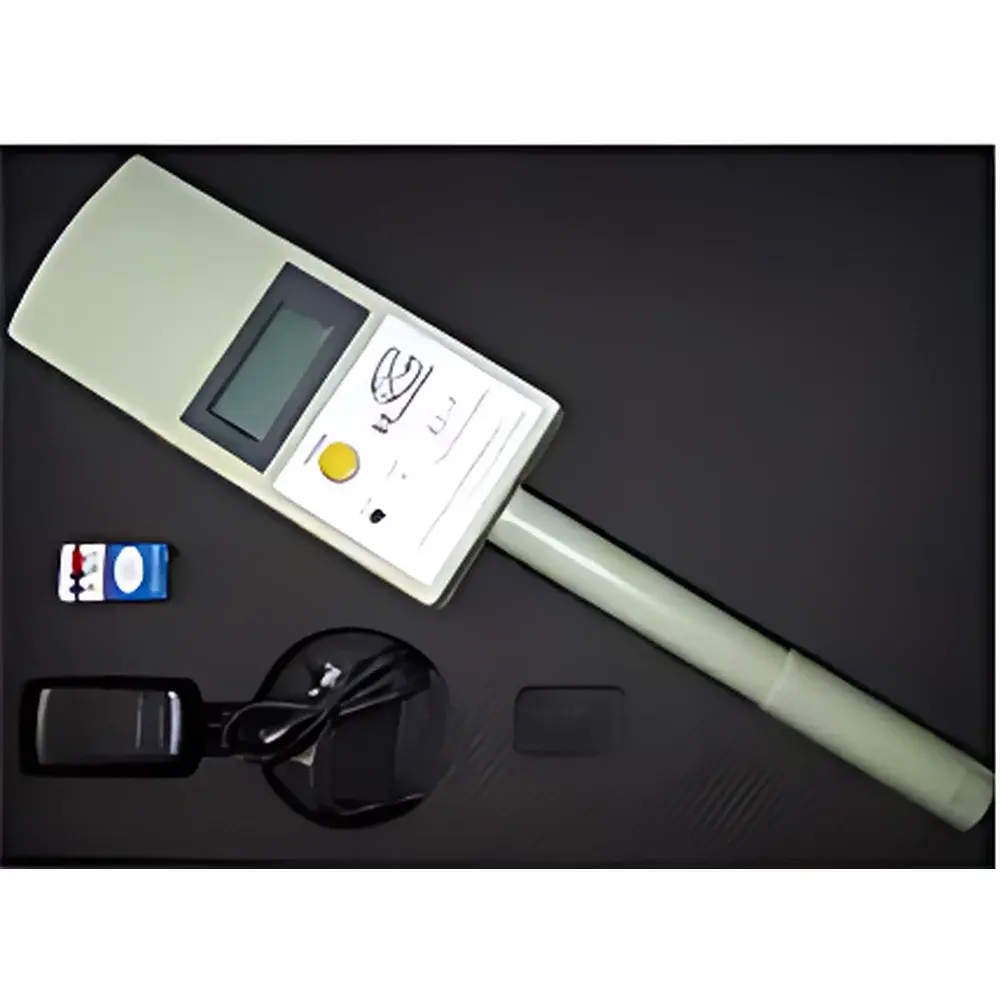

RJ-5 Power Frequency Electric Field (Near-Field) Strength Meter

Overview

The RJ-5 Power Frequency Electric Field (Near-Field) Strength Meter is a portable, calibrated instrumentation system engineered for quantitative assessment of low-frequency electric fields in the 30 Hz to 2000 Hz band—encompassing the fundamental 50/60 Hz power frequency and its harmonics up to the 33rd order. Designed specifically for near-field electromagnetic environment characterization, it operates on the principle of electrostatic induction using a high-impedance, isotropic sensor array with active guarding and temperature-compensated signal conditioning. The instrument delivers traceable field strength measurements in volts per meter (V/m), supporting compliance verification against national and international exposure guidelines—including ICNIRP 2010, IEEE C95.1-2019, and China’s GB 8702–2014 “Regulations for Electromagnetic Environment Control.” Its primary deployment contexts include occupational safety evaluations in substations, traction power systems (e.g., metro and electric rail), industrial induction heating facilities, medical MRI and diathermy zones, and office environments with dense electronic infrastructure.

Key Features

• True RMS detection architecture optimized for non-sinusoidal waveforms common in modern power electronics and variable-frequency drives
• Isotropic three-axis electric field probe with integrated guard ring design to minimize perturbation and spatial averaging error
• Dual-power operation: field-replaceable 8.4 V Li-ion rechargeable pack (with charge status indicator) or standard 9 V alkaline (6F22) for extended mission readiness
• Real-time analog output (0–2 V DC proportional to field strength) for integration with data loggers or SCADA systems
• Backlit LCD display with auto-ranging and hold function; measurement update rate ≥ 2 readings/sec
• Ruggedized ABS housing rated IP54 for dust and splash resistance; ergonomic grip and belt-clip design for hands-free survey use
• Calibration traceable to national metrology institutes (NIM, China); certificate provided with each unit

Sample Compatibility & Compliance

The RJ-5 is not sample-based but measures ambient electric field vector magnitude in air. It is validated for use in representative occupational and public environments where conductive or semi-conductive objects may be present—provided minimum probe-to-object distance exceeds 0.5 m to maintain near-field validity. The instrument complies with IEC 61786-1:2013 (Measurement of low-frequency electric and magnetic fields) and supports audit-ready documentation for GLP-aligned workplace monitoring programs. While not certified for intrinsic safety, its low-power design and non-intrusive operation make it suitable for use in Class I, Division 2 hazardous locations when deployed per site-specific risk assessment protocols. All firmware and calibration data are stored internally with write-protected memory to ensure integrity during regulatory inspections.

Software & Data Management

The RJ-5 includes optional PC connectivity via USB-C interface (cable included), enabling configuration, real-time streaming, and post-processing through the manufacturer’s Windows-compatible desktop application. This software supports time-stamped logging (≥ 10,000 records), customizable averaging intervals (1 s to 60 min), statistical reporting (min/max/avg/std dev), and export to CSV, PDF, or XML formats compatible with LIMS and EHS platforms. Audit trail functionality records all parameter changes, calibration events, and user logins—meeting requirements for ISO/IEC 17025 accredited laboratories and FDA 21 CFR Part 11–aligned workflows where electronic records are subject to review.

Applications

• Ongoing exposure assessment for utility linemen, substation operators, and railway maintenance personnel
• Pre-commissioning surveys of new transformer installations, switchgear rooms, and HVDC converter stations
• Periodic evaluation of electromagnetic hygiene in hospitals (especially near linear accelerators and RF ablation suites)
• Verification of shielding effectiveness in control rooms, server closets, and industrial control panels
• Baseline mapping for environmental impact assessments adjacent to transmission corridors and urban distribution networks
• Research-grade field validation for computational EM modeling (e.g., FDTD or MoM simulations)

FAQ

Does the RJ-5 measure magnetic fields as well as electric fields?
No. The RJ-5 is dedicated exclusively to electric field measurement. For simultaneous E/H field analysis, refer to the companion RJ-5H dual-probe system (sold separately).

Can it be used outdoors during rain or high humidity?
The IP54 rating permits operation in light rain or damp conditions, but prolonged exposure above 80% RH or direct water contact is not recommended. Condensation inside the probe housing may affect dielectric stability and measurement fidelity.

Is factory recalibration required annually?
Yes. Annual recalibration is recommended per ISO/IEC 17025 Clause 7.7 and manufacturer specifications to maintain stated accuracy. Calibration interval may be adjusted based on usage intensity and internal quality control checks.

What is the minimum measurable field strength at 50 Hz?
The lower limit of detection is 1 V/m at 50 Hz, verified under controlled anechoic chamber conditions with <1 dB noise floor contribution.

Does the device support external GPS tagging for georeferenced surveys?
No. Geotagging requires integration with third-party GNSS receivers via serial or Bluetooth; the RJ-5 does not embed positioning hardware.
