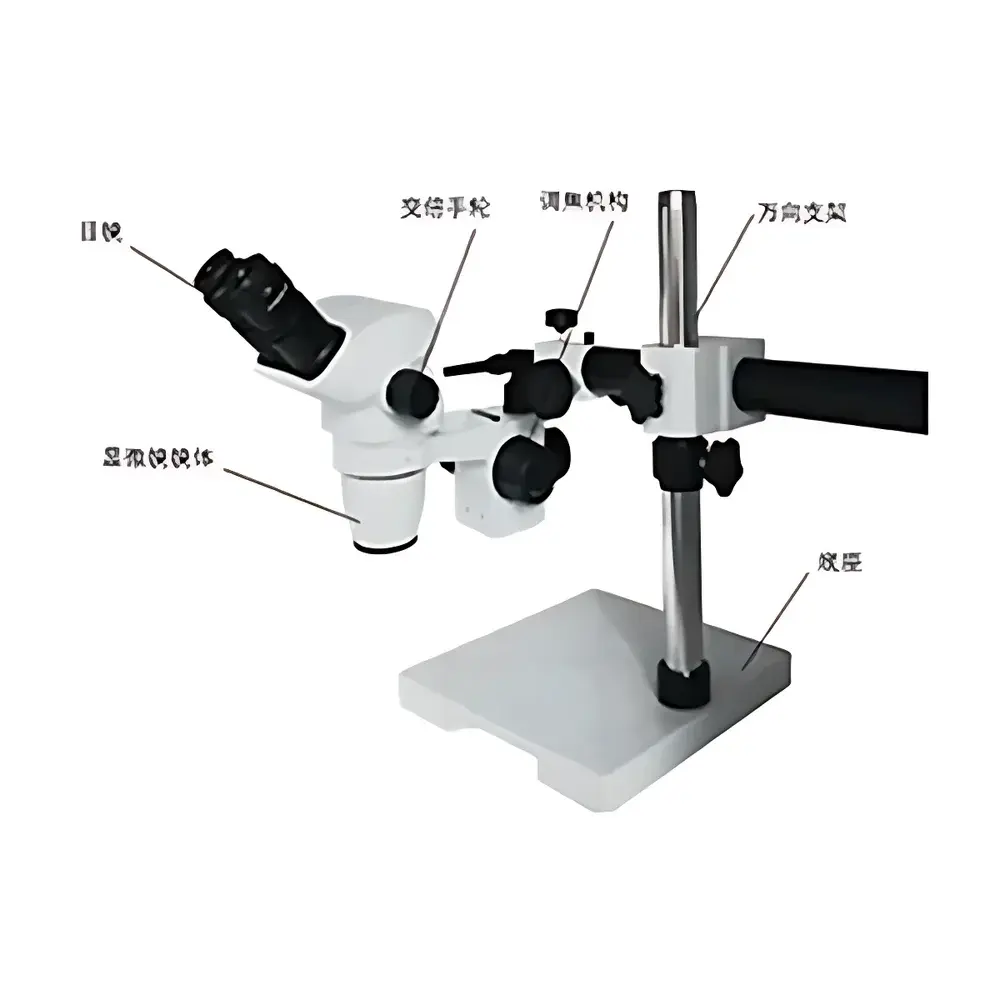

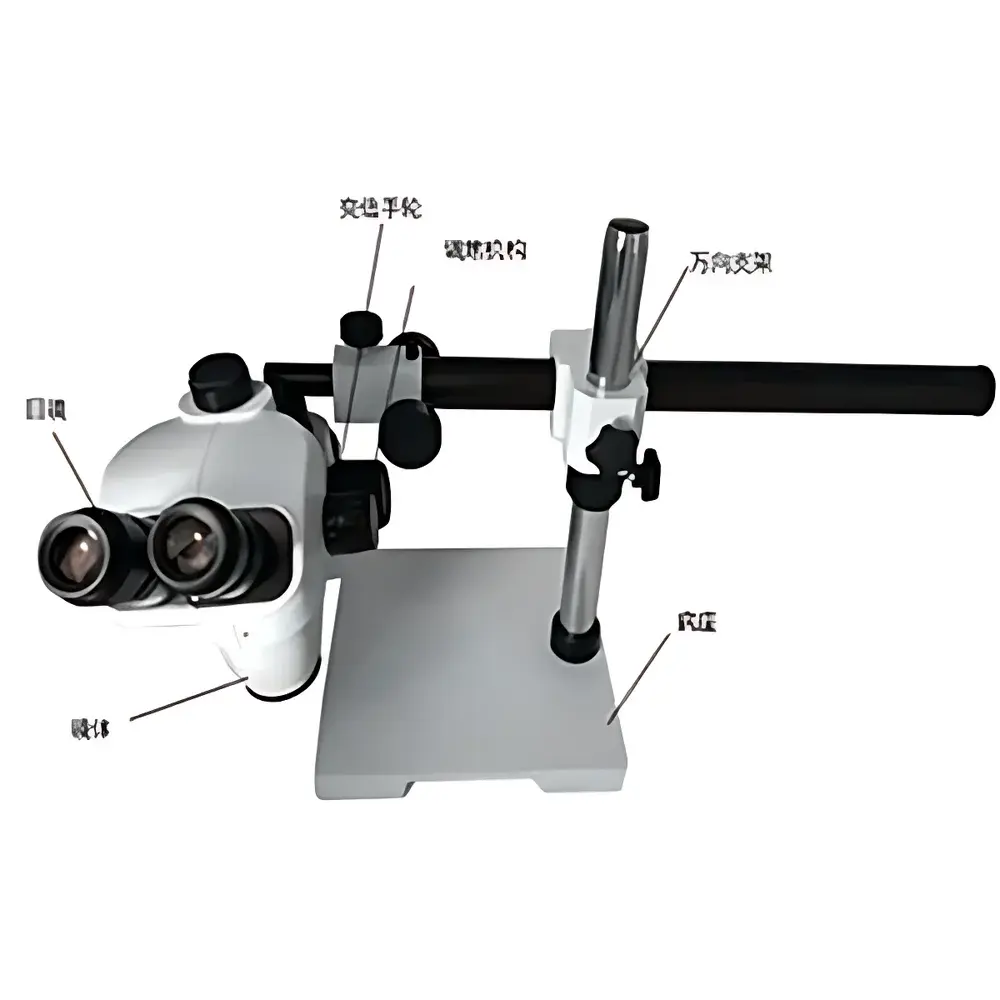

RWD 77001S / 77008S Dual-Head & Trinocular Stereo Microscope
| Brand | RWD |
|---|---|
| Origin | Shenzhen, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) / In-House Producer |
| Regional Classification | Domestic (China-Made) |
| Model | 77001S / 77008S |
| Price | USD Equivalent Available Upon Request |
Overview
The RWD 77001S and 77008S are high-performance stereo microscopes engineered for precision visual inspection, dissection, and documentation in life science, pathology, quality control, and industrial R&D laboratories. Based on the Greenough optical design, these instruments deliver upright, stereoscopic, three-dimensional images with natural depth perception—critical for manual manipulation under observation. The coaxial illumination path and long working distance (up to 170 mm with 0.5× auxiliary lens) enable unobstructed access to specimens during microsurgery, PCB inspection, or botanical sample preparation. Unlike compound microscopes, stereo systems operate at lower magnifications with extended focal depth, making them ideal for real-time spatial assessment of opaque, reflective, or irregularly shaped objects without sectioning.
Key Features
- Wide-field eyepieces: 10× WF (wide-field) plano-eyepieces with 20 mm field number and ±5 diopter adjustable interpupillary compensation.
- Continuous zoom objective: 0.7×–4.5× zoom range (6.5:1 zoom ratio), providing seamless magnification transitions without mechanical repositioning.
- Optical magnification: 7×–45× standard (with 10× eyepieces); expandable to 3.5×–225× via optional auxiliary lenses (0.5×, 2×) and eyepiece upgrades.
- Interpupillary adjustment: 55–77 mm range with 45° inclined binocular head and full 360° rotational capability for ergonomic multi-user setups.
- Extended vertical travel: 450 mm column lift and 500 mm horizontal translation range via heavy-duty universal articulated arm—enabling large-sample coverage and flexible positioning.
- Adjustable focusing mechanism: Dual-speed coaxial focus knobs with tension control for fine and coarse adjustments; calibrated for repeatable Z-axis reproducibility.
- Modular trinocular port (77008S only): C-mount compatible phototube with 50:50 beam splitter, supporting simultaneous visual observation and digital imaging without optical compromise.
Sample Compatibility & Compliance
These microscopes accommodate a broad spectrum of specimen types—including live tissue sections, botanical samples, electronic components, metallurgical surfaces, and forensic evidence—without requiring vacuum or conductive coating. The long working distance (>100 mm standard, >170 mm with 0.5× lens) supports integration with micromanipulators, pipetting systems, or environmental chambers. All optical components meet ISO 10934-1 standards for stereo microscope performance verification. The mechanical structure complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-3 (EMC emissions), ensuring stable operation in regulated laboratory environments. Optional LED ring lights (77026) and fluorescent annular illuminators (77025) conform to IEC 62471 for photobiological safety.
Software & Data Management
The 77008S model integrates seamlessly with third-party imaging platforms via standardized C-mount interfaces. When paired with the RWD 77035 USB camera kit (including proprietary acquisition software), users gain support for time-lapse capture, measurement annotation (length, area, angle), histogram-based contrast optimization, and batch export in TIFF, JPEG, and BMP formats. The software architecture supports audit trail logging per FDA 21 CFR Part 11 requirements when deployed in GLP/GMP-compliant facilities—retaining operator ID, timestamp, exposure settings, and calibration metadata. Optional analog video output (PAL/NTSC) enables compatibility with legacy CCTV recording systems or HDMI capture devices.
Applications
- Biological dissection and embryology: Precise neural tracing, insect morphology studies, and zebrafish embryo manipulation.
- Clinical histopathology: Gross specimen examination prior to embedding and sectioning.
- Electronics manufacturing: Solder joint inspection, component placement verification, and PCB trace continuity assessment.
- Materials science: Fracture surface analysis, coating uniformity evaluation, and particle morphology characterization.
- Educational laboratories: Student-level anatomy labs, entomology collections, and introductory microscopy training modules.
- Forensic analysis: Toolmark comparison, fiber identification, and document authenticity verification.
FAQ
What is the difference between the 77001S and 77008S models?
The 77001S is a dual-head stereo microscope optimized for direct visual observation. The 77008S adds a trinocular phototube with beam-splitting optics, enabling concurrent viewing and digital image capture.
Can I use Nikon or Canon DSLR cameras with the 77008S?
Yes—via dedicated C-mount adapters (77036 for Nikon F-mount, 77037 for Canon EF-mount), which maintain infinity-corrected optical alignment and preserve parfocality across magnification ranges.
Is the universal arm compatible with vibration isolation tables?
The base features M6 threaded mounting holes and a low center of gravity, allowing secure attachment to standard optical breadboards and active/passive damping platforms.
Does the system support calibration traceability?
RWD provides optional NIST-traceable stage micrometers and eyepiece reticles (e.g., 10× crosshair grid, 77012) for routine magnification verification and dimensional metrology validation.
What lighting options are certified for Class II biosafety cabinets?
The 77026 LED ring light operates at <5 V DC and generates negligible heat—meeting UL 61010-1 requirements for use inside laminar flow hoods and BSCs without airflow disruption.
