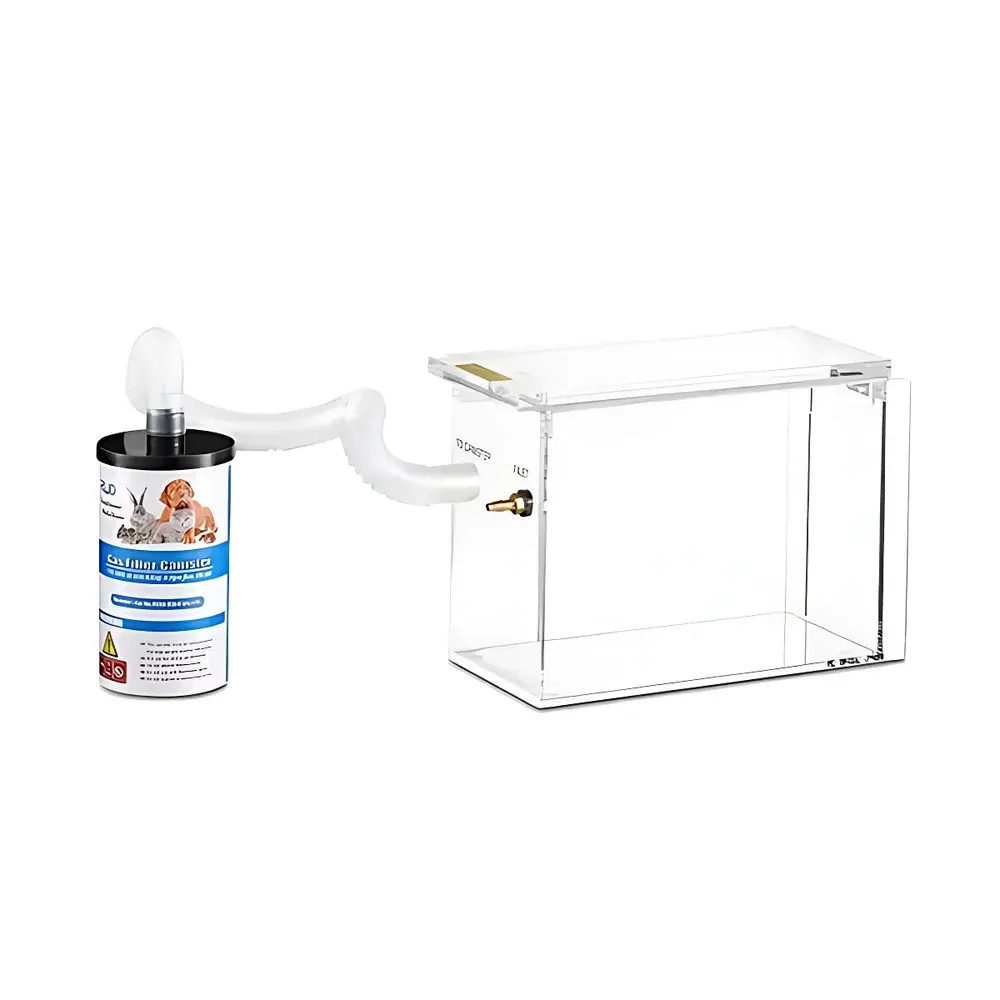

RWD V100 Small Animal Anesthetic Induction Chamber

Overview

The RWD V100 Small Animal Anesthetic Induction Chamber is an engineered solution for rapid, controlled, and ethically compliant inhalational induction of anesthesia in laboratory rodents—primarily mice—using volatile anesthetics such as isoflurane. Designed in accordance with internationally recognized principles of veterinary anesthesia and laboratory animal science, the chamber operates on the principle of gas displacement and laminar flow dynamics: anesthetic vapor is introduced at a higher elevation inlet, allowing denser isoflurane–oxygen mixture to displace ambient air downward and uniformly fill the chamber volume. This configuration ensures consistent anesthetic concentration distribution and minimizes induction time to 2–5 minutes—critical for reducing physiological stress and improving experimental reproducibility. Constructed entirely from medical-grade polymethyl methacrylate (PMMA), the chamber provides optical clarity for real-time behavioral monitoring—including respiration rate, palpebral reflex, toe pinch response, and loss of righting reflex—without requiring physical disturbance of the subject.

Key Features

• Optically transparent PMMA construction enables continuous visual assessment of anesthesia depth and animal welfare indicators without opening the chamber.
• Top-hinged, reinforced lid with integrated compression seal (EPDM rubber gasket) ensures >99.8% vapor containment efficiency under standard flow rates (1–2 L/min), minimizing environmental exposure and operator inhalation risk.
• Asymmetric port layout: elevated inlet (1/4″ BSP female) and lower-positioned outlet maintain optimal gas stratification and prevent short-circuiting of anesthetic flow.
• Integrated anti-drop stop mechanism prevents lid over-rotation and mechanical damage during repeated use.
• Modular compatibility with standard anesthesia delivery systems—including RWD’s own R510 series vaporizer-integrated workstations—and third-party isoflurane vaporizers meeting ISO 8535-1 compliance.
• Autoclavable components (lid, base, gasket) support GLP-aligned decontamination protocols; non-autoclavable tubing and filter cartridges are replaceable per IACUC-recommended maintenance intervals.

Sample Compatibility & Compliance

The V100 chamber is validated for use with mice weighing 18–35 g, accommodating up to three adult C57BL/6 or BALB/c subjects simultaneously under recommended flow conditions. Its dimensions (15 × 10 × 10 cm internal) comply with NIH Guide for the Care and Use of Laboratory Animals (2011) minimum volume-to-body-weight ratios for induction chambers. All materials meet USP Class VI biocompatibility requirements and are free of leachable plasticizers. The system supports adherence to AAALAC International accreditation standards, EU Directive 2010/63/EU Annex VIII (anesthesia equipment specifications), and ISO 13485:2016 for medical device manufacturing quality systems. When used with activated carbon filtration (R510-31S cartridge), exhaust effluent meets OSHA permissible exposure limits (PEL) for isoflurane (2 ppm TWA).

Software & Data Management

While the V100 is a passive hardware component, it integrates seamlessly into digitally monitored anesthesia workflows. When paired with RWD’s R510-31S smart vaporizer station (optional), users gain access to real-time isoflurane concentration logging, flow-rate calibration history, and audit-trail-enabled session records compliant with FDA 21 CFR Part 11 requirements. Data export formats include CSV and XML for integration with ELN platforms (e.g., LabArchives, Benchling) and institutional IACUC reporting modules. Firmware updates and calibration certificates are traceable via unique serial-number-based cloud registry.

Applications

• Routine surgical preparation in neuroscience, oncology, and immunology rodent models.
• Standardized induction for longitudinal imaging studies (MRI, PET, ultrasound) where stable anesthetic onset is essential for baseline consistency.
• Training platform for veterinary students and research staff in humane anesthetic technique per FELASA guidelines.
• Preclinical toxicology studies requiring precise timing of drug administration relative to anesthesia plateau phase.
• Behavioral phenotyping pipelines where induction latency serves as a secondary endpoint in genetic or pharmacological intervention studies.

FAQ

What is the maximum recommended gas flow rate for the V100 chamber?

A flow rate of 1.5–2.0 L/min oxygen/isoflurane mixture is optimal; exceeding 2.5 L/min may cause turbulent flow and reduce induction efficiency.
Can the V100 be used with sevoflurane or desflurane?

Yes—though isoflurane remains the primary validation agent, the chamber’s material compatibility and sealing integrity support all common halogenated inhalants per ASTM D543-20 testing protocols.
Is the R510-31S filter cartridge included with every V100 unit?

Yes—each V100 shipment includes one pre-installed R510-31S activated carbon filter rated for ≥4 hours of continuous use at 2 L/min flow; replacement cartridges are available under part number R510-31S-R.
How often should the PMMA chamber be cleaned between uses?

Wipe-down with 70% isopropyl alcohol is required after each use; full immersion sterilization (autoclave at 121°C, 15 psi, 20 min) is permitted weekly or after infectious model procedures.
Does the V100 meet CE marking requirements for laboratory equipment?

The V100 itself falls outside CE medical device classification (Class IIa) as a non-active accessory; however, when assembled with RWD’s CE-marked R510 series vaporizer, the complete system complies with MDR 2017/745 Annex I essential requirements.
