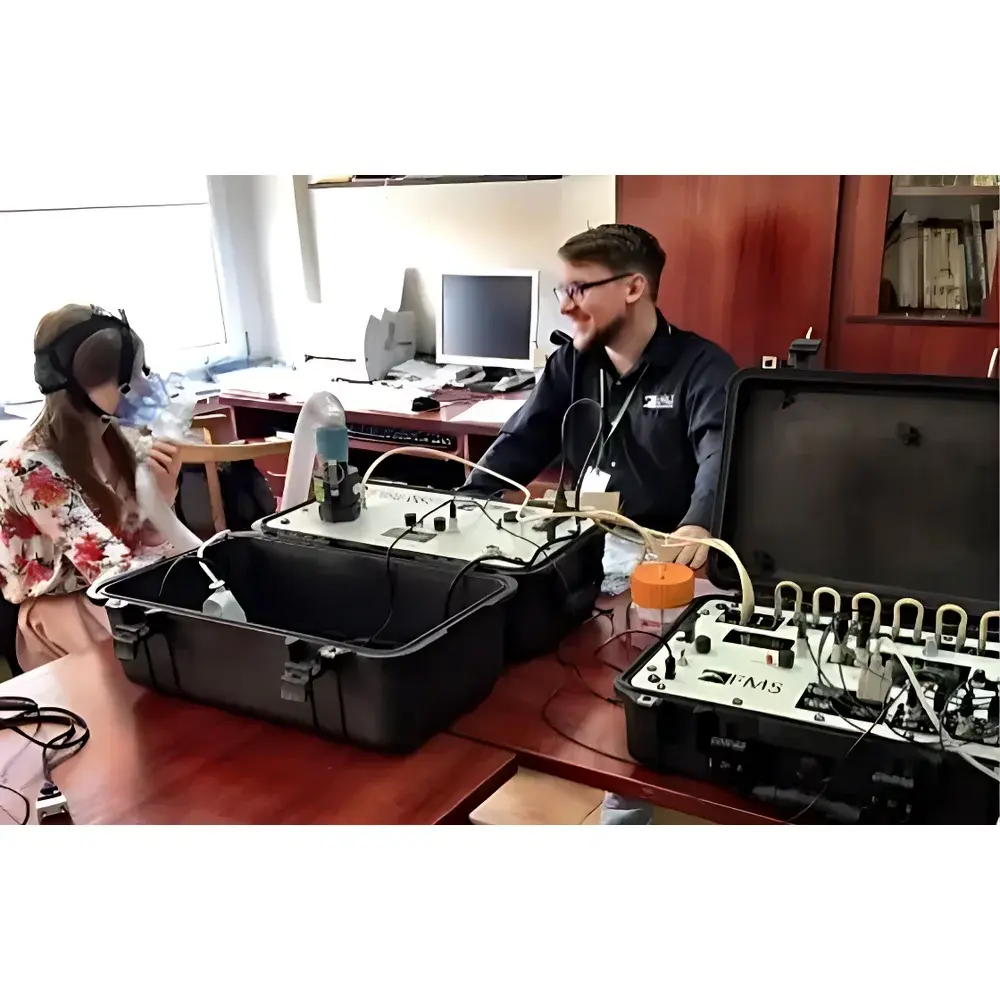

Sable FMS Portable Human Energy Metabolism Measurement System

Overview

The Sable FMS Portable Human Energy Metabolism Measurement System is a field-deployable, research-grade indirect calorimetry platform engineered for high-fidelity quantification of whole-body energy expenditure, substrate oxidation (carbohydrate vs. fat), and respiratory gas exchange kinetics in humans and small mammals. It operates on the gold-standard principle of indirect calorimetry—measuring volumetric oxygen consumption (VO₂) and carbon dioxide production (VCO₂) to calculate resting metabolic rate (RMR), total daily energy expenditure (TDEE), and respiratory exchange ratio (RER)—with simultaneous correction for water vapor pressure, barometric pressure, and ambient temperature. Its modular architecture supports both ambulatory (mask/helmet-based) and chamber-based configurations, enabling rigorous physiological assessment across diverse environments: clinical laboratories, field studies, transport vehicles (e.g., rail or automotive cabins), and controlled ecological settings. The system complies with ASTM E2537-21 and ISO 8596:2022 guidelines for metabolic measurement instrumentation, and its data acquisition framework meets GLP-aligned traceability requirements for longitudinal human physiology trials.

Key Features

• Integrated dual-channel gas analysis module: electrochemical O₂ sensor (fuel cell, 2-year typical service life, field-replaceable), non-dispersive dual-wavelength infrared CO₂ analyzer, and platinum-electrode capacitive H₂O vapor sensor
• Real-time 10.1-inch capacitive touchscreen interface displaying synchronized time-series data for O₂ (%), CO₂ (%), H₂O (kPa or %RH), barometric pressure (kPa), ambient/air temperature (°C), relative humidity (%), analog input signals, SD card storage status, sampling progress, and timestamped acquisition logs
• 8-channel bipolar analog input (±10 V, 16-bit resolution) and 4-channel thermistor/RTD temperature input (BNC connectors, -5–60°C range, ±0.2°C accuracy)
• Onboard SD card storage (up to 32 GB, FAT32 formatted), supporting user-defined sampling intervals from 0.5 seconds to 1 hour; no external PC required for acquisition
• Gas response time <1 second (10–90% step change), enabling detection of breath-by-breath dynamics during transient exercise or stress protocols
• Microelectronic thermal mass flow control (10–1500 mL/min range), featuring closed-loop feedback between integrated hot-wire flowmeter and precision stepper-motor valve; flow accuracy ±2% of reading, resolution 0.1 mL/min (≤99.9 mL/min)
• Portable form factor (35 × 30 × 15 cm, 4 kg), 12–15 VDC operation with optional Li-ion battery pack for >8-hour unattended field deployment
• Optional wearable activity monitor: triaxial accelerometer (±15 g, ±0.15 g accuracy), skin temperature (−40–125°C, ±0.2°C), and skin humidity (0–100% RH, ±1.8% accuracy), with OLED display and Bluetooth 5.0 wireless telemetry
• Expandable architecture: supports optional infrared thermography module (uncooled microbolometer, 320 × 240 px, ±2°C accuracy) for spatial mapping of cutaneous heat flux and environmental thermal gradient analysis

Sample Compatibility & Compliance

The FMS system accommodates human subjects across age groups (adults, adolescents, and cooperative children ≥8 years) using customizable face masks or helmet interfaces—available in mobile (ambulatory) and stationary (supine/seated) variants. For comparative translational studies, optional animal metabolic chambers (rodent- to primate-scale) integrate seamlessly via SableBus protocol. All gas sensors are calibrated per NIST-traceable standards prior to shipment, and onboard baseline compensation routines support drift correction under stable thermal conditions (<0.02% O₂/hr, <0.001% CO₂/hr, <0.01% RH/hr). Data output conforms to HL7 v2.5.1 and IEEE 11073-10207 standards for interoperability with hospital EMR systems. The system’s audit trail functionality—including operator ID, calibration timestamps, parameter changes, and raw binary logging—supports FDA 21 CFR Part 11 compliance when deployed in regulated clinical trial environments.

Software & Data Management

Sable’s proprietary Windows-based software (v5.3+) provides real-time visualization, post-hoc signal filtering (Butterworth 4th-order low-pass), and automated calculation of VO₂, VCO₂, VE, RER, and energy equivalents (kcal/min) using Weir equation coefficients. Raw data exports in CSV, HDF5, and MATLAB .mat formats preserve full metadata (sensor IDs, firmware versions, calibration dates). Batch processing tools enable cohort-level normalization against body composition (via optional DEXA or BIA integration) and environmental covariates (ambient T, RH, altitude). All software modules undergo annual validation per ISO/IEC 17025:2017 Annex A.2 for computational integrity in accredited testing laboratories.

Applications

• Clinical metabolism phenotyping: obesity subtyping, prediabetes progression monitoring, and post-bariatric surgery energy adaptation studies
• Exercise physiology: substrate utilization shifts during incremental cycling, HIIT recovery kinetics, and altitude acclimatization protocols
• Environmental physiology: thermal stress responses in HVAC-controlled transit environments, hypobaric cabin simulations, and extreme climate field deployments
• Translational neuroscience: coupling of metabolic demand with fNIRS/fMRI neuroactivation maps during cognitive load tasks
• Pharmacometabolomics: quantifying drug-induced changes in basal metabolic rate and macronutrient partitioning (e.g., metformin, GLP-1 agonists)
• Gerontology: longitudinal tracking of age-related declines in mitochondrial efficiency and adaptive thermogenesis

FAQ

What regulatory standards does the FMS system meet for clinical use?
The FMS complies with ISO 8596:2022 (indirect calorimetry performance criteria), ASTM E2537-21 (metabolic measurement instrumentation), and supports 21 CFR Part 11 compliance through encrypted audit trails, electronic signatures, and role-based access control when configured with validated software modules.
Can the system operate without a laptop during field measurements?
Yes—the integrated touchscreen and SD card storage enable fully autonomous data acquisition for up to 72 hours at 1-second resolution (dependent on SD capacity and active channels).
Is calibration required before each session?
A two-point gas calibration (room air + certified 15% O₂/5% CO₂ mix) is recommended before critical sessions; however, the system’s automatic baseline compensation and thermal drift correction reduce daily recalibration frequency in stable lab environments.
How is data synchronization handled between the wearable activity monitor and main unit?
Bluetooth 5.0 LE establishes a time-synchronized link with sub-100-ms latency; all wearable sensor timestamps are aligned to the master system clock via PTP (Precision Time Protocol) handshake upon connection.
What support is provided for method validation in GCP-compliant trials?
Sable provides IQ/OQ/PQ documentation templates, calibration certificates traceable to NIST, and on-site installation qualification services performed by ISO 13485-certified field application engineers.
