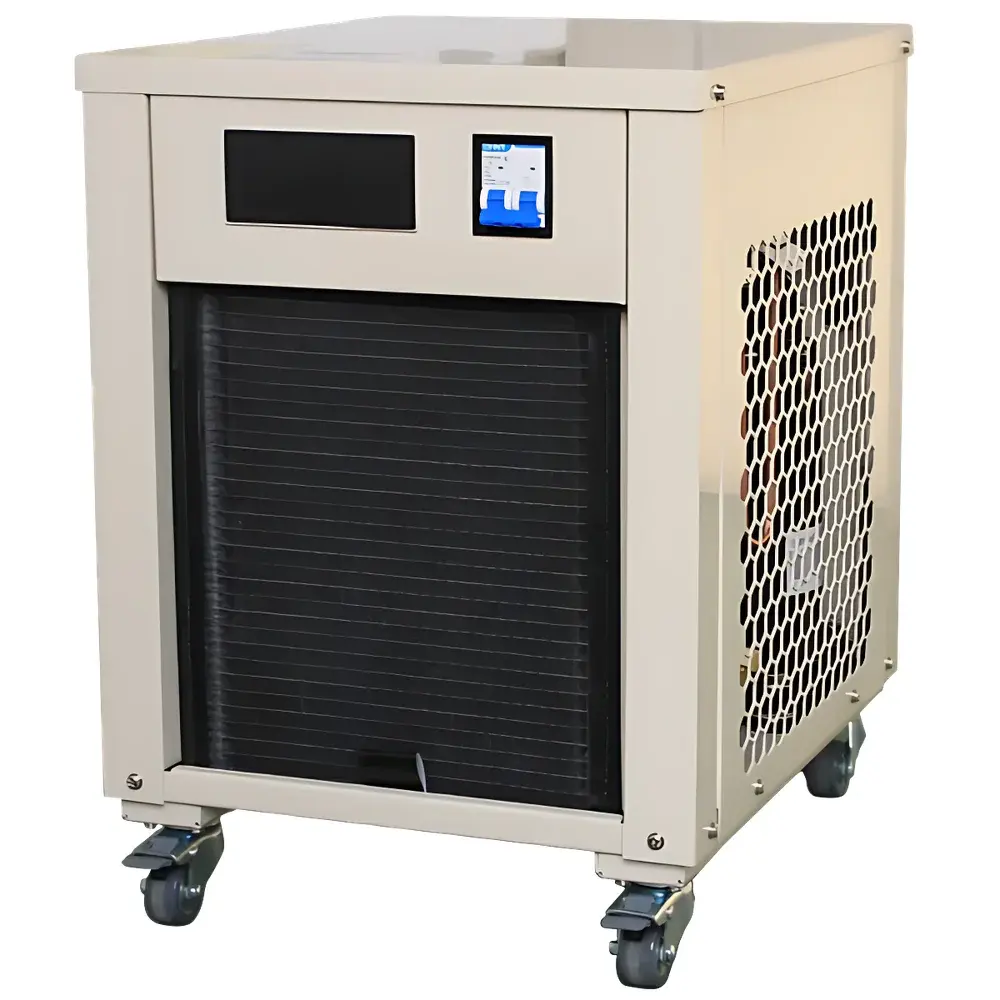

Saintins SY-1200S High-Precision Air-Cooled Circulating Chiller

Overview

The Saintins SY-1200S is an integrated, air-cooled circulating chiller engineered for high-precision temperature control in laboratory and light industrial environments. It operates on a vapor-compression refrigeration cycle using R410a—a zero-ozone-depletion potential (zero-ODP) refrigerant compliant with current environmental regulations—and delivers stable cooling fluid (water or water-glycol mixtures) at setpoints between 8 °C and 30 °C. Unlike tap-water-dependent cooling methods, the SY-1200S establishes a closed-loop circulation system that eliminates thermal drift caused by municipal supply fluctuations, conserves water resources, and ensures repeatable thermal management across extended operational cycles. Its design prioritizes long-term stability, low maintenance, and compatibility with sensitive instrumentation requiring tight thermal budgets—particularly where ambient conditions remain below 40 °C and consistent heat rejection is critical.

Key Features

• High-precision temperature regulation with ±0.1 °C stability over full operating range (8–30 °C), verified under standard test conditions (ambient 30 °C, outlet 22 °C)
• Integrated air-cooled condenser with optimized finned-tube heat exchanger and low-noise axial fan for reliable operation without external water infrastructure
• Stainless-steel reservoir (3 L capacity) with level sensor, anti-corrosion coating, and integrated 5-inch deionized water filtration to protect downstream equipment from particulate and ionic contamination
• High-efficiency centrifugal circulation pump delivering up to 12.5 L/min at 3.0 bar pressure and 30 m head—sufficient for multi-instrument daisy-chaining or elevated loop configurations
• Dual-mode thermal management: active refrigeration plus optional electric heating (300 W) for rapid setpoint acquisition and overshoot suppression
• RS485 serial interface supporting Modbus RTU protocol for integration into centralized lab monitoring systems, SCADA platforms, or LIMS environments
• Robust mechanical architecture: powder-coated steel chassis, vibration-damped compressor mounting, and IP20-rated electrical enclosure for laboratory-grade durability

Sample Compatibility & Compliance

The SY-1200S is compatible with aqueous and glycol-based coolants (up to 30% ethylene or propylene glycol). Its flow and pressure characteristics support direct connection to analytical instruments including NMR spectrometers, SEM/TEM column chillers, XRD goniometers, mass spectrometer ion sources, laser ablation systems, and rotary evaporators. All wetted components meet ISO 8502-3 cleanliness standards for laboratory coolant systems. The unit complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity requirements), and its electrical safety design conforms to IEC 61010-1 for laboratory equipment. While not certified for GMP production environments, its RS485 interface supports audit-ready data logging when paired with validated third-party software meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

The chiller includes an embedded microcontroller with real-time PID algorithm tuning and onboard non-volatile memory storing up to 30 days of timestamped operational logs—including inlet/outlet temperatures, compressor run time, flow status, and fault codes. RS485 communication enables bidirectional control via host PC or PLC: remote setpoint adjustment, pump enable/disable, alarm acknowledgment, and firmware updates. When integrated with Saintins’ optional LabControl Suite (v3.2+), users gain access to trend visualization, automated calibration validation reports, deviation alerts with email/SNMP notification, and exportable CSV/Excel datasets traceable to ISO/IEC 17025 documentation frameworks. No cloud dependency or proprietary dongles are required—data remains fully under institutional control.

Applications

• Analytical Instrument Cooling: Maintains thermal equilibrium in high-field NMR magnet cryoshims, electron microscope column vacuum pumps, and X-ray tube anodes—preventing thermal lensing and signal drift
• Chemical Synthesis & Processing: Stabilizes jacketed reactors, crystallization vessels, and distillation condensers during exothermic or temperature-sensitive reactions per ASTM E2877 guidelines
• Laser System Thermal Management: Sustains CO₂ laser tube wall temperature within ±0.3 °C tolerance and fiber laser diode arrays at optimal junction temperatures per IEC 60825-1 laser safety standards
• Materials Testing: Supports dynamic mechanical analyzers (DMA), differential scanning calorimeters (DSC), and rheometers requiring precise bath temperature synchronization
• Pharmaceutical R&D: Enables controlled cooling during lyophilization cycle development, API crystallization screening, and dissolution testing per USP <797> and <1058> guidance

FAQ

What is the minimum recommended coolant conductivity for continuous operation?
For optimal corrosion resistance and sensor accuracy, maintain coolant resistivity ≥1 MΩ·cm (conductivity ≤1 µS/cm) using deionized water with inline filtration.
Can the SY-1200S operate unattended for 72+ hours?
Yes—its continuous-duty compressor, redundant flow protection, and self-diagnostic firmware support unmonitored operation when installed in climate-controlled rooms with stable power and proper ventilation.
Is glycol mixture compatibility validated for freeze protection below 8 °C?
The unit is rated for 8–30 °C operation; sub-zero setpoints require external heat tracing and are not supported. For ambient freeze-risk environments, use 20–30% propylene glycol to depress freezing point while preserving pump seal integrity.
Does the RS485 interface support Modbus TCP conversion?
No—RS485 is native Modbus RTU only. Integration with Ethernet-based systems requires an industrial RS485-to-TCP gateway (e.g., Moxa NPort series) configured in ASCII/RTU bridging mode.
How often should the 5-inch filter be replaced under typical lab usage?
Replace every 6 months or after 1,500 operating hours—whichever occurs first—using Saintins P/N FIL-SY5-01; extended intervals risk clogging and flow-triggered shutdowns.
