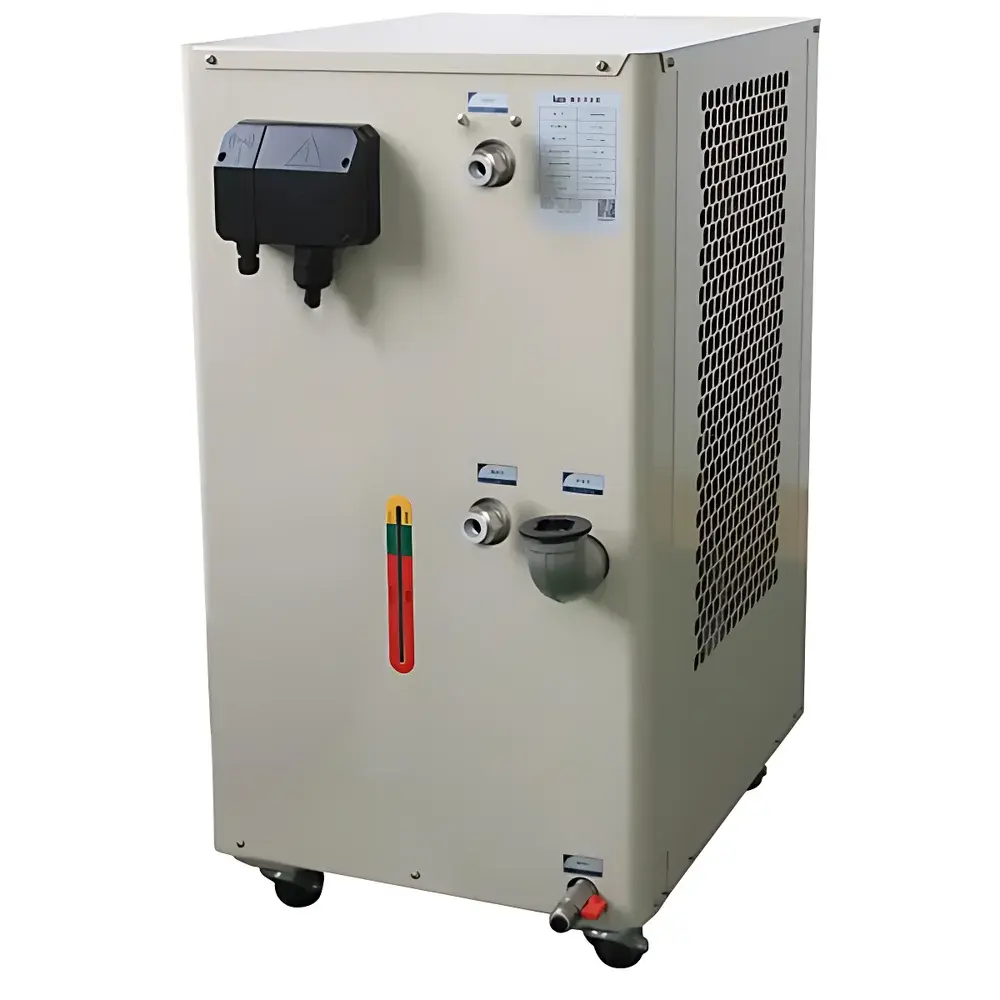

Saintins SY-2700S High-Precision Air-Cooled Circulating Chiller

Overview

The Saintins SY-2700S is an integrated, air-cooled circulating chiller engineered for precision temperature control in demanding laboratory and industrial environments. It operates on a closed-loop vapor-compression refrigeration cycle using R410a refrigerant—a zero-ozone-depletion, high-efficiency working fluid compliant with current environmental regulations. The unit delivers a nominal cooling capacity of 2700 W at standard ambient conditions (30 °C ambient, 22 °C outlet), maintaining process fluid (water or water-glycol mixtures) within a tightly regulated range of 8–30 °C. Its core function is to provide stable, continuous, and controllable heat removal from temperature-sensitive equipment—acting not merely as a coolant source but as a deterministic thermal management subsystem. Unlike tap-water-based cooling, the SY-2700S eliminates flow variability, mineral deposition, and uncontrolled thermal drift, thereby supporting reproducible experimental outcomes and extended instrument service life.

Key Features

• High-precision temperature regulation with ±0.1 °C stability over the full operating range (8–30 °C), achieved via PID-controlled electronic expansion valve and dual-sensor feedback architecture.
• Air-cooled condensing system optimized for ambient temperatures up to 40 °C—no external water supply or drainage required; suitable for laboratories with limited infrastructure.
• Integrated 14.5 L reservoir with 5-inch deionized water filter to minimize particulate contamination and scale formation in recirculated coolant loops.
• High-head centrifugal pump delivering 32 L/min at 3.6 bar pressure—sufficient to overcome pressure drops across multi-instrument manifolds or long coolant lines.
• RS485 serial interface supporting Modbus RTU protocol for integration into centralized facility monitoring systems (BMS) or automated lab workflows.
• Robust mechanical design: powder-coated steel chassis, vibration-damped compressor mount, and IP20-rated electrical enclosure for long-term reliability under continuous operation.

Sample Compatibility & Compliance

The SY-2700S is compatible with aqueous coolants and water-ethylene glycol (up to 30% v/v) solutions, making it suitable for use with analytical instruments requiring non-corrosive, low-conductivity thermal transfer fluids. Its temperature stability and flow consistency meet operational prerequisites for NMR spectrometers, SEM/TEM systems, XRD diffractometers, laser sources (CO₂, fiber, excimer), and high-power LED test platforms. From a regulatory standpoint, the unit adheres to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards). While not certified for medical device manufacturing per ISO 13485, its design supports GLP-compliant environments through traceable setpoint logging (via optional software), audit-ready temperature history, and configurable alarm thresholds aligned with internal SOPs.

Software & Data Management

The chiller includes embedded firmware with real-time display of inlet/outlet temperatures, pump status, compressor run time, and fault codes. When connected via RS485 to a host PC or PLC, users can configure setpoints, enable/disable auto-restart after power loss, and log timestamped temperature and flow data at user-defined intervals (1–60 s resolution). Third-party SCADA platforms (e.g., Ignition, Siemens Desigo CC) may ingest telemetry using standard Modbus registers. For standalone documentation, the unit supports CSV export via USB flash drive (optional accessory), enabling post-hoc analysis in MATLAB, Python, or Excel. All logged data include UTC timestamps and are stored in non-volatile memory—supporting retrospective verification in QA/QC audits.

Applications

• Analytical instrumentation: Thermal stabilization of superconducting magnets in NMR systems; heat extraction from electron optical columns in SEM/TEM; cooling of X-ray tube anodes and detector Peltier elements in XRD and XRF platforms.
• Laser systems: Maintaining optimal junction temperature in CO₂ slab lasers and high-brightness diode-pumped solid-state (DPSS) lasers—critical for wavelength stability and beam quality.
• Chemical synthesis & processing: Precise jacket temperature control in glass reactors, rotary evaporators, and crystallization vessels—enabling kinetic studies and polymorph screening under ISO/IEC 17025 traceable conditions.
• Materials testing: Sustained thermal loading during dynamic mechanical analysis (DMA), thermogravimetric analysis (TGA), and differential scanning calorimetry (DSC) calibration procedures.
• Electronics manufacturing: Thermal conditioning of wafer probers, RF power amplifiers, and vacuum deposition sources where thermal transients degrade measurement repeatability.

FAQ

What is the minimum allowable coolant temperature for continuous operation?
The unit is rated for stable operation down to 8 °C outlet temperature. Operation below this point risks evaporator freeze-up and is not recommended without glycol admixture and custom firmware calibration.
Can the SY-2700S be used with deionized water only?
Yes—its internal 5-inch DI water filter and stainless-steel wetted components (pump head, heat exchanger, reservoir) are compatible with resistivity >1 MΩ·cm water. However, periodic filter replacement (every 6–12 months, depending on usage) is required to maintain particle retention efficiency.
Does the chiller support remote start/stop and setpoint adjustment via RS485?
Yes—Modbus register mapping includes discrete coil addresses for run/stop control and holding registers for target temperature (0.1 °C resolution) and pump speed (0–100% PWM). Full command documentation is provided in the OEM communication protocol manual.
Is the unit compliant with FDA 21 CFR Part 11 for electronic records?
The base firmware does not include Part 11–compliant electronic signatures or audit trail encryption. However, when integrated with validated third-party data acquisition software (e.g., LabArchives, DeltaV), the chiller’s timestamped telemetry satisfies ALCOA+ data integrity principles for GxP-regulated workflows.
What maintenance intervals are recommended for uninterrupted service?
Compressor oil and refrigerant charge require no routine servicing under normal operation. Recommended preventive actions include quarterly visual inspection of condenser coil cleanliness, biannual replacement of the 5-inch filter cartridge, and annual verification of temperature sensor calibration against NIST-traceable reference standards.
