Sanotac Omnitor Evaporative Light Scattering Detector (ELSD) for Traditional Chinese Medicine Quality Control

Overview

The Sanotac Omnitor Evaporative Light Scattering Detector (ELSD) is a precision analytical instrument engineered for universal detection of non-volatile and semi-volatile analytes lacking strong UV chromophores—particularly critical in the quality control of traditional Chinese medicine (TCM) materials and formulations. Unlike UV-Vis absorbance detectors, the Omnitor ELSD operates on the principle of nebulization, solvent evaporation, and light scattering quantification: the column effluent is atomized into fine droplets, carrier gas-assisted solvent evaporation yields dry analyte particles, and a collimated 650 nm semiconductor laser beam illuminates the particle cloud; scattered light intensity—proportional to analyte mass—is detected by a high-sensitivity photomultiplier tube (PMT). This universal, gradient-compatible detection mechanism enables robust quantitation of saponins (e.g., astragaloside IV, platycodin D, anemarrhena B-II), terpene lactones (e.g., ginkgolide B), bile acids (e.g., cholic acid), glycerides, polysaccharides, and other UV-transparent compounds referenced in Chinese Pharmacopoeia (ChP), USP, and EP monographs.

Key Features

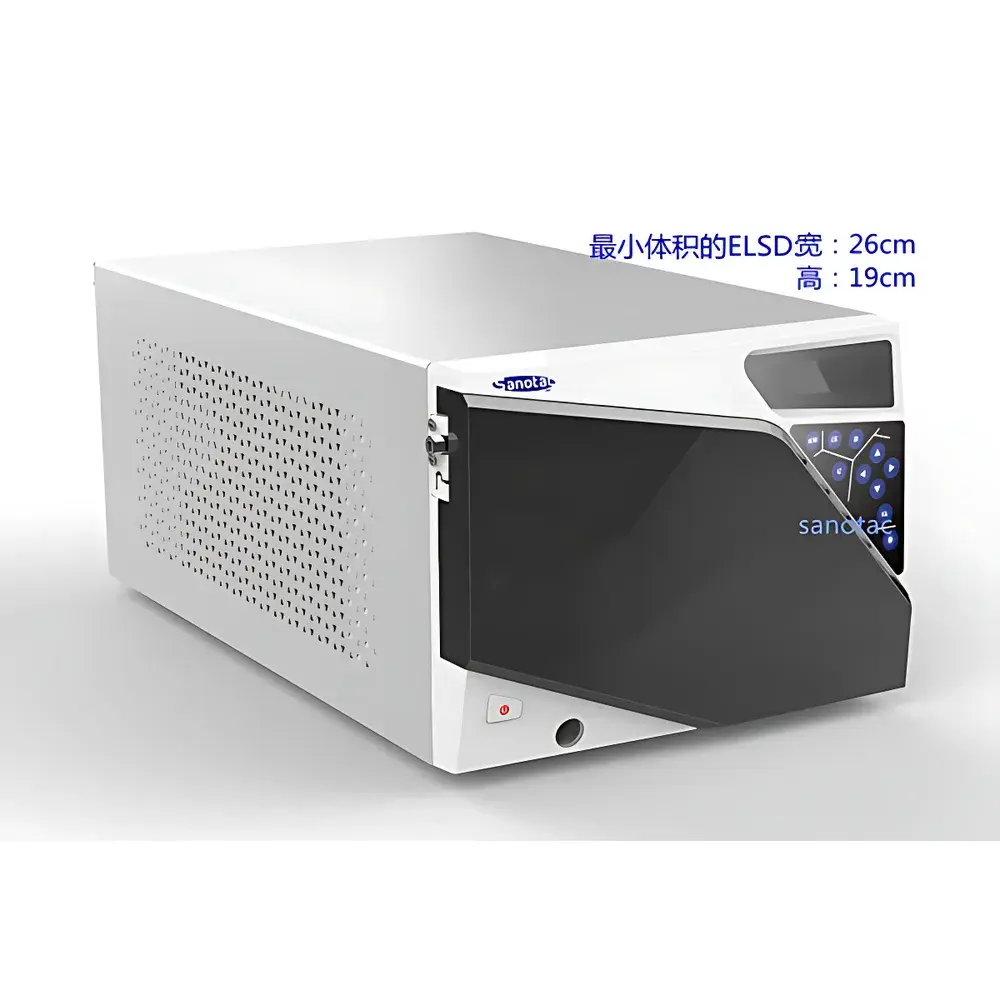

• Compact, low-footprint design (26 × 19 × 46 cm) engineered for seamless integration with standard HPLC systems—matching pump width for benchtop efficiency.
• Optimized internal thermal field architecture ensures stable, reproducible evaporation across ambient to 130 °C (±1 °C accuracy), minimizing baseline drift and enhancing method transferability.
• Quantitative repeatability ≤1.5% RSD₆ (n = 6) validated with cholesterol/methanol standards at ≤5.0 × 10⁻⁶ g/mL, meeting stringent pharmacopeial validation requirements for TCM marker compound assays.
• Ultra-low electronic noise (<0.03 mV) and baseline drift (≤0.3 mV/30 min), exceeding JJG 1512–2015 metrological specifications for HPLC detectors.
• Dual-stage temperature control: independently adjustable nebulizer (ambient–56 °C) and drift tube (ambient–130 °C), enabling rapid method switching via auxiliary cooling system.
• Front-accessible nebulizer capillary simplifies visual inspection and routine cleaning—reducing downtime and operator error in regulated QC labs.
• Programmable gain (0.3–30×), analog offset (–1000 to +1000 mV), auto-zero function, and dual-rate digital output (100 Hz high-speed acquisition / 20 Hz reporting) support both kinetic and quantitative workflows.

Sample Compatibility & Compliance

The Omnitor ELSD is routinely applied to pharmacopeial assays requiring non-UV detection, including ChP monographs for Fritillaria alkaloids (peimine, peiminine), Astragalus membranaceus saponins, Ginkgo biloba terpene trilactones, Polygala tenuifolia saponins, Ziziphus jujuba jujubosides, and Anemarrhena asphodeloides timosaponins. It supports mobile phases containing volatile buffers (e.g., ammonium acetate, formic acid) and organic modifiers (acetonitrile, methanol) compatible with reversed-phase and HILIC separations. All hardware and firmware comply with ISO 9001 manufacturing standards. The embedded control software and optional Clarity™ CDS meet FDA 21 CFR Part 11 requirements—including electronic signatures, role-based access control, immutable audit trails, and full data integrity documentation—ensuring readiness for GLP and GMP audits.

Software & Data Management

The Omnitor integrates with Sanotac’s native chromatography control software and third-party platforms including Clarity™ (with Colibrick™ interface module), enabling full method development, sequence control, peak integration, calibration curve generation, and report export (PDF, CSV, XML). Data acquisition supports time-stamped raw signal capture at 100 Hz, with real-time baseline correction and noise filtering algorithms. Audit trail logs record all user actions—including parameter changes, method edits, calibration events, and data exports—with tamper-proof timestamps and operator ID linkage. Remote monitoring and configuration are supported via LAN (HTTP/TCP), allowing centralized instrument management in multi-lab environments. All stored methods (10 slots × 25 parameters) retain full metadata for traceability and regulatory review.

Applications

Primary use cases include quantitative analysis of TCM active constituents where UV detection fails: steroidal saponins (e.g., diosgenin derivatives), triterpenoid glycosides (e.g., oleanolic acid, ursolic acid), phospholipids, fatty acids, oligosaccharides, and polyphenol glycosides. The detector is also validated for pharmaceutical excipient profiling (e.g., polysorbates, PEGs), polymer molecular weight distribution (SEC-MALS coupling), and natural product fractionation studies. Its compatibility with gradient elution, low-flow microbore columns (down to 0.01 mL/min), and nitrogen-saving standby modes makes it suitable for both routine QC labs and research-scale natural product isolation workflows.

FAQ

Does the Omnitor ELSD support FDA 21 CFR Part 11 compliance?
Yes—the integrated software includes electronic signature capability, audit trail logging, user authentication, and data integrity safeguards aligned with 21 CFR Part 11 Annex 11 and ALCOA+ principles.
Can it be coupled with Agilent, Waters, or Shimadzu HPLC systems?
Yes—it accepts TTL-level start/stop triggers from all major OEM autosamplers and supports RS-232, RS-485, USB, and Ethernet communication protocols for bidirectional control.
What carrier gases are compatible, and what is the minimum required purity?
Clean, oil-free nitrogen or compressed air (dew point ≤ –40 °C, particulate ≤ 0.01 µm, hydrocarbon ≤ 0.1 ppm) is required; flow rate is precisely controlled between 1–4 L/min with ≤1% accuracy.
Is method validation data available for pharmacopeial applications?
Yes—Sanotac provides application notes and validation summaries for ChP-referenced assays, including linearity (r² ≥ 0.999), LOD/LOQ, precision (RSD ≤ 1.5%), and robustness testing per ICH Q2(R2).
How is maintenance performed on the nebulizer and drift tube?
The front-mounted nebulizer capillary allows direct visual inspection and ultrasonic cleaning without disassembly; the heated drift tube is designed for passive condensate drainage and requires no routine servicing under normal operating conditions.
