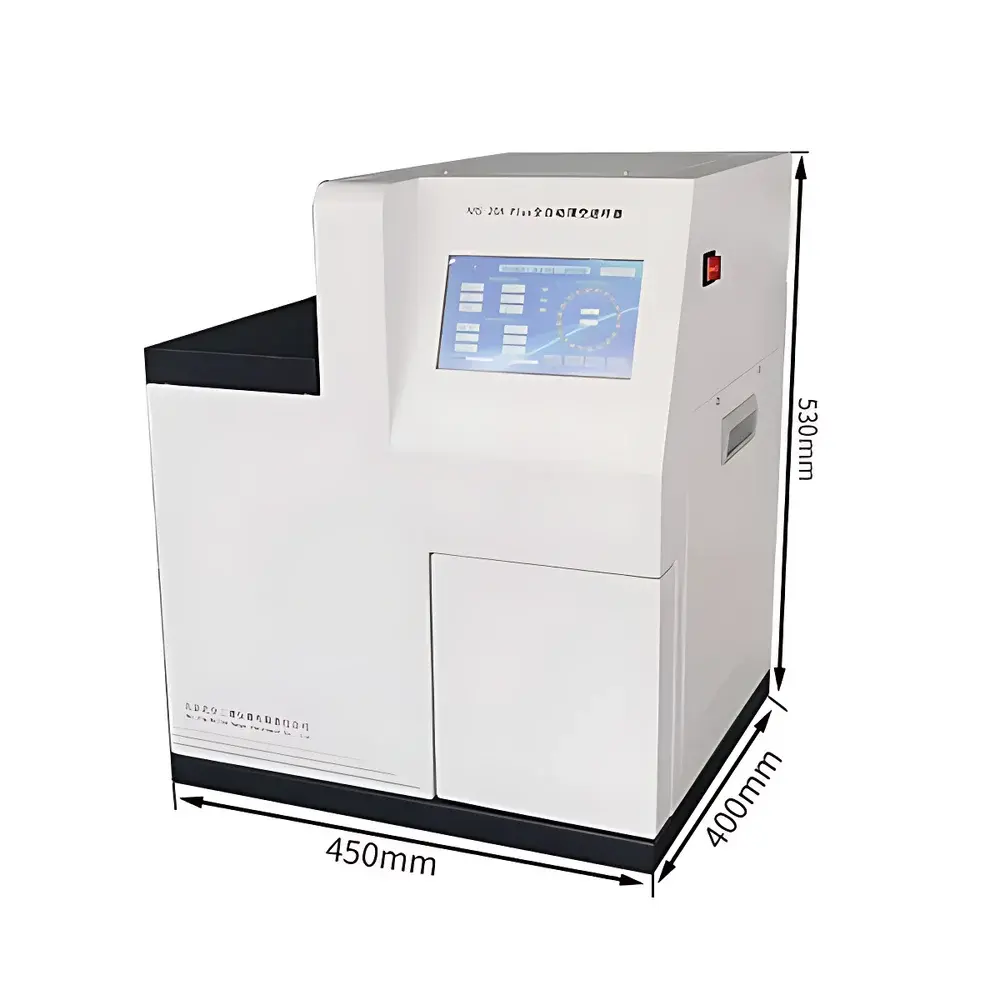

Sanpu AHS-20A Plus Fully Automated Static Headspace Sampler

Overview

The Sanpu AHS-20A Plus Fully Automated Static Headspace Sampler is an engineered solution for precise, reproducible, and unattended sample introduction into gas chromatography (GC) systems. It implements the principle of static headspace analysis—where volatile and semi-volatile analytes partition between a condensed phase (liquid or solid matrix) and the equilibrated vapor phase above it in a sealed vial. Upon thermal equilibration, the instrument performs pressurized gas-phase sampling via a high-inertness six-port valve and quantitative loop, delivering representative headspace vapor directly to the GC inlet without solvent extraction or derivatization. Designed for compliance with ISO 17025–aligned laboratory practices and compatible with FDA 21 CFR Part 11–enabled data systems, the AHS-20A Plus supports trace-level quantification in regulated and research environments where method robustness, carryover control, and inter-laboratory reproducibility are critical.

Key Features

• Fully automated 20-position carousel with real-time positional feedback and collision-avoidance logic—automatically skips empty or misaligned vial slots.
• Triple-zone independent temperature control: sample vial oven (ambient–200 °C), valve oven (40–220 °C), and transfer lines (40–220 °C), all with ±0.5 °C stability and 0.5% absolute accuracy.
• High-inertness fluidic path: deactived fused-silica capillary tubing, PTFE/silicone septa, and electropolished stainless-steel valve body minimize adsorption, catalytic degradation, and cross-contamination.
• Positive-pressure sampling architecture eliminates baseline drift and enables direct analysis of viscous, particulate-laden, or high-salinity matrices—including wastewater, pharmaceutical suspensions, and food emulsions.
• Motor-driven actuation system—no external compressed air or pneumatic supply required—reducing infrastructure dependencies and safety hazards in analytical labs.
• Integrated 7-inch 64K-color TFT display with intuitive Chinese/English bilingual UI; supports method storage, recall, and timestamped audit trails for GLP/GMP workflows.
• Configurable timing parameters: pressurization (0–999 s), equilibration (0–999 s), sampling (0–999 s), injection (0–60.000 s), and bake-out (0–999 min), all adjustable in 0.1 s increments.
• Electronic Pressure Control (EPC) option available for precise auxiliary gas regulation—critical for optimizing sensitivity in low-concentration applications such as residual solvent analysis per ICH Q3C guidelines.

Sample Compatibility & Compliance

The AHS-20A Plus accommodates standard 10 mL and 20 mL crimp-top headspace vials (custom sizes up to 100 mL available upon request). Its inert flow path and thermally stable architecture ensure compatibility with aqueous, organic, and heterogeneous samples—including environmental water, polymer extracts, biological tissues, and packaged foods. The system meets essential performance criteria outlined in ASTM D6866 (bio-based content), USP (residual solvents), and EPA Method 502.2 (halogenated organics in drinking water). All temperature and timing parameters are logged with date/time stamps and user ID fields, supporting ALCOA+ data integrity principles. When integrated with validated GC data systems, the sampler satisfies audit requirements for 21 CFR Part 11 electronic records and signatures.

Software & Data Management

No proprietary software installation is required—the AHS-20A Plus communicates natively with major GC platforms (Agilent, Thermo Fisher, Shimadzu, PerkinElmer) via TTL-level start/stop triggers and analog status signals. All operational parameters—including vial position, temperature setpoints, timing sequences, and error logs—are stored internally with non-volatile memory retention (>10,000 cycles). The front-panel interface allows full method definition, parameter export/import via USB, and on-device troubleshooting diagnostics (e.g., heater fault detection, valve actuation verification, vial tray homing confirmation). For laboratories requiring centralized control, optional RS-232 or Ethernet modules enable remote monitoring and integration into LIMS or ELN ecosystems—supporting metadata tagging, electronic signature capture, and automated report generation.

Applications

This headspace sampler delivers consistent performance across regulatory and industrial QC workflows:

• Pharmaceutical Quality Control: Residual solvent quantification (acetone, dichloromethane, ethyl acetate) in APIs and final dosage forms per ICH Q3C and USP .
• Environmental Monitoring: Analysis of volatile halocarbons (chloroform, carbon tetrachloride), BTEX compounds, and chlorinated pesticides in groundwater and soil extracts per EPA Methods 502.2, 524.4, and 8260.
• Food & Beverage Safety: Ethanol profiling in fermented products, acetaldehyde migration from PET packaging, and hexane residue testing in edible oils per AOAC Official Methods.
• Polymer & Materials Science: Monomer release testing (styrene, vinyl chloride) from coatings, adhesives, and medical device components under ISO 10993–12 extractables protocols.
• Forensic Toxicology: Blood alcohol concentration (BAC) and volatile metabolite screening (acetone, isopropanol) using headspace-GC-FID or GC-MS workflows compliant with SWGTOX standards.

FAQ

What sample types can be analyzed using the AHS-20A Plus?

Liquid, semi-solid, and solid matrices—including water, serum, soil slurries, polymers, and foodstuffs—are compatible provided they generate measurable headspace vapor at temperatures ≤200 °C. High-boiling or thermally labile analytes may require salt addition or pH adjustment to enhance partitioning.

Is the system compatible with both packed and capillary GC columns?

Yes. The 1 mL quantitative loop and pressure-controlled sampling ensure optimal peak shape and minimal band broadening across column types. Optional loop volumes (0.5–5 mL) are available for sensitivity tuning.

How is carryover prevented between injections?

Each cycle includes programmable post-injection purge with heated transfer lines, valve bake-out, and quantitative loop flushing using carrier gas—validated to achieve RSD <1.0% (n=10) for 100 ppm ethanol in water.

Can the AHS-20A Plus operate unattended overnight?

Yes. With its 20-vial capacity, internal clock, and fault-recovery logic (e.g., automatic retry on transient communication loss), it supports extended batch runs without operator intervention.

Does the instrument support multi-step headspace extraction (MHE)?

While not automated, the timing flexibility (independent control of equilibration, pressurization, and sampling phases) enables manual implementation of MHE protocols for accurate quantification of heterogeneous or bound analytes.
