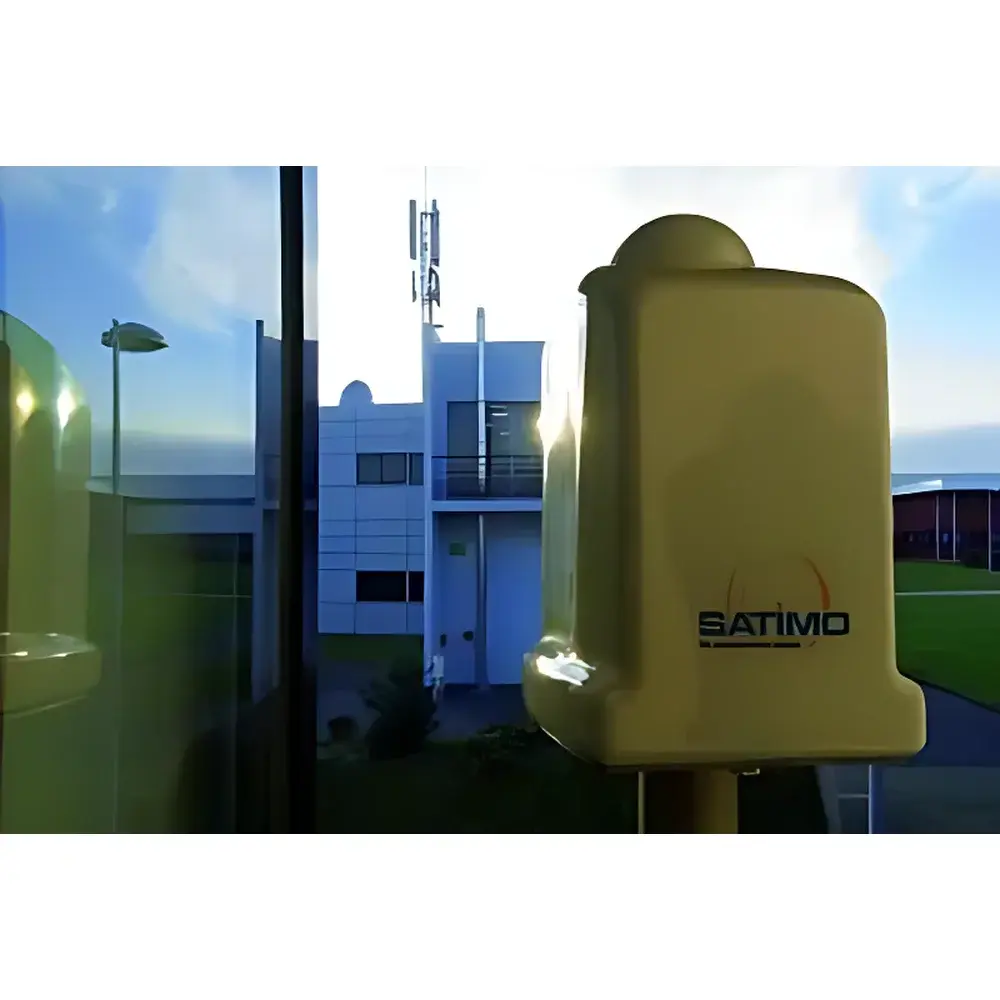

SATIMO INSITE Box Electromagnetic Field (EMF) Monitoring Station

Overview

The SATIMO INSITE Box is a fixed-site, frequency-selective electromagnetic field (EMF) monitoring station engineered for long-term, unattended assessment of human exposure to radiofrequency (RF) electromagnetic fields in urban, suburban, and infrastructure-proximate environments. Unlike handheld spectrum analyzers or spot-measurement probes, the INSITE Box is designed for permanent or semi-permanent deployment—typically near mobile base stations, broadcast antennas, or public infrastructure—to continuously quantify time-weighted E-field strength across legally and epidemiologically relevant frequency bands. Its core measurement principle relies on calibrated, isotropic electric field sensors coupled with real-time digital signal processing (DSP) and band-pass filtering architecture developed by SATIMO (now part of Microwaves & RF Division, Keysight Technologies). Each measurement cycle delivers traceable, spectrally resolved amplitude data aligned with international exposure guidelines—including ICNIRP 2020 and IEEE C95.1-2019—and supports compliance verification against national regulatory limits.

Key Features

• Frequency-selective monitoring across up to 16 user-defined RF bands—from AM radio (525 kHz) to 5G NR (5.15–5.85 GHz)—with hardware-level band isolation to prevent intermodulation artifacts.
• High-dynamic-range E-field detection (0.005 V/m to 5 V/m), configurable via software to match site-specific exposure thresholds and regulatory reference levels.
• Embedded PC option enabling local data buffering, automated FTP upload, remote SSH access, and integration with centralized EMF management platforms.
• Multi-interface connectivity: Ethernet (RJ45), 3G/4G modem (via USB or PCIe slot), RS-232/USB control interface, and optional GPRS alerting.

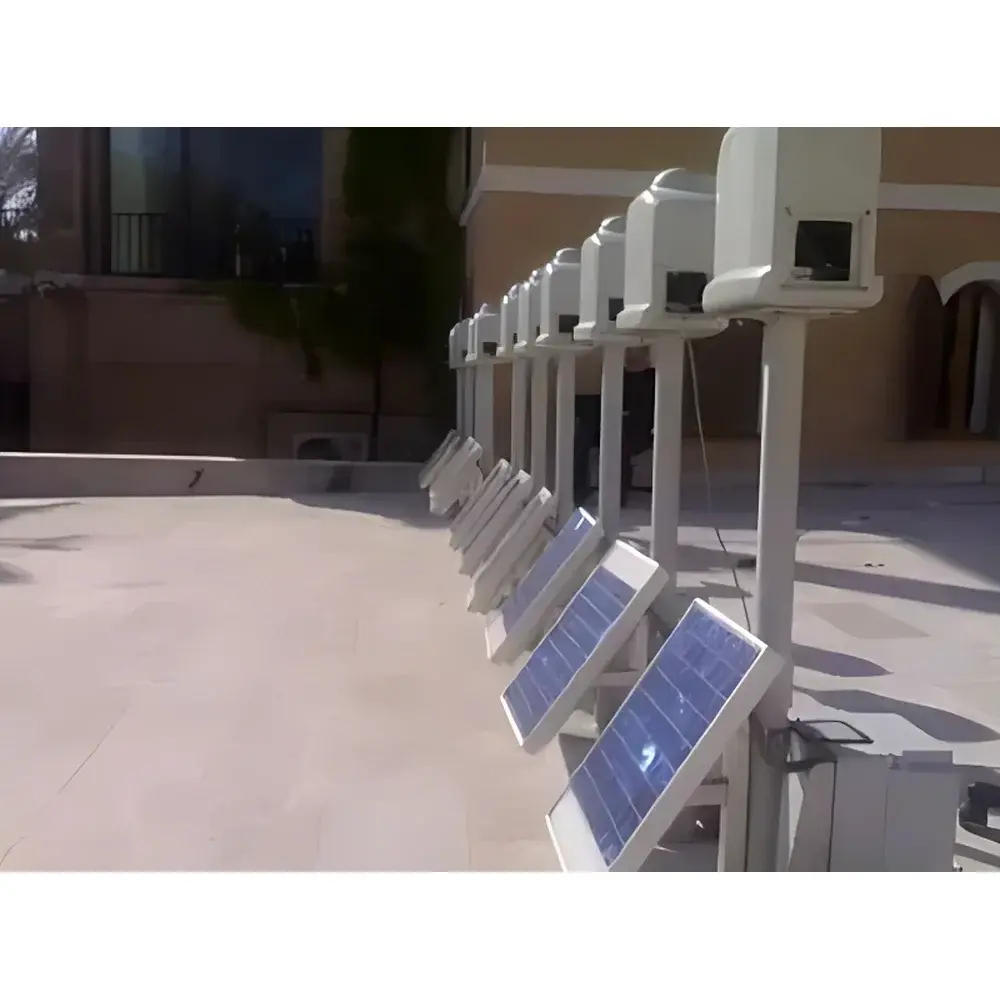

• Outdoor-rated IP54 enclosure with thermal management for continuous operation between −10 °C and +50 °C; compatible with 12 V DC solar power systems for off-grid deployment.
• Pre-calibrated sensor array with NIST-traceable calibration certificate; optional annual recalibration and uncertainty budget documentation available per ISO/IEC 17025 requirements.

Sample Compatibility & Compliance

The INSITE Box is validated for continuous monitoring of ambient RF fields generated by terrestrial broadcasting (FM, DAB, TV), public mobile networks (GSM, UMTS, LTE, 5G NR), wireless communications (Wi-Fi 2.4/5 GHz, DECT, WiMAX), and critical infrastructure (TETRA, PMR). It complies with measurement methodologies defined in EN 50492:2022 (Assessment of RF field strength), IEC 62232:2017 (Determination of RF exposure from wireless devices), and ITU-R SM.2023-0 (Guidelines for EMF monitoring programs). All reported values are referenced to ICNIRP 2020 general public exposure limits by default; alternative reference levels (e.g., FCC OET Bulletin 65, ARPANSA RPS S-1) can be applied post-acquisition via Excel-based normalization tools included in the analysis software suite.

Software & Data Management

The INSITE Box ships with two dedicated Windows-based applications: INSITE Box Control (for configuration, real-time visualization, and remote command execution) and INSITE Box Analysis (for spectral deconvolution, time-series aggregation, percentile statistics, and regulatory reporting). Raw measurement logs are stored in ASCII CSV format with UTC timestamps, sensor ID, band identifier, and instantaneous E-field magnitude (V/m). The embedded PC variant supports scheduled FTP transfers to secure servers, TLS-encrypted web API endpoints, and automated email/SMS alerts triggered when user-defined threshold limits are exceeded—fully auditable under FDA 21 CFR Part 11 and EU Annex 11 requirements when deployed in GLP/GMP-aligned environmental health programs.

Applications

• Regulatory agencies conducting nationwide EMF surveillance and public exposure mapping.
• Mobile network operators performing pre- and post-deployment compliance verification near schools, hospitals, and residential zones.
• Municipal authorities integrating EMF data into smart-city environmental dashboards alongside air quality and noise metrics.
• Research institutions studying long-term temporal trends in ambient RF exposure across evolving telecom standards (e.g., 4G→5G migration).
• Independent certification bodies executing third-party audits for EN 50383 or national licensing requirements.

FAQ

Is the INSITE Box suitable for indoor measurements?

Yes—though optimized for outdoor fixed-site deployment, it may be used indoors with appropriate mounting and cable routing; however, multipath and shielding effects require careful interpretation per IEC 62232 Annex B guidance.

Does the system support real-time spectral display?

No—the INSITE Box performs band-integrated RMS measurements per defined channel, not full-spectrum waterfall analysis. Real-time spectral capability requires a complementary portable analyzer (e.g., SATIMO EME Spy series).

Can measurement intervals be synchronized across multiple INSITE Box units?

Yes—units equipped with GPS timing modules (optional add-on) enable microsecond-level synchronization for spatial correlation studies and interference source localization.

What is the typical calibration interval recommended?

Annual calibration is advised for regulatory use; SATIMO provides accredited recalibration services with full uncertainty budgets and ISO/IEC 17025-compliant certificates.

Is firmware update capability available over-the-air?

Firmware updates are delivered via secure HTTPS download through the INSITE Box Control software; no OTA capability is implemented in base configuration to ensure audit trail integrity.
