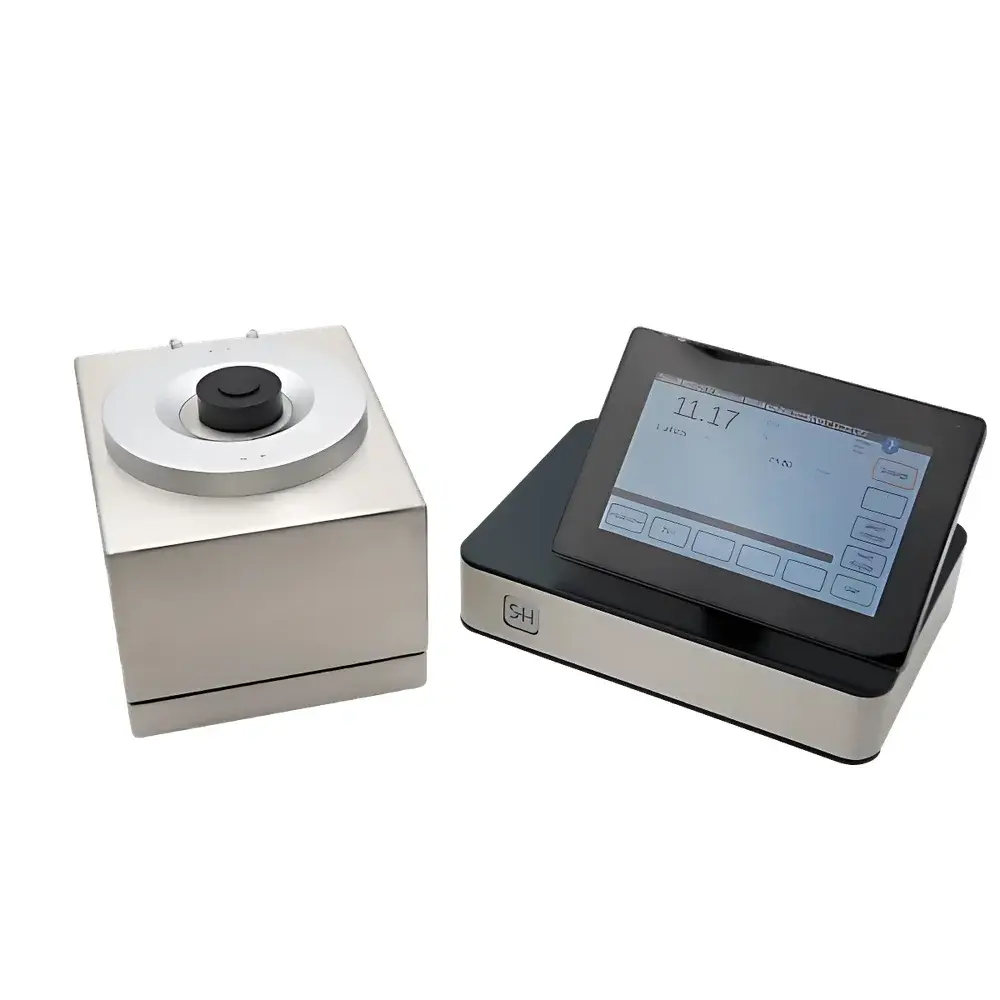

Schmidt + Haensch ATR-P Automated Inline Refractometer

Overview

The Schmidt + Haensch ATR-P Automated Inline Refractometer is a high-precision, process-integrated optical instrument engineered for continuous, real-time refractive index (RI) and Brix measurement in demanding industrial environments. Based on the principle of critical-angle total internal reflection (ATR), the system employs a sapphire prism interface coupled with a stabilized 589 nm LED light source — matching the sodium D-line standard used in international sugar analysis protocols. Unlike traditional benchtop refractometers, the ATR-P integrates directly into production pipelines or recirculation loops, enabling non-invasive, flow-through measurement without sample extraction or dilution. Its design emphasizes metrological integrity under variable thermal and mechanical conditions, making it particularly suited for applications where compositional stability, regulatory traceability, and long-term operational reliability are mandatory — including continuous sugar concentration monitoring in beet and cane sugar refineries, syrup blending control in beverage manufacturing, and solvent concentration tracking in pharmaceutical intermediate synthesis.

Key Features

• ATR-based optical architecture with sapphire prism — chemically inert, scratch-resistant, and compatible with aggressive media including hot sucrose syrups, ethanol-water mixtures, and acidic or alkaline process streams
• Integrated NTC temperature sensor mounted directly at the prism surface — ensures accurate, localized thermal compensation independent of bulk fluid temperature gradients
• Dual-mode operation: supports both single-point static measurement and continuous inline monitoring via optional flow cells (e.g., sanitary tri-clamp, DIN 11851, or custom flanged configurations)
• Modular electronics: PURE-S measurement unit operates autonomously or connects to external PCs; optional L-Display standalone electronic interface provides full local control and visualization
• High-resolution 7″ capacitive touchscreen with intuitive GUI — supports multi-language UI, password-protected user levels (Operator, Supervisor, Administrator), and audit-trail-enabled configuration changes
• Comprehensive connectivity suite — dual RS232, three USB-A ports (for keyboard, barcode scanner, or printer), USB-B for firmware updates, and Gigabit Ethernet for SCADA/DCS integration and remote diagnostics
• Energy-efficient operation: <2 W power draw during measurement; compliant with IEC 61000-6-2/6-4 for industrial electromagnetic compatibility

Sample Compatibility & Compliance

The ATR-P accommodates a broad range of liquid and semi-liquid samples, including clarified and turbid sugar solutions (up to 90 % w/w solids), fruit juice concentrates, alcohol distillates, glycol-water antifreeze blends, and hydrocarbon solvents. Its horizontal or side-mounted probe orientation minimizes interference from suspended particulates or sedimentation effects. The system meets stringent international standards for analytical instrumentation validation and data integrity: ASTM E1220 (standard test method for refractive index of transparent liquids), ICUMSA Method GS2/3-12 (official method for sucrose determination), USP (Refractometry), and Ph. Eur. 2.2.29. All firmware and software modules comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, supporting full ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Instrument qualification documentation (DQ/IQ/OQ/PQ templates) and GMP-compliant calibration logs are provided as part of the standard delivery package.

Software & Data Management

The ATR-P operates with two complementary software layers: the embedded firmware (L-Display OS) and the PC-based L-Display Desktop Suite. The onboard OS manages real-time measurement, alarm thresholds (e.g., deviation >±0.00005 RI), automatic temperature compensation, and local data logging (up to 100,000 timestamped records with RI, Brix, temperature, and status flags). The desktop application extends functionality to method development, multi-parameter correlation (e.g., RI ↔ density ↔ moisture content), batch reporting (PDF/CSV export), trend analysis with statistical process control (SPC) charts, and seamless integration into LIMS or MES platforms via OPC UA or Modbus TCP. All data entries include immutable metadata: operator ID, calibration certificate reference, environmental timestamp (UTC-synced), and digital signature — fulfilling GLP audit requirements and supporting full 21 CFR Part 11 compliance.

Applications

• Sugar industry: Real-time Brix control in juice extraction, carbonatation, evaporation, crystallization, and centrifugation stages; blend ratio verification for specialty syrups
• Beverage & dairy: Concentration monitoring of fruit purees, whey permeate, lactose solutions, and flavor emulsions
• Pharmaceuticals: In-process control of API crystallization solvents, excipient solutions, and lyophilization cycle endpoints
• Petrochemicals: Hydrocarbon mixture analysis (e.g., ethanol/gasoline blends), glycol dehydration monitoring, and lubricant additive concentration
• Chemical manufacturing: Reaction progress tracking in esterification, polymerization, and hydrolysis processes where refractive index correlates with conversion

FAQ

What calibration standards are required for routine operation?
Primary calibration uses certified sucrose reference solutions traceable to NIST SRM 84d or equivalent national metrology institutes. Secondary verification may employ aqueous NaCl or KCl standards per ASTM D1193 Type II water specifications.
Can the ATR-P be installed in hazardous areas (e.g., Zone 1 or ATEX)?
The standard PURE-S probe is rated IP67 and suitable for non-hazardous zones. For Zone 1/21 or ATEX Group II applications, an intrinsically safe version (ATEX II 2G Ex ib IIB T4 Gb / II 2D Ex ib IIIB T135°C Db) is available upon request with appropriate barrier certification.
Is temperature-controlled sample circulation mandatory?
While ambient temperature compensation is built-in, precise Brix quantification in high-solids streams (>60 %) requires active sample temperature stabilization within ±0.1 °C — achieved via external thermostatic bath or integrated Peltier module (optional accessory).
How does the system handle fouling or coating on the sapphire prism?
The ATR-P supports automated cleaning cycles via programmable CIP-compatible flush sequences (e.g., water, ethanol, or mild detergent pulses); optional ultrasonic transducer integration is available for persistent biofilm removal.
Does the instrument support multi-point calibration for non-linear matrices?
Yes — the L-Display Desktop Suite allows up to 12-point polynomial calibration curves, enabling accurate RI-to-concentration conversion for complex mixtures such as invert sugar, fructose-glucose syrups, or ternary solvent systems.
