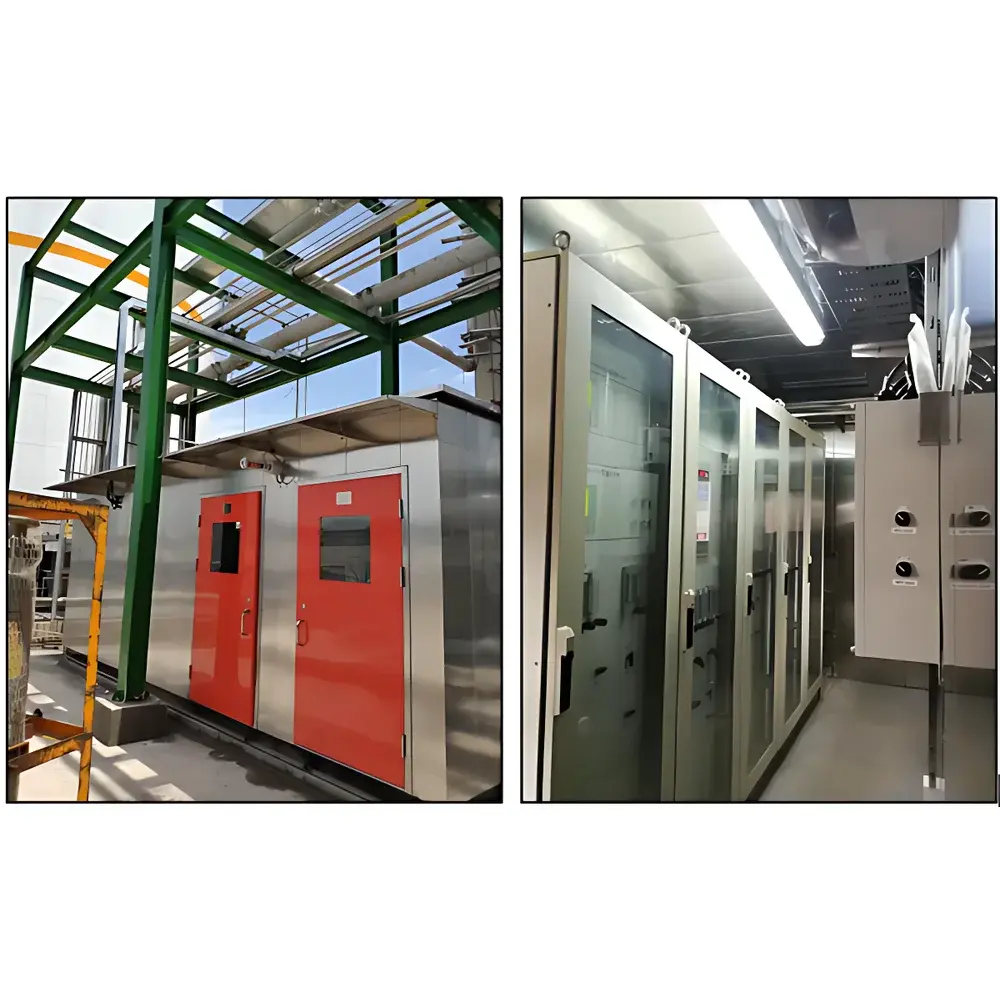

SDL SCS-900B On-line Air Separation Monitoring System
| Brand | SDL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China-made) |
| Model | SCS-900B |
| Pricing | Available upon Request |
Overview
The SDL SCS-900B On-line Air Separation Monitoring System is an integrated, process-critical gas analysis solution engineered for continuous, real-time measurement of key component concentrations—primarily oxygen (O₂), nitrogen (N₂), argon (Ar), and trace impurities such as hydrocarbons, moisture (H₂O), and carbon dioxide (CO₂)—within cryogenic air separation units (ASUs). Based on modular, extractive sampling architecture, the system employs high-stability analytical instruments—including paramagnetic O₂ analyzers, thermal conductivity (TCD) or laser-based N₂/Ar analyzers, and tunable diode laser absorption spectroscopy (TDLAS) or chilled-mirror dew point sensors—selected according to application-specific accuracy, response time, and interference resistance requirements. Designed for 24/7 operation in demanding industrial environments, the SCS-900B ensures metrological traceability, long-term drift stability, and minimal maintenance intervals through robust mechanical design and intelligent diagnostics.
Key Features
- Modular architecture supporting standalone deployment or integration into certified hazardous-area analysis shelters (e.g., Class I, Div 1 / ATEX Zone 1 compliant enclosures)
- Multi-stage sample conditioning: heated stainless-steel probe with ceramic filtration, pressure-reducing pre-treatment unit, temperature-controlled heated sample lines (up to 180 °C), and secondary conditioning cabinet featuring automatic condensate removal, particle filtration (0.1 µm), flow stabilization, and zero-air purge capability
- Redundant safety interlocks including over-pressure relief, high-temperature cutoff, and sample line leak detection via differential pressure monitoring
- Instrument-level diagnostics with automated calibration validation (span/zero checks), sensor health monitoring, and event-logged fault tracing per IEC 61508 SIL 2 functional safety principles
- IP65-rated field components; all wetted parts constructed from electropolished 316L stainless steel or PTFE-lined materials to prevent catalytic adsorption or surface oxidation
Sample Compatibility & Compliance
The SCS-900B accommodates sample gas streams ranging from ambient to cryogenic temperatures (−196 °C at ASU cold box outlets) and pressures up to 10 bar(g), with typical operating ranges of 0.5–3.0 bar(g) post-regulation. It meets ISO 8573-1:2010 Class 2 particulate/oil/water specifications after conditioning and complies with ASTM D1946 (standard test method for analysis of liquefied petroleum gases), ASTM D1945 (analysis of natural gas), and GB/T 13610 (Chinese national standard for gas chromatographic analysis of permanent gases). System documentation supports FDA 21 CFR Part 11 compliance when paired with validated data acquisition software, and full audit trails are maintained for GLP/GMP-aligned quality assurance protocols.
Software & Data Management
The system interfaces with SDL’s proprietary SCADA-compatible HMI platform, enabling remote configuration, alarm management (IEC 62443-3-3 Level 1), historical trend visualization, and export of CSV/Excel-formatted reports. Data logging resolution is configurable from 1 second to 1 hour, with onboard storage retaining ≥30 days of raw channel data. OPC UA (v1.04) and Modbus TCP protocols facilitate seamless integration into DCS environments (e.g., Emerson DeltaV, Honeywell Experion, Siemens PCS7). Cybersecurity hardening includes TLS 1.2 encryption, role-based user access control, and firmware signature verification.
Applications
The SCS-900B is deployed across high-integrity air separation applications where compositional fidelity directly impacts product grade, energy efficiency, and operational safety: primary distillation column top/bottom draws; liquid oxygen/nitrogen storage tank headspace monitoring; argon side-stream purity verification; hydrocarbon accumulation detection in liquid oxygen circuits (per CGA G-4.1 guidelines); and inert gas blanketing control in semiconductor fabrication cleanrooms. End-user sectors include integrated steel mills (BOF/LD converter off-gas O₂/N₂ ratio control), ethylene cracker plants (cold box feed purity assurance), LNG facilities (nitrogen rejection unit optimization), aerospace-grade cryogen production, and nuclear fuel cycle support systems requiring ultra-low CO₂/H₂O detection limits (<1 ppmv).
FAQ
What sample gas temperature and pressure ranges does the SCS-900B support?
The system handles inlet sample conditions from −196 °C to +80 °C and up to 10 bar(g), with conditioned sample delivery to analyzers maintained between 40–60 °C and 1.0–1.5 bar(g).
Can the SCS-900B be configured for explosion-proof environments?
Yes—field components are available with ATEX II 2G Ex d IIB T4 Gb / IECEx Ex d IIB T4 Gb certification; full analysis shelters can be supplied with FM/CSA Class I, Div 1, Groups B, C, D approval.
Does the system support automated calibration and validation?
All analyzers feature programmable auto-calibration sequences using certified reference gases; validation reports include uncertainty budgets per ISO/IEC 17025 requirements.
How is moisture interference mitigated in high-humidity sample streams?
Dual-stage condensate removal (thermoelectric chiller + membrane dryer), heated transport lines, and optional TDLAS-based H₂O measurement eliminate condensation-related bias and ensure representative sampling.
Is third-party instrument integration supported?
Yes—the system’s open I/O architecture accepts analog (4–20 mA, 0–10 V), digital (RS485, pulse), and fieldbus inputs from non-SDL analyzers, with protocol mapping handled via configurable function blocks.
