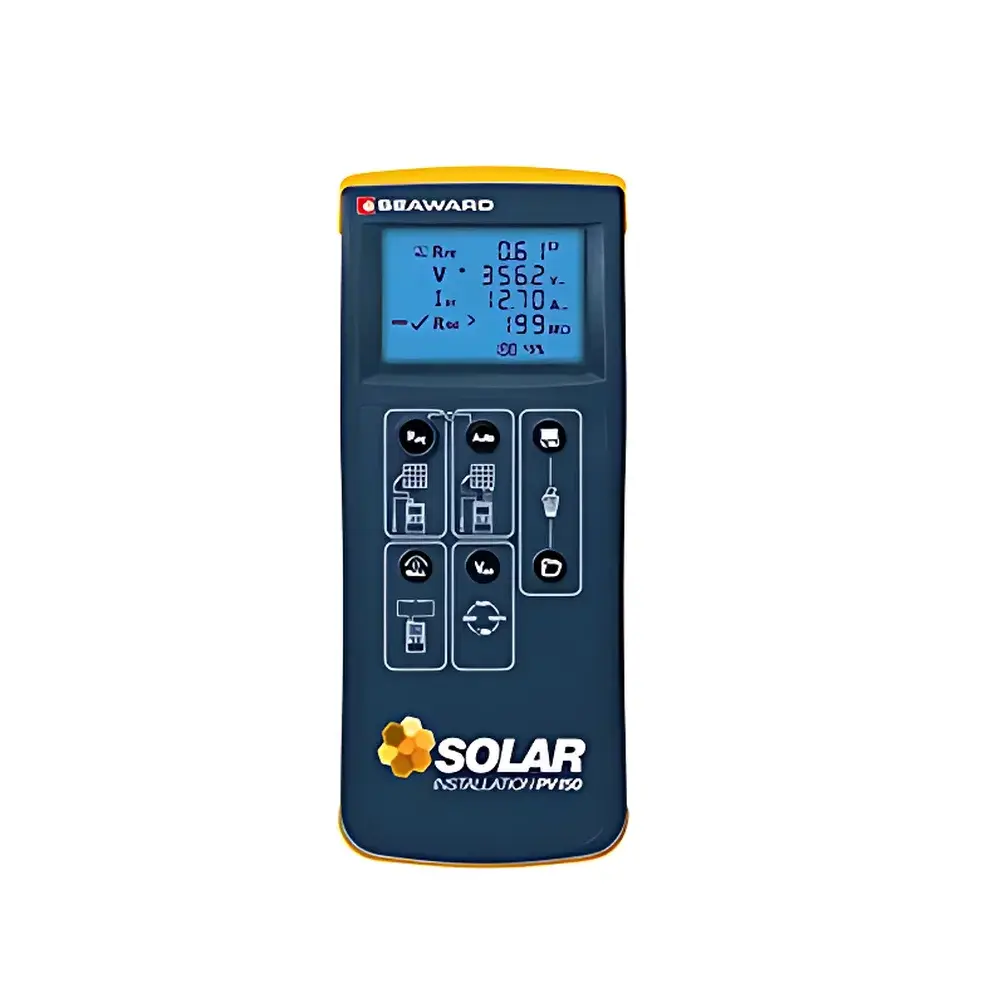

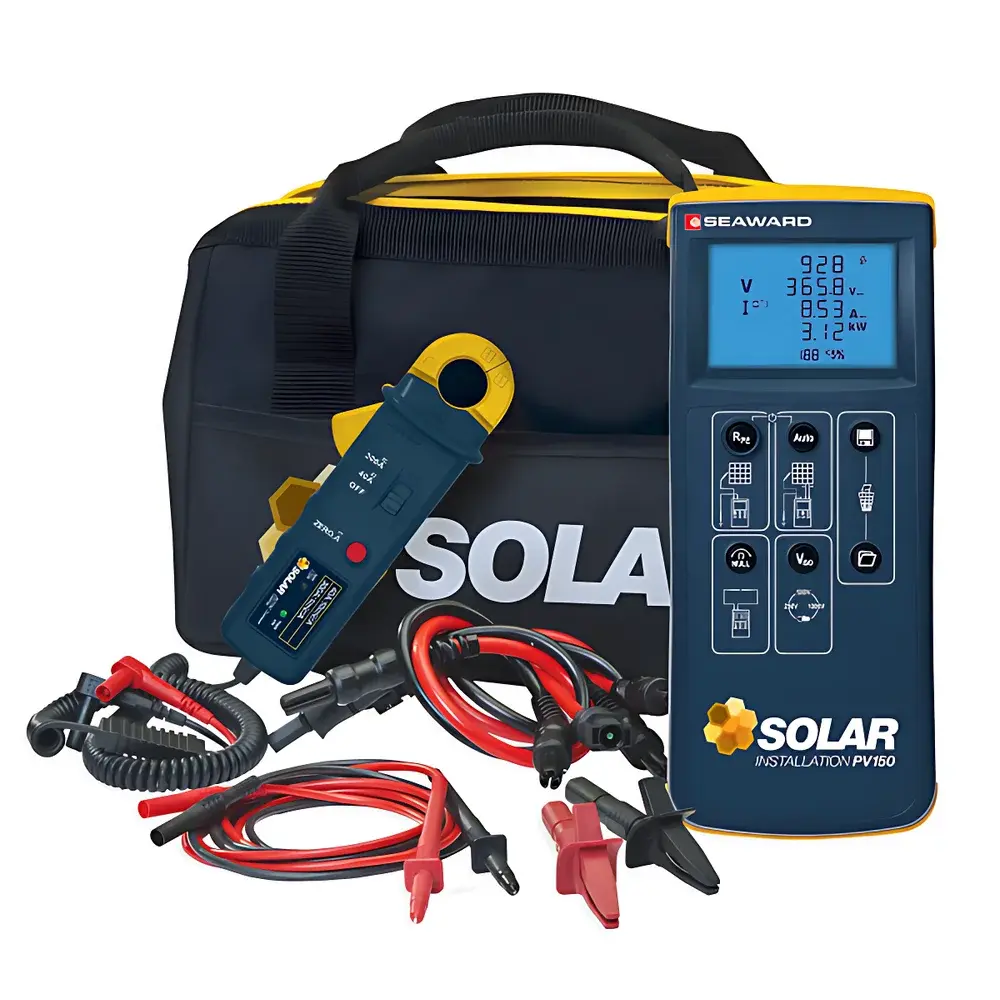

Seaward PV150 Portable Photovoltaic Installation Tester

Overview

The Seaward PV150 is a fully automatic, handheld photovoltaic (PV) commissioning and verification instrument engineered for rapid, field-deployable electrical safety and performance validation of grid-connected solar installations. Unlike conventional multimeters or standalone insulation testers, the PV150 integrates multiple IEC 62446-compliant measurement functions—including open-circuit voltage (V_OC), short-circuit current (I_SC), insulation resistance (IR), continuity of protective conductors (R_PE), and earth bond resistance—into a single, ruggedized platform. Its architecture is based on true RMS DC measurement circuits with Class 1 accuracy per IEC 61000-4-30, enabling reliable characterization under real-world irradiance and temperature gradients. Designed specifically for installers, auditors, and independent inspectors, the PV150 supports pre-energization checks as well as live-array diagnostics without requiring system shutdown—ensuring compliance with both technical and regulatory requirements prior to grid handover.

Key Features

• Fully automated one-button test sequence for V_OC, I_SC, IR, R_PE, and earth bond resistance—reducing operator error and field time by up to 60% versus manual multi-instrument workflows.
• Integrated CAT III 1500 V DC safety-rated input circuitry, certified to EN 61010-1, supporting safe measurements on energized strings up to 1500 V DC without external isolation.
• Onboard memory stores up to 200 complete test records with timestamp, GPS-assisted location tagging (optional), and full parameter logging—including measured irradiance, ambient temperature, and module backsheet temperature when paired with the Solar Survey 200R sensor module.
• USB-C interface for direct data transfer to Windows-based PCs; no proprietary dongles or drivers required.
• Rugged IP54-rated enclosure with reinforced rubber overmold, drop-tested to 1.2 m onto concrete, and operational across –10 °C to +50 °C ambient conditions.
• Preloaded firmware compliant with IEC 62446-1:2023 (system documentation), IEC 62446-3:2022 (periodic inspection), and aligned with UK MCS and German VDE-AR-N 4105 reporting conventions.

Sample Compatibility & Compliance

The PV150 is validated for use across crystalline silicon (c-Si), thin-film (CIGS, CdTe), and bifacial PV modules operating within standard commercial and utility-scale voltage classes (up to 1500 V DC). It supports string-level testing of mono- and poly-crystalline arrays with nominal power ratings from 1 kWp to 5 MWp. All measurement protocols adhere to IEC 62446-1 Annex A (commissioning checklist), IEC 62446-3 Annex B (insulation resistance pass/fail thresholds), and EN 50530 (efficiency measurement methodology). The instrument’s calibration traceability is maintained to UKAS-accredited standards (ISO/IEC 17025), with optional factory recalibration certificates available upon request. It meets electromagnetic compatibility requirements per EN 61000-6-3 (emission) and EN 61000-6-2 (immunity), ensuring stable operation in electrically noisy substation or rooftop environments.

Software & Data Management

Test data export is natively supported via Seaward’s SolarCert v4.x software suite—a Windows desktop application designed for professional PV report generation and audit readiness. SolarCert enables automated report compilation in PDF and Excel formats, including annotated I-V curve overlays, pass/fail status flags against IEC 62446 thresholds, and customizable client branding. All exported reports include embedded digital signatures, tamper-evident hash verification, and full audit trails meeting GLP-aligned documentation requirements. The software supports batch import of multiple PV150 datasets, cross-referencing of string IDs with GIS coordinates, and integration with third-party SCADA platforms via CSV/XML schema export. Firmware updates and configuration templates are delivered through the SolarCert update manager—no internet connection required during field deployment.

Applications

• Pre-commissioning verification of new residential, commercial, and utility-scale PV systems prior to grid interconnection.
• Periodic maintenance inspections mandated under IEC 62446-3 and national grid codes (e.g., UK G99, Germany EEG).
• Third-party technical due diligence for solar asset acquisition and financing (PPA, EPC, O&M contracts).
• Root-cause analysis of underperformance—correlating IR degradation, ground fault leakage, and thermal mismatch using synchronized environmental data from Solar Survey 200R.
• Training and certification delivery for MCS, NABCEP, and VDE-certified installers—leveraging built-in test simulation modes and instructor-guided workflow prompts.

FAQ

Does the PV150 require external power sources or batteries for operation?
No—the PV150 operates exclusively on its internal rechargeable Li-ion battery (12 h typical runtime), eliminating dependency on vehicle power or AC adapters in remote or rooftop locations.
Can the PV150 measure I-V curves or perform maximum power point tracking (MPPT)?
No—it is not an I-V curve tracer; it measures discrete electrical parameters at open-circuit and short-circuit conditions only. For full I-V characterization, Seaward recommends pairing with the PV100 or PV200 series tracers.
Is SolarCert software included with the instrument purchase?
Yes—SolarCert v4.x is provided at no additional cost with every PV150 unit, including lifetime minor-version updates and access to Seaward’s online knowledge base and video training library.
How is calibration maintained over time?
The PV150 includes a 12-month calibration certificate traceable to NPL (UK National Physical Laboratory); annual recalibration is recommended and can be performed by Seaward’s UK service center or authorized partners worldwide.
Does the PV150 support wireless data transmission to cloud platforms?
Not natively—the device uses USB-C for local data transfer only. Cloud upload requires intermediate PC-based processing via SolarCert, ensuring data integrity and regulatory compliance for auditable records.
