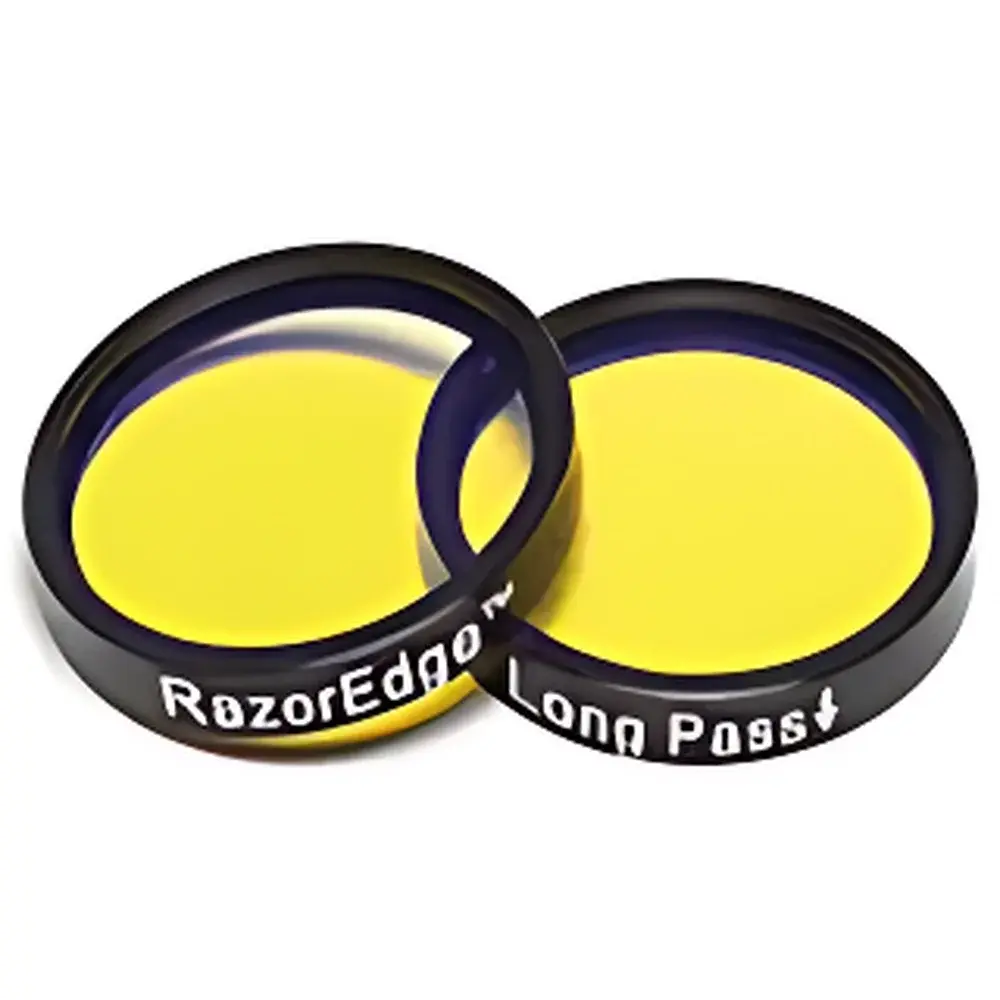

Semrock RazorEdge® Raman Edge Filters
| Brand | Semrock |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model Series | RazorEdge® / EdgeBasic™ |
| Warranty | 5 Years |
| Lead Time for Custom Orders | 7 Days |
Overview
Semrock RazorEdge® Raman Edge Filters are high-performance, hard-coated optical interference filters engineered specifically for demanding Raman spectroscopy applications. These edge filters operate on the principle of steep spectral transition between high transmission (passband) and deep blocking (stopband), enabling efficient rejection of intense Rayleigh-scattered laser light while preserving weak Raman signals adjacent to the excitation wavelength. Designed using ion-beam sputtering (IBS) deposition technology, each filter exhibits exceptional environmental stability, minimal thermal drift, and long-term spectral fidelity—critical attributes for quantitative Raman intensity measurements and reproducible instrument calibration across laboratory and industrial settings.
Key Features
- Ultra-steep edge transition: <1% 10–90% edge width relative to cut-on/cut-off wavelength, ensuring precise separation of Rayleigh and Raman bands
- Hard-coated dielectric multilayer architecture: Resistant to humidity, abrasion, and thermal cycling; no epoxy or soft coatings that degrade under laser exposure
- High optical density (>OD6) in the blocking region: Effective suppression of laser leakage down to <10⁻⁶ of incident intensity
- Low wavefront distortion (<λ/4 @ 633 nm): Maintains beam collimation and spatial coherence for confocal and micro-Raman systems
- Available in Long-Wave Pass (LWP), Short-Wave Pass (SWP), and Dichroic Beamsplitter configurations to support diverse optical layouts
- Standard 25 mm diameter, 1.1 mm thickness substrates (fused silica); custom sizes and mounting options available upon request
Sample Compatibility & Compliance
RazorEdge® Raman Edge Filters are compatible with all major continuous-wave (CW) and pulsed laser sources used in benchtop, portable, and OEM-integrated Raman systems—including 405 nm, 458 nm, 488 nm, 532 nm, 633 nm, 785 nm, 830 nm, 1064 nm, and 1319 nm excitation wavelengths. The filters meet stringent requirements for ISO 10110-7 surface quality (scratch-dig 10–5), spectral uniformity across aperture (±0.5 nm center wavelength tolerance), and laser-induced damage threshold (LIDT) >500 MW/cm² for nanosecond pulses at 532 nm. They are routinely deployed in GLP-compliant analytical laboratories and support traceable calibration protocols aligned with ASTM E1840 and IEC 61223-3-5 standards for optical performance verification.
Software & Data Management
While inherently passive optical components, RazorEdge® filters integrate seamlessly into spectrometer control ecosystems via standardized mechanical mounting (C-mount, SM1-threaded, or kinematic mounts) and require no firmware or driver installation. Spectral transmission data (CSV and SDF formats) are provided with each filter batch for import into instrument calibration software such as OceanView, LabVIEW-based DAQ platforms, or Python-based analysis pipelines (e.g., using NumPy and SciPy). For regulated environments, full traceability documentation—including lot-specific spectral scans, coating process logs, and ISO/IEC 17025-accredited test reports—is available upon order. Filters support audit-ready workflows compliant with FDA 21 CFR Part 11 when paired with validated spectrometer control software featuring electronic signatures and change control logging.
Applications
- Confocal Raman microscopy for pharmaceutical polymorph identification and crystallinity mapping
- Process analytical technology (PAT) in bioreactor monitoring and API crystallization control
- Standoff detection of explosives, narcotics, and hazardous chemicals using 785 nm or 1064 nm systems
- Microplastic identification in environmental water samples via fingerprint Raman band analysis
- Carbon nanotube chirality assignment using resonant Raman scattering at multiple excitation wavelengths
- OEM integration into handheld Raman analyzers, LIBS-Raman hybrid platforms, and fiber-coupled probe systems
FAQ
What is the difference between RazorEdge® and EdgeBasic™ filter series?
RazorEdge® filters deliver the steepest edge transitions and highest blocking (OD6–OD8), optimized for high-sensitivity Raman applications. EdgeBasic™ provides a cost-effective alternative with slightly broader transition widths and OD4–OD6 blocking, suitable for educational or routine QC setups.
Can these filters be used with femtosecond lasers?
Yes—RazorEdge® filters are qualified for use with ultrafast lasers up to 100 MHz repetition rate and pulse durations ≥100 fs, provided average power density remains below 1 W/cm² and peak fluence stays within LIDT specifications.
Do you offer custom center wavelengths or substrate materials?
Yes—custom designs including non-standard cut-on wavelengths, alternate substrates (CaF₂, sapphire), AR-coated back surfaces, and wedge-compensated variants are available with a typical lead time of 7 business days.
How should RazorEdge® filters be cleaned and handled?
Use only spectroscopic-grade solvents (e.g., acetone followed by methanol) and lint-free optical wipes. Avoid ultrasonic cleaning or contact with abrasive materials. Mounting should be performed in a Class 1000 cleanroom environment to prevent particle-induced scattering.
Is spectral certification included with every filter?
Yes—each filter ships with a NIST-traceable spectral transmission report measured on a calibrated PerkinElmer Lambda 1050+ spectrophotometer, including passband flatness, edge steepness, and blocking depth metrics.
