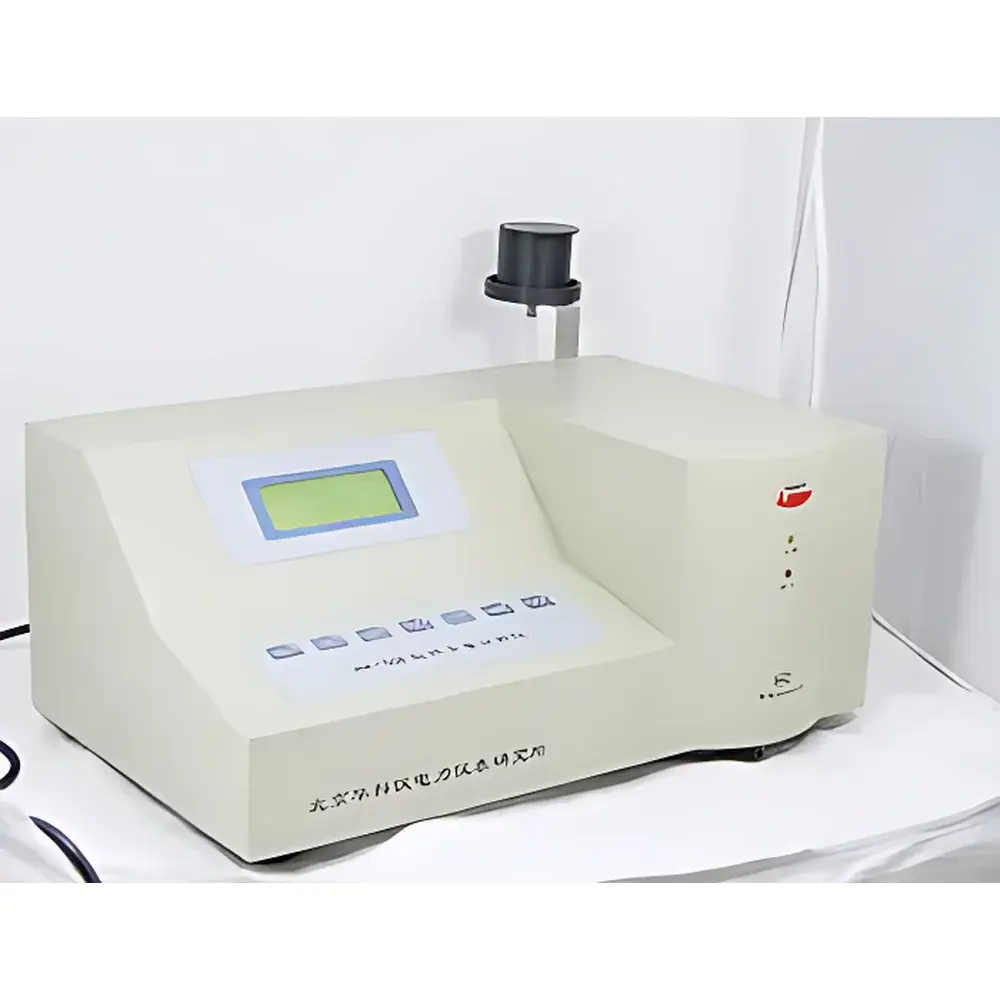

SENHK-508 Iron Content Analyzer

Overview

The SENHK-508 Iron Content Analyzer is a benchtop photometric analyzer engineered for trace-level quantification of dissolved iron (Fe²⁺/Fe³⁺) in ultrapure water, boiler feedwater, condensate, and demineralized process streams. It operates on the principle of visible-light absorbance photometry—specifically optimized at a fixed wavelength where iron-complexed chromophores exhibit maximal molar absorptivity. Unlike conventional colorimetric systems requiring reagent-based derivatization (e.g., phenanthroline or ferrozine), the SENHK-508 employs a reagent-free calibration methodology using blank water as the sole reference standard. This design eliminates chemical handling, reduces consumable dependency, and minimizes interferences from residual reagents or matrix effects—making it particularly suitable for continuous monitoring in power generation, semiconductor ultrapure water (UPW) loops, and pharmaceutical water-for-injection (WFI) distribution systems.

Key Features

• Fixed-wavelength photometric detection using a U.S.-sourced monochromatic LED light source—ensuring spectral purity, low thermal drift, and long-term intensity stability (typical lifetime >50,000 hours)
• High-sensitivity silicon photodiode detector with U.S.-imported signal conditioning circuitry—delivering consistent linearity and low-noise analog-to-digital conversion across the full 0–200 µg/L range
• Integrated 128×64 dot-matrix LCD with native Chinese character support—displaying real-time concentration, status flags, calibration prompts, and system diagnostics without external software
• Reagent-free zero calibration protocol—performed exclusively with certified blank water (resistivity ≥18.2 MΩ·cm), eliminating operator-dependent chemistry preparation and reducing calibration time to under 90 seconds
• Multi-point curve calibration capability (up to 6 user-defined standards)—enabling non-linear response compensation and extended accuracy retention across the entire measurement span
• Role-based access control with configurable password protection—restricting calibration, parameter modification, and data deletion functions to authorized personnel only
• Onboard 6-channel data logger—storing timestamped concentration values with automatic overwrite cycling; supports manual recall, export via USB (optional firmware upgrade), and chronological filtering

Sample Compatibility & Compliance

The SENHK-508 is validated for use with low-conductivity aqueous matrices having total organic carbon (TOC) < 50 ppb and silica < 10 ppb. It is not intended for turbid, colored, or highly oxidizing samples without prior filtration (0.45 µm membrane) and reduction pretreatment. While not certified to ISO/IEC 17025 or ASTM D1066, its performance specifications align with routine monitoring requirements outlined in ASTM D859 (Standard Test Method for Silica in Water) and EP 2.2.42 (European Pharmacopoeia chapter on elemental impurities in purified water). The instrument’s electrical design complies with IEC 61010-1:2010 for laboratory equipment safety, and its enclosure meets IP20 ingress protection rating for indoor dry environments.

Software & Data Management

All operational logic and data handling occur within the embedded firmware—no PC dependency is required for basic operation or calibration. The device stores up to six independent calibration curves, each associated with a unique identifier and date/time stamp. Historical readings include UTC timestamp, measured value (µg/L), and status code (e.g., “CAL_OK”, “LOW_SIGNAL”, “TEMP_WARN”). Optional firmware version 2.3+ enables USB Mass Storage Mode for CSV-formatted data export, supporting integration into LIMS or SCADA platforms. Audit trail functionality records all critical events—including calibration initiation, parameter changes, and password resets—with immutable timestamps (non-editable, non-deletable), satisfying foundational GLP documentation expectations per FDA 21 CFR Part 11 Annex A guidelines.

Applications

• Real-time iron monitoring in high-pressure boiler feedwater circuits to prevent magnetite scaling and flow-accelerated corrosion (FAC)
• Final quality verification of ultrapure water in semiconductor fab UPW sub-loops prior to wafer rinsing
• Periodic verification of iron leaching from stainless steel piping and storage tanks in pharmaceutical WFI systems
• Performance validation of iron-removal ion exchange resins and electro-deionization (EDI) modules
• Field-based compliance checks against internal QA limits (e.g., ≤10 µg/L for Class I steam generators per ASME B31.1)

FAQ

Does the SENHK-508 require chemical reagents for routine operation?

No. It uses a reagent-free calibration method based on blank water only. No chromogenic agents, buffers, or reducing agents are needed during daily use.
Can the instrument measure particulate or colloidal iron?

No. It measures only dissolved (filterable) iron species. Samples must be filtered through a 0.45 µm membrane prior to analysis to exclude suspended iron oxides or hydroxides.
Is temperature compensation automatic?

Yes. An integrated NTC thermistor continuously monitors sample chamber temperature and applies algorithmic correction to absorbance readings between 5–45 °C.
What is the recommended calibration frequency?

For critical applications (e.g., pharmaceutical WFI), daily zero calibration is advised. Multi-point calibration is recommended weekly or after maintenance, sensor cleaning, or environmental relocation.
Does the device support RS-485 or 4–20 mA output?

Not by default. Analog or serial communication interfaces require optional hardware modules ordered separately (e.g., SENHK-508-IO-420 for 4–20 mA loop output).
